FL03000114
Loose flange DN200 PN10 EN1092-1 02 A 1.4541
- Lead time
- 3 - 5 working days
Equipment
joint set flange/flange DN200 - 8" Inch for flange PN10 stainless steel
€25.70 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads

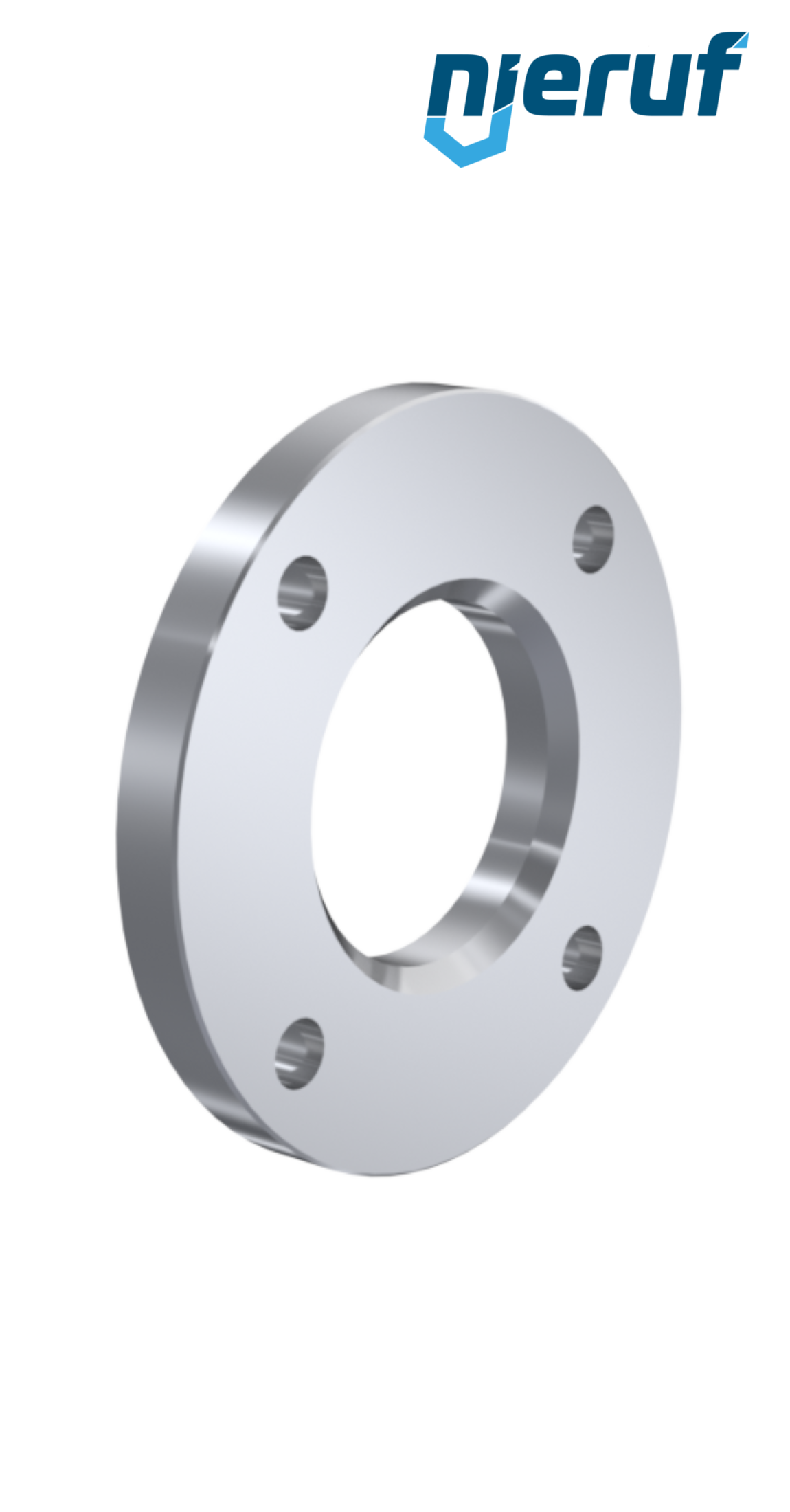

Loose flange DN200 PN10 EN1092-1 02 A 1.4541
Loose flange made of stainless steel 1.4541 DN200 flange according DIN PN10 EN1092-1 Typ 02 A
| product | Loose flange |
|---|---|
| type | FL03 |
| manufacturer | NieRuf |
| diameter | DN200 |
| connection | PN10 |
| material | stainless steel |
| material nr. | 1.4541 |
| norm | EN1092-1 |
| norm-type | 02 |
| surface | A |

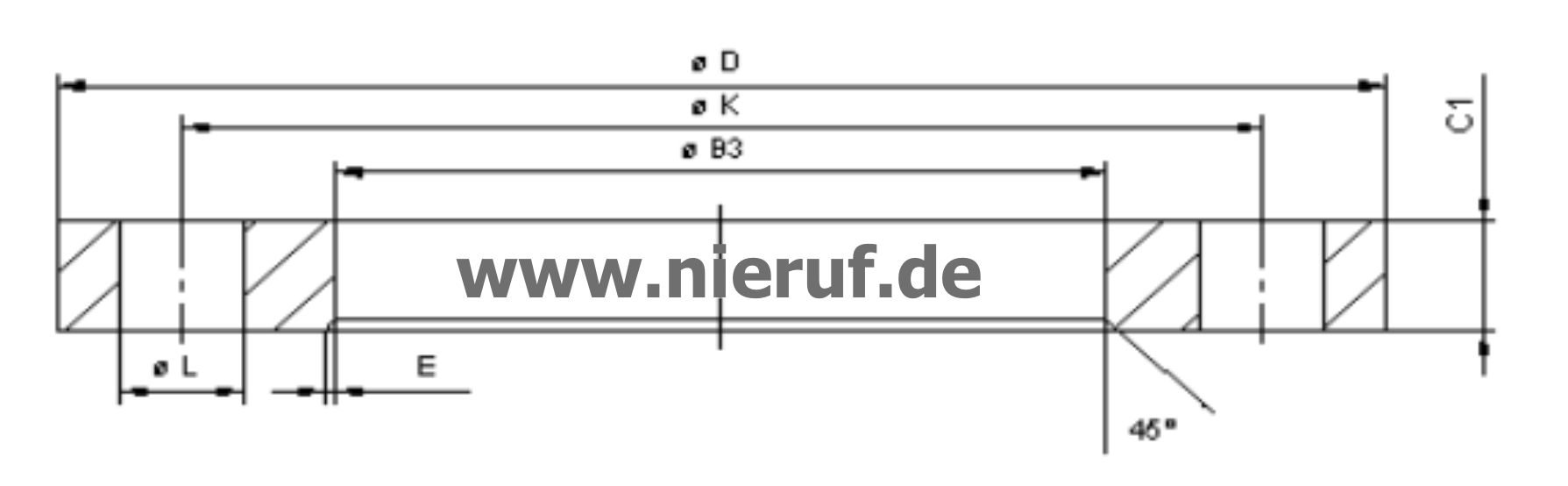

| Design | Loose flange |
| B3 | 226 |
| D | 340 |
| C1 | 24 |
| K | 295 |
| E | 6 |
| screw | M20 |
| Qty. Screws | 8 |
| L | 22 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Loose flange DN200 PN10 EN1092-1 02 A 1.4541
Article no.
: FL03000114
product:
Loose flange
type:
FL03
manufacturer:
NieRuf
diameter:
DN200
connection:
PN10
material:
stainless steel
material nr.:
1.4541
norm:
EN1092-1
norm-type:
02
surface:
A
Design:
Loose flange
B3:
226
D:
340
C1:
24
K:
295
E:
6
screw:
M20
Qty. Screws:
8
L:
22
Equipment
joint set flange/flange DN200 - 8" Inch for flange PN10 stainless steel
