FL03000104
Loose flange DN20 PN10/16/25/40 EN1092-1 02 A 1.4541
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads

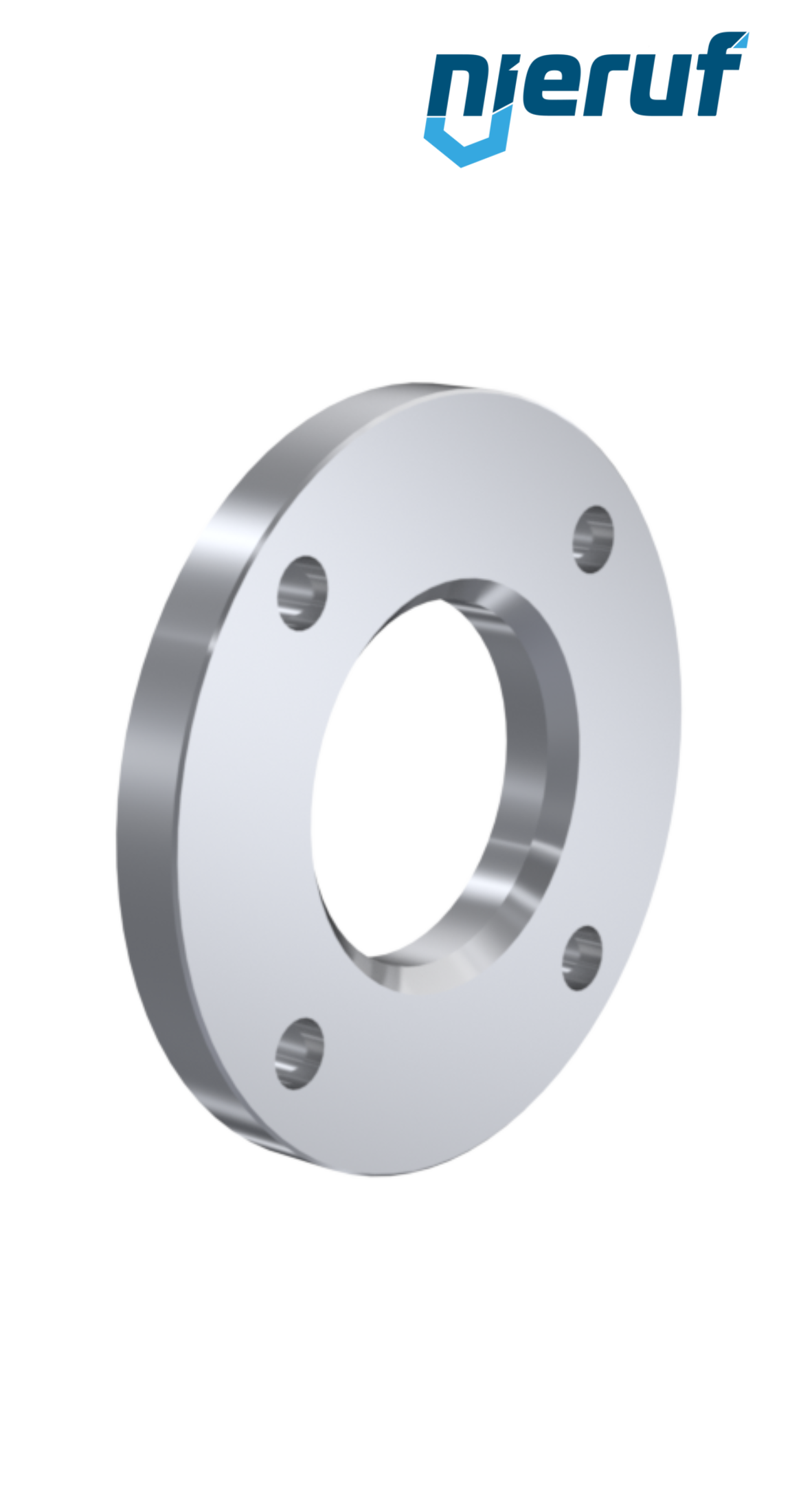

Loose flange DN20 PN10/16/25/40 EN1092-1 02 A 1.4541
Loose flange made of stainless steel 1.4541 DN20 flange according DIN PN10/16/25/40 EN1092-1 Typ 02 A
| product | Loose flange |
|---|---|
| type | FL03 |
| manufacturer | NieRuf |
| diameter | DN20 |
| connection | PN10/16/25/40 |
| material | stainless steel |
| material nr. | 1.4541 |
| norm | EN1092-1 |
| norm-type | 02 |
| surface | A |
| Design | Loose flange |

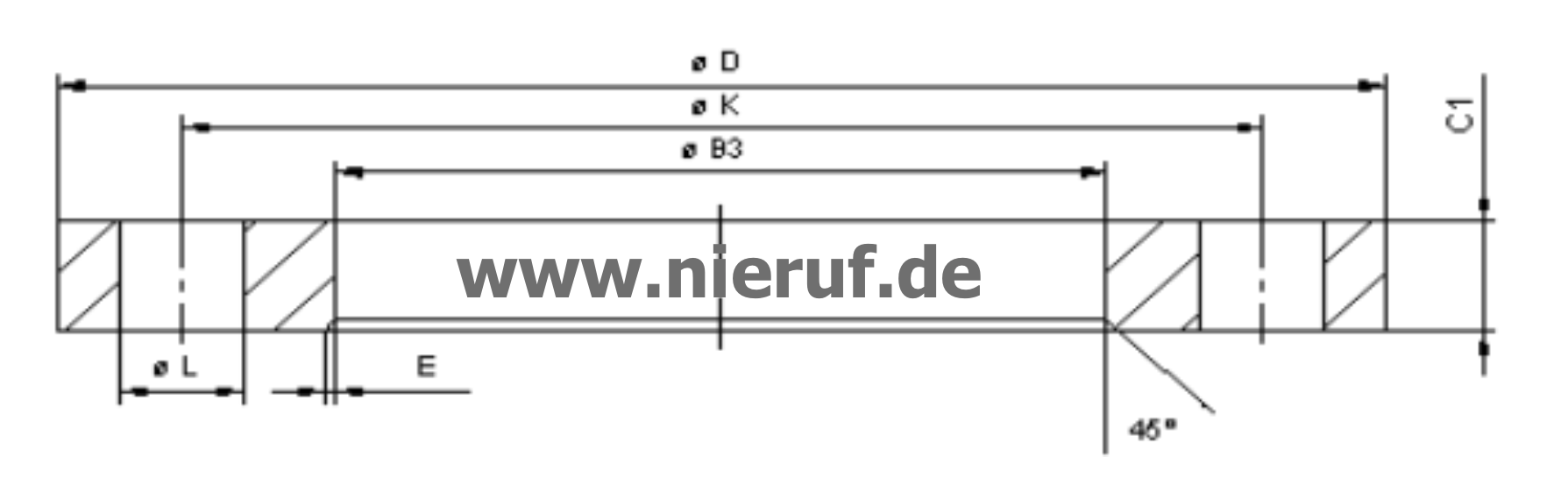

| B3 | 31 |
| D | 105 |
| C1 | 16 |
| K | 75 |
| E | 4 |
| screw | M12 |
| Qty. Screws | 4 |
| L | 14 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Loose flange DN20 PN10/16/25/40 EN1092-1 02 A 1.4541
Article no.
: FL03000104
product:
Loose flange
type:
FL03
manufacturer:
NieRuf
diameter:
DN20
connection:
PN10/16/25/40
material:
stainless steel
material nr.:
1.4541
norm:
EN1092-1
norm-type:
02
surface:
A
Design:
Loose flange
B3:
31
D:
105
C1:
16
K:
75
E:
4
screw:
M12
Qty. Screws:
4
L:
14
