EK07010004
compact-automatic-flange ball valve DN20 EK07 110-240V
- Lead time
- 3 - 5 working days
Equipment
joint set flange/flange DN20 - 3/4" Inch for flange PN10/16/25/40 stainless steel
€4.28 VAT included.
flange seal DN20 PN10/16/25/40 27x61x2 Klingersil C 4400
€2.14 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
compact-automatic-flange ball valve DN20 EK07 110-240V

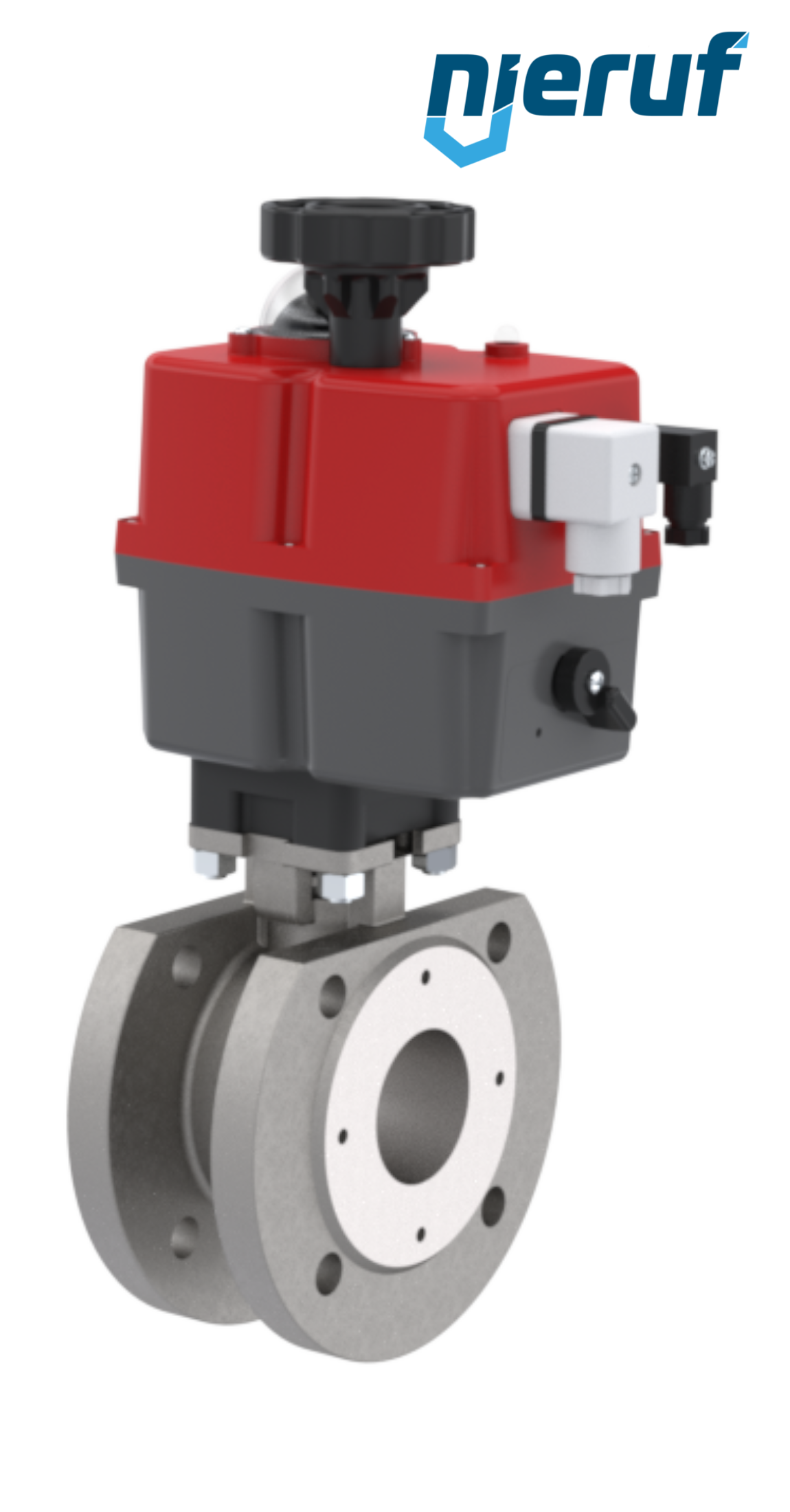

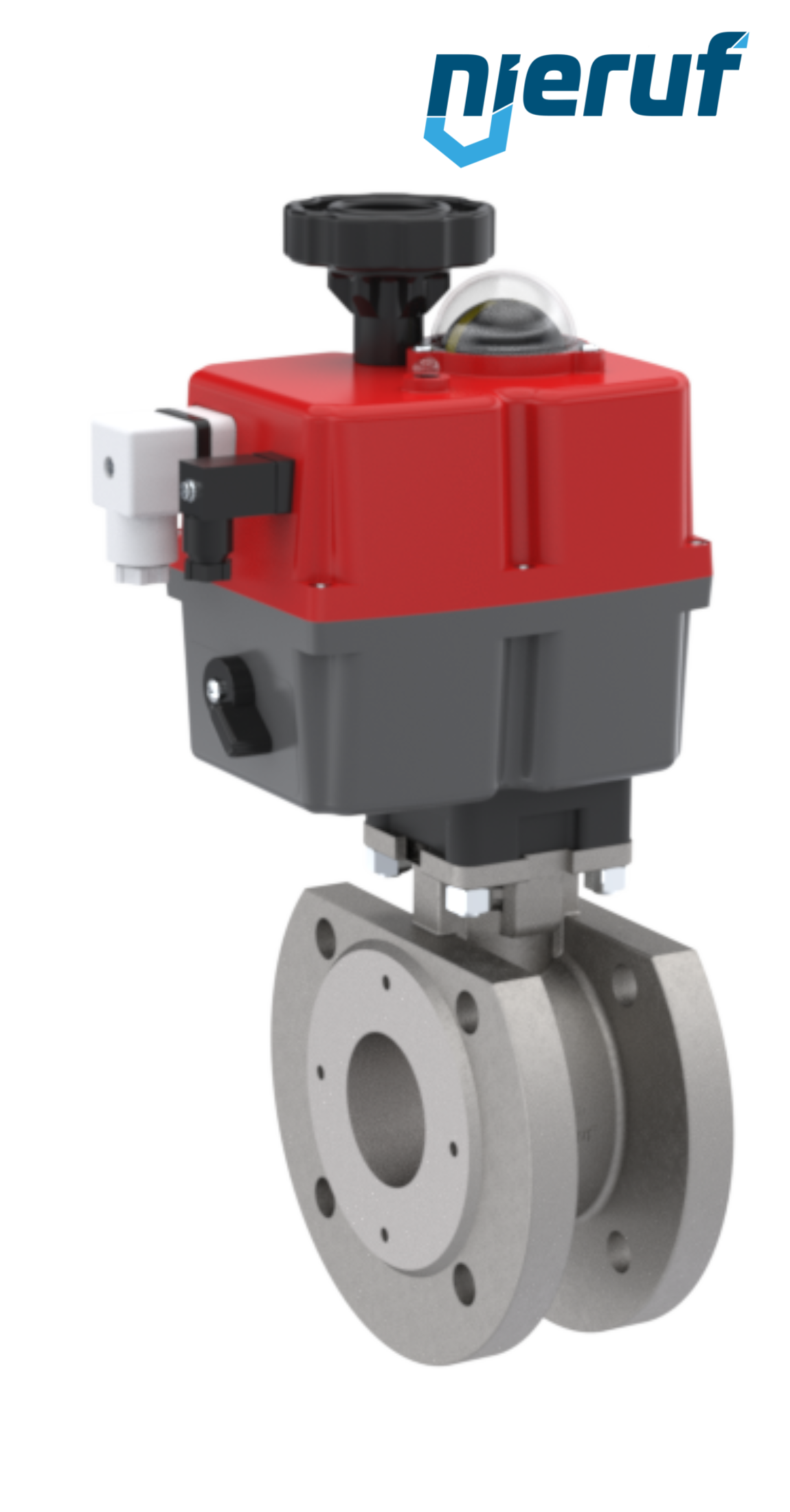

compact-automatic-flange ball valve DN20 stainless steel 1.4408 EK07 electronic actuator J10H - series H (high voltage) for 110-240V AC/DC
| product | compact-automatic-flange ball valve |
|---|---|
| type | EK07 |
| manufacturer | NieRuf |
| diameter | DN20 |
| connection | flange dimensions acc. DIN EN 1092-2 PN 16 |
| Seal steam | Viton |
| media | liquid and gaseous media |
| temperature | ball valve -29°C up to +200°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C |
| max. pressure | PN16 |
| design | flange ball valve with Wafer-design |
| body material | stainless steel 1.4408 |
| ball material | stainless steel 1.4408 |
| ball seal | PTFE / TFM |
| length | 44mm |
| actuator | electronic actuator J10H - series H (high voltage) for 100-240V AC/DC |
| actuator informations | corrosion resistant synthetic body |
| installation position | any position, not upside down |
| authorized for | TA Luft |
| product description | This high quality automatic-flange stainless steel ball valve (Wafer-design) with electronic actuator (series H = high voltage) with visual position indicator and emergency operating. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
compact-automatic-flange ball valve DN20 EK07 110-240V
Article no.
: EK07010004
product:
compact-automatic-flange ball valve
type:
EK07
manufacturer:
NieRuf
diameter:
DN20
connection:
flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam:
Viton
media:
liquid and gaseous media
temperature:
ball valve -29°C up to +200°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure:
PN16
design:
flange ball valve with Wafer-design
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4408
ball seal:
PTFE / TFM
length:
44mm
actuator:
electronic actuator J10H - series H (high voltage) for 100-240V AC/DC
actuator informations:
corrosion resistant synthetic body
installation position:
any position, not upside down
authorized for:
TA Luft
product description:
This high quality automatic-flange stainless steel ball valve (Wafer-design) with electronic actuator (series H = high voltage) with visual position indicator and emergency operating.
Equipment
flange seal DN20 PN10/16/25/40 27x61x2 Klingersil C 4400
Lead time: in stock
Welding neck flange DN20 PN10/16/25/40 EN1092-1 11 B1 1.4541
Lead time: in stock
joint set flange/flange DN20 - 3/4" Inch for flange PN10/16/25/40 stainless steel
Lead time: in stock
