SR02000412
Knife gate valve DN 125 SR02 EPDM pneumatic actuation double acting
- Lead time
- 3 - 5 working days
Equipment
flange seal DN125 PN10/16 141x192x2 Klingersil C 4400
€6.55 VAT included.
Inductive sensor NBB4 for pneumatic Knife gate valve Type SR size DN50 to DN150
€159.82 VAT included.
Accessory kit 230V AC compressed air supply for double acting pneumatic knife gate valve TYPE SR DN50-DN300
€157.91 VAT included.
Accessory kit 24V DC compressed air supply for double acting pneumatic knife gate valve TYPE SR DN50-DN300
€157.91 VAT included.
Flange DN125 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
€62.59 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE

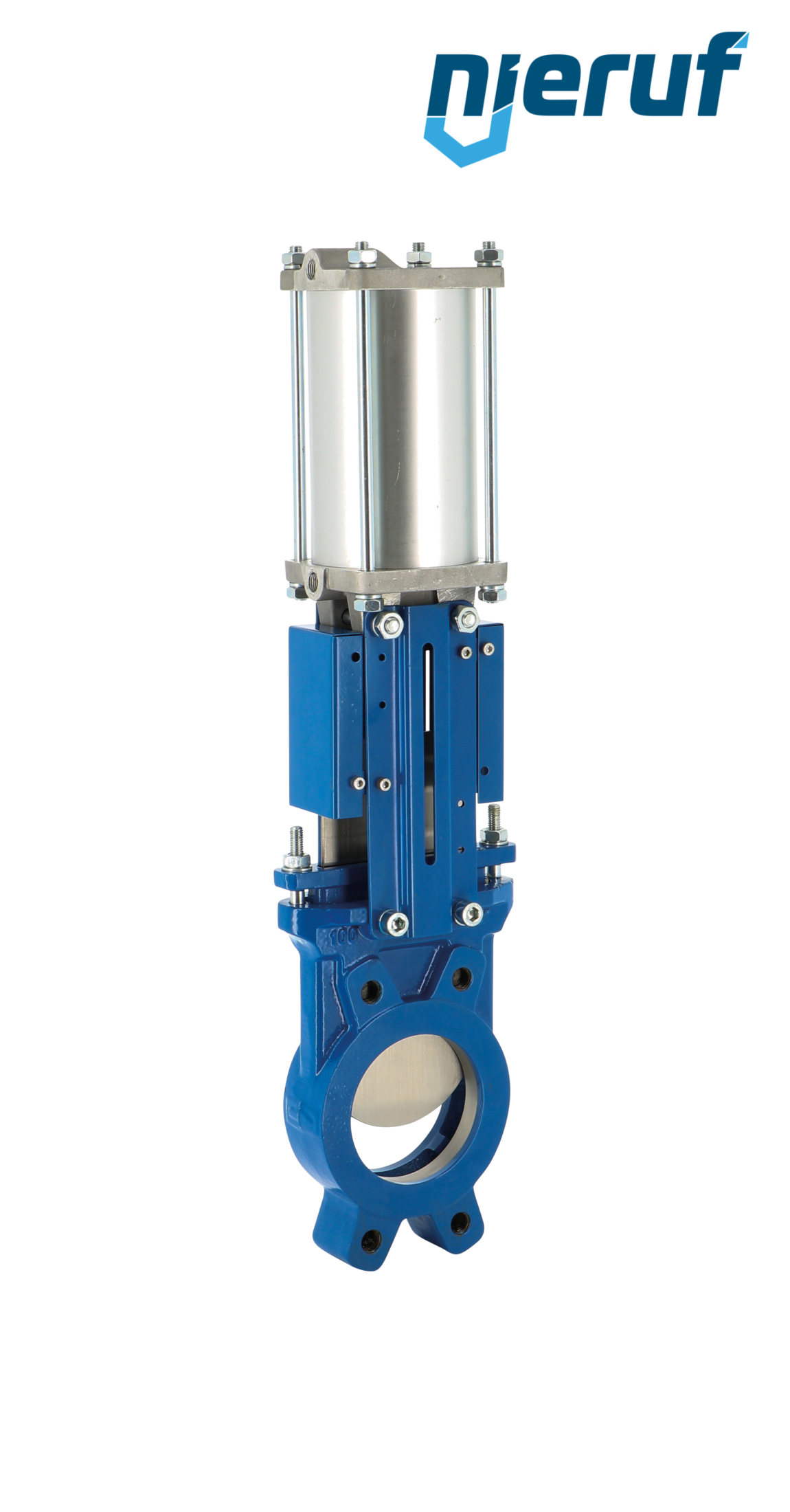

Knife gate valve DN 125 SR02 EPDM pneumatic actuation double acting
Knife gate valve pneumatic actuation double acting DN 125 DIN EN 1092-1 PN10 EPDM made of cast iron EN GJL-250 uni-directional tightness for liquid and gaseous media
| product | Knife gate valve |
|---|---|
| type | SR02 |
| manufacturer | NieRuf |
| diameter | DN 125 |
| nominal pressure | PN10 |
| max pressure | 10 bar |
| flange | DIN EN 1092-1 PN10 |
| seal | EPDM |
| media | liquid and gaseous media |
| temperature | 0°C to +110°C |
| design | uni-directional tightness |
| body material | cast iron EN GJL-250 |
| disc | stainless steel AISI 304 |
| packing | PTFE |
| actuation | pneumatic actuation double acting |
| installation position | standing |
| product feature | Pneumatically operated cast iron slurry gate valve with a unidirectional sealing design. Suitable for handling media such as slurries and dry bulk solids (dusts). |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Knife gate valve DN 125 SR02 EPDM pneumatic actuation double acting
Article no.
: SR02000412
product:
Knife gate valve
type:
SR02
manufacturer:
NieRuf
diameter:
DN 125
nominal pressure:
PN10
max pressure:
10 bar
flange:
DIN EN 1092-1 PN10
seal:
EPDM
media:
liquid and gaseous media
temperature:
0°C to +110°C
design:
uni-directional tightness
body material:
cast iron EN GJL-250
disc:
stainless steel AISI 304
packing:
PTFE
actuation:
pneumatic actuation double acting
installation position:
standing
product feature:
Pneumatically operated cast iron slurry gate valve with a unidirectional sealing design. Suitable for handling media such as slurries and dry bulk solids (dusts).
Equipment
flange seal DN125 PN10/16 141x192x2 Klingersil C 4400
Lead time: in stock
Flange DN125 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
2 pieces position switch FL551 PR04 for pneumatic Knife gate valve Type SR size DN50 to DN150
Lead time: 3 - 5 working days
Inductive sensor NBB4 for pneumatic Knife gate valve Type SR size DN50 to DN150
Lead time: 3 - 5 working days
