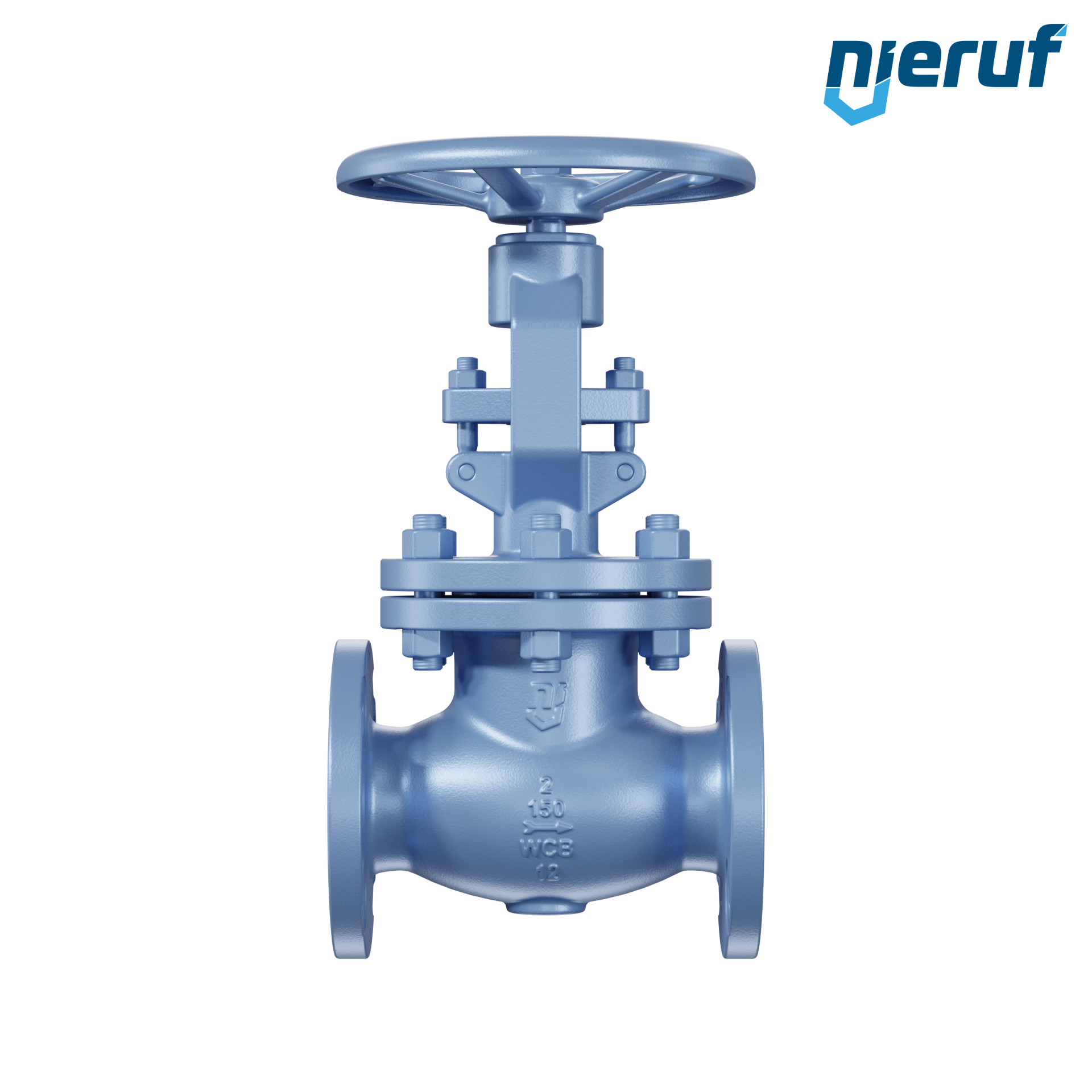

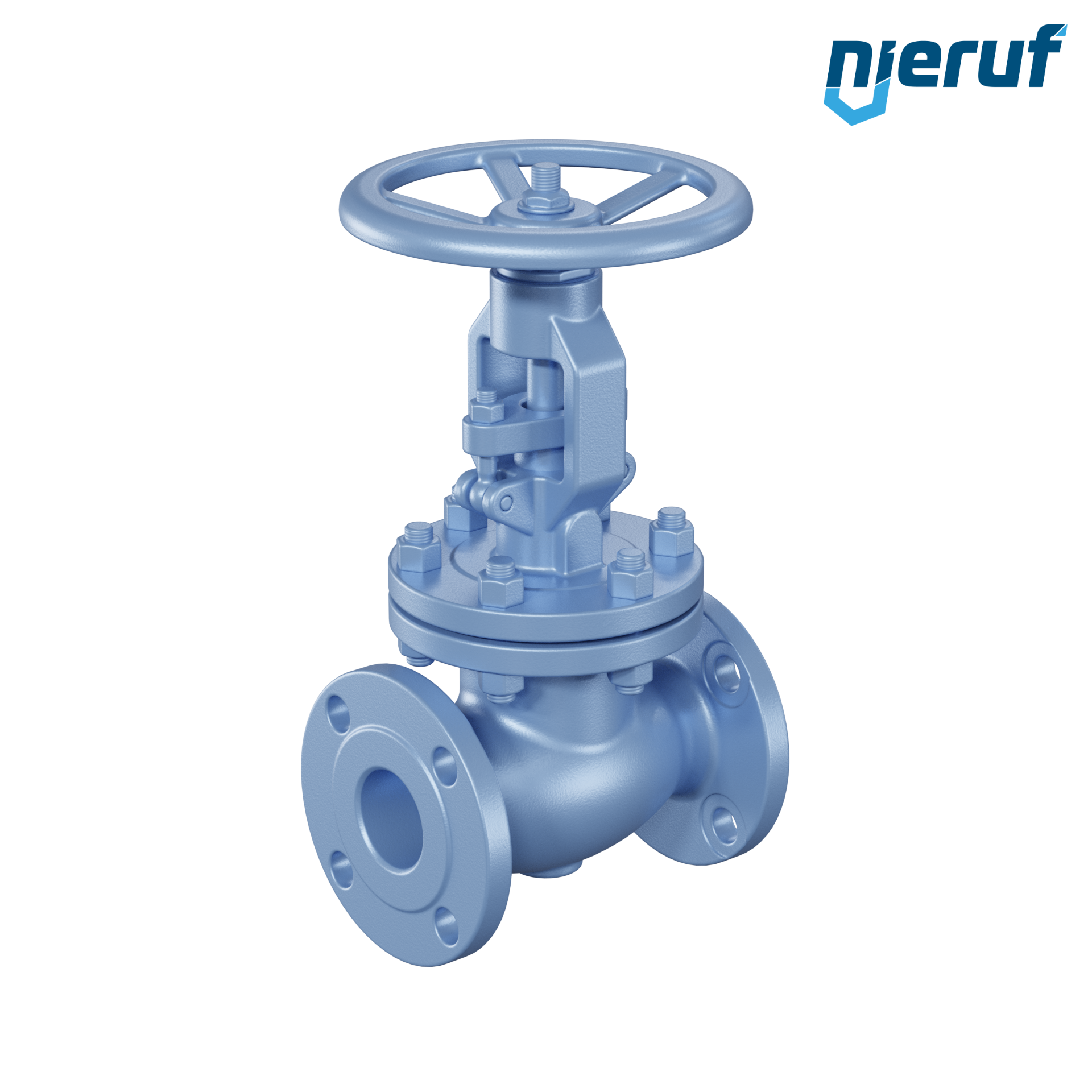

Globe valve DN25 - 1" inch ANSI300 regulation cone in straight through with reduced bore flange acc. ASME B16.5 material steel A105
| product | Globe valve |
|---|---|
| type | AV09 |
| manufacturer | NieRuf |
| diameter | DN25 - 1" inch |
| flange | flange acc. ASME B16.5 |
| pressure | ANSI300 |
| seal | graphite |
| media | liquid and gaseous media |
| temperature | -29°C up to +425°C - depending on working pressure |
| pressure range | 0 up to 51,1 bar - depending on operating temperature |
| design | straight through with reduced bore |
| body material | steel A105 |
| material spindel unit | steel A105 |
| handwheel | carbon steel 1.0036 (rising) |
| plug | regulation cone |
| length | acc ASME B16.10, Tab.1-R15 |
| approval | Final testing according to API 598 |
| authorized for | TA-Luft 2021, ATEX 2014/34/EU |
| installation position | any position, spindle preferably vertical |
| product feature | ANSI globe valve in straight-through design with reduced passage and rising stem as well as rising handwheel. With TA-Luft 2021 and ATEX 2014/34/EU approval. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Globe valve DN25 - 1" inch ANSI300 AV09 steel A105 regulation cone
Article no.
: AV09120005
product:
Globe valve
type:
AV09
manufacturer:
NieRuf
diameter:
DN25 - 1" inch
flange:
flange acc. ASME B16.5
pressure:
ANSI300
seal:
graphite
media:
liquid and gaseous media
temperature:
-29°C up to +425°C - depending on working pressure
pressure range:
0 up to 51,1 bar - depending on operating temperature
design:
straight through with reduced bore
body material:
steel A105
material spindel unit:
steel A105
handwheel:
carbon steel 1.0036 (rising)
plug:
regulation cone
length:
acc ASME B16.10, Tab.1-R15
approval:
Final testing according to API 598
authorized for:
TA-Luft 2021, ATEX 2014/34/EU
installation position:
any position, spindle preferably vertical
product feature:
ANSI globe valve in straight-through design with reduced passage and rising stem as well as rising handwheel. With TA-Luft 2021 and ATEX 2014/34/EU approval.
