AV06020012

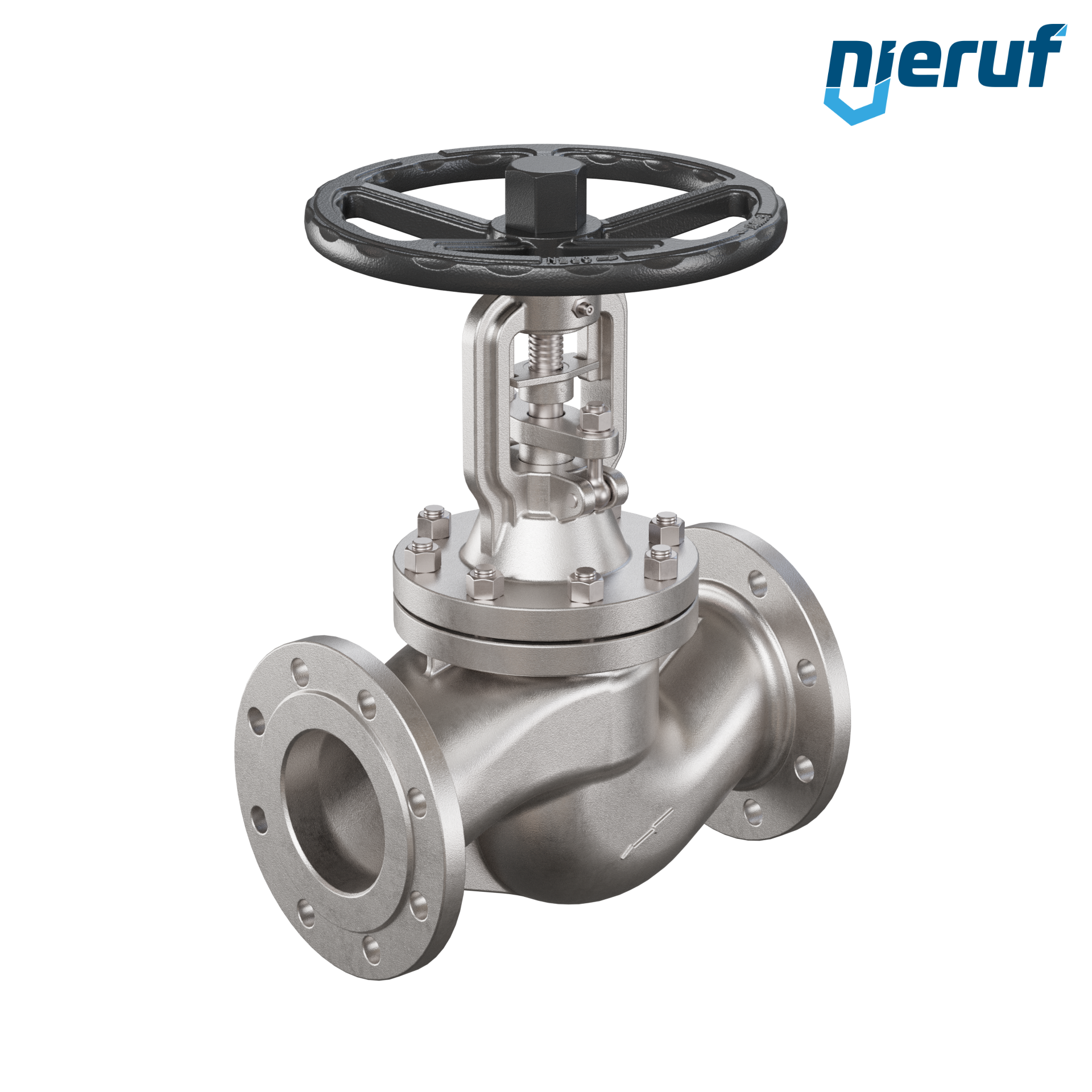

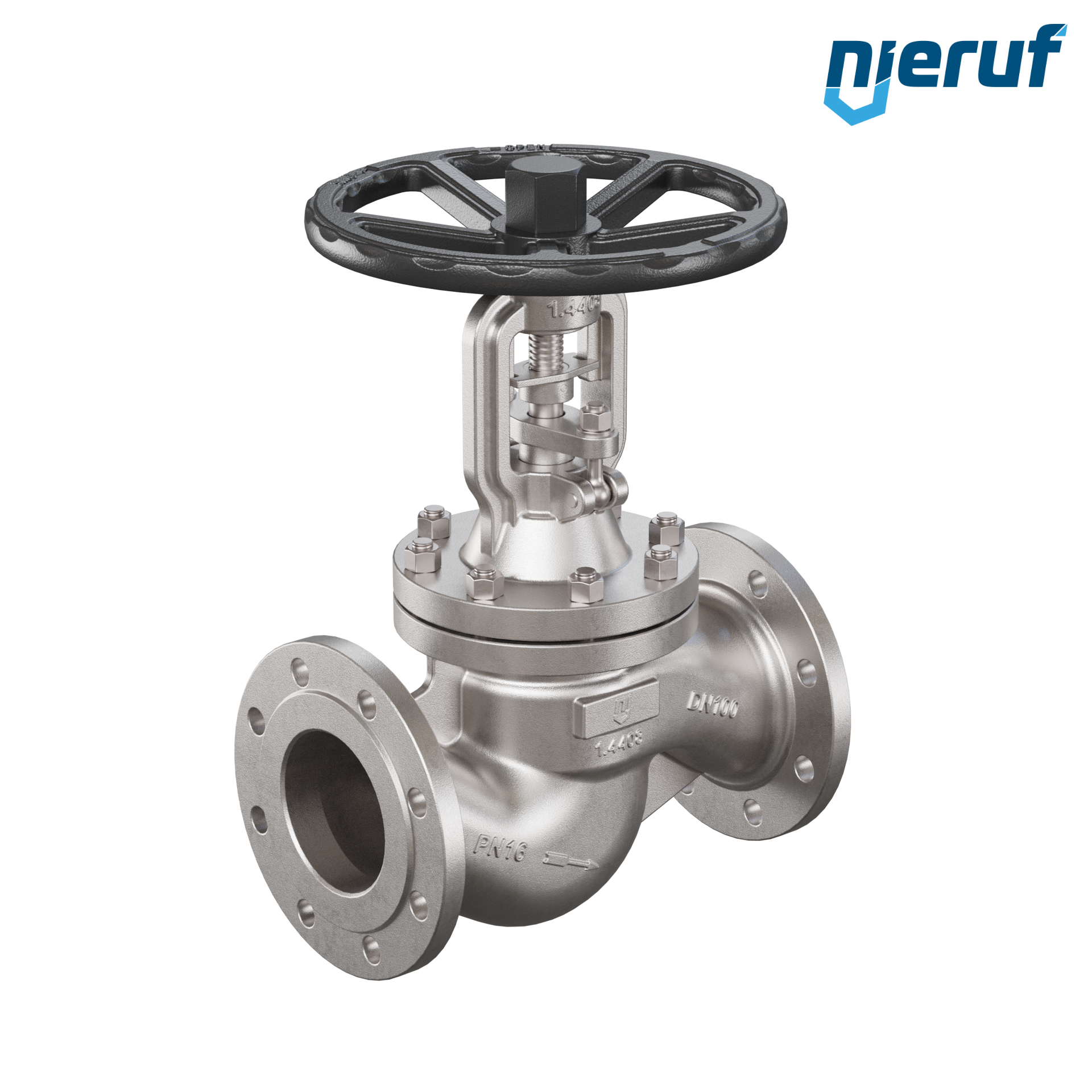

Globe valve with bellows DN125 PN16 AV06 stainless steel 1.4408
- Lead time
- On request
Equipment
flange seal DN125 PN10/16 141x192x2 Klingersil C 4400
€6.55 VAT included.
joint set flange/flange DN125 - 5" Inch for flange PN10/16/25 stainless steel
€16.18 VAT included.
Welding neck flange DN125 PN10/16 EN1092-1 11 B1 1.4541
€112.10 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
Globe valve with bellows DN125 PN16 AV06 stainless steel 1.4408
Globe valve AV06 DN125 PN16 isolation plug in straight through with bellows flange acc. DIN EN 1092 material stainless steel 1.4408 / CF-8M
| product | Globe valve |
|---|---|
| type | AV06 |
| manufacturer | NieRuf |
| diameter | DN125 |
| flange | flange acc. DIN EN 1092 |
| pressure | PN16 |
| seal | graphite |
| media | liquid, gaseous media and steam |
| temperature | -10°C up to +400°C - depending on working pressure |
| pressure range | 0 up to 16 bar - depending on operating temperature |
| length | straight through with bellow |
| body material | stainless steel 1.4408 / CF8M |
| bonnet material | stainless steel 1.4408 / CF8M |
| handwheel | carbon steel 1.0036 (non-rising) |
| plug | isolation plug |
| bellow | stainless steel 1.4401 / 316 |
| face-to-face dimension | acc DIN EN 558-1 series 1 |
| approval | Final testing according to DIN EN 12266 |
| installation position | any position, spindle preferably vertical |
| norm | DIN EN 13709:2010-10 |
| product feature | Globe valve with bellows in straight-through design with flanged connection and rising stem as well as non-rising handwheel. Valve according to TA-Luft 2021. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Globe valve with bellows DN125 PN16 AV06 stainless steel 1.4408
Article no.
: AV06020012
product:
Globe valve
type:
AV06
manufacturer:
NieRuf
diameter:
DN125
flange:
flange acc. DIN EN 1092
pressure:
PN16
seal:
graphite
media:
liquid, gaseous media and steam
temperature:
-10°C up to +400°C - depending on working pressure
pressure range:
0 up to 16 bar - depending on operating temperature
length:
straight through with bellow
body material:
stainless steel 1.4408 / CF8M
bonnet material:
stainless steel 1.4408 / CF8M
handwheel:
carbon steel 1.0036 (non-rising)
plug:
isolation plug
bellow:
stainless steel 1.4401 / 316
face-to-face dimension:
acc DIN EN 558-1 series 1
approval:
Final testing according to DIN EN 12266
installation position:
any position, spindle preferably vertical
norm:
DIN EN 13709:2010-10
product feature:
Globe valve with bellows in straight-through design with flanged connection and rising stem as well as non-rising handwheel. Valve according to TA-Luft 2021.
Equipment
flange seal DN125 PN10/16 141x192x2 Klingersil C 4400
Lead time: in stock
Welding neck flange DN125 PN10/16 EN1092-1 11 B1 1.4541
Lead time: in stock
joint set flange/flange DN125 - 5" Inch for flange PN10/16/25 stainless steel
Lead time: in stock
