Flange-pressure reducing valve DN20 DM13 flange ANSI 150 stainless steel FPM / FKM 1.5 - 6.0 bar

DM13000104
quantity (pcs.):
808.00€ * 937.28€ incl. VAT
*Price plus VAT and shipping costs

Warranty: NieRuf-Garantie: Gilt bei sachgemäßer Verwendung für alle Mängel am Produkt, die Sie nicht selbst verschuldet haben. Gilt bspw. nicht bei Verschleiß. Weitere Details siehe AGBs Punkt 7 – 7.11. 24 Months

Delivery time: 3-5 working days

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
Flange-pressure reducing valve DN20 DM13 flange ANSI 150 stainless steel FPM / FKM 1.5 - 6.0 bar

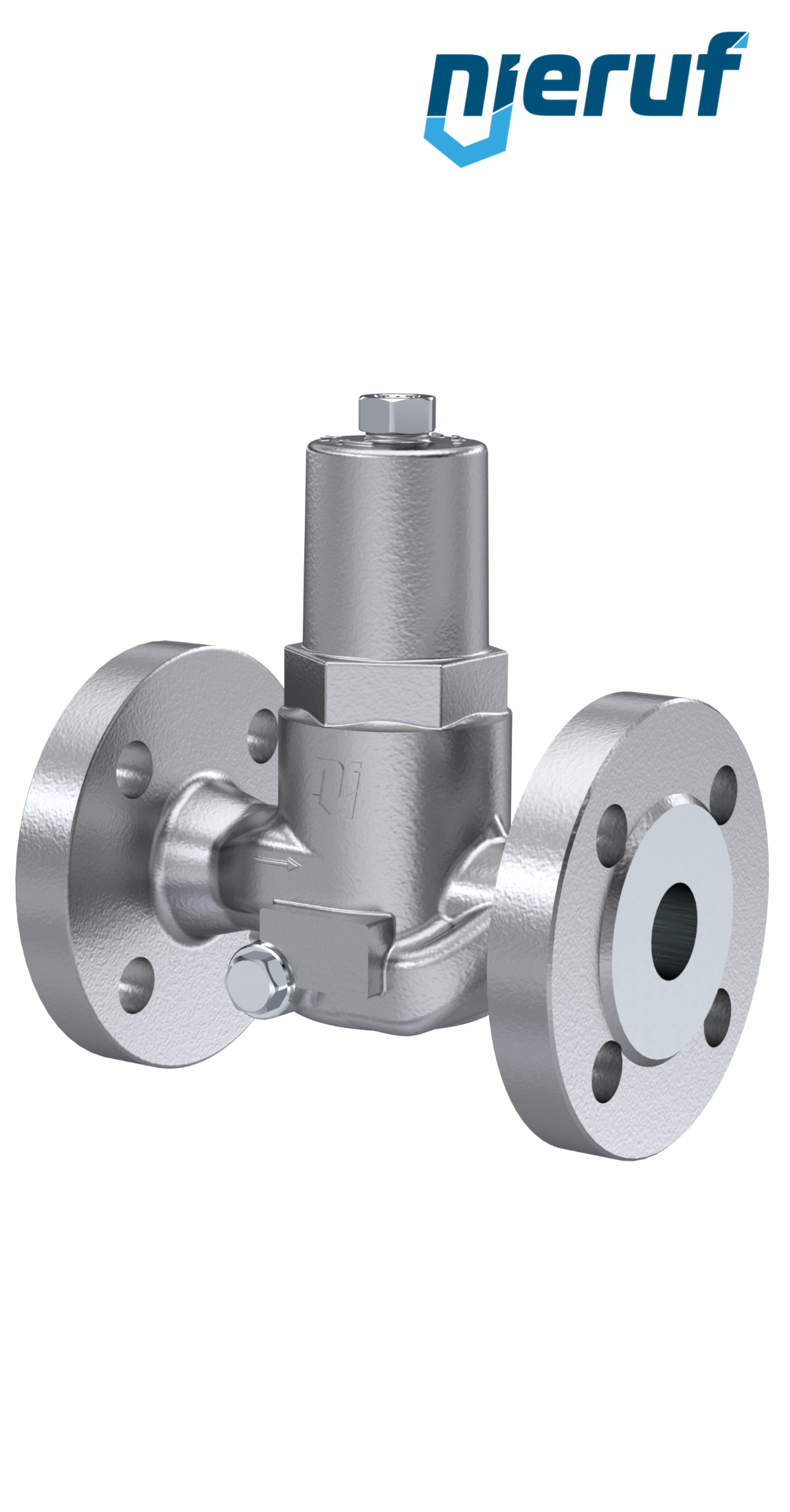

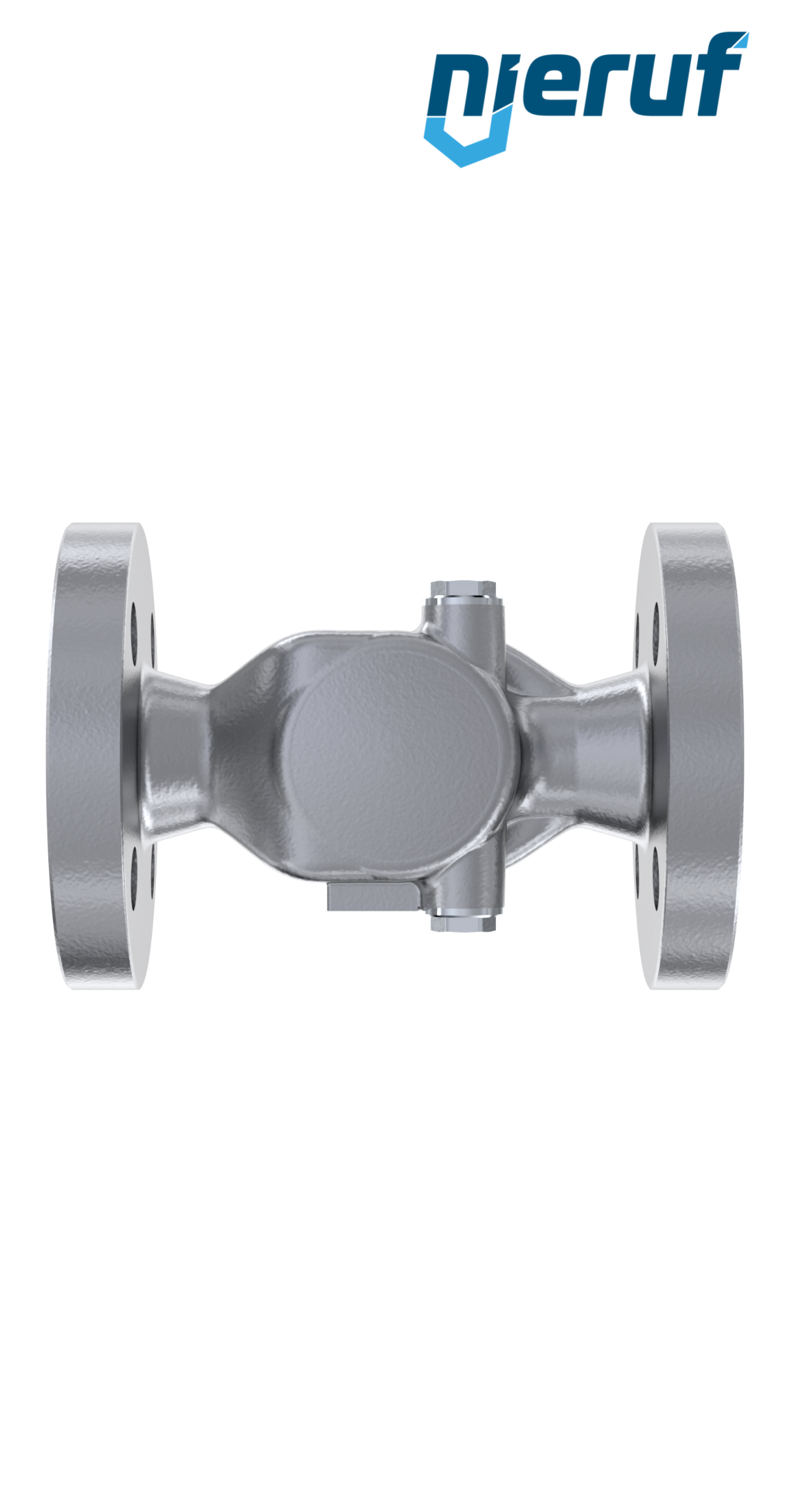

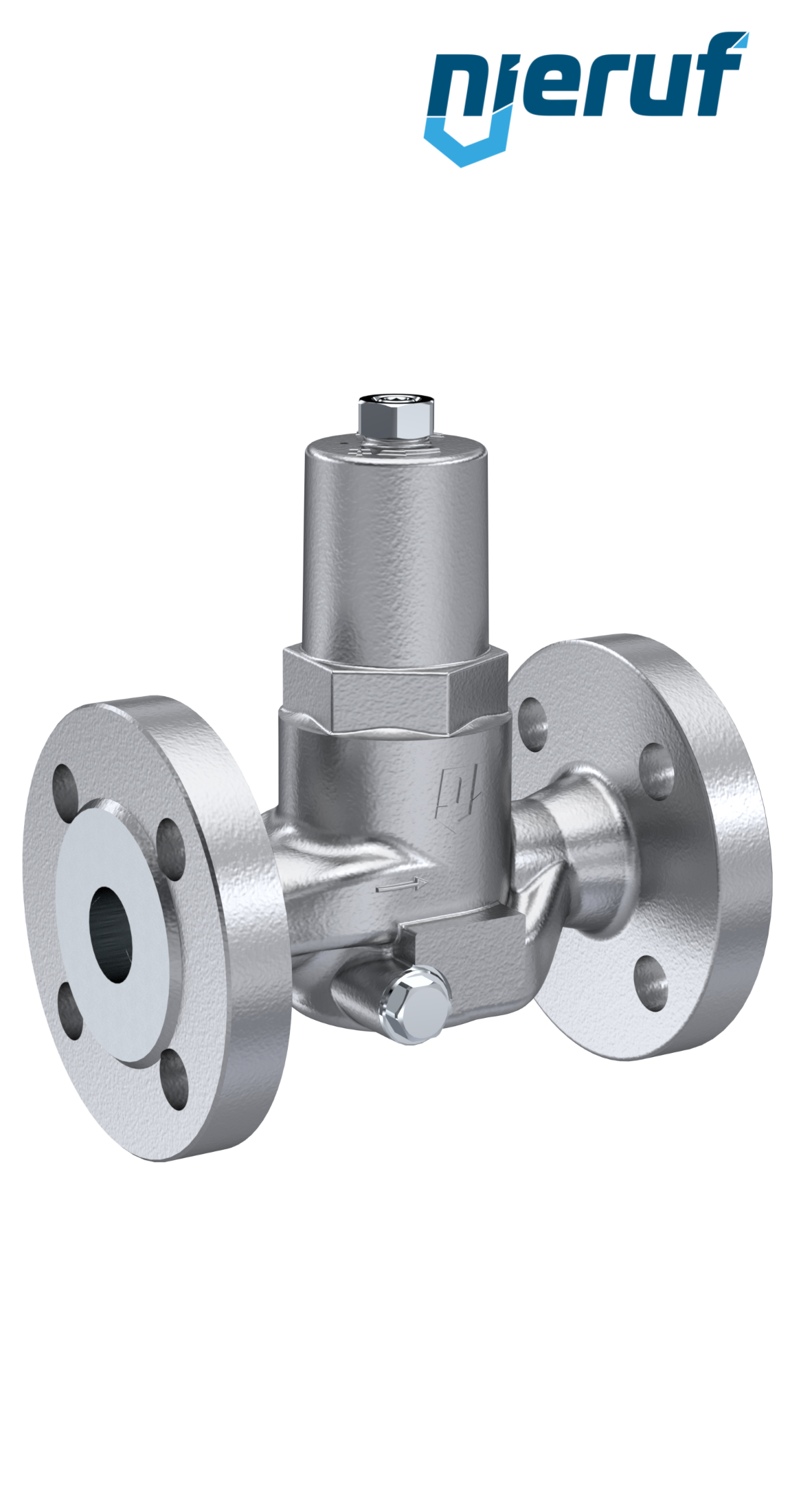

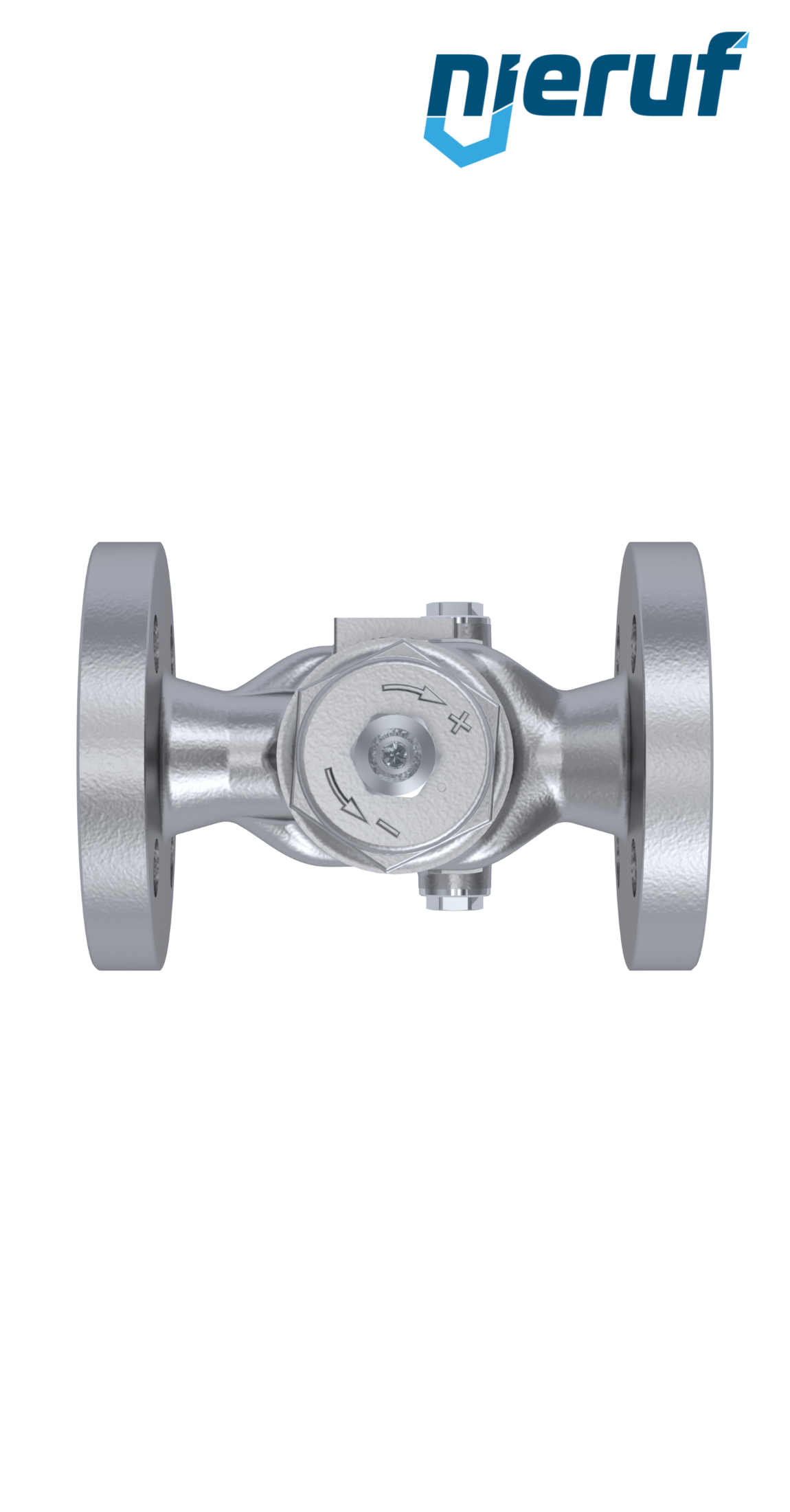

Flange-pressure reducing valve DN20 flange ANSI 150 made of stainless steel seal FPM / FKM for liquid and gaseous media, set pressure 1.5 - 6.0 bar
diameter: DN20
connection: flange ANSI 150
material: stainless steel
seal: FPM / FKM
media: liquid and gaseous media
temperature: Maximum temperature: 190°C
range of adjustment: 1.5 - 6.0 bar
max. inlet pressure: 40 bar
design: straightway form
installation position: any position
product feature: This high quality pressure reducing valve is made in Germany. A pressure reducing valve with stainless steel dirt-trap and double-ended G 1/4" manometer fitting
Flange-pressure reducing valve DN20 DM13 flange ANSI 150 stainless steel FPM / FKM 1.5 - 6.0 bar

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

Flange-pressure reducing valve DN20 DM13 flange ANSI 150 stainless steel FPM / FKM 1.5 - 6.0 bar
