UV10010006
flange overflow valve DN 32 PN40 UV10 gunmetal/brass 0,5 - 2,0 bar
- Lead time
- 3 - 5 working days
Equipment
Flange DN32 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€17.85 VAT included.
pressure gauge G 1/4" axial 50 mm steel MM03 0 - 2,5 bar
€12.61 VAT included.
flange seal DN32 PN10/16/25/40 43x82x2 Klingersil C 4400
€5.24 VAT included.
joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 steel
€7.62 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

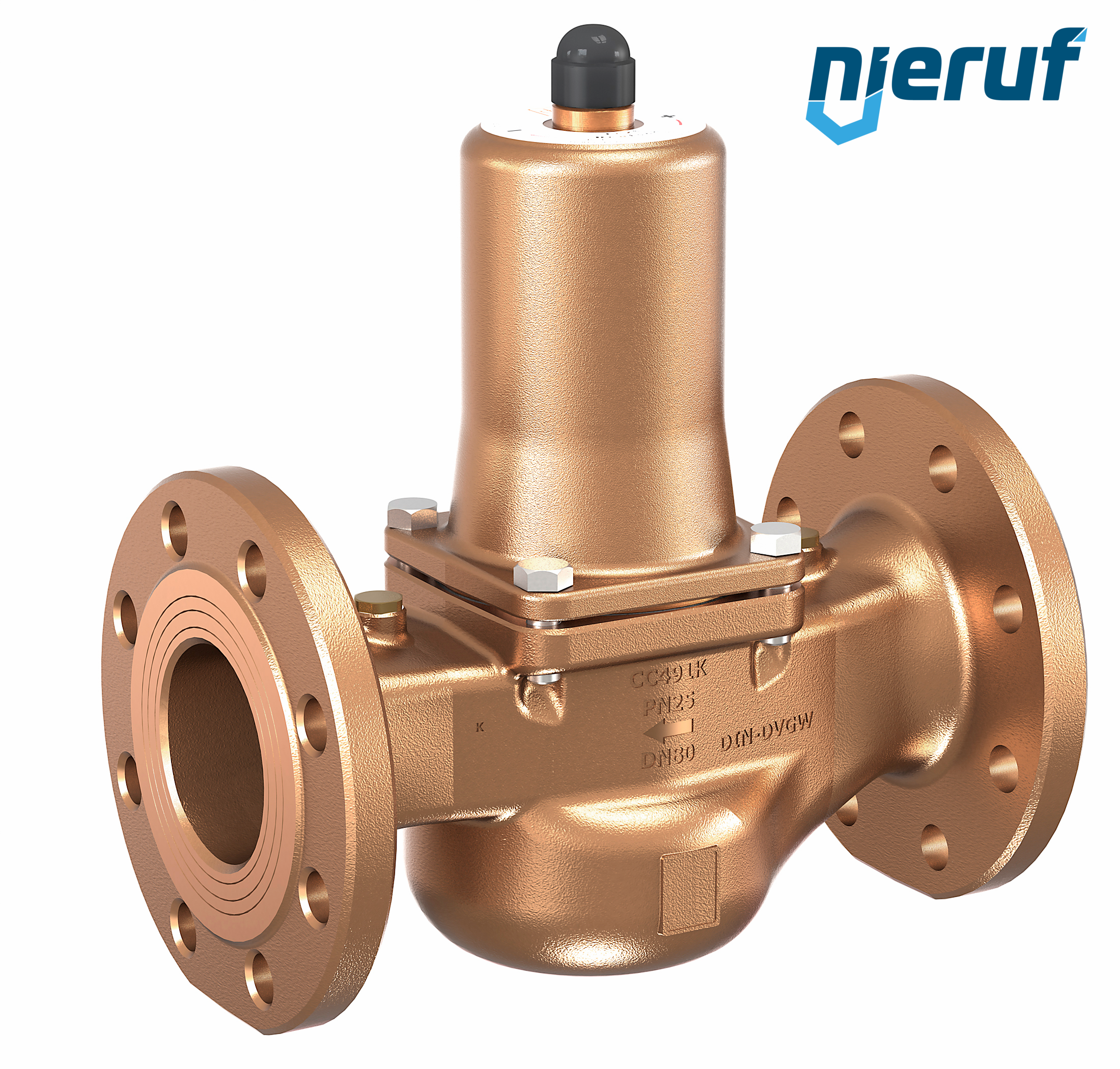

flange overflow valve DN 32 PN40 UV10 gunmetal/brass 0,5 - 2,0 bar
flange overflow valve DN 32 PN40 type UV10 made of gunmetal/brass pressure range 0,5 - 2,0 bar seal FKM for liquid and gaseous media
| product | flange overflow valve |
|---|---|
| type | UV10 |
| manufacturer | NieRuf |
| diameter | DN 32 PN40 |
| connection | flange acc. DIN EN 1092 |
| seal | FKM |
| media | liquid and gaseous media |
| temperature | -10°C to +120°C |
| range of adjustment | 0,5 - 2,0 bar |
| design | straightway form |
| material | gunmetal/brass |
| installation position | any position |
| SIL - safety integrity level | SIL 2 |
| product feature | High-quality, heat-resistant moulded elastomere, fabric-reinforced diaphragm. Valves in straightway form, closed version. Can be adjusted under operating conditions without medium escaping into the atmosphere. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange overflow valve DN 32 PN40 UV10 gunmetal/brass 0,5 - 2,0 bar
Article no.
: UV10010006
product:
flange overflow valve
type:
UV10
manufacturer:
NieRuf
diameter:
DN 32 PN40
connection:
flange acc. DIN EN 1092
seal:
FKM
media:
liquid and gaseous media
temperature:
-10°C to +120°C
range of adjustment:
0,5 - 2,0 bar
design:
straightway form
material:
gunmetal/brass
installation position:
any position
SIL - safety integrity level:
SIL 2
product feature:
High-quality, heat-resistant moulded elastomere, fabric-reinforced diaphragm. Valves in straightway form, closed version. Can be adjusted under operating conditions without medium escaping into the atmosphere.
Equipment
flange seal DN32 PN10/16/25/40 43x82x2 Klingersil C 4400
Lead time: in stock
Flange DN32 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: 3 - 5 working days
Compact ball valve DN32 PN40 FK03 carbon steel 1.0619 ball stainless steel 1.4308
Lead time: 3 - 5 working days
pressure gauge G 1/4" axial 50 mm steel MM03 0 - 2,5 bar
Lead time: in stock
joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 steel
Lead time: 3 - 5 working days
pipe bend (welded) 90° 42,4 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 42,4 x 2,0 to 33,7 x 2,0 stainless steel 1.4571
Lead time: 3 - 5 working days
