MI01001112

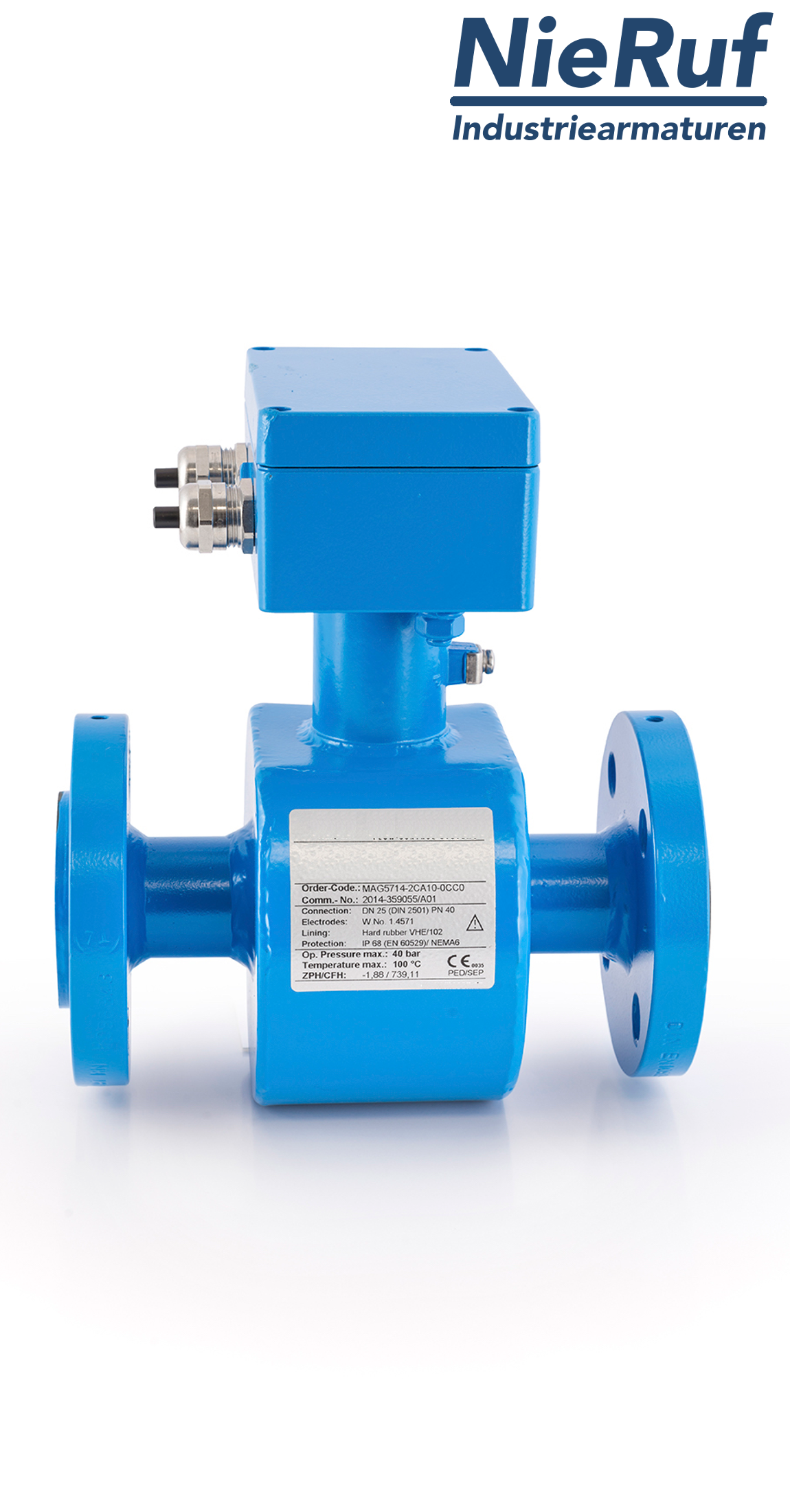

Electromagnetic flow Sensor DN125 MI01, Hard rubber VHE/102, AC 230V 50/60hz

€2,506.10*

€2,982.26 VAT included.

Delivery time: 5 - 6 weeks

Delivery information

Equipment

RF01011201

pipe bend (welded) 90° 139,7 x 2,0 stainless steel 1.4571

€97.20*

€115.67 VAT included.


FL01000112

Welding neck flange DN125 PN10/16 EN1092-1 11 B1 1.4541

€98.70*

€117.45 VAT included.


FD01000112

flange seal DN125 PN10/16 141x192x2 Klingersil C 4400

€6.10*

€7.26 VAT included.


RF01101205

tee (welded) 139,7 x 3,0 stainless steel 1.4571

€211.70*

€251.92 VAT included.


VS01000112

joint set flange/flange DN125 - 5" Inch for flange PN10/16/25 stainless steel

€17.60*

€20.94 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com


Product number: MI01001112
Electromagnetic flow Sensor DN125 MI01, Hard rubber VHE/102, AC 230V 50/60hz

Electromagnetic flow Sensor DN125 Flange DIN 2501 PN16 remote version design, lining of measuring pipe made of Hard rubber VHE/102 AC 230V 50/60hz

product: Electromagnetic flow Sensor
type: MI01
manufacturer: NieRuf
diameter: DN125
connection: Flange DIN 2501 PN16
design: remote design
measuring tube: stainless steel 1.4301
solenoid chamber: steel
flange: steel
coating: Primer: Coating thickness: min. 50 mu, top coat: layer thickness: min. 120 mu RAL 5015
lining of measuring pipe: Hard rubber VHE/102
electrodes: stainless steel 1.4571
error of measurement: +/- 0,5% of the reading from 0,25 ms to 10m/s
repeat accuracy: +/- 0,15% of the reading from 0,25 ms to 10m/s
operqting temerature: +90°C
protection class: IP67
minimum conductivity media: > 20 μS/cm
max. flow rate: 10 m/s
flow rate final value: 0,25 - 10 m/s
flow rate range: 11,04 - 441,79 m3/h
wiring: 2 x M16 x 1,5
wire: magnetic current cable (3x1,0 mm2) and electrode cable (5x0,5 mm2), length 5 m
power supply: AC 230V 50/60hz
analogue output: 4 - 20mA

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Electromagnetic flow Sensor DN125 MI01, Hard rubber VHE/102, AC 230V 50/60hz

Article no. : MI01001112
product: Electromagnetic flow Sensor
type: MI01
manufacturer: NieRuf
diameter: DN125
connection: Flange DIN 2501 PN16
design: remote design
measuring tube: stainless steel 1.4301
solenoid chamber: steel
flange: steel
coating: Primer: Coating thickness: min. 50 mu, top coat: layer thickness: min. 120 mu RAL 5015
lining of measuring pipe: Hard rubber VHE/102
electrodes: stainless steel 1.4571
error of measurement: +/- 0,5% of the reading from 0,25 ms to 10m/s
repeat accuracy: +/- 0,15% of the reading from 0,25 ms to 10m/s
operqting temerature: +90°C
protection class: IP67
minimum conductivity media: > 20 μS/cm
max. flow rate: 10 m/s
flow rate final value: 0,25 - 10 m/s
flow rate range: 11,04 - 441,79 m3/h
wiring: 2 x M16 x 1,5
wire: magnetic current cable (3x1,0 mm2) and electrode cable (5x0,5 mm2), length 5 m
power supply: AC 230V 50/60hz
analogue output: 4 - 20mA
