PF01002104
Elbow Pressfitting 45° F x F DN20 - 22,0 mm stainless steel
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE
Downloads

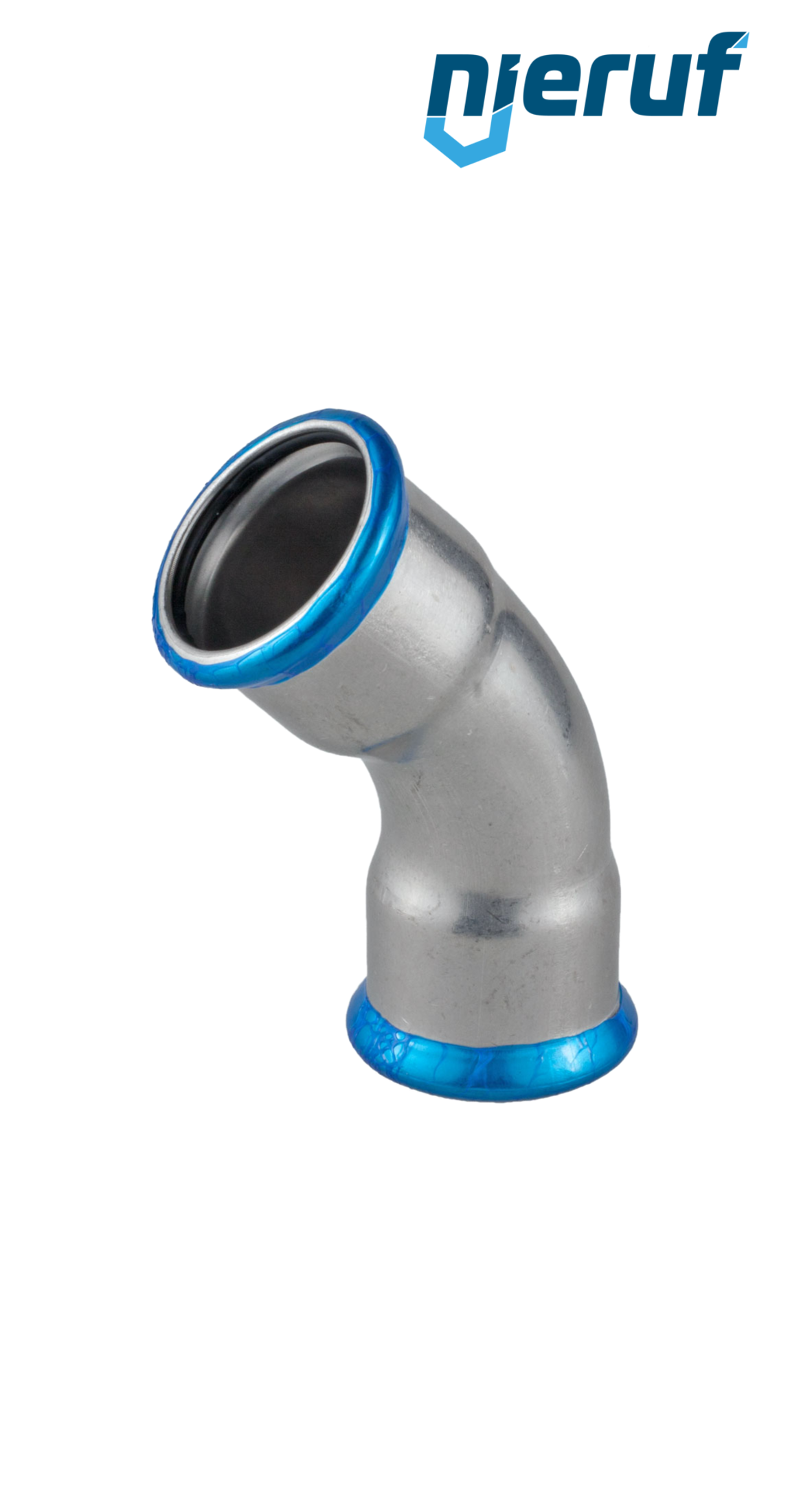

Elbow Pressfitting 45° F x F DN20 - 22,0 mm stainless steel
Elbow 45° PF01-00 with press connection F x F DN20 - 22,0 mm made of stainless for liquid and gaseous media
| product | Elbow |
|---|---|
| type | PF01-00 |
| manufacturer | NieRuf |
| design | 45° |
| diameter 1 | DN20 - 22,0 mm |
| connection 1 | F x F |

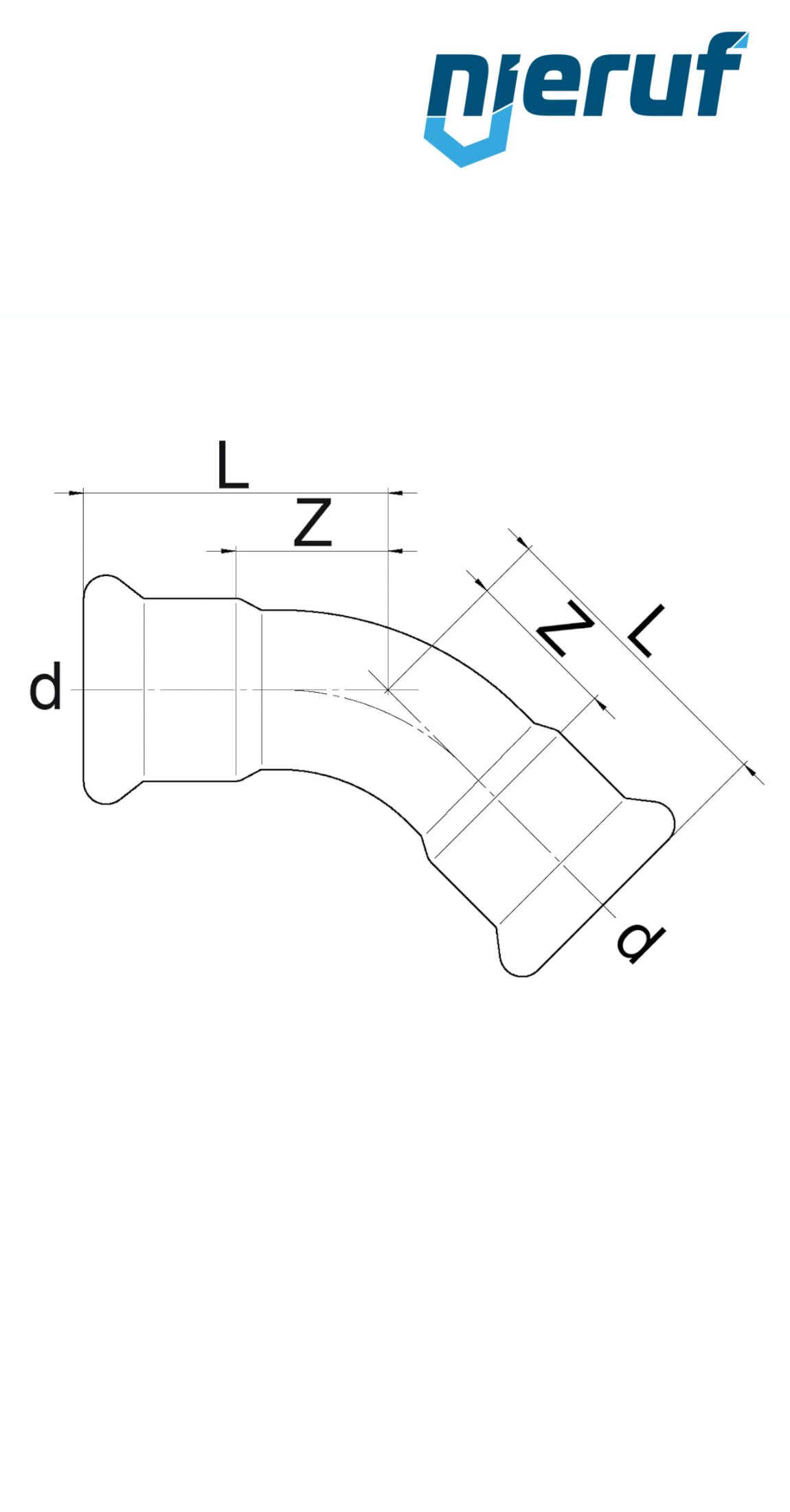

| Contour | M-Contour |
| radius | r=1,2 |
| d | 22,0 |
| L | 38,0 |
| Z | 18,0 |
| max. working pressure | 16 bar at +20°C |
| material | stainless steel 316 L |
| certification | DVGW-drinking water |
| product feature 1 | These Pressfittings are ideal to connect pipelines fast and efficiently. |
| product feature 2 | As standard, the press fittings are supplied with an inserted EPDM-LBP seal. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Elbow Pressfitting 45° F x F DN20 - 22,0 mm stainless steel
Article no.
: PF01002104
product:
Elbow
type:
PF01-00
manufacturer:
NieRuf
design:
45°
diameter 1:
DN20 - 22,0 mm
connection 1:
F x F
Contour:
M-Contour
radius:
r=1,2
d:
22,0
L:
38,0
Z:
18,0
max. working pressure:
16 bar at +20°C
material:
stainless steel 316 L
certification:
DVGW-drinking water
product feature 1:
These Pressfittings are ideal to connect pipelines fast and efficiently.
product feature 2:
As standard, the press fittings are supplied with an inserted EPDM-LBP seal.
