DR01000214
dual plate check valve DN200 DR01 GGG40 epoxyd plated blue 180µm FKM (Viton)
- Lead time
- 3 - 5 working days
Equipment
flange seal DN200 PN10/16 220x273x2 Klingersil C 4400
€10.71 VAT included.
Flange DN200 PN10 EN1092-1 11 B1 C22.8 / P250GH bare
€101.39 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

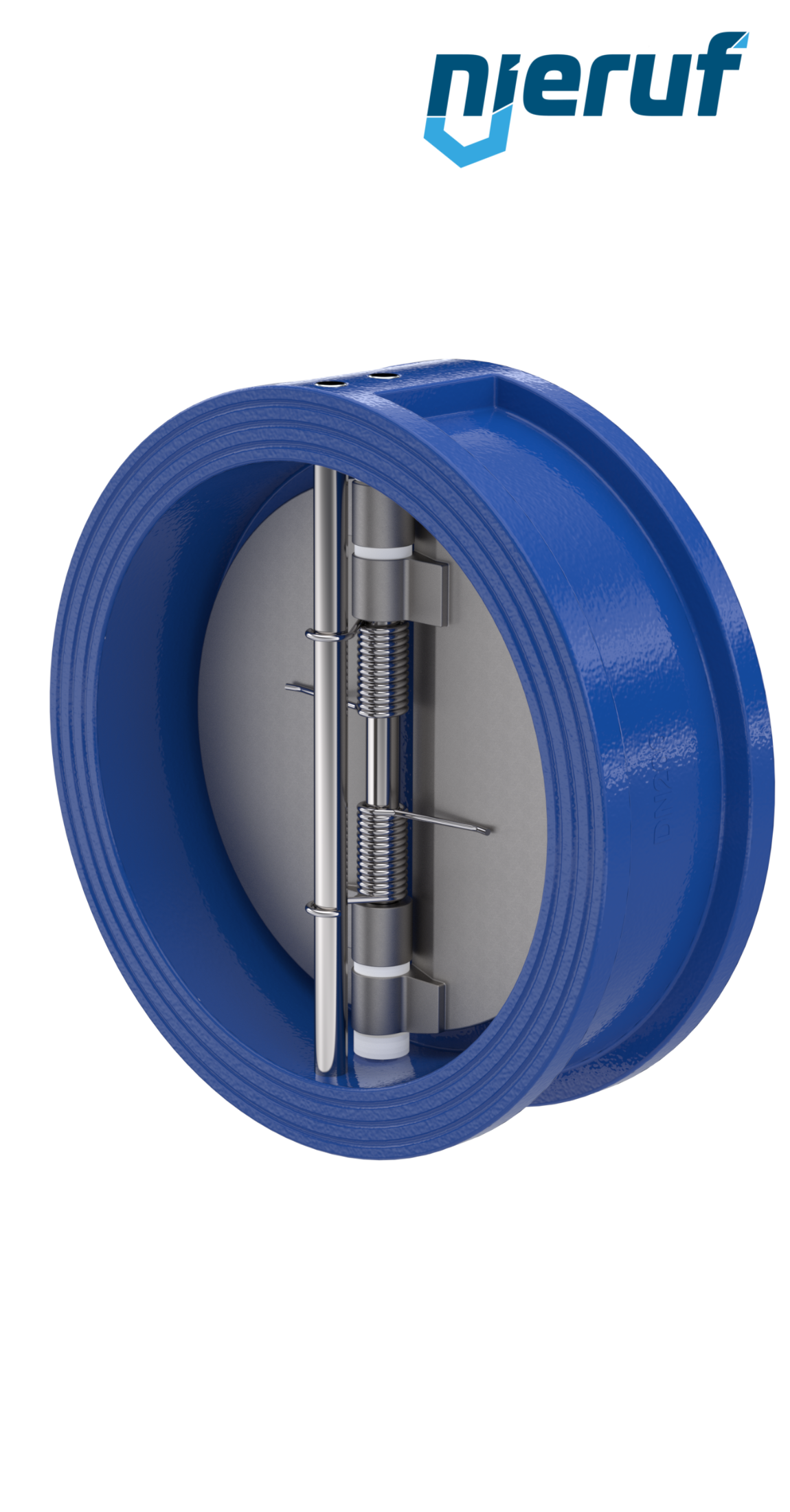

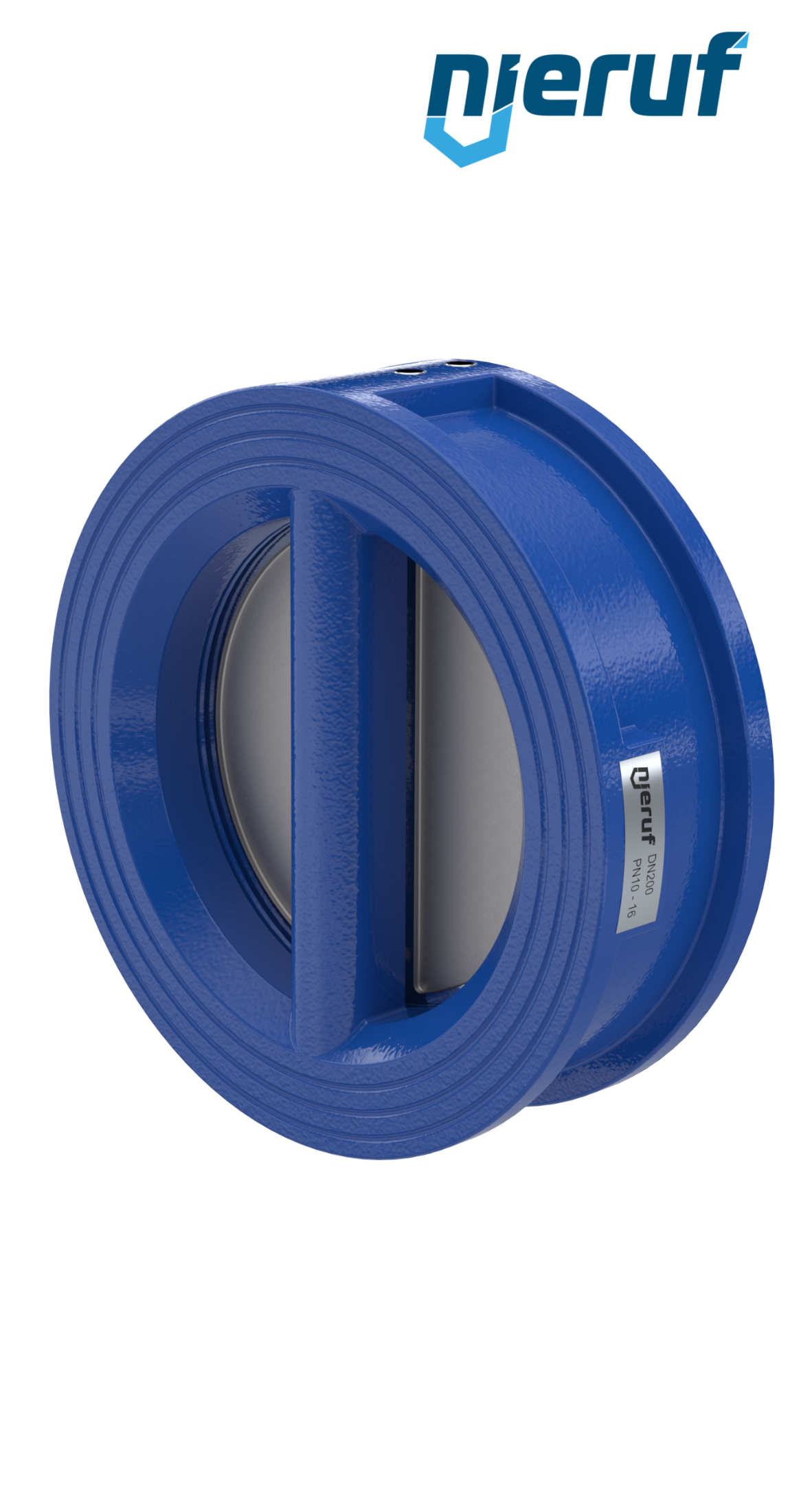

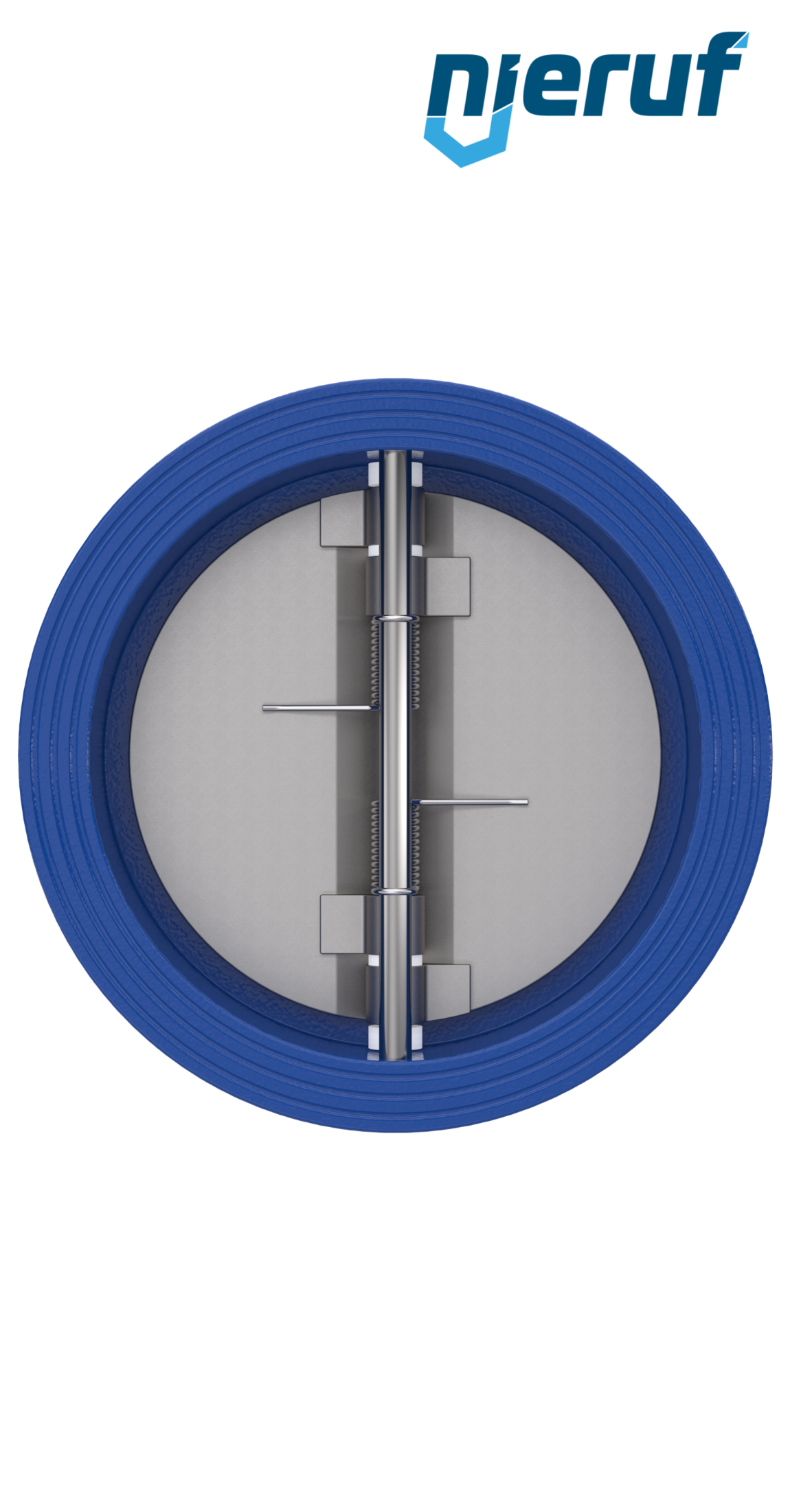

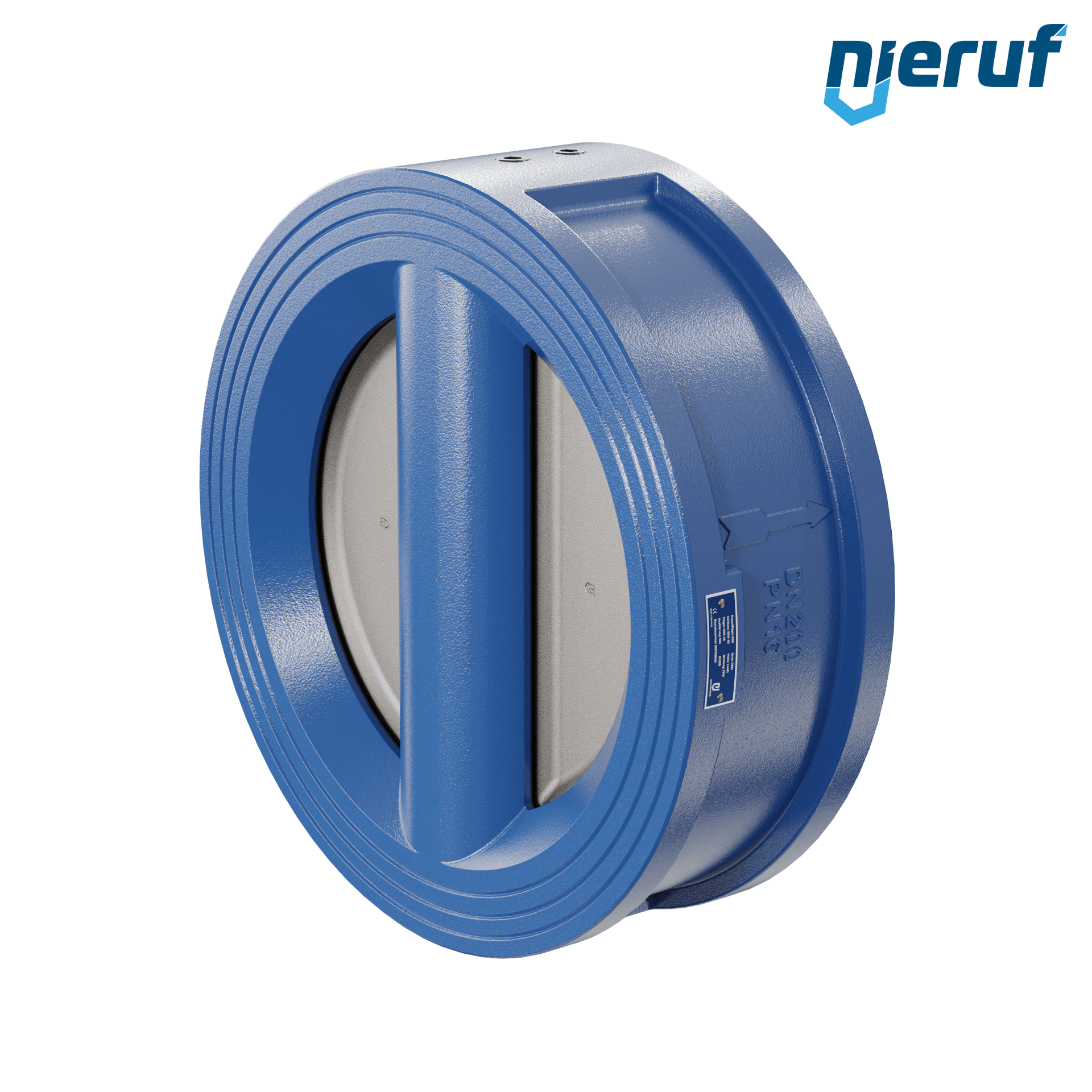

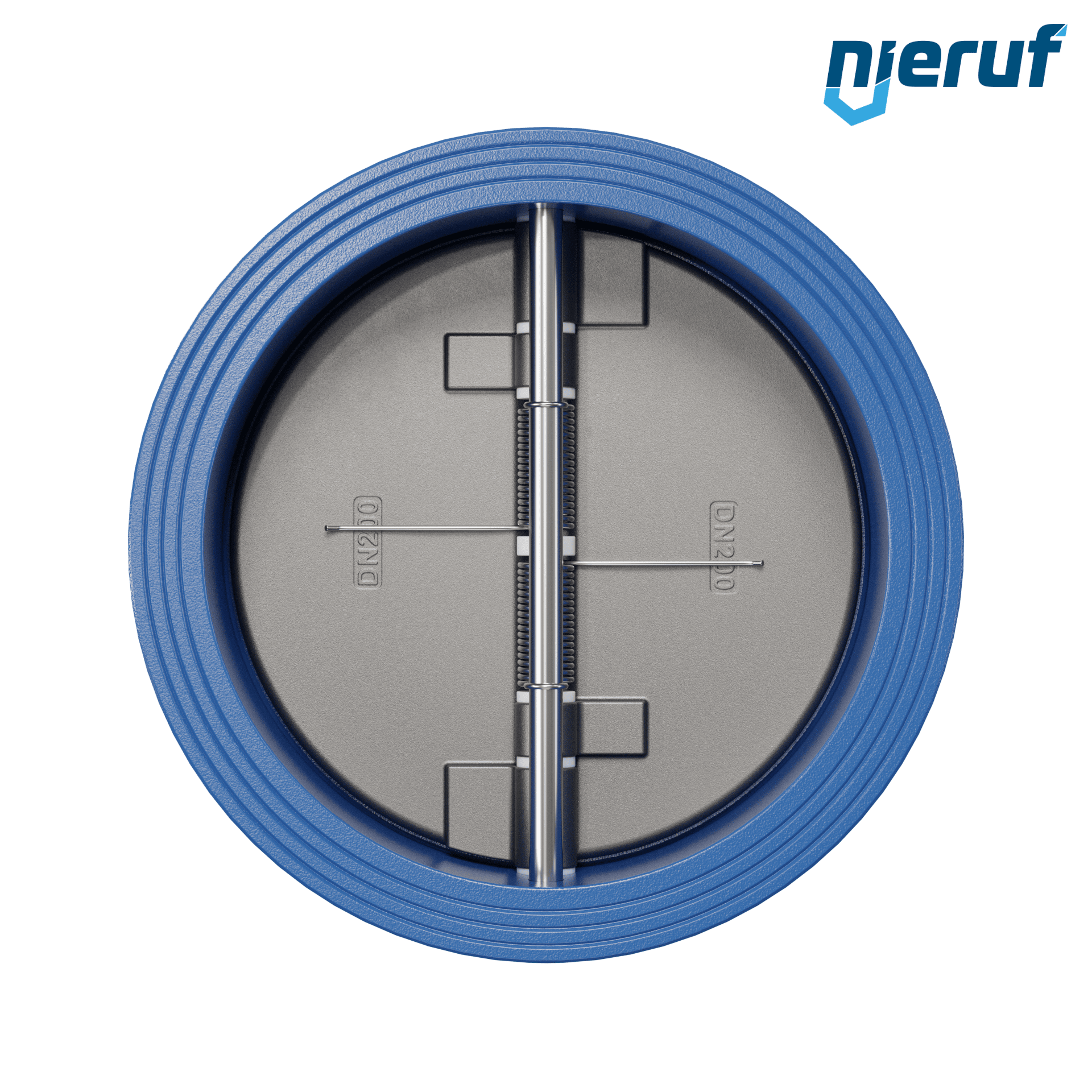

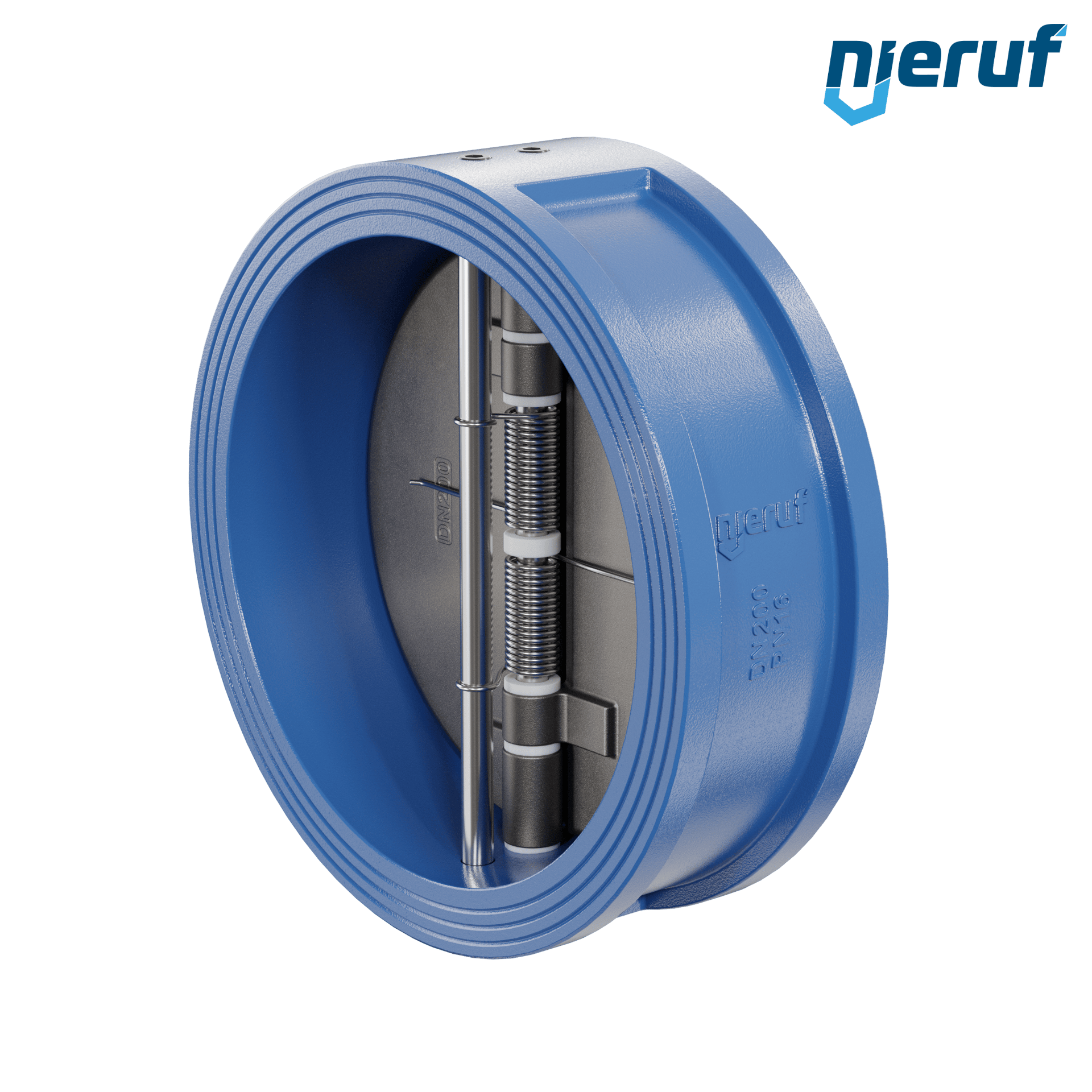

dual plate check valve DN200 DR01 GGG40 epoxyd plated blue 180µm FKM (Viton)
dual plate check valve DN200 seal FKM (Viton) PN 10/16 DIN EN 1092-1 Form B, body made of GGG40 epoxyd plated blue 180µm
| product | dual plate check valve |
|---|---|
| type | DR01 |
| manufacturer | NieRuf |
| design | dual plate check valve |
| diameter | DN200 |
| body material | GGG40 epoxyd plated blue 180µm |
| disc material | GGG40 nickel plated |
| seal | FKM (Viton) |
| temperature | -10°C to +150°C |
| connection | flange |
| flange | PN 10/16 DIN EN 1092-1 Form B |
| pressure range | 0 - 16 bar |
| media | liquid and gaseous media |
| tightness acc. to DIN EN 12266 | leak rate A |
| option | with spring made of stainless steel |
| installation position | direction of flow horizontal, vertical from below - up to DN200 also from above |
| product feature | face to face according DIN EN 558-1 row 16 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
dual plate check valve DN200 DR01 GGG40 epoxyd plated blue 180µm FKM (Viton)
Article no.
: DR01000214
product:
dual plate check valve
type:
DR01
manufacturer:
NieRuf
design:
dual plate check valve
diameter:
DN200
body material:
GGG40 epoxyd plated blue 180µm
disc material:
GGG40 nickel plated
seal:
FKM (Viton)
temperature:
-10°C to +150°C
connection:
flange
flange:
PN 10/16 DIN EN 1092-1 Form B
pressure range:
0 - 16 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
with spring made of stainless steel
installation position:
direction of flow horizontal, vertical from below - up to DN200 also from above
product feature:
face to face according DIN EN 558-1 row 16
Equipment
flange seal DN200 PN10/16 220x273x2 Klingersil C 4400
Lead time: in stock
