DR02000211

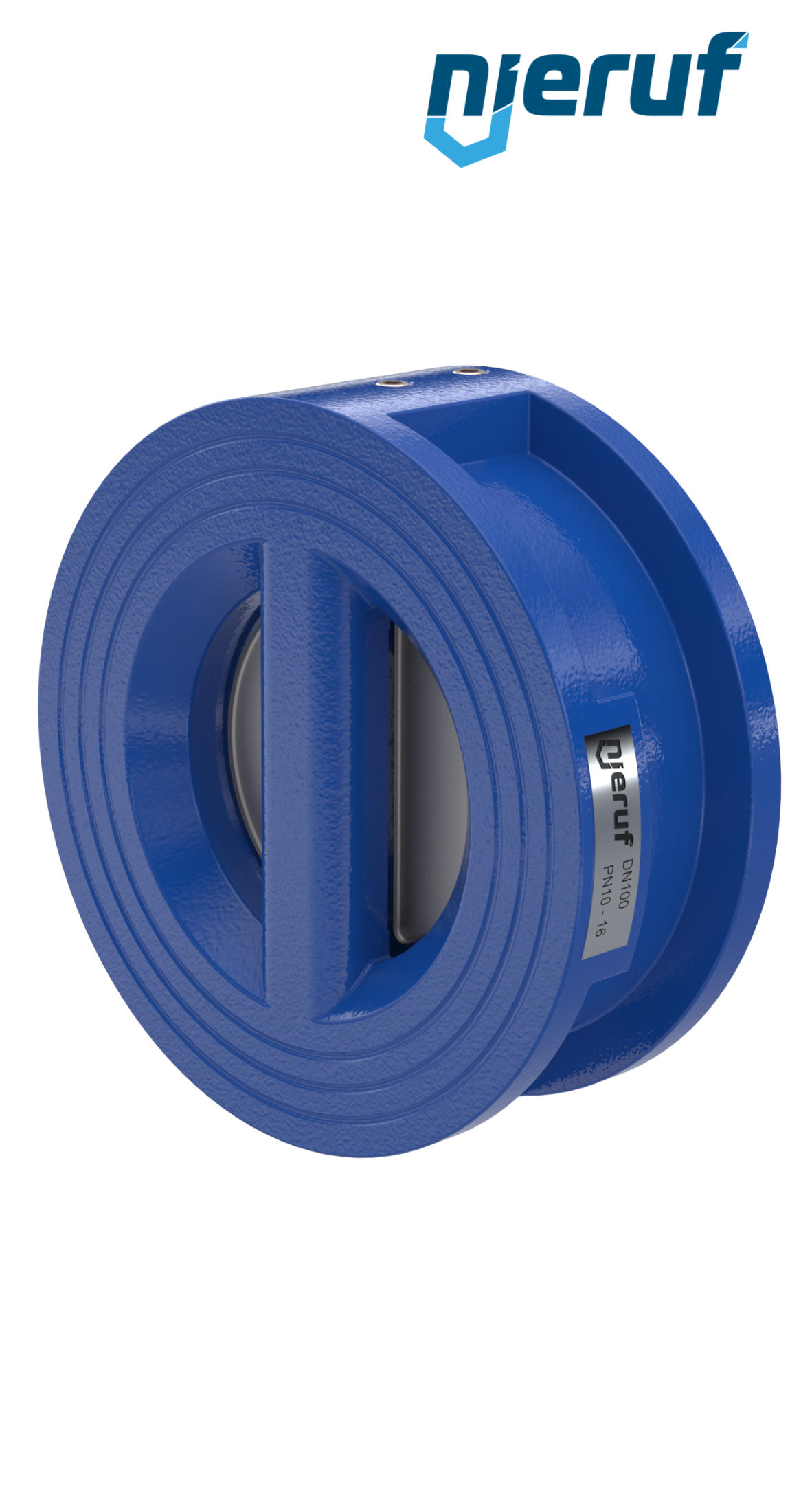

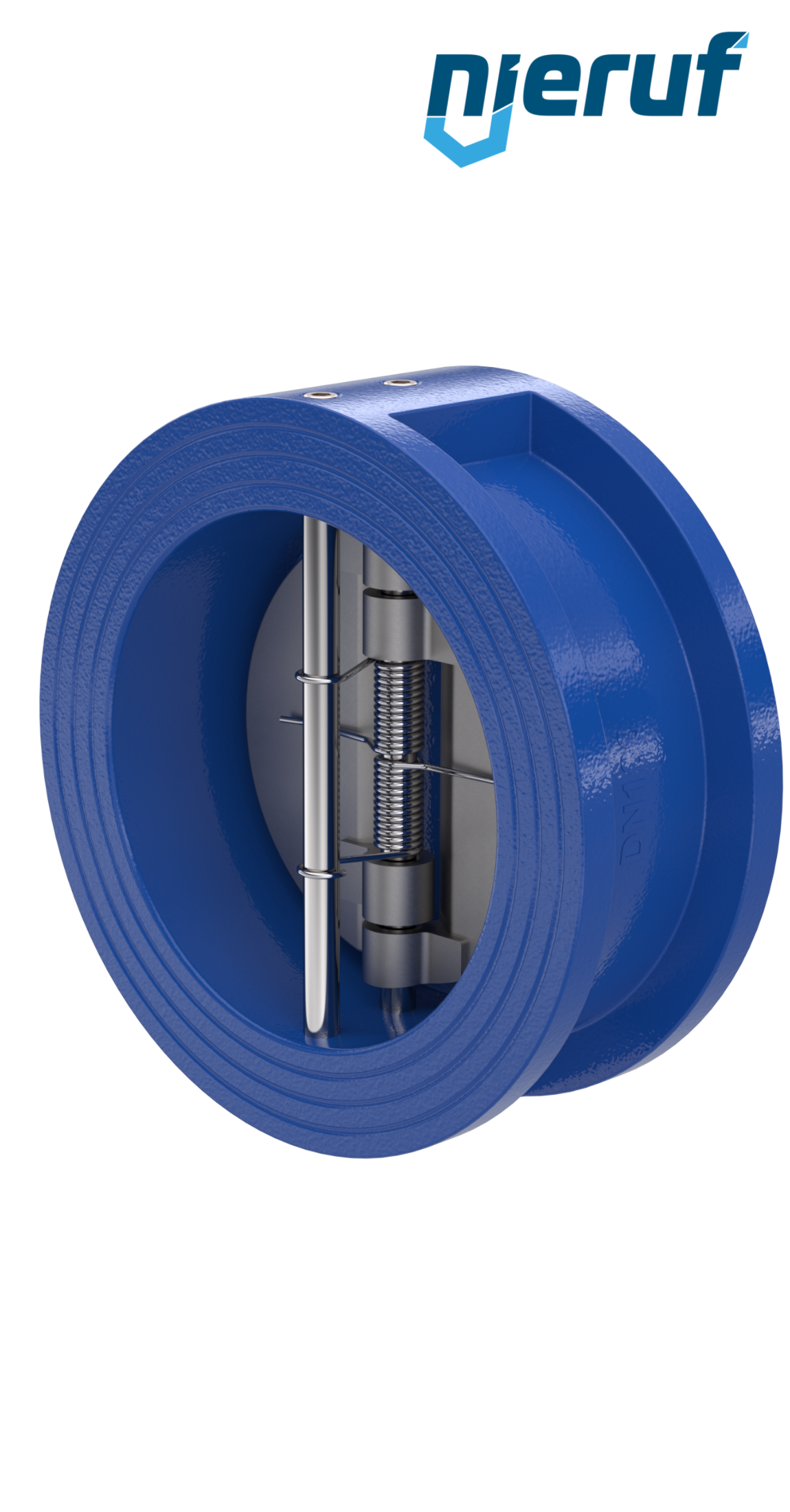

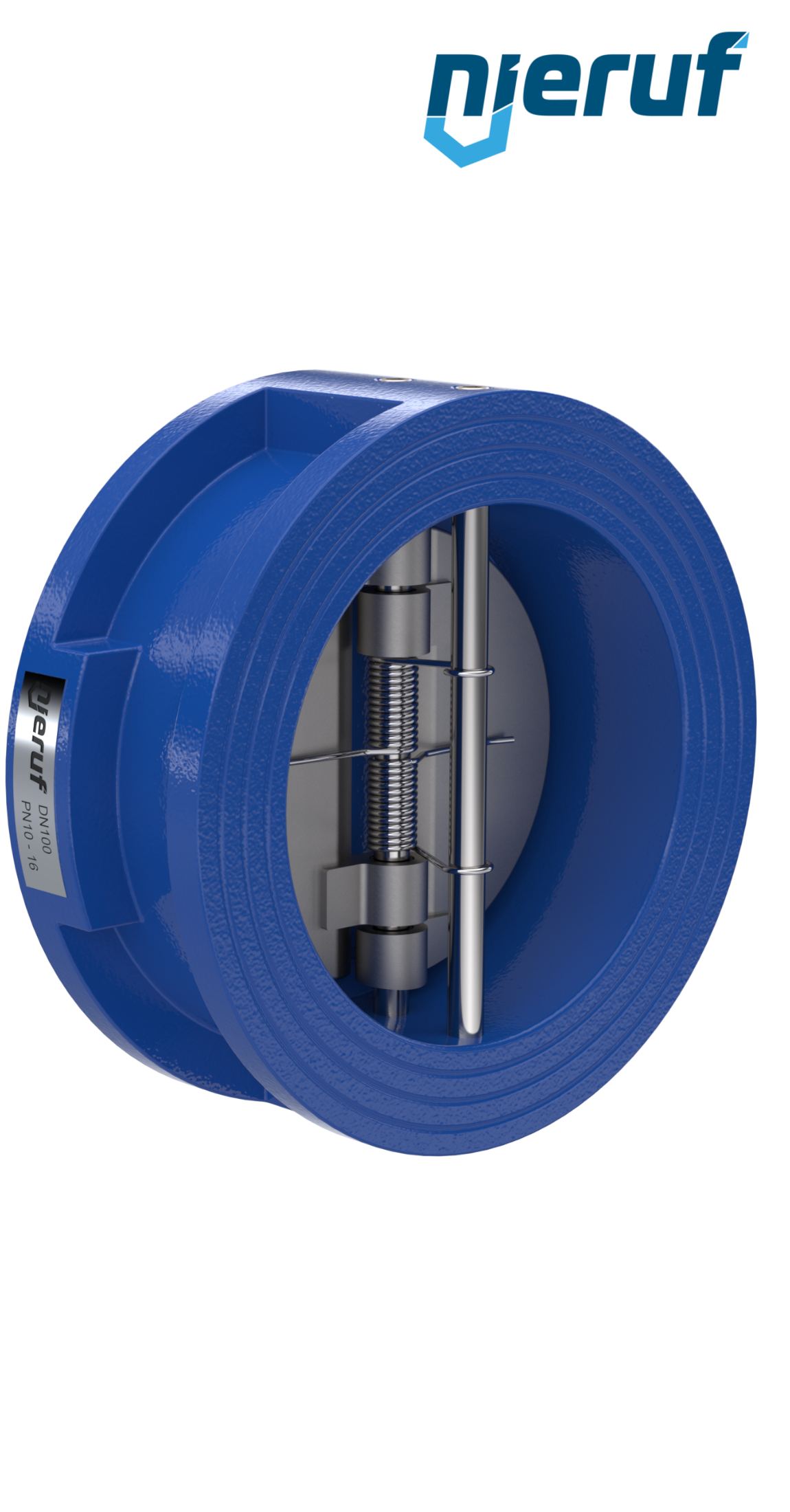

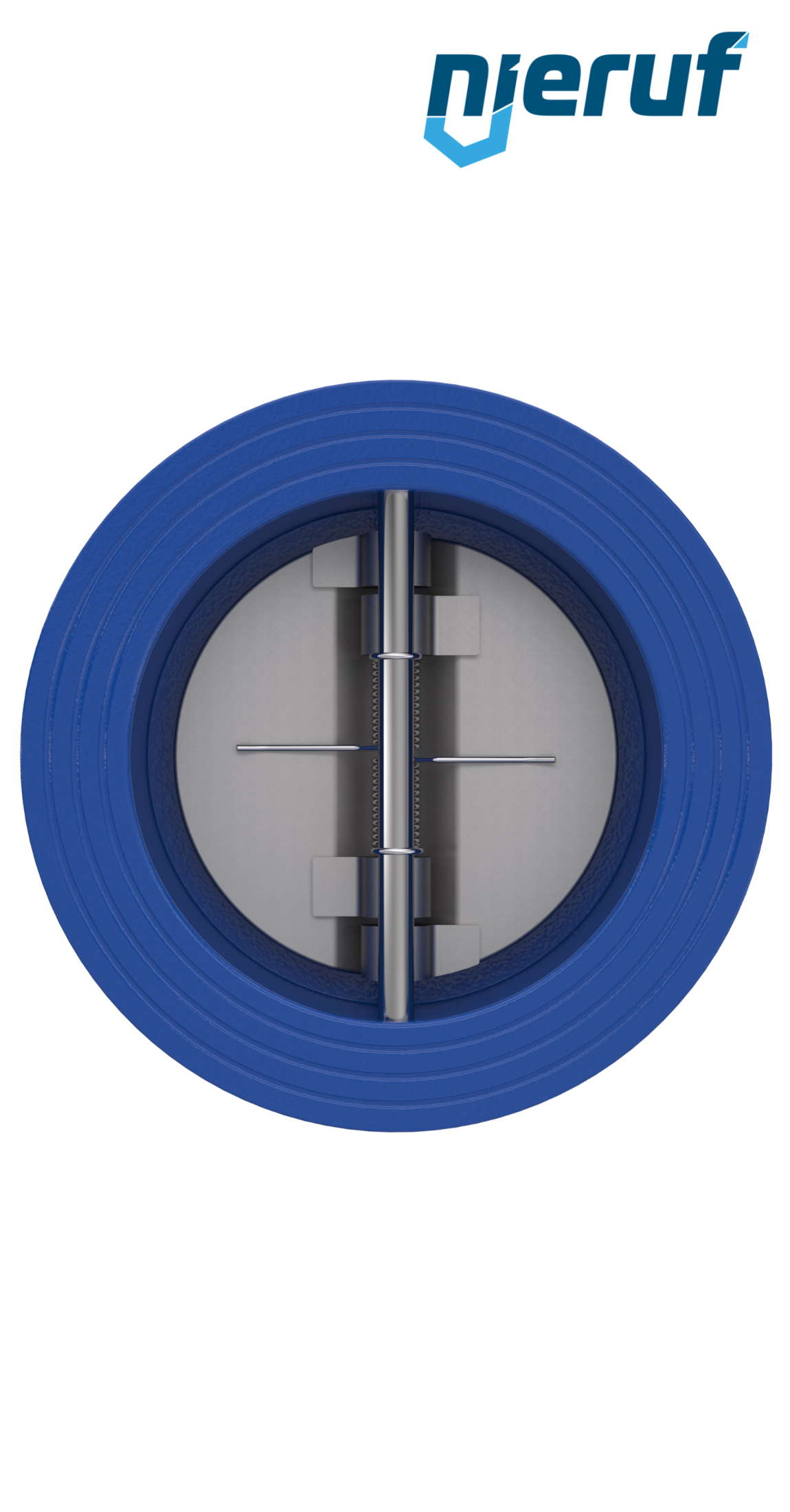

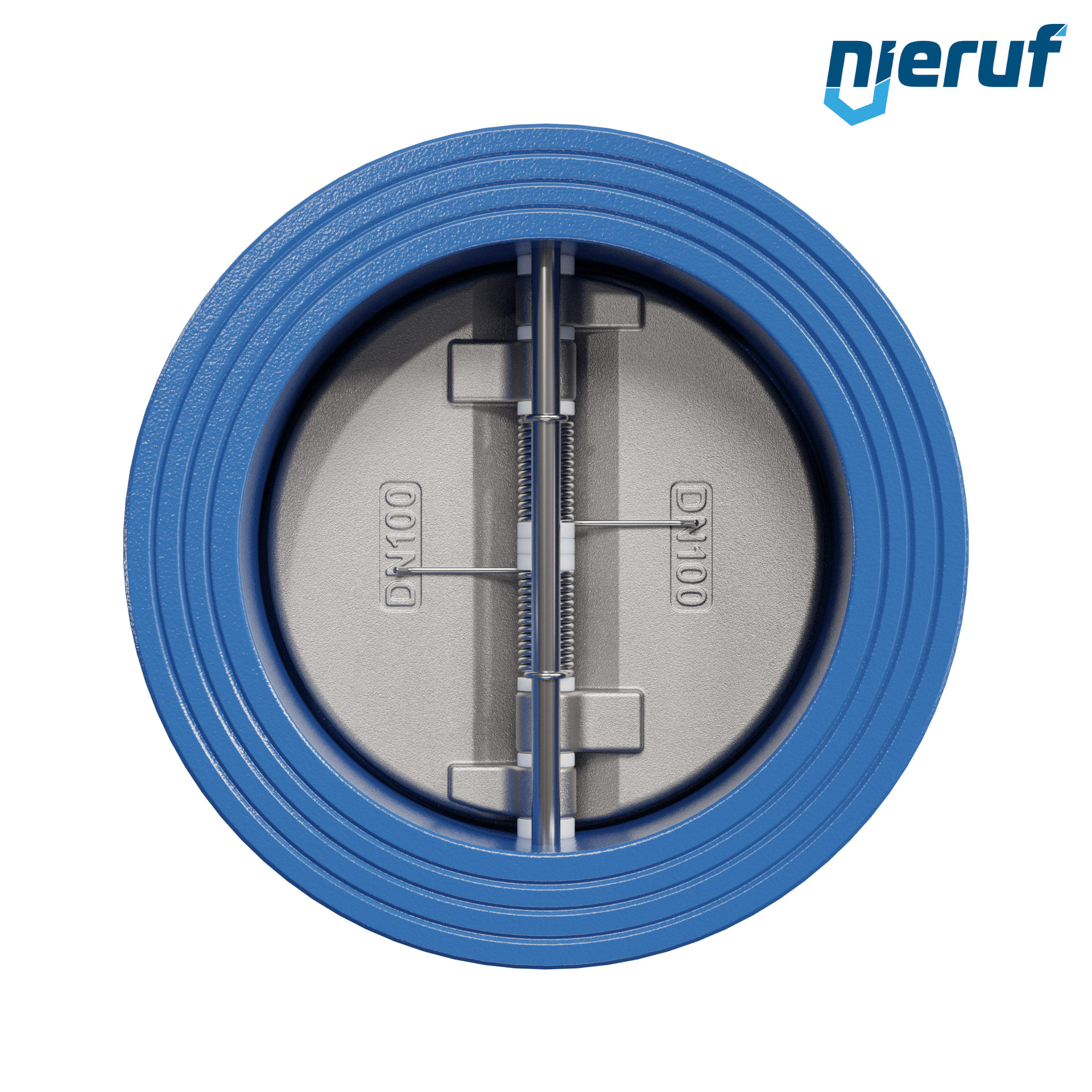

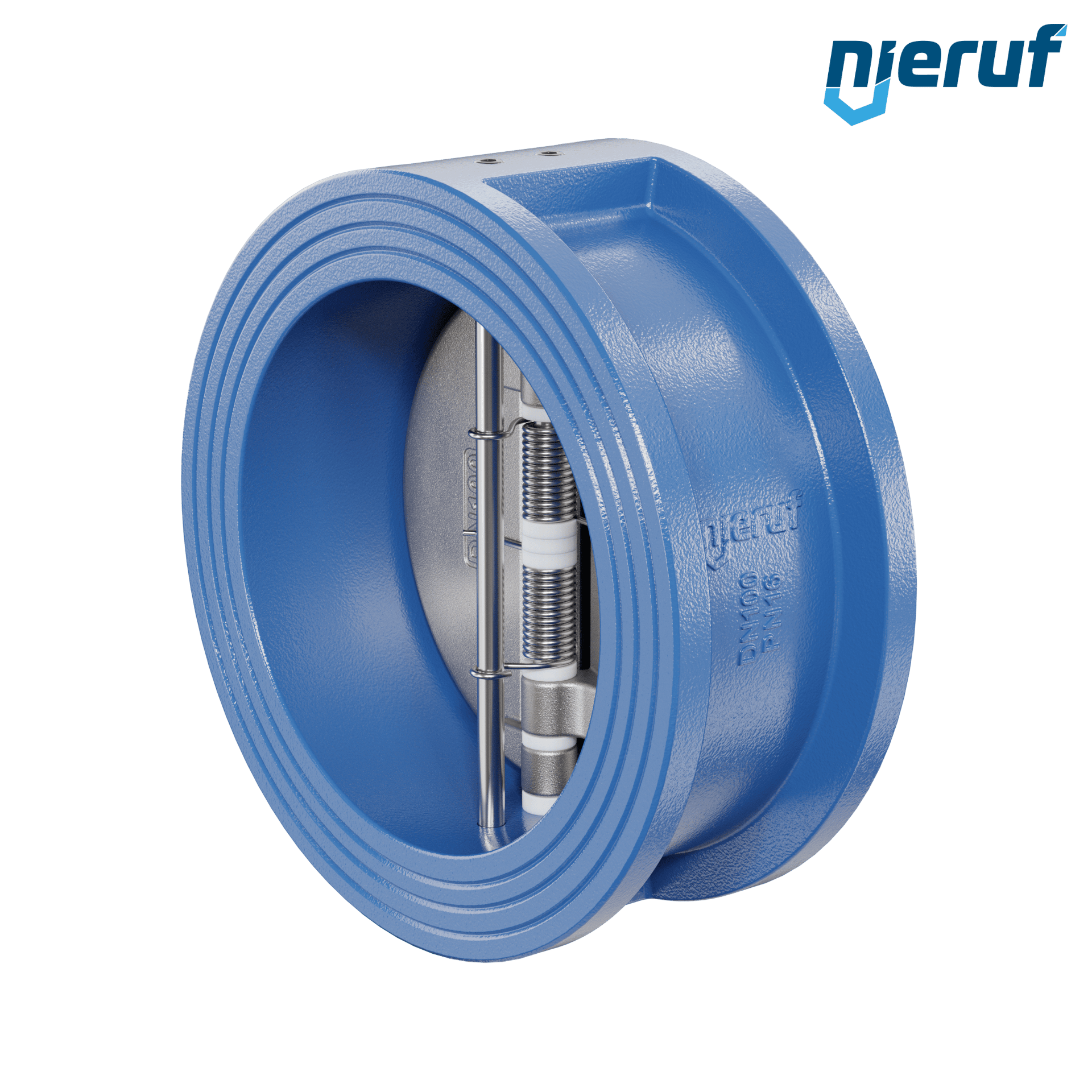

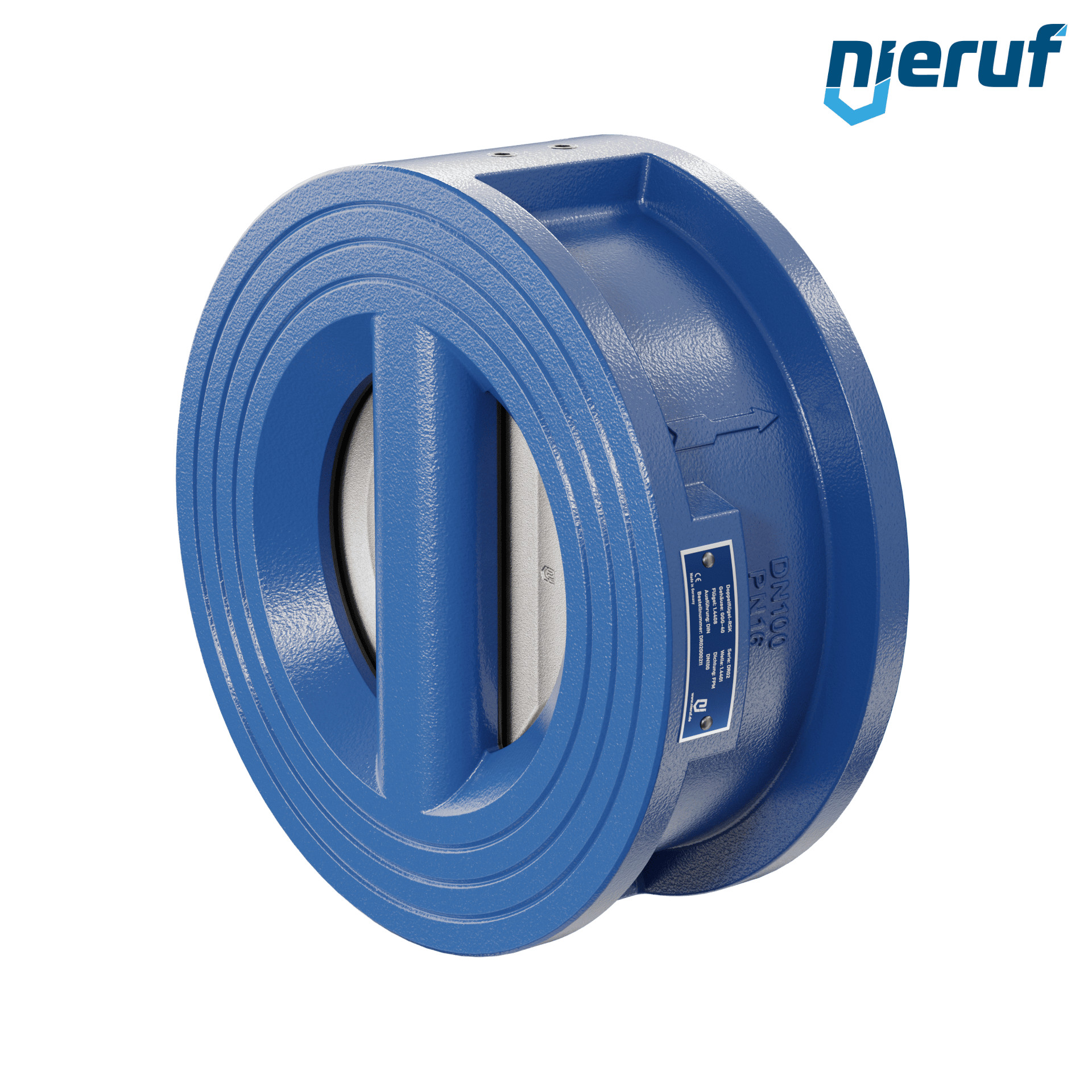

dual plate check valve DN100 DR02 GGG40 epoxyd plated blue 180µm FKM (Viton)

€159.20*

€189.45 VAT included.

Delivery time: in stock

Delivery information

Express delivery:

Shipping on: Monday, 01. April

Guaranteed delivery until Tuesday, 02. April, 12 o'clock

Order in within by express delivery


Equipment

FL01000111

Welding neck flange DN100 PN10/16 EN1092-1 11 B1 1.4541

€79.60*

€94.72 VAT included.


FD01000111

flange seal DN100 PN10/16 115x162x2 Klingersil C 4400

€4.50*

€5.36 VAT included.


VS06000111

joint set dual plate check valve/flange DN100 - 4" Inch for flange PN10/16 stainless steel

€33.60*

€39.98 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

Certified

Certified

Product number: DR02000211
dual plate check valve DN100 DR02 GGG40 epoxyd plated blue 180µm FKM (Viton)

dual plate check valve DN100 seal FKM (Viton) PN 10/16 DIN EN 1092-1 Form B, body made of grey cast iron wings made of stainless steel

product: dual plate check valve
type: DR02
manufacturer: NieRuf
design: dual plate check valve
diameter: DN100
body material: GGG40 epoxyd plated blue 180µm
disc material: stainless steel 1.4408
seal: FKM (Viton)
temperature: -10°C to +150°C
connection: flange
flange: PN 10/16 DIN EN 1092-1 Form B
pressure range: 0 - 16 bar
media: liquid and gaseous media
tightness acc. to DIN EN 12266: leak rate A
option: with spring made of stainless steel
installation position: direction of flow horizontal, vertical from below - up to DN200 also from above
product feature: face to face according DIN EN 558-1 row 16

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

dual plate check valve DN100 DR02 GGG40 epoxyd plated blue 180µm FKM (Viton)

Article no. : DR02000211
product: dual plate check valve
type: DR02
manufacturer: NieRuf
design: dual plate check valve
diameter: DN100
body material: GGG40 epoxyd plated blue 180µm
disc material: stainless steel 1.4408
seal: FKM (Viton)
temperature: -10°C to +150°C
connection: flange
flange: PN 10/16 DIN EN 1092-1 Form B
pressure range: 0 - 16 bar
media: liquid and gaseous media
tightness acc. to DIN EN 12266: leak rate A
option: with spring made of stainless steel
installation position: direction of flow horizontal, vertical from below - up to DN200 also from above
product feature: face to face according DIN EN 558-1 row 16
