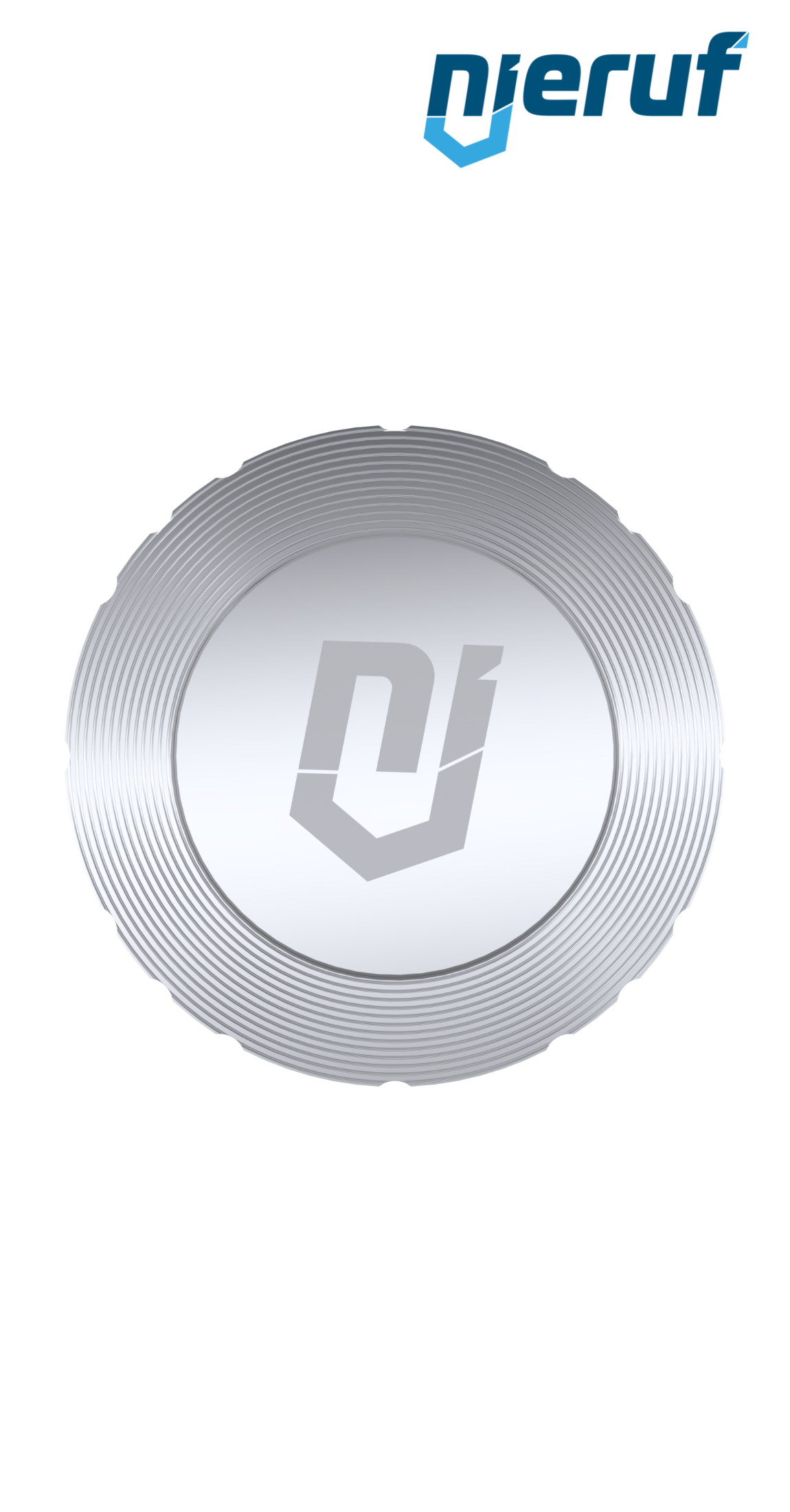

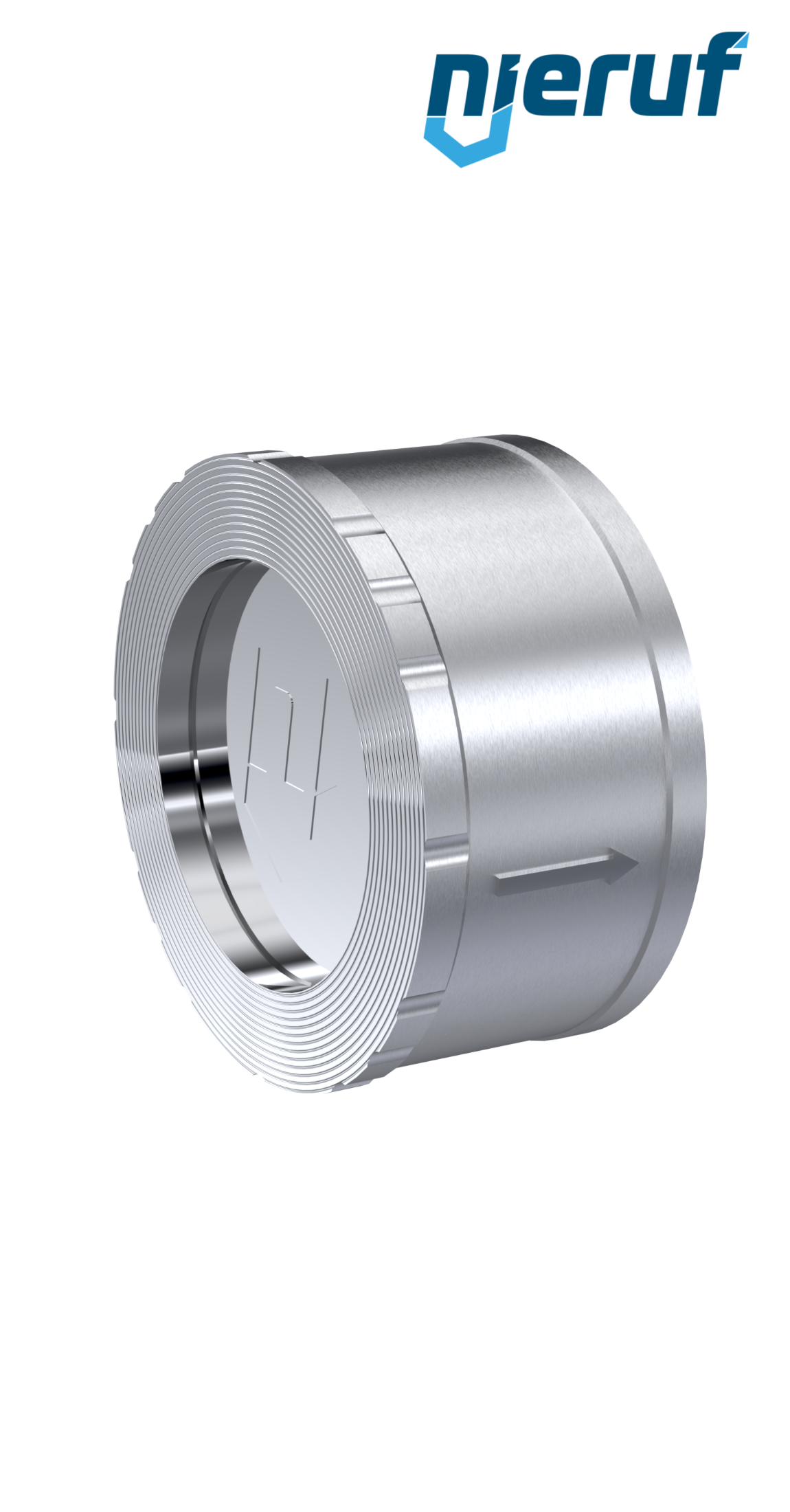

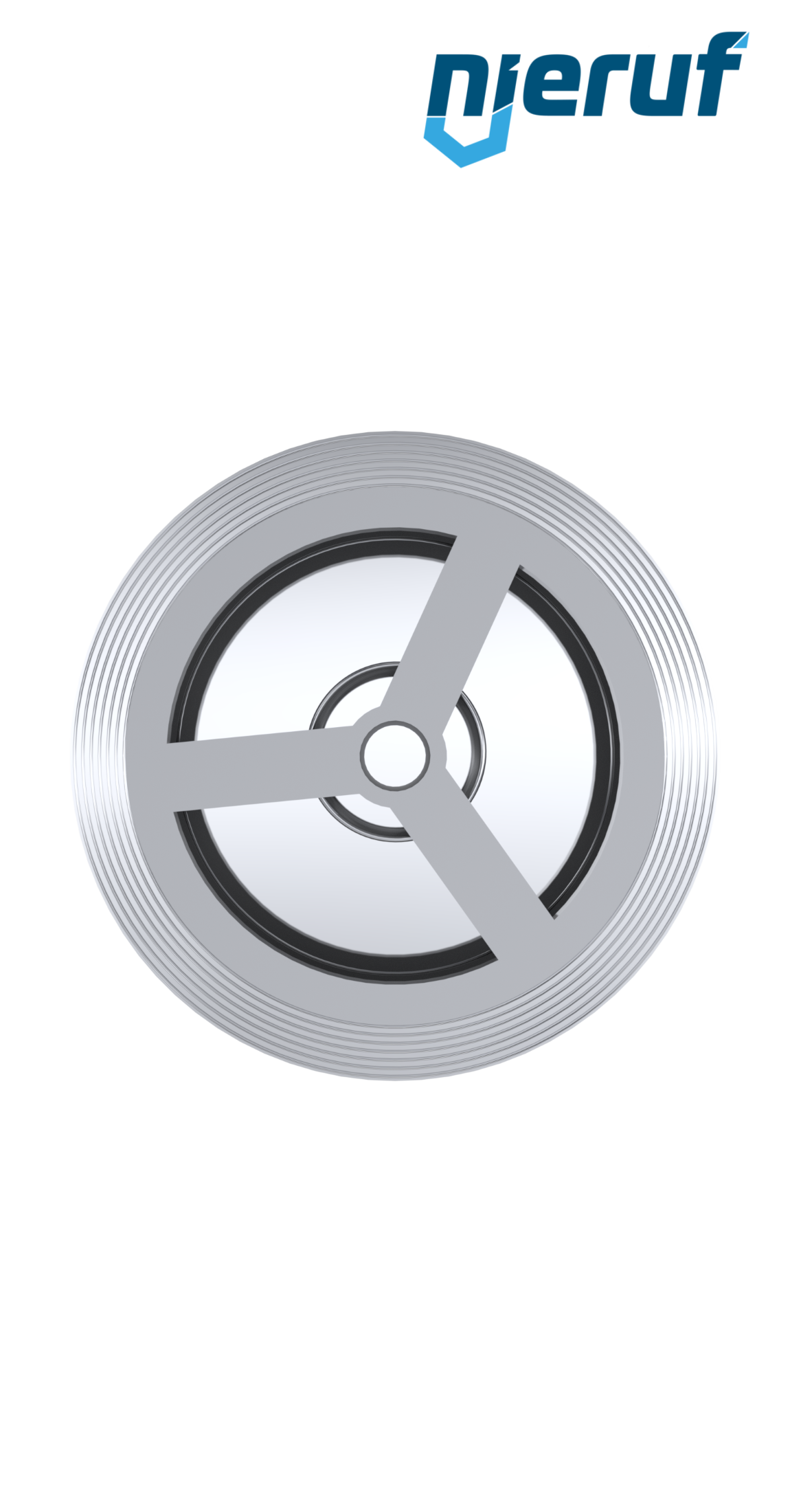

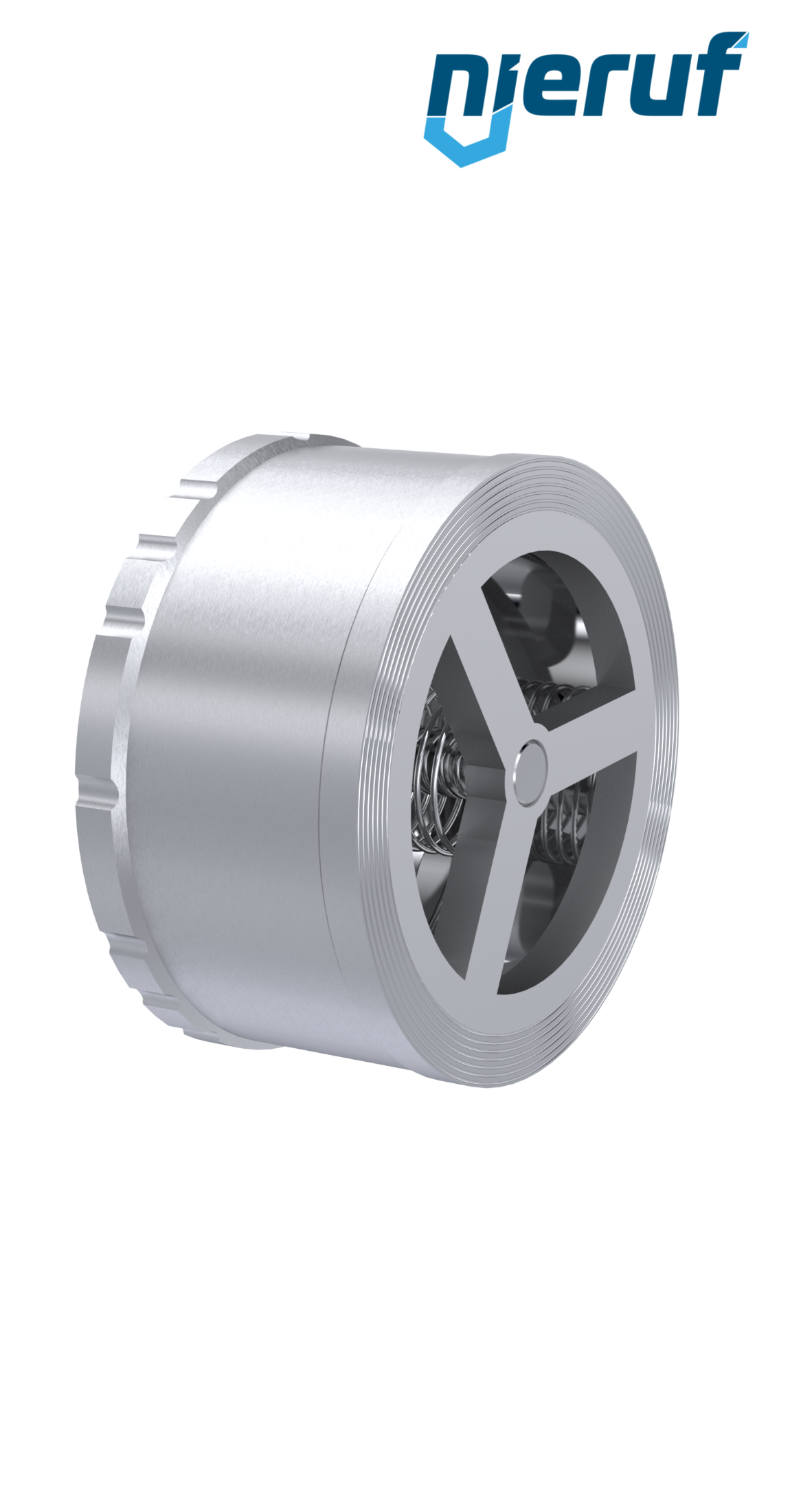

disco check valve DN 300 made of Stainless steel CF8M seal metall for liquid and gaseous media PN 10 to 16
| product | check valve |
|---|---|
| type | RV02 |
| manufacturer | NieRuf |
| design | disco check valve |
| diameter | DN 300 |
| body material | Stainless steel CF8M |
| disc material | Stainless steel CF8M |
| seal | metall |
| tightness acc. to DIN EN 12266 | leak rate ≥ G |
| temperature | -196°C up to +300°C |
| flange | PN 10 to 16 |
| pressure range | 0 - 50 bar |
| Kv-value in m3/h | 867,00 |
| spring material | stainless steel 1.4571 |
| media | liquid and gaseous media |
| installation position | any position |
| product feature | face to face according to factory f-t-f dimension |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
check valve DN 300 Stainless steel CF8M metall PN 10 to 16
Article no.
: RV02000516
product:
check valve
type:
RV02
manufacturer:
NieRuf
design:
disco check valve
diameter:
DN 300
body material:
Stainless steel CF8M
disc material:
Stainless steel CF8M
seal:
metall
tightness acc. to DIN EN 12266:
leak rate ≥ G
temperature:
-196°C up to +300°C
flange:
PN 10 to 16
pressure range:
0 - 50 bar
Kv-value in m3/h:
867,00
spring material:
stainless steel 1.4571
media:
liquid and gaseous media
installation position:
any position
product feature:
face to face according to factory f-t-f dimension
