RV02000405
check valve DN 25 Stainless steel CF8M NBR PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300)
- Lead time
- 3 - 5 working days
Equipment
joint set check valve/flange DN25 - 1" Inch for flange PN10/16/25/40 stainless steel
€4.76 VAT included.
flange seal DN25 PN10/16/25/40 34x71x2 Klingersil C 4400
€4.88 VAT included.
Welding neck flange DN25 PN10/16/25/40 EN1092-1 11 B1 1.4541
€22.97 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
check valve DN 25 Stainless steel CF8M NBR PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300)

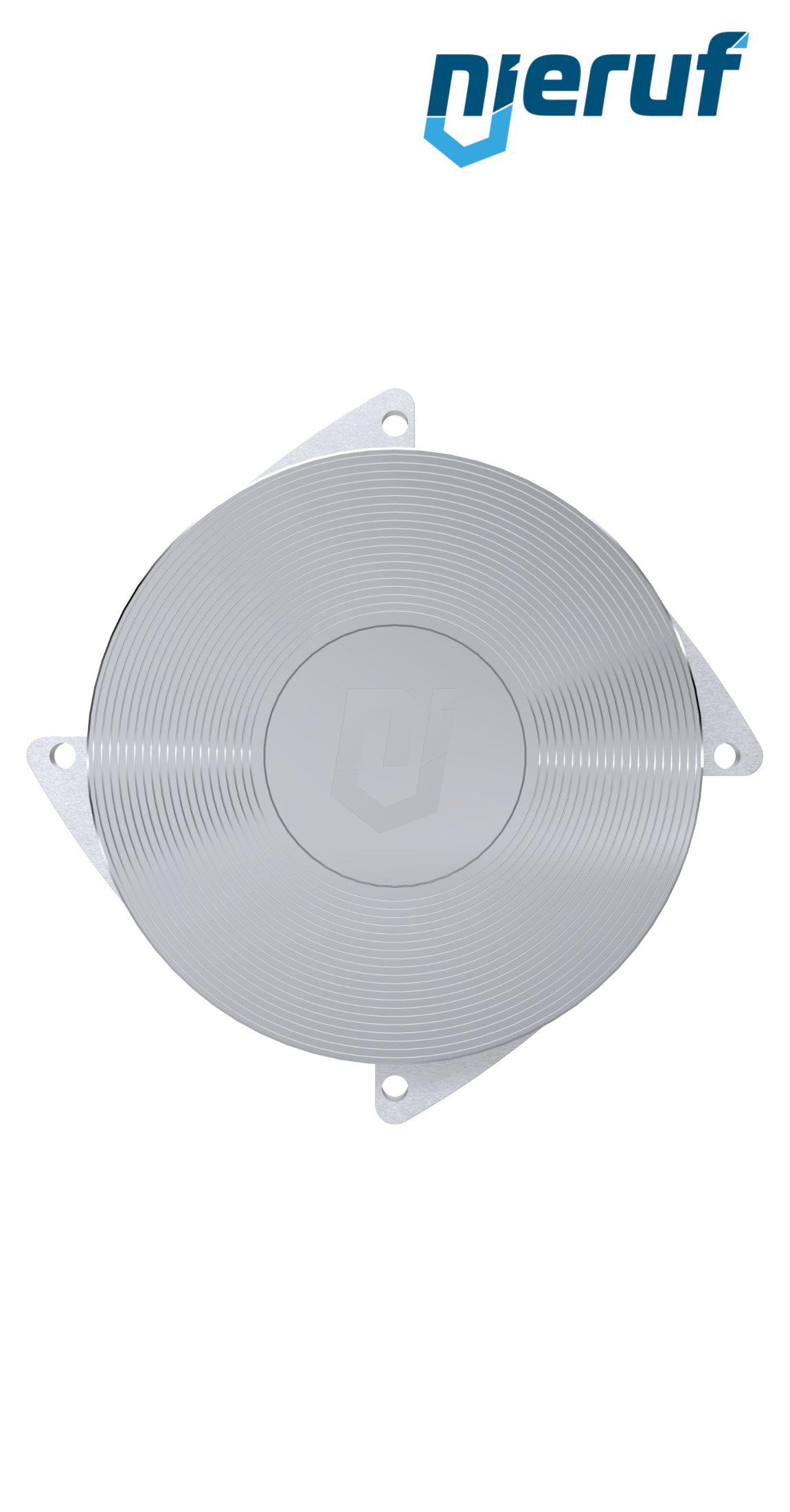

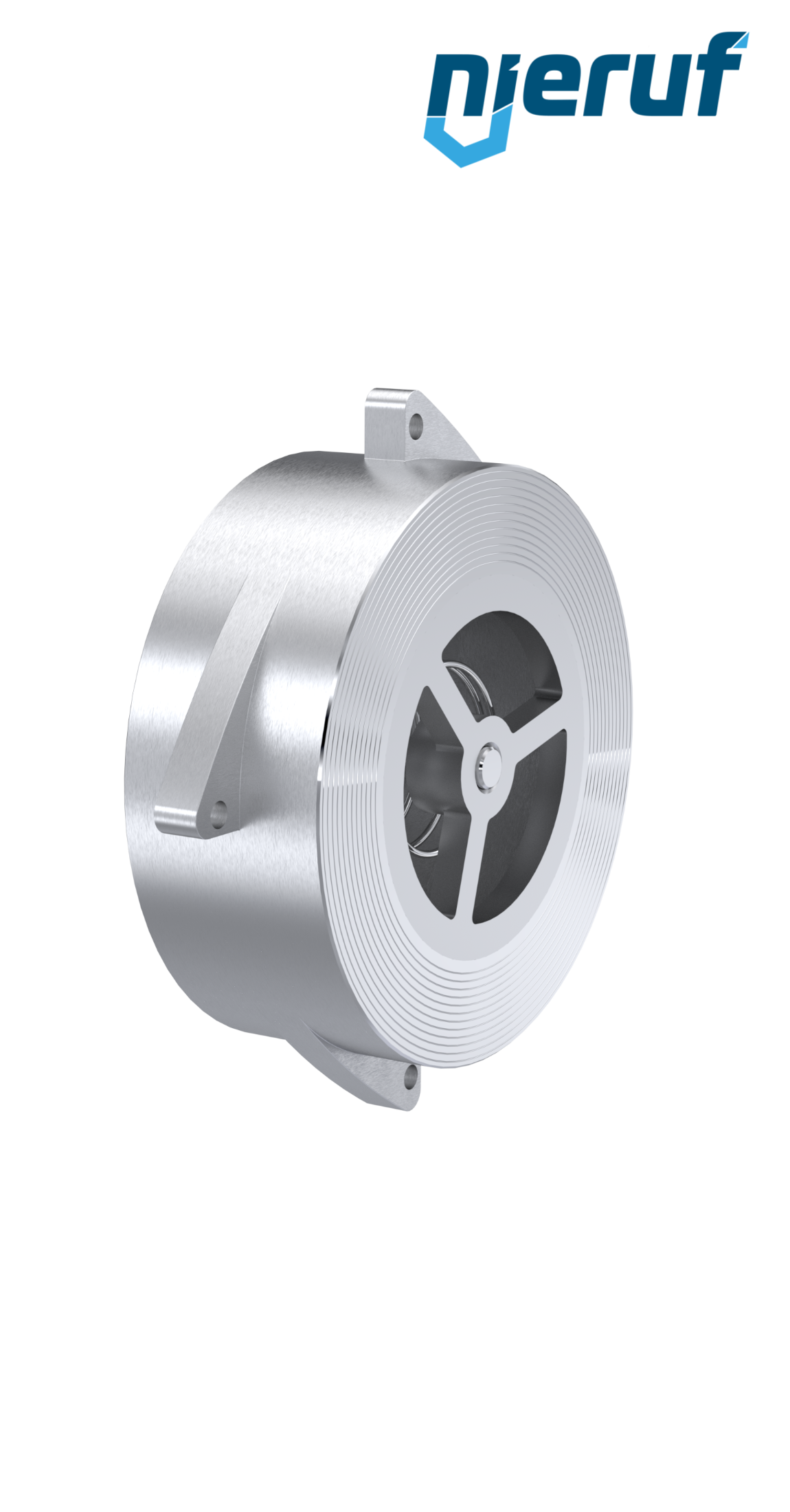

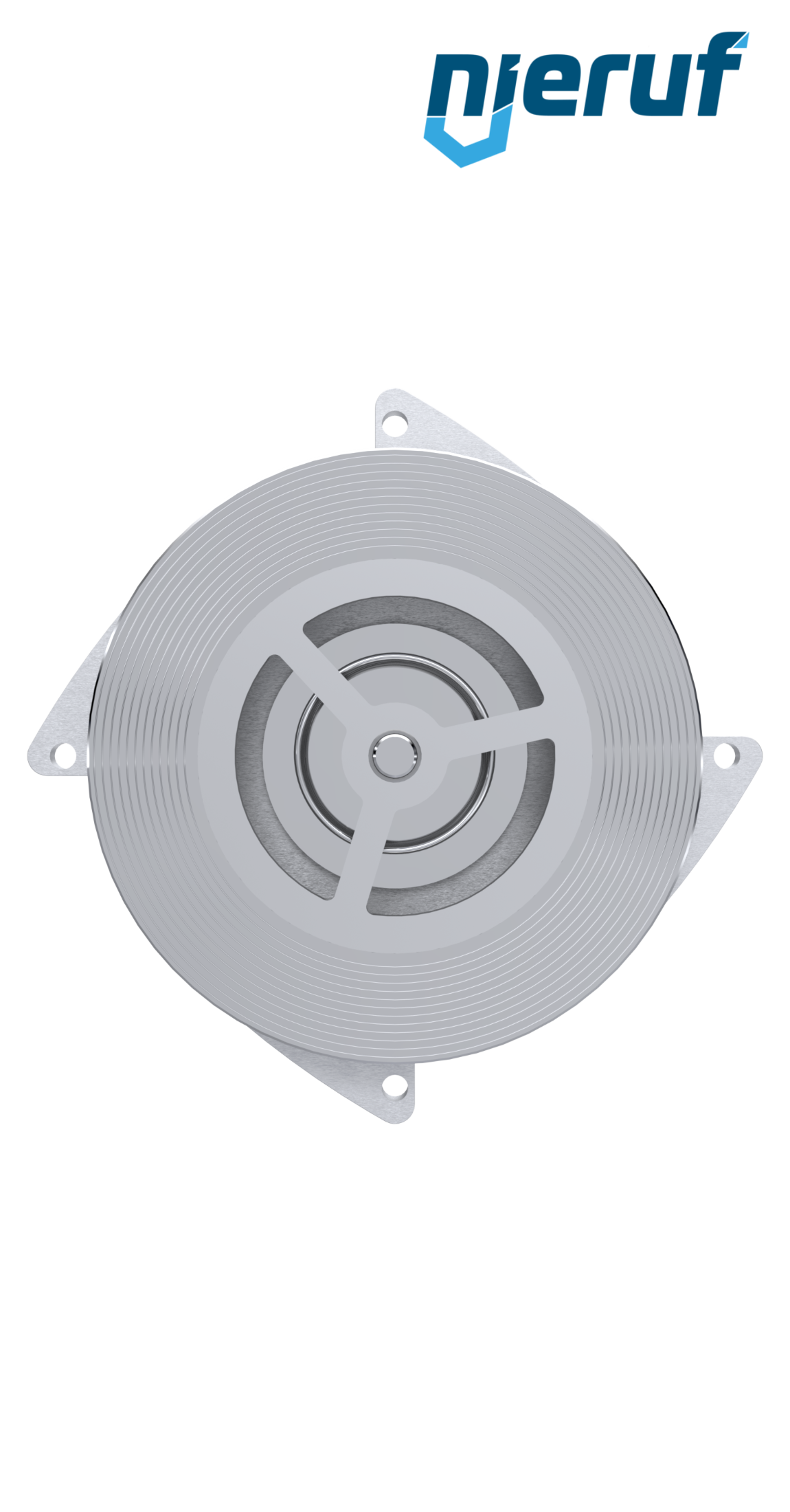

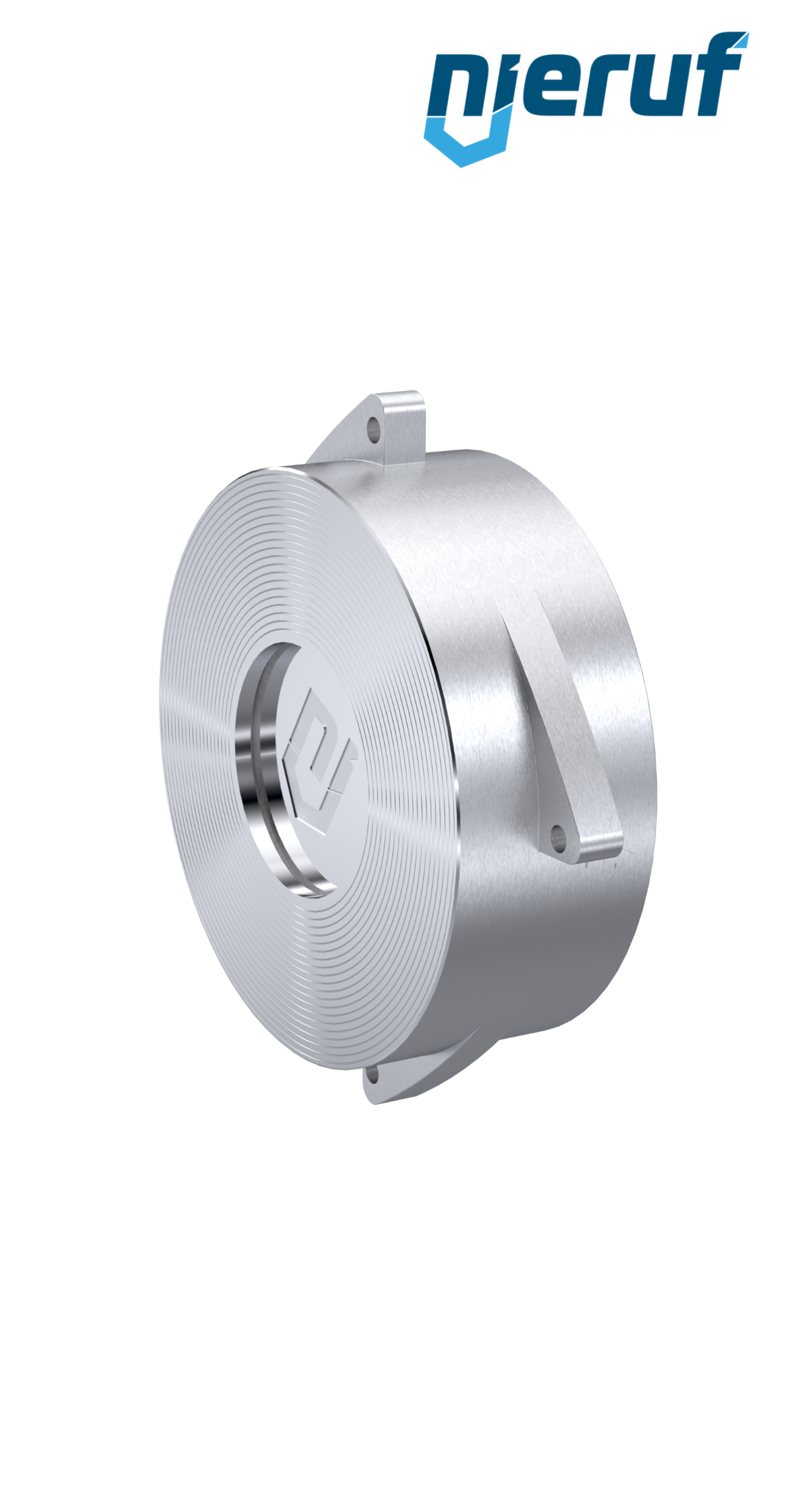

disco check valve DN 25 made of Stainless steel CF8M seal NBR for liquid and gaseous media PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300)
| product | check valve |
|---|---|
| type | RV02 |
| manufacturer | NieRuf |
| design | disco check valve |
| diameter | DN 25 |
| body material | stainless steel 1.4408 / CF8M |
| disc material | stainless steel 1.4408 / CF8M |
| seal | NBR |
| tightness acc. to DIN EN 12266 | leak rate A |
| temperature | -30°C up to +100°C |
| flange | PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300) |
| pressure range | 0 - 50 bar |
| Kv-value in m3/h | 10,00 |
| spring material | stainless steel 1.4571 / AISI 316Ti |
| media | liquid and gaseous media |
| installation position | any position |
| product feature | face to face according DIN EN 558-1 row 49 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
check valve DN 25 Stainless steel CF8M NBR PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300)
Article no.
: RV02000405
product:
check valve
type:
RV02
manufacturer:
NieRuf
design:
disco check valve
diameter:
DN 25
body material:
stainless steel 1.4408 / CF8M
disc material:
stainless steel 1.4408 / CF8M
seal:
NBR
tightness acc. to DIN EN 12266:
leak rate A
temperature:
-30°C up to +100°C
flange:
PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300)
pressure range:
0 - 50 bar
Kv-value in m3/h:
10,00
spring material:
stainless steel 1.4571 / AISI 316Ti
media:
liquid and gaseous media
installation position:
any position
product feature:
face to face according DIN EN 558-1 row 49
Equipment
flange seal DN25 PN10/16/25/40 34x71x2 Klingersil C 4400
Lead time: in stock
Welding neck flange DN25 PN10/16/25/40 EN1092-1 11 B1 1.4541
Lead time: 3 - 5 working days
joint set check valve/flange DN25 - 1" Inch for flange PN10/16/25/40 stainless steel
Lead time: in stock
