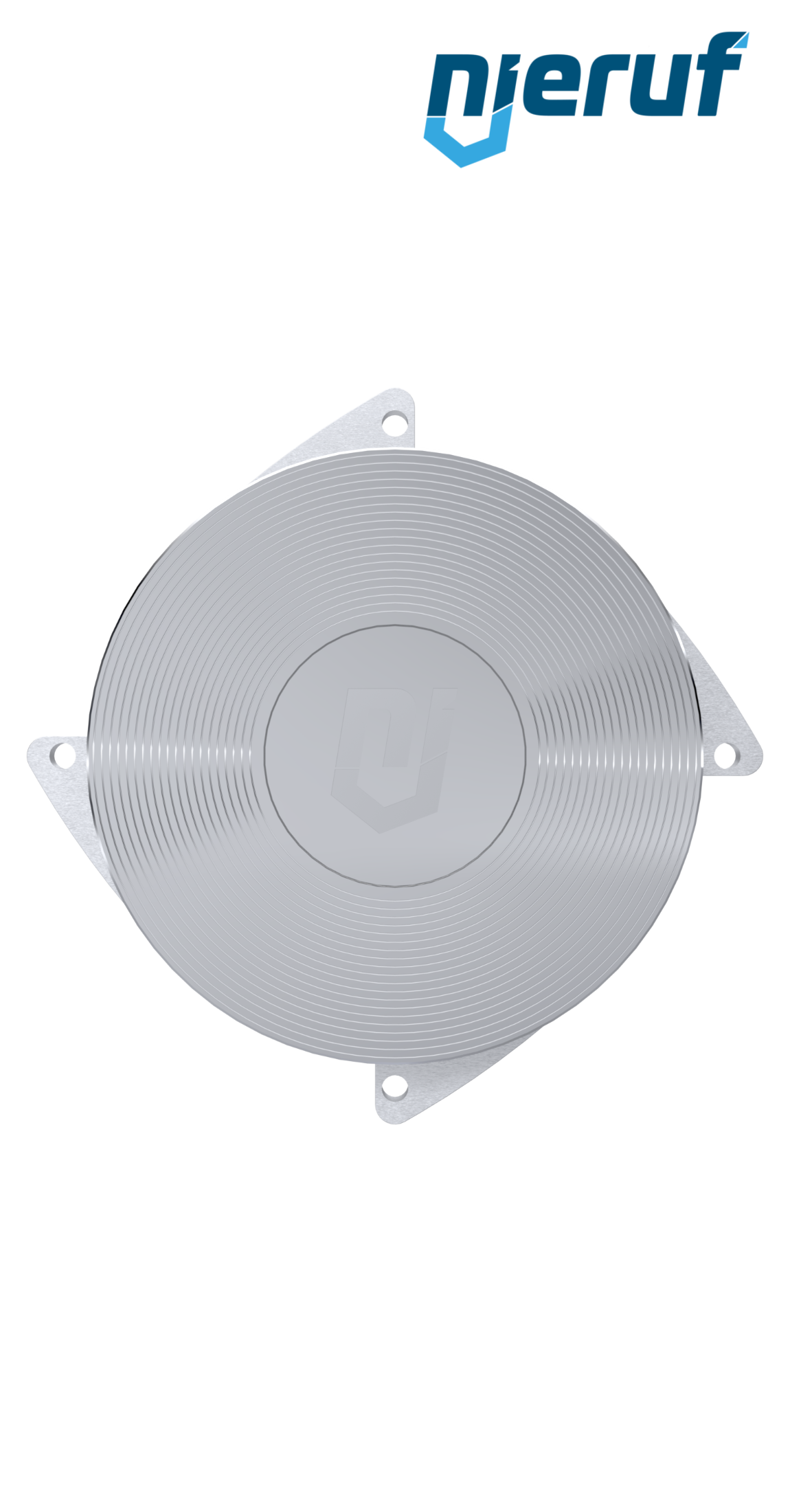

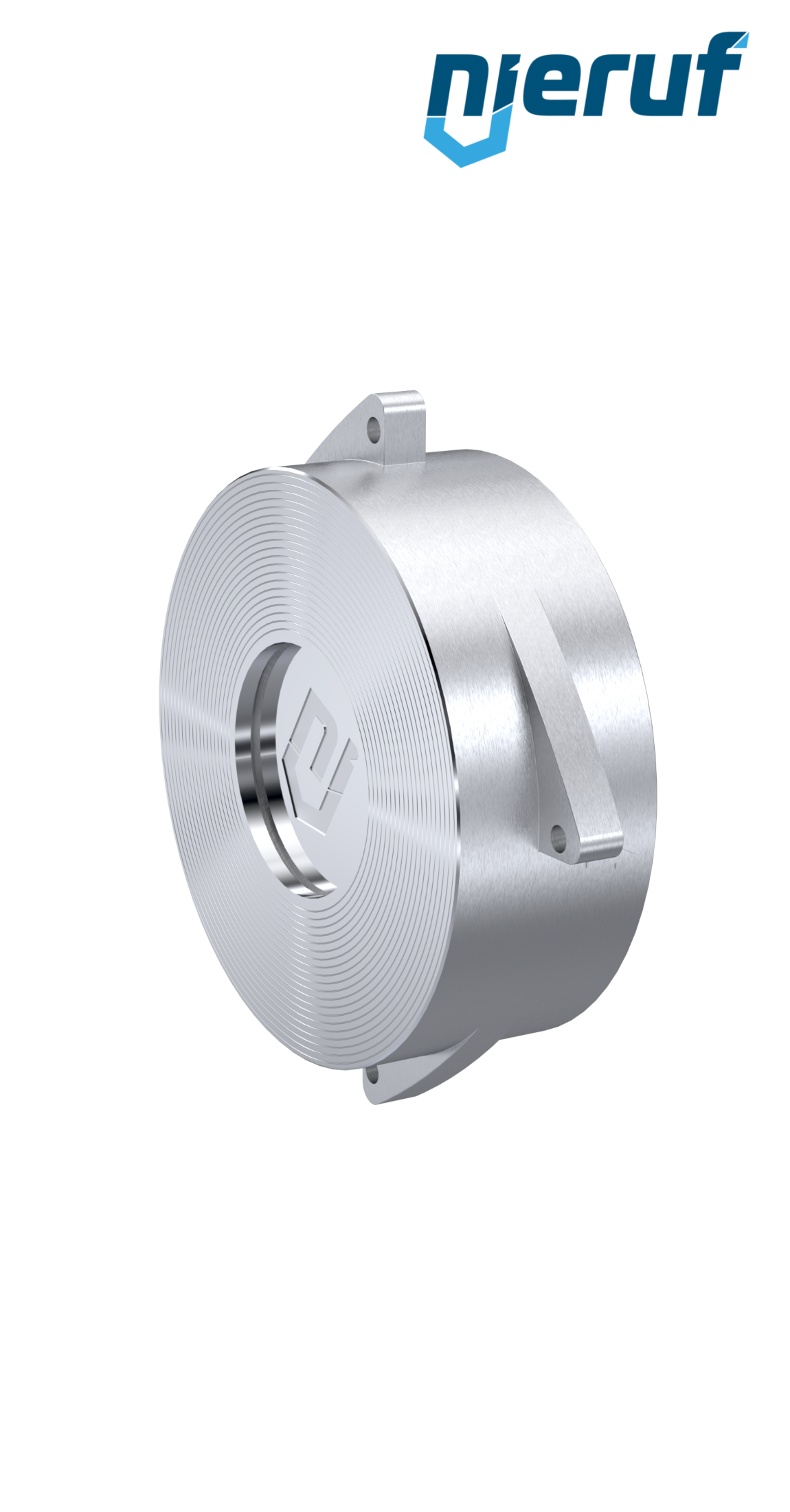

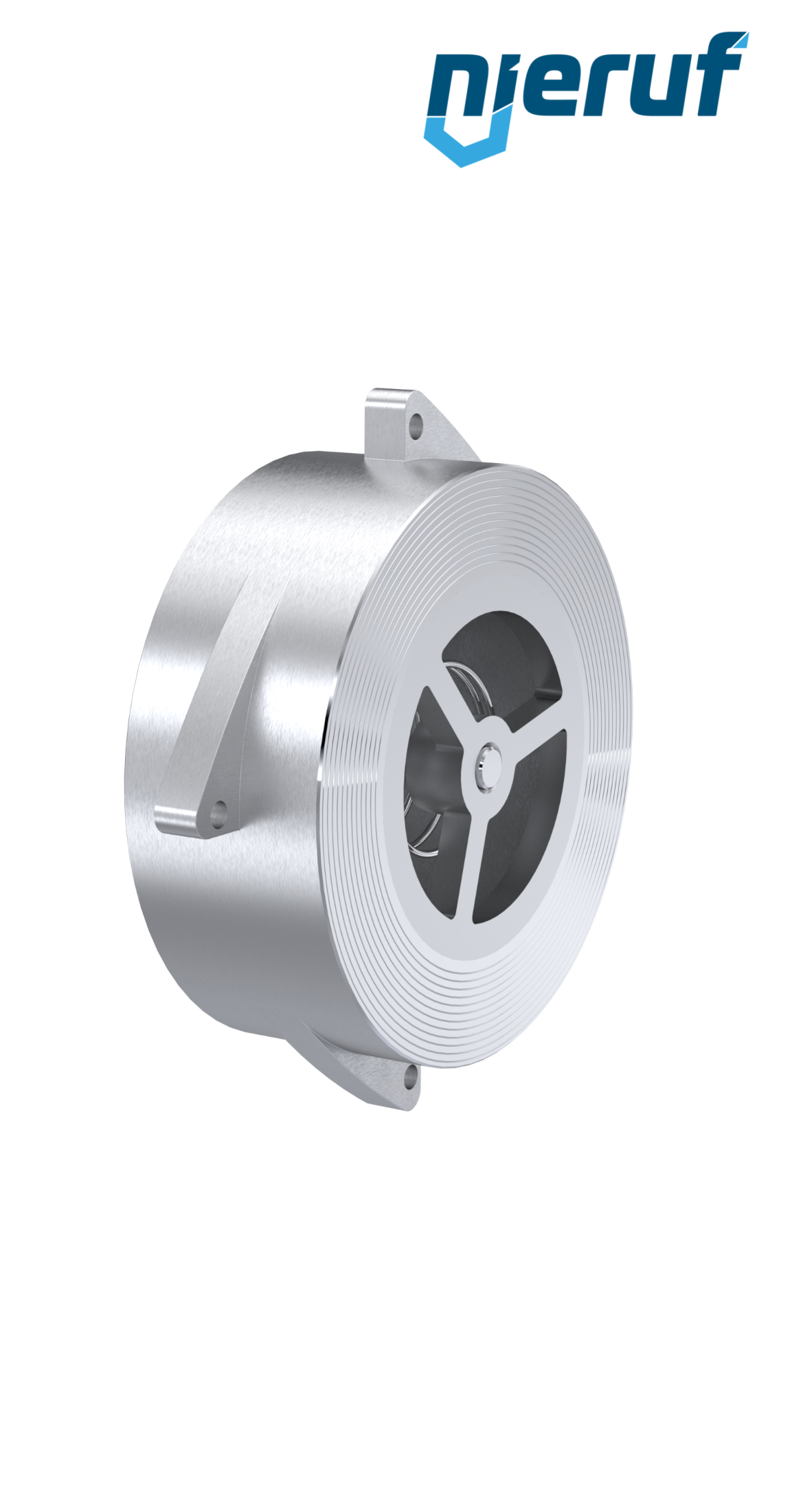

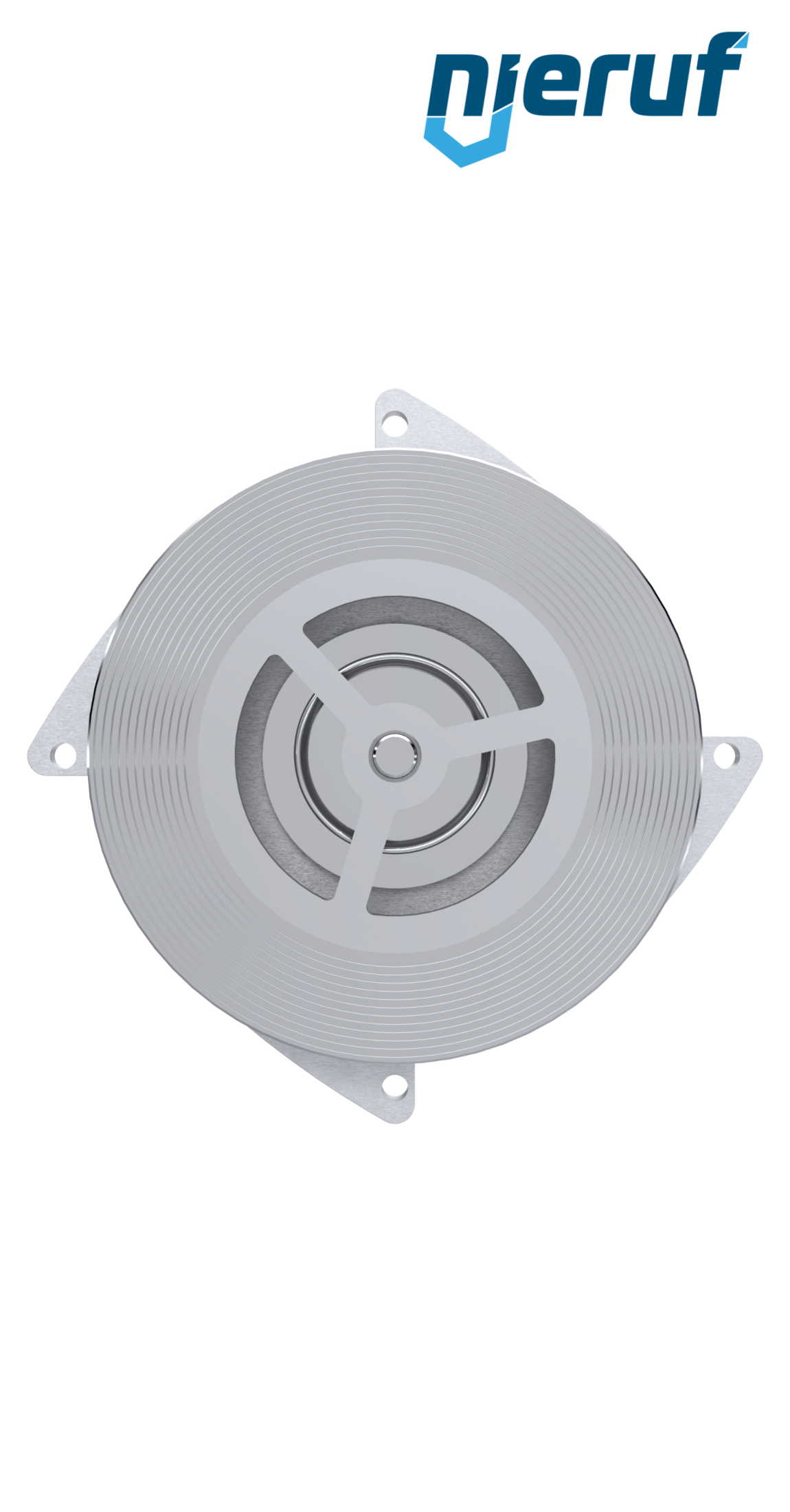

check valve DN 100 Stainless steel CF8M NBR PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300)
disco check valve DN 100 made of Stainless steel CF8M seal NBR for liquid and gaseous media PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300)
| product | check valve |
|---|---|
| type | RV02 |
| manufacturer | NieRuf |
| design | disco check valve |
| diameter | DN 100 |
| body material | stainless steel 1.4408 / CF8M |
| disc material | stainless steel 1.4408 / CF8M |
| seal | NBR |
| tightness acc. to DIN EN 12266 | leak rate A |
| temperature | -30°C up to +100°C |
| flange | PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300) |
| pressure range | 0 - 50 bar |
| Kv-value in m3/h | 115,00 |
| spring material | stainless steel 1.4571 / AISI 316Ti |
| media | liquid and gaseous media |
| installation position | any position |
| product feature | face to face according DIN EN 558-1 row 49 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
check valve DN 100 Stainless steel CF8M NBR PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300)
Article no.
: RV02000411
product:
check valve
type:
RV02
manufacturer:
NieRuf
design:
disco check valve
diameter:
DN 100
body material:
stainless steel 1.4408 / CF8M
disc material:
stainless steel 1.4408 / CF8M
seal:
NBR
tightness acc. to DIN EN 12266:
leak rate A
temperature:
-30°C up to +100°C
flange:
PN 6 to 40 (+ASME B16.5 / ANSI 150 and 300)
pressure range:
0 - 50 bar
Kv-value in m3/h:
115,00
spring material:
stainless steel 1.4571 / AISI 316Ti
media:
liquid and gaseous media
installation position:
any position
product feature:
face to face according DIN EN 558-1 row 49
