RV07000514
check valve DN 200 spheroidal graphite cast iron metall PN 10-16 (+ASME B16.5 ANSI 150)
Delivery time: 3 - 5 working days
Equipment
flange seal DN200 PN10/16 220x273x2 Klingersil C 4400
Delivery time: in stock
Express delivery:
€25.35 VAT included.
nieruf.product_alternatives.component.product.card.headline
check valve DN 200 Stainless steel CF8M metall PN 10 to 16 (+ASME B16.5 / ANSI 150)
Delivery time: 3 - 5 working days
€1,198.69 VAT included.
Certificates
Questions about the article?
Our employee Max Eisele
will be happy to help you

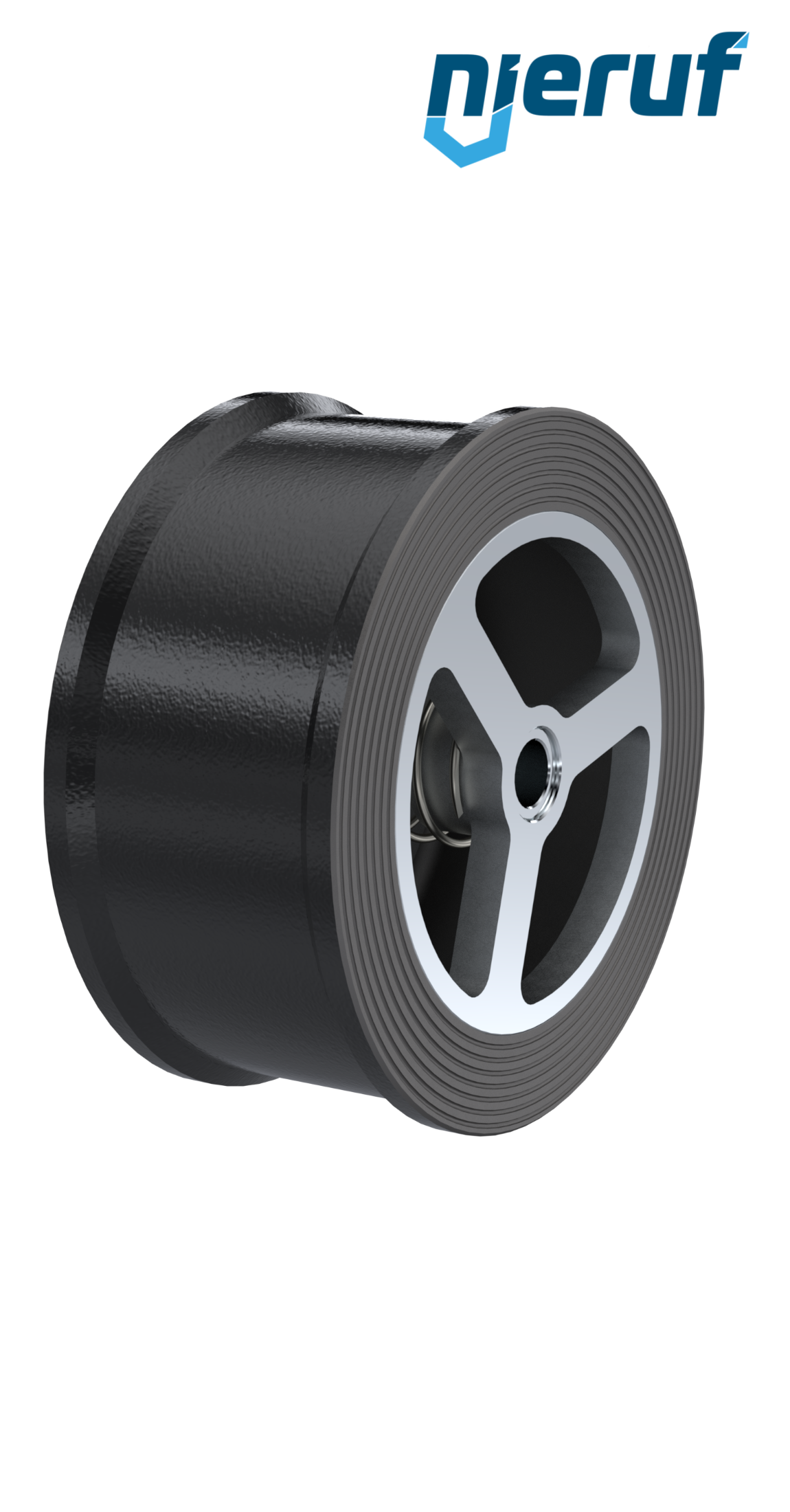

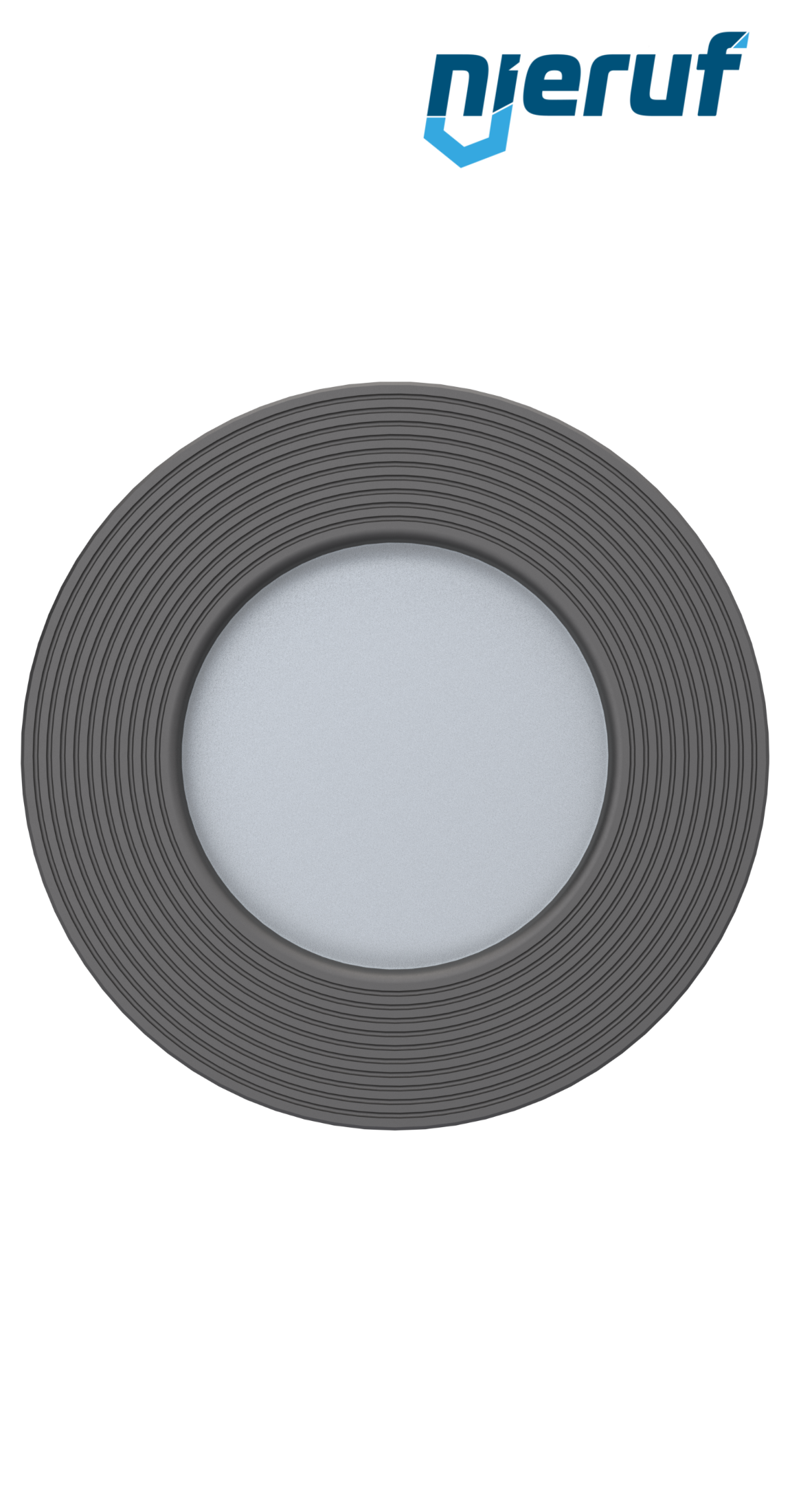

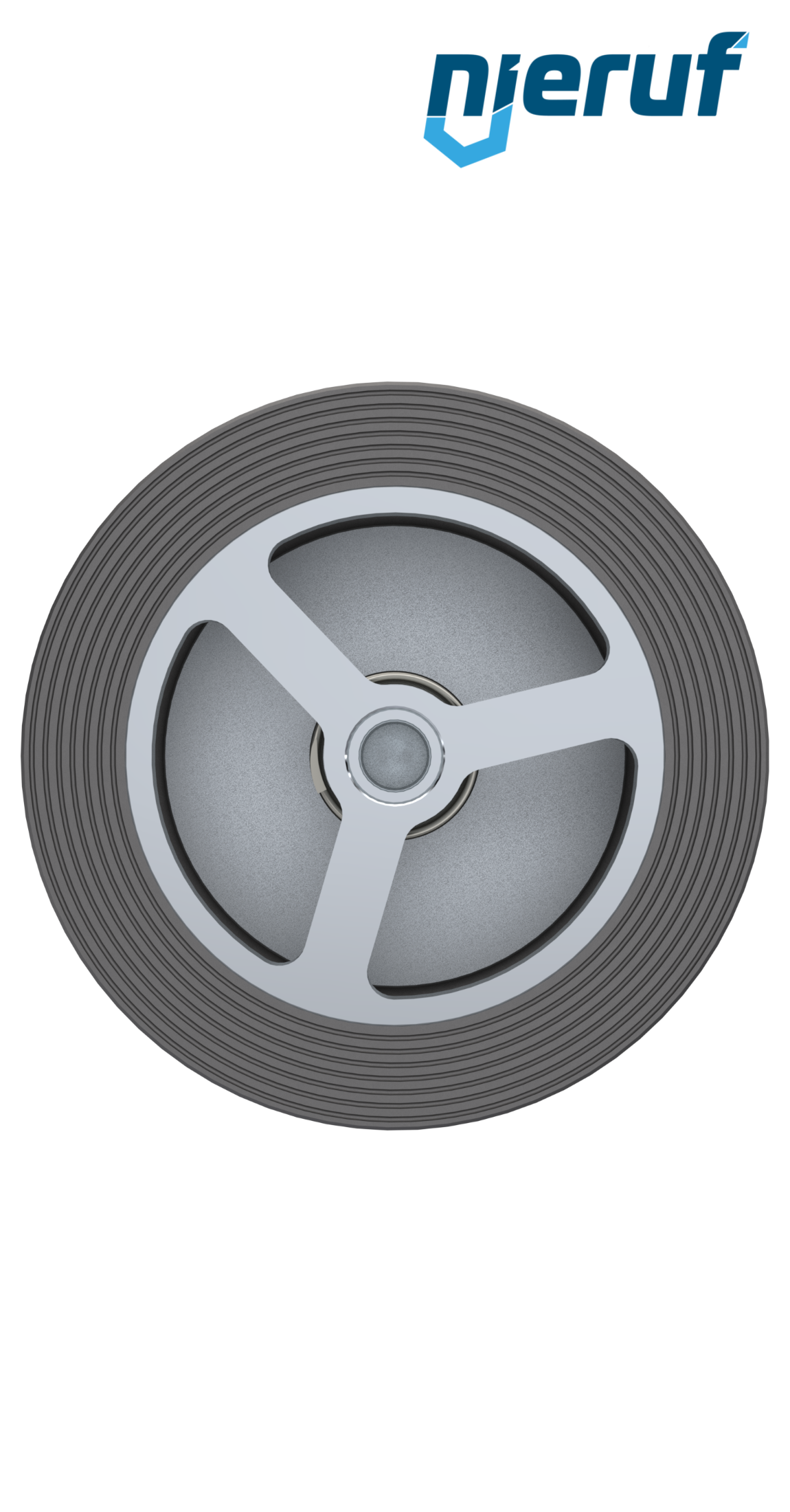

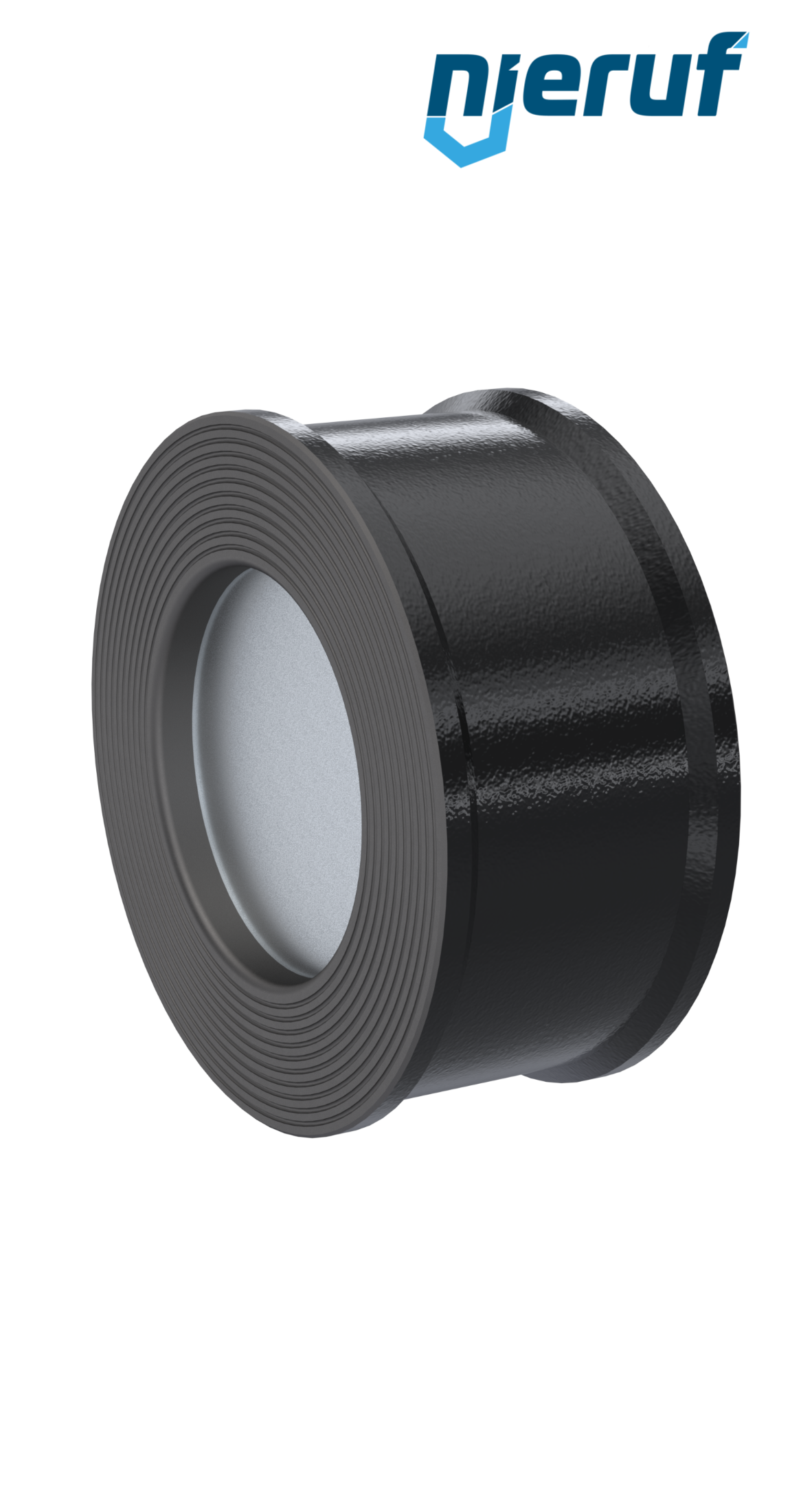

disco check valve DN 200 made of spheroidal graphite cast iron 5.3103/GGG40.3 seal metall for liquid & gaseous media PN 10-16 DIN EN 1092-1 B1, ASME B16.5 ANSI 150
product: | check valve |
---|---|
type: | RV07 |
manufacturer: | NieRuf |
design: | disco check valve |
diameter: | DN 200 |
body material: | spheroidal graphite cast iron 5.3103/GGG40.3 |
disc material: | Stainless steel 1.4308 |
seal: | metall |
tightness acc. to DIN EN 12266: | leak rate ≥ G |
temperature: | -10°C up to +200°C |
flange: | PN 10-16 DIN EN 1092-1 B1, ASME B16.5 ANSI 150 |
pressure range: | 0 - 16 bar |
Kv-value in m3/h: | 530,00 |
spring material: | stainless steel 1.4571 |
media: | liquid & gaseous media |
installation position: | any position |
product feature: | Length according DIN EN 558 row 49 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
check valve DN 200 spheroidal graphite cast iron metall PN 10-16 (+ASME B16.5 ANSI 150)
Article no.
: RV07000514
product:
check valve
type:
RV07
manufacturer:
NieRuf
design:
disco check valve
diameter:
DN 200
body material:
spheroidal graphite cast iron 5.3103/GGG40.3
disc material:
Stainless steel 1.4308
seal:
metall
tightness acc. to DIN EN 12266:
leak rate ≥ G
temperature:
-10°C up to +200°C
flange:
PN 10-16 DIN EN 1092-1 B1, ASME B16.5 ANSI 150
pressure range:
0 - 16 bar
Kv-value in m3/h:
530,00
spring material:
stainless steel 1.4571
media:
liquid & gaseous media
installation position:
any position
product feature:
Length according DIN EN 558 row 49
There for you
Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.
You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com
Quality
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
