SV18105306

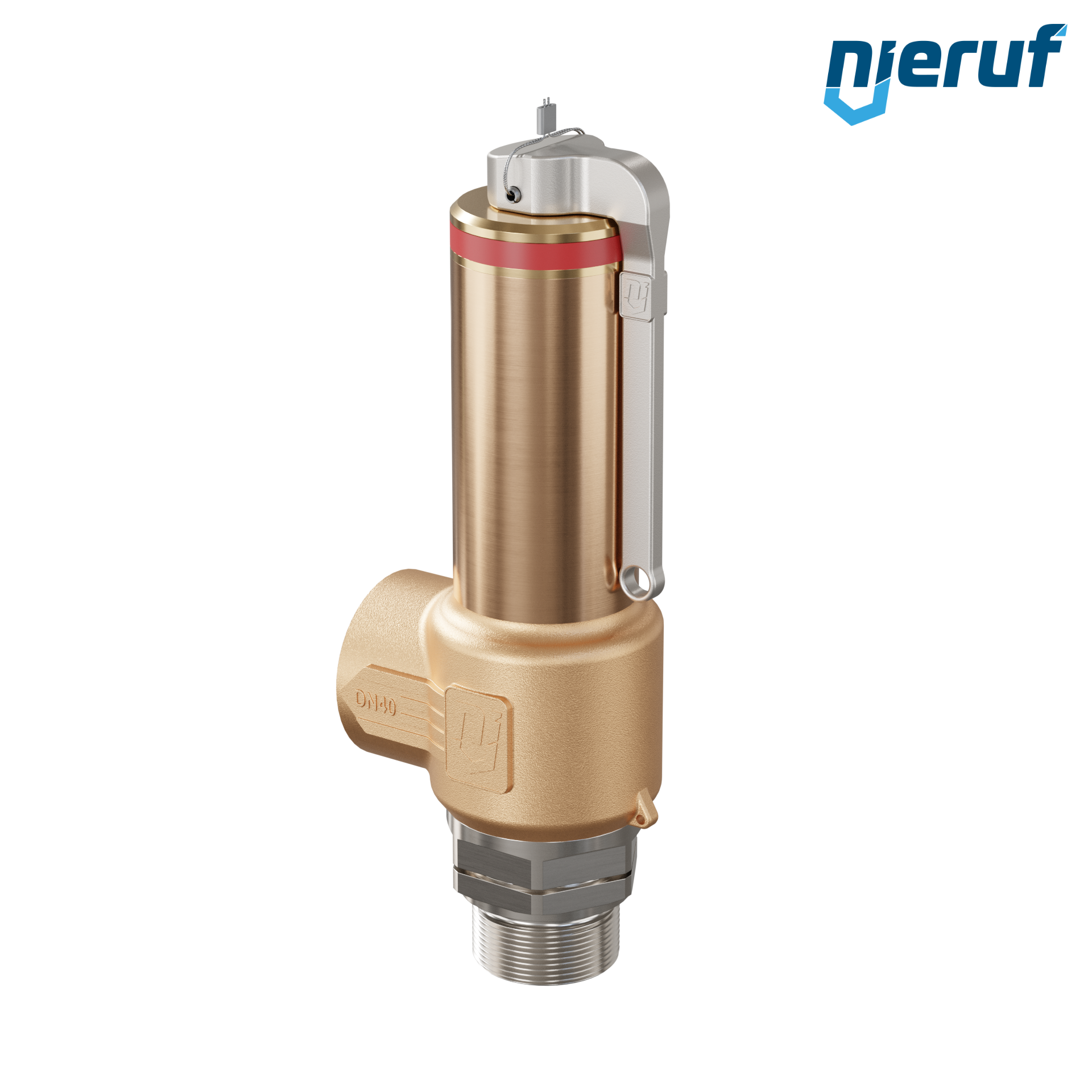

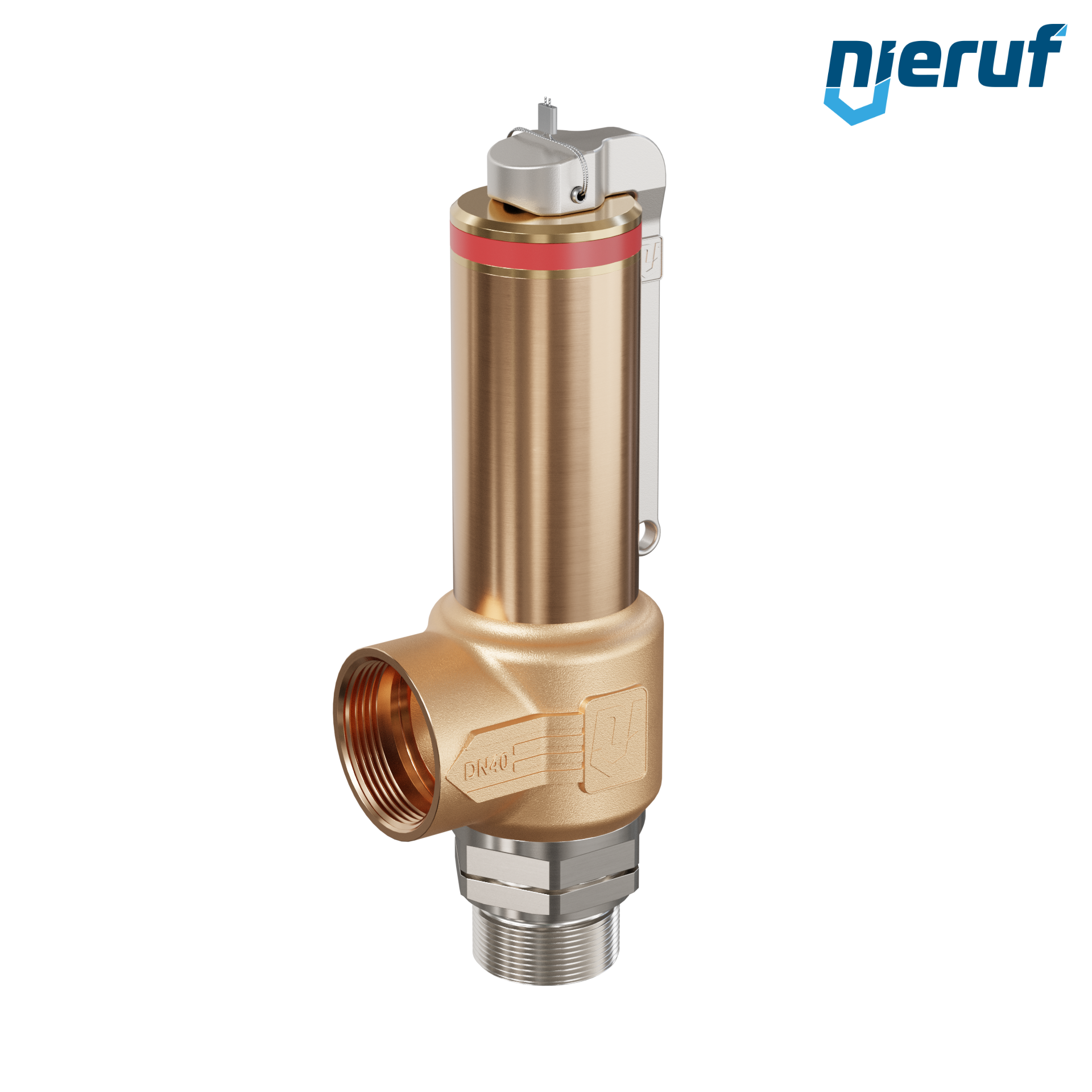

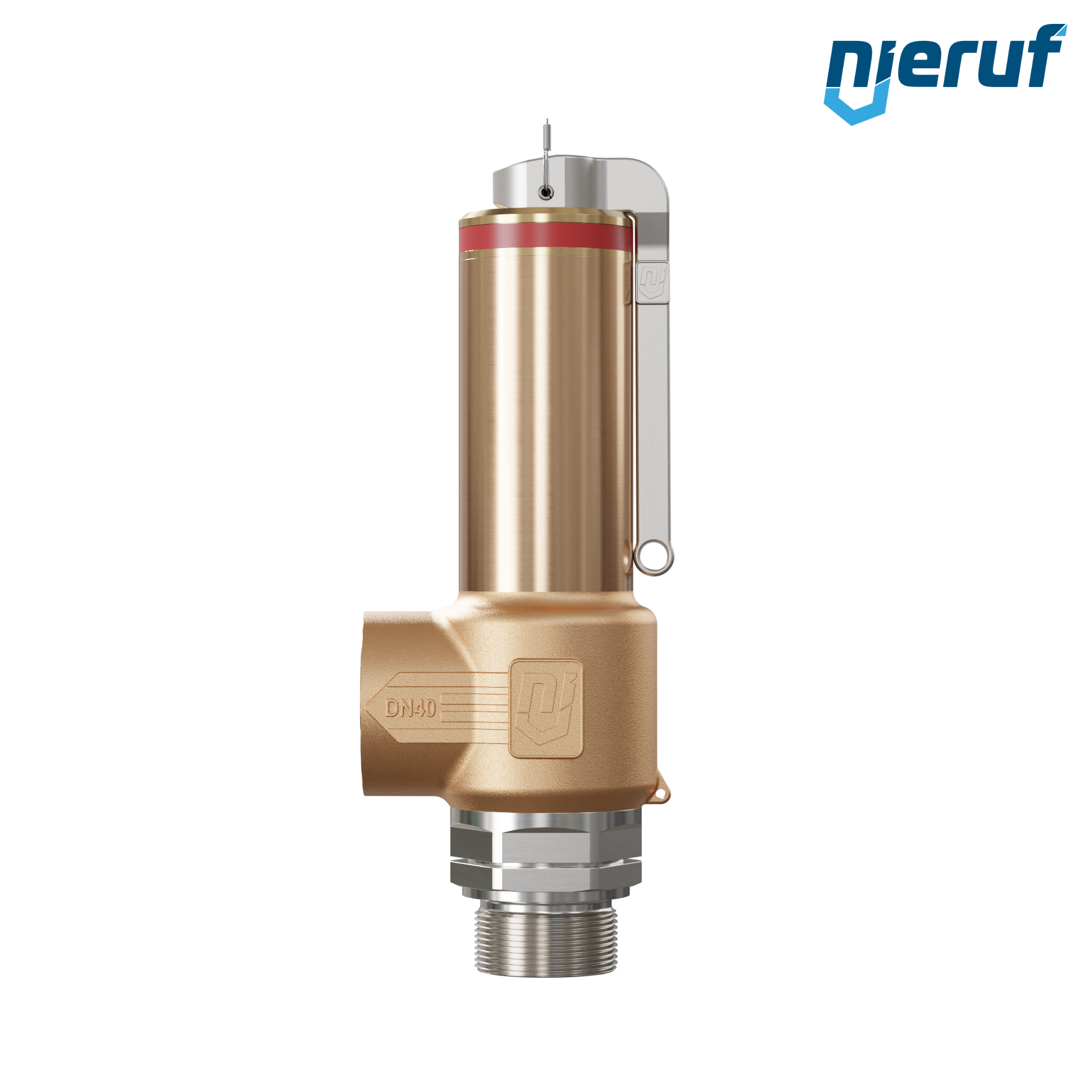

Cryo safety valve with lever DN25 1 1/4" m x 1 1/2" fm SV18, stainless steel & gunmetal PTFE
- Lead time
- 3 - 5 working days
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you
Cryo safety valve with lever DN25 1 1/4" m x 1 1/2" fm SV18, stainless steel & gunmetal PTFE
Cryo safety valve with lever DN25 1 1/4" m x 1 1/2" fm SV18 for cryogenic liquified gases made of stainless steel & gunmetal seal PTFE pressure 0,2 - 50,0 bar
| product | Cryo safety valve |
|---|---|
| type | SV18 |
| manufacturer | NieRuf |
| diameter | DN25 1 1/4" m x 1 1/2" fm |
| d0 | 18,0 mm |
| connection | male screw threaded BSP-P |
| seal | PTFE |
| media | cryogenic liquified gases |
| temperature | - 200°C up to + 200°C |
| set pressure | 0,2 - 50,0 bar |
| design | angle-type |
| material | stainless steel 1.4404 / 316 L & gunmetal CC499K & brass CW617N |
| lifting | with lever |
| type test approval | TÜV-SV-2091 D/G/F |
| requirements | acc. DIN ISO 4126-1, DGR 2014/68/EU, VdTÜV-leaflet AD2000-A2 |
| installation position | Spring safety valves must be installed vertically to the spring cover that is located above or horizontally while taking the direction of flow into account. |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | Suitable for cryogenic liquified gases such as: LIN, LOX, LAr, CO2, LNG |
| product feature 2 | oil- and greasefree |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Cryo safety valve with lever DN25 1 1/4" m x 1 1/2" fm SV18, stainless steel & gunmetal PTFE
Article no.
: SV18105306
product:
Cryo safety valve
type:
SV18
manufacturer:
NieRuf
diameter:
DN25 1 1/4" m x 1 1/2" fm
d0:
18,0 mm
connection:
male screw threaded BSP-P
seal:
PTFE
media:
cryogenic liquified gases
temperature:
- 200°C up to + 200°C
set pressure:
0,2 - 50,0 bar
design:
angle-type
material:
stainless steel 1.4404 / 316 L & gunmetal CC499K & brass CW617N
lifting:
with lever
type test approval:
TÜV-SV-2091 D/G/F
requirements:
acc. DIN ISO 4126-1, DGR 2014/68/EU, VdTÜV-leaflet AD2000-A2
installation position:
Spring safety valves must be installed vertically to the spring cover that is located above or horizontally while taking the direction of flow into account.
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
Suitable for cryogenic liquified gases such as: LIN, LOX, LAr, CO2, LNG
product feature 2:
oil- and greasefree
