KP04002114

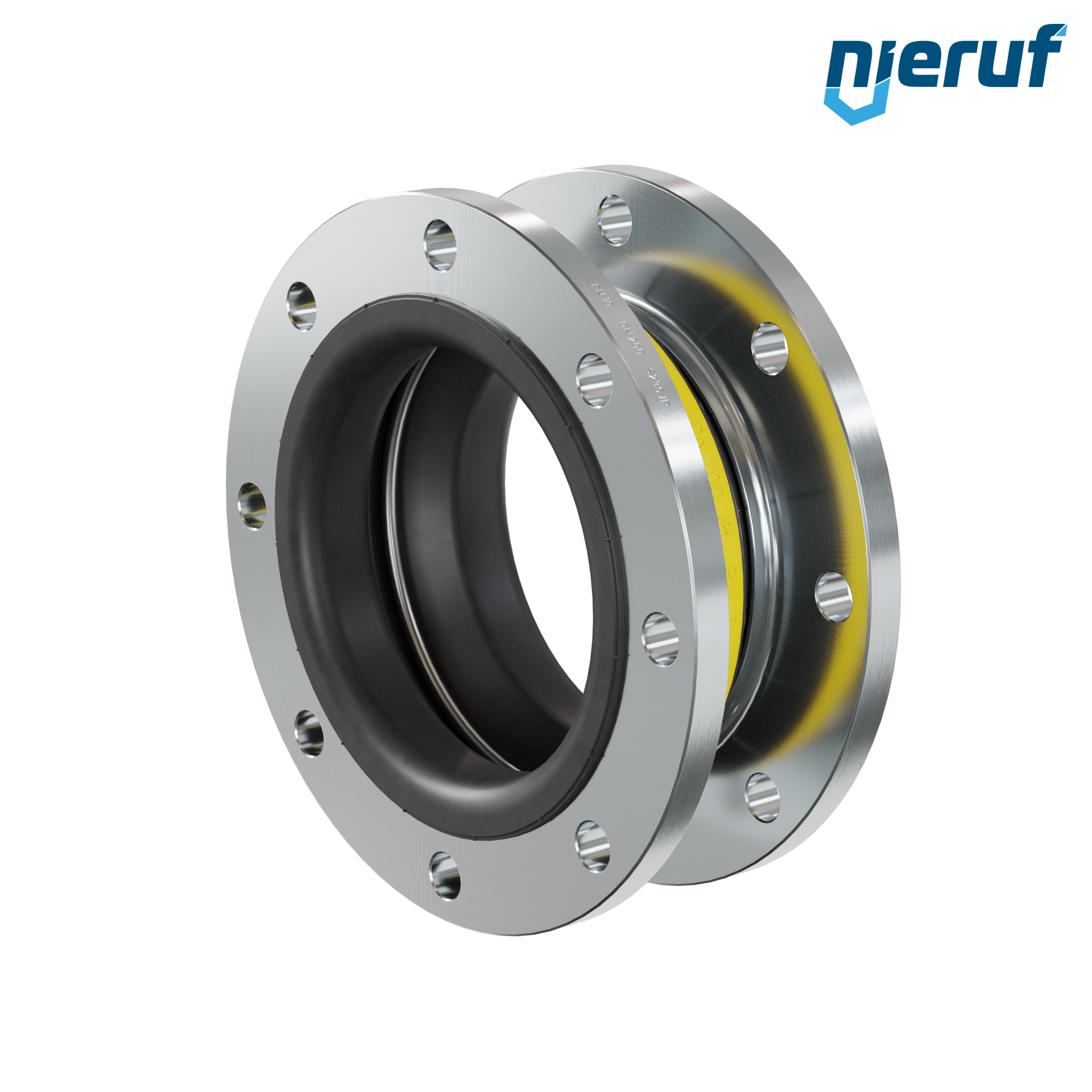

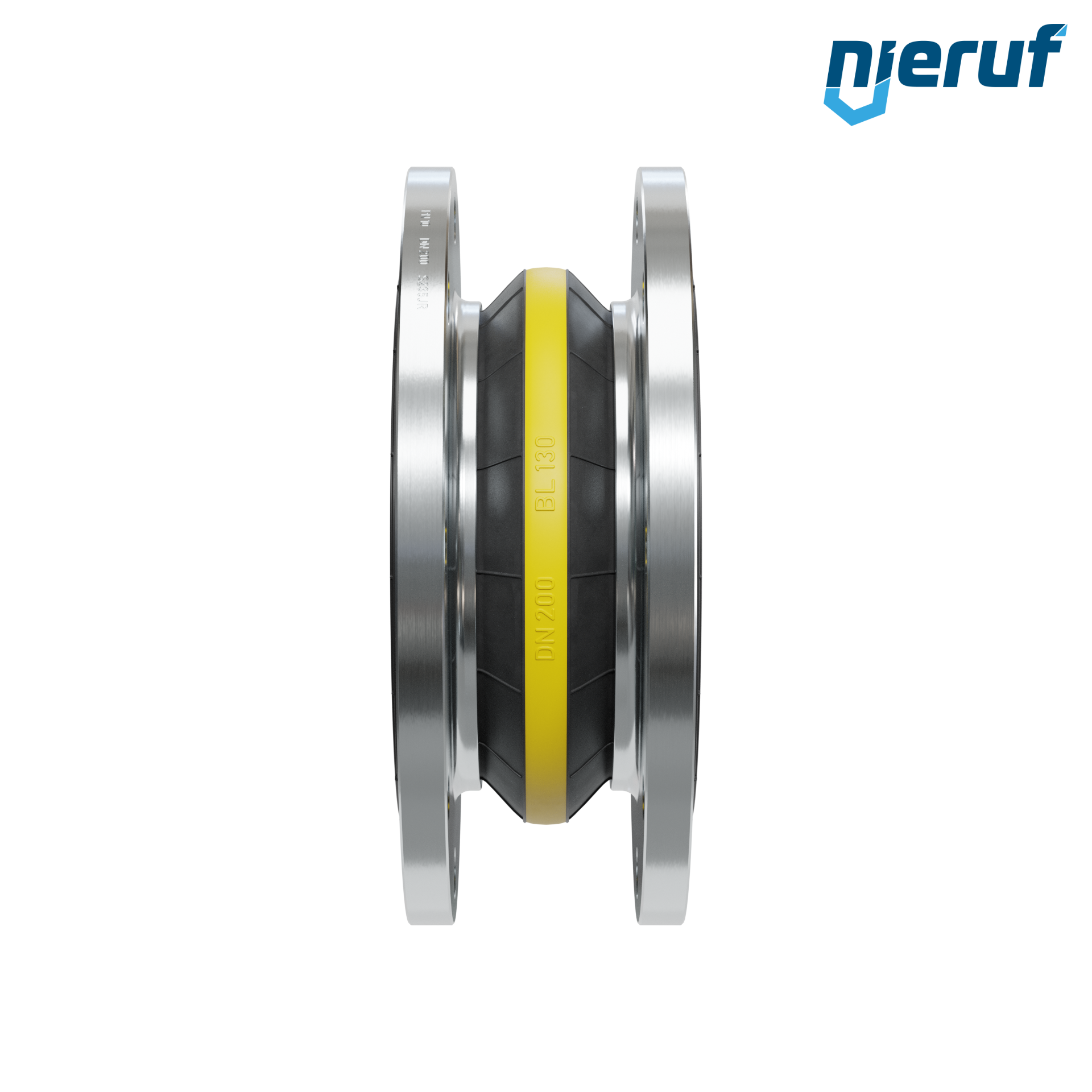

Rubber expansion joint vacuum support ring DN200 type KP04 steel flanges NBR
Delivery time: 3 - 5 working days
Equipment
joint set flange/flange DN200 - 8" Inch for flange PN10 steel
€27.61 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Rubber expansion joint DN200 vacuum support ring for liquid & gaseous media (no steam) with steel flanges & NBR seal
| product: | Compensators |
|---|---|
| type: | KP04 |
| manufacturer: | NieRuf |
| diameter: | DN200 |
| connection: | flange acc. DIN EN 1092-1 PN10 |
| option: | vacuum support ring |
| max. pressure: | max. 10 bar (consider pressure-temperature diagram) |
| nominal pressure: | PN 10 |
| material: | steel (electro galvanized) 235JR |
| sleeves: | NBR |
| media: | liquid media and gases (no steam) |
| temperature: | -20°C up to +90°C |
| design: | straightway form |
| CE: | Directive 2014/68/EU: product excluded from directive (article 4 § 3) |
| product feature: | High quality compensator with NBR sleeve and steel flanges. In addition, this componesator is equipped with a vacuum support for negative pressure. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Rubber expansion joint vacuum support ring DN200 type KP04 steel flanges NBR
Article no.
: KP04002114
product:
Compensators
type:
KP04
manufacturer:
NieRuf
diameter:
DN200
connection:
flange acc. DIN EN 1092-1 PN10
option:
vacuum support ring
max. pressure:
max. 10 bar (consider pressure-temperature diagram)
nominal pressure:
PN 10
material:
steel (electro galvanized) 235JR
sleeves:
NBR
media:
liquid media and gases (no steam)
temperature:
-20°C up to +90°C
design:
straightway form
CE:
Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature:
High quality compensator with NBR sleeve and steel flanges. In addition, this componesator is equipped with a vacuum support for negative pressure.
€101.39 VAT included.
€27.61 VAT included.
