KP04003012
Rubber expansion joint PTFE lining DN125 type KP04 steel flanges EPDM
- Lead time
- 5 - 6 weeks
Equipment
flange seal DN125 PN10/16 141x192x2 Klingersil C 4400
€6.55 VAT included.
joint set flange/flange DN125 - 5" Inch for flange PN10/16/25 steel
€16.18 VAT included.
Flange DN125 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
€62.59 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads

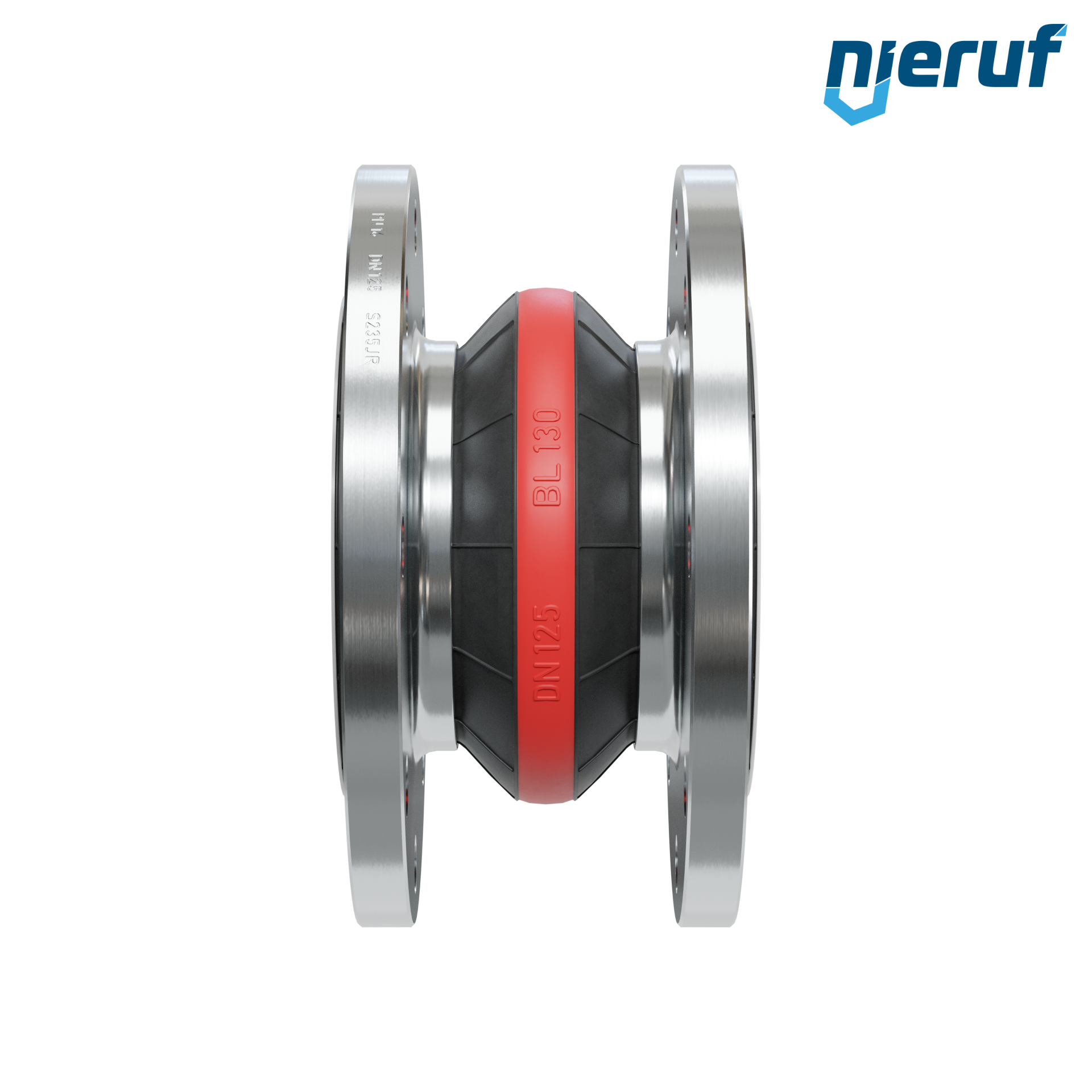

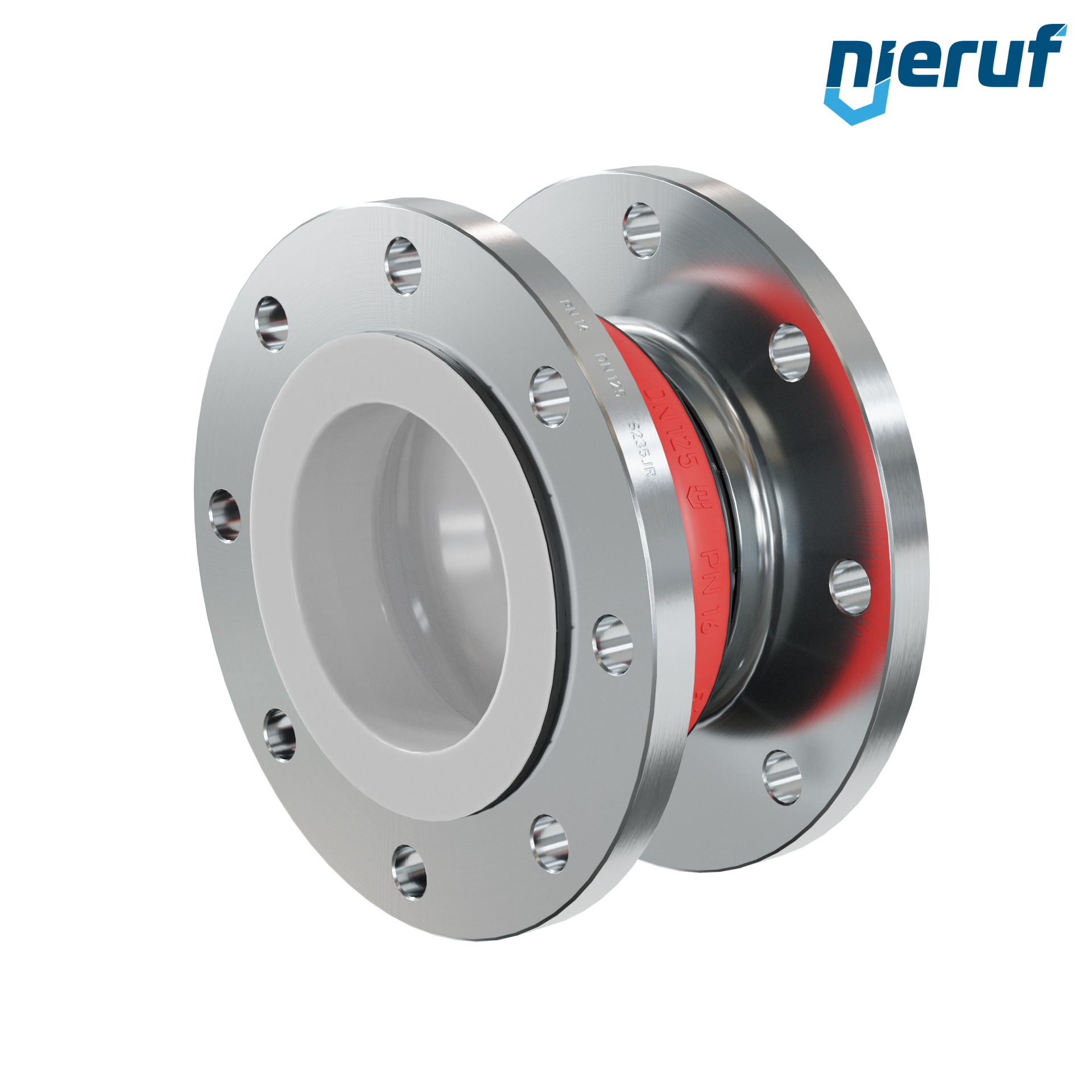

Rubber expansion joint PTFE lining DN125 type KP04 steel flanges EPDM
Rubber expansion joint DN125 PTFE lining for liquid & gaseous media (no steam) with steel flanges & EPDM seal
| product | Compensators |
|---|---|
| type | KP04 |
| manufacturer | NieRuf |
| diameter | DN125 |
| connection | flange acc. DIN EN 1092-1 PN16 |
| option | PTFE lining |
| max. pressure | max. 6 bar |
| material | steel (electro galvanized) 235JR |
| sleeves | EPDM |
| media | liquid media and gases (no steam) |
| temperature | -40°C up to +100°C |
| design | straightway form |
| CE | Directive 2014/68/EU: product excluded from directive (article 4 § 3) |
| authorized for | FDA |
| product feature | This high quality compensator with EPDM sleeve and steel flanges has a FDA-authorization. In addition, this componesator is equipped with PTFE lining which leads to a high chemical resistance due to a smooth interior surface. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Rubber expansion joint PTFE lining DN125 type KP04 steel flanges EPDM
Article no.
: KP04003012
product:
Compensators
type:
KP04
manufacturer:
NieRuf
diameter:
DN125
connection:
flange acc. DIN EN 1092-1 PN16
option:
PTFE lining
max. pressure:
max. 6 bar
material:
steel (electro galvanized) 235JR
sleeves:
EPDM
media:
liquid media and gases (no steam)
temperature:
-40°C up to +100°C
design:
straightway form
CE:
Directive 2014/68/EU: product excluded from directive (article 4 § 3)
authorized for:
FDA
product feature:
This high quality compensator with EPDM sleeve and steel flanges has a FDA-authorization. In addition, this componesator is equipped with PTFE lining which leads to a high chemical resistance due to a smooth interior surface.
Equipment
flange seal DN125 PN10/16 141x192x2 Klingersil C 4400
Lead time: in stock
Flange DN125 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
joint set flange/flange DN125 - 5" Inch for flange PN10/16/25 steel
Lead time: 3 - 5 working days
