KP04000011

Compensators DN100 type KP04 steel-flange EPDM

Compensatore DN100 tipo KP04 flange acciaio, manicotto EPDM

€344.00*

€409.36 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: in stock

Express delivery*

Order in within by express delivery

Shipping on: Monday, 05. October

Guaranteed delivery until Tuesday, 06. October, 12 o'clock

* Specified delivery times apply for Mon. - Fri. without consideration of public holidays.

Equipment

FL01020111

Flange DN100 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare

€34.20*

€40.70 VAT included.

VS01010111

joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 steel

€12.80*

€15.23 VAT included.

Resistance check

×

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

24 months warranty

Downloads

3D model

Datasheet

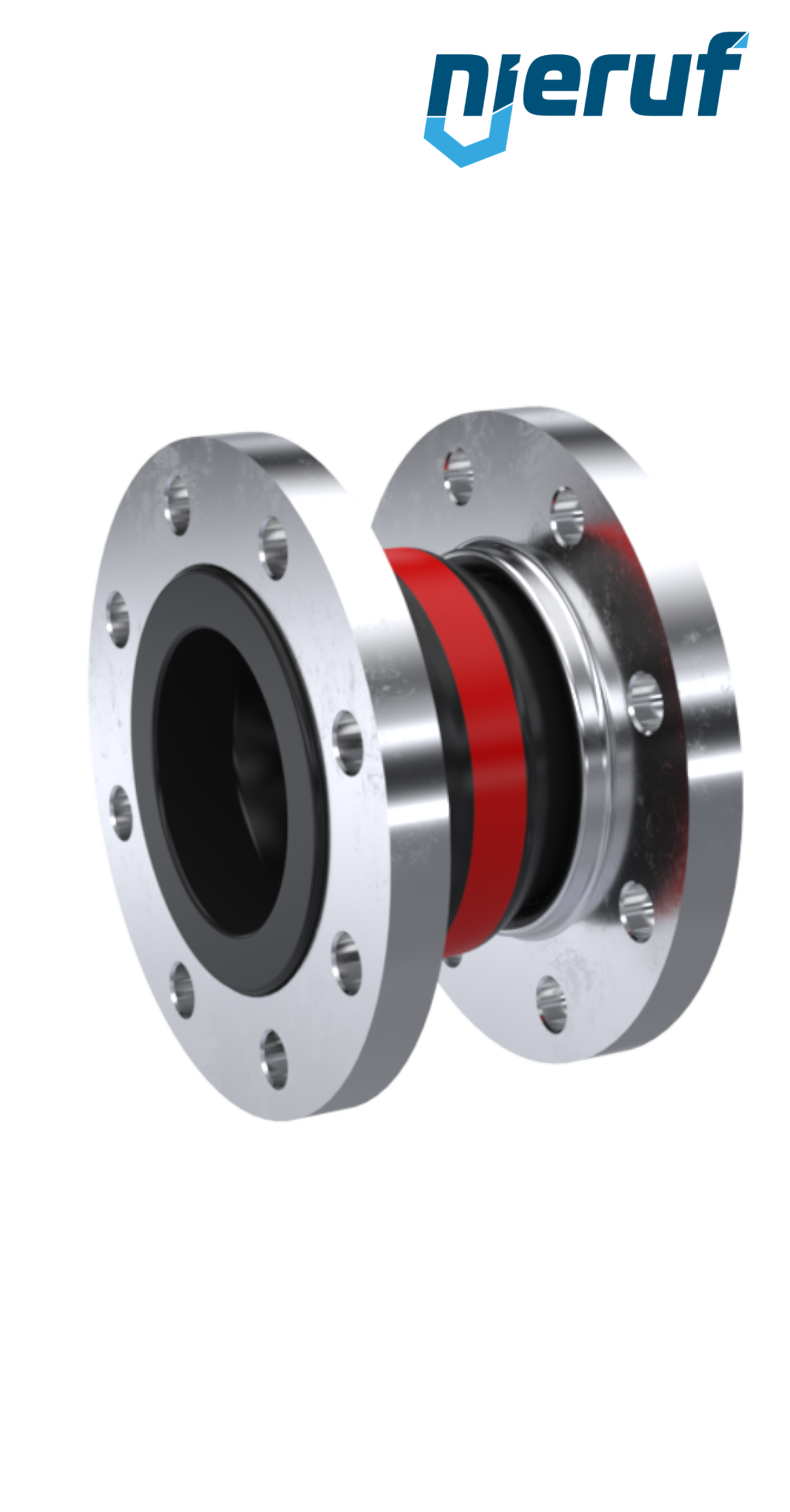

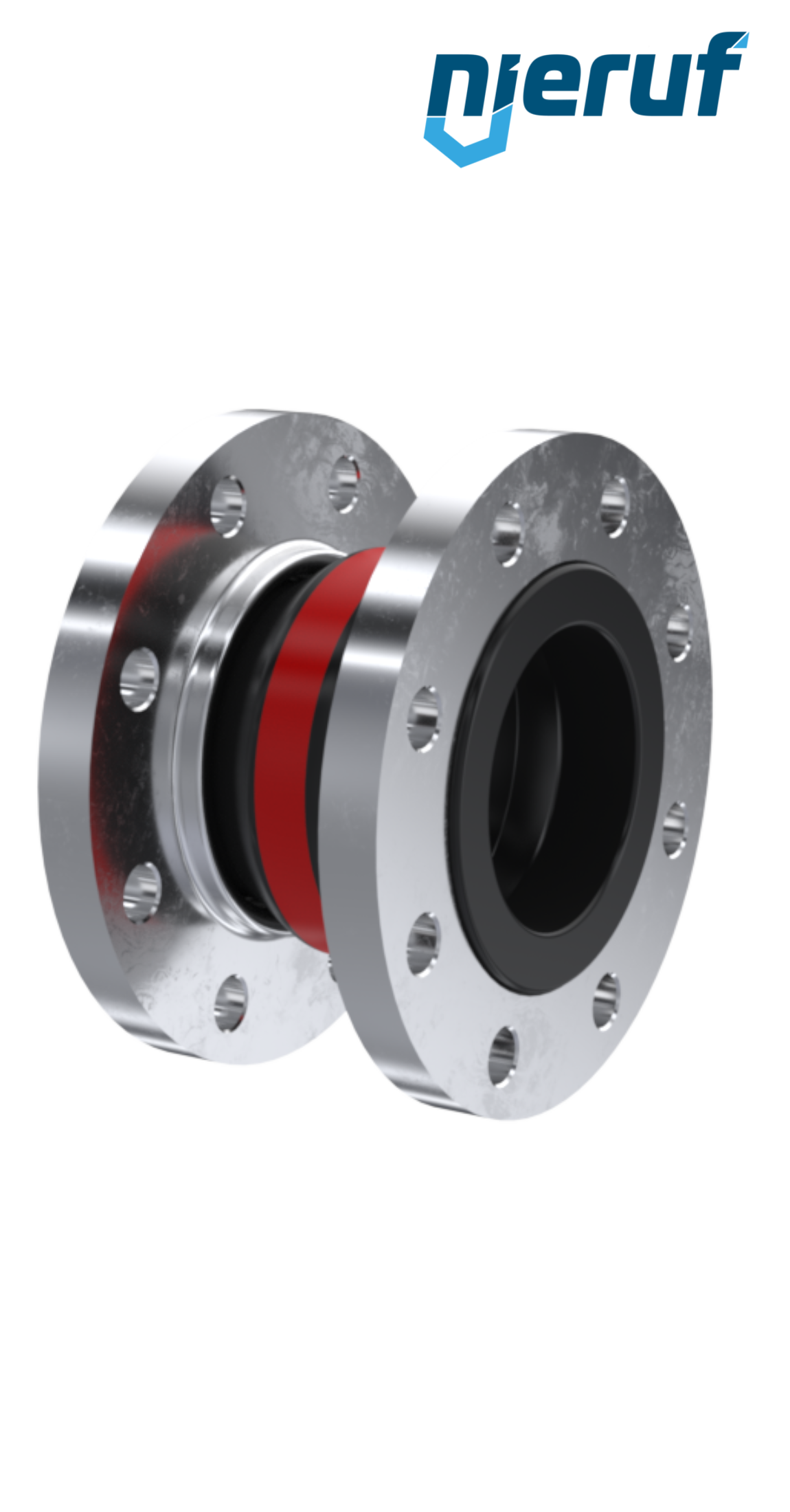

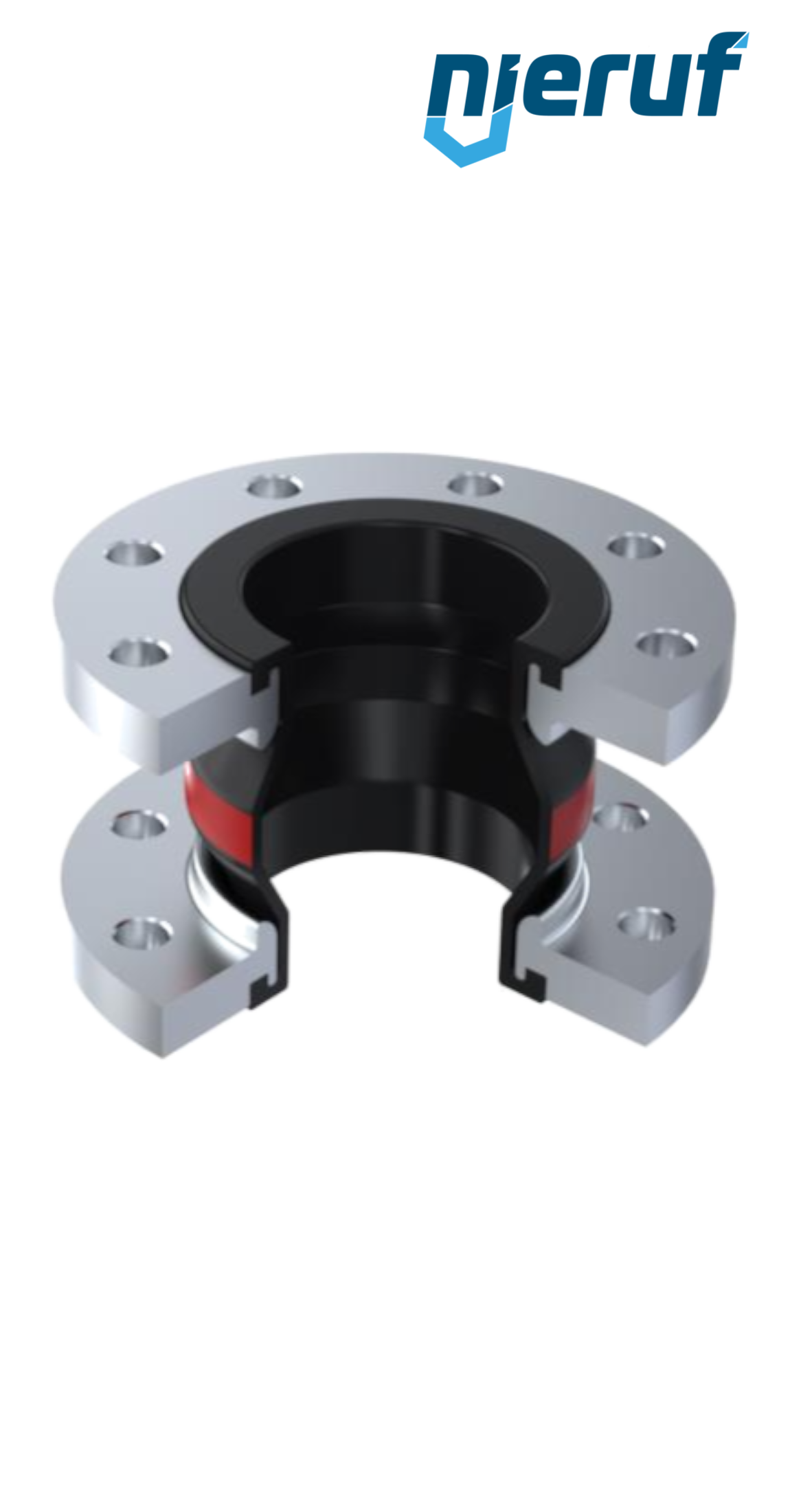

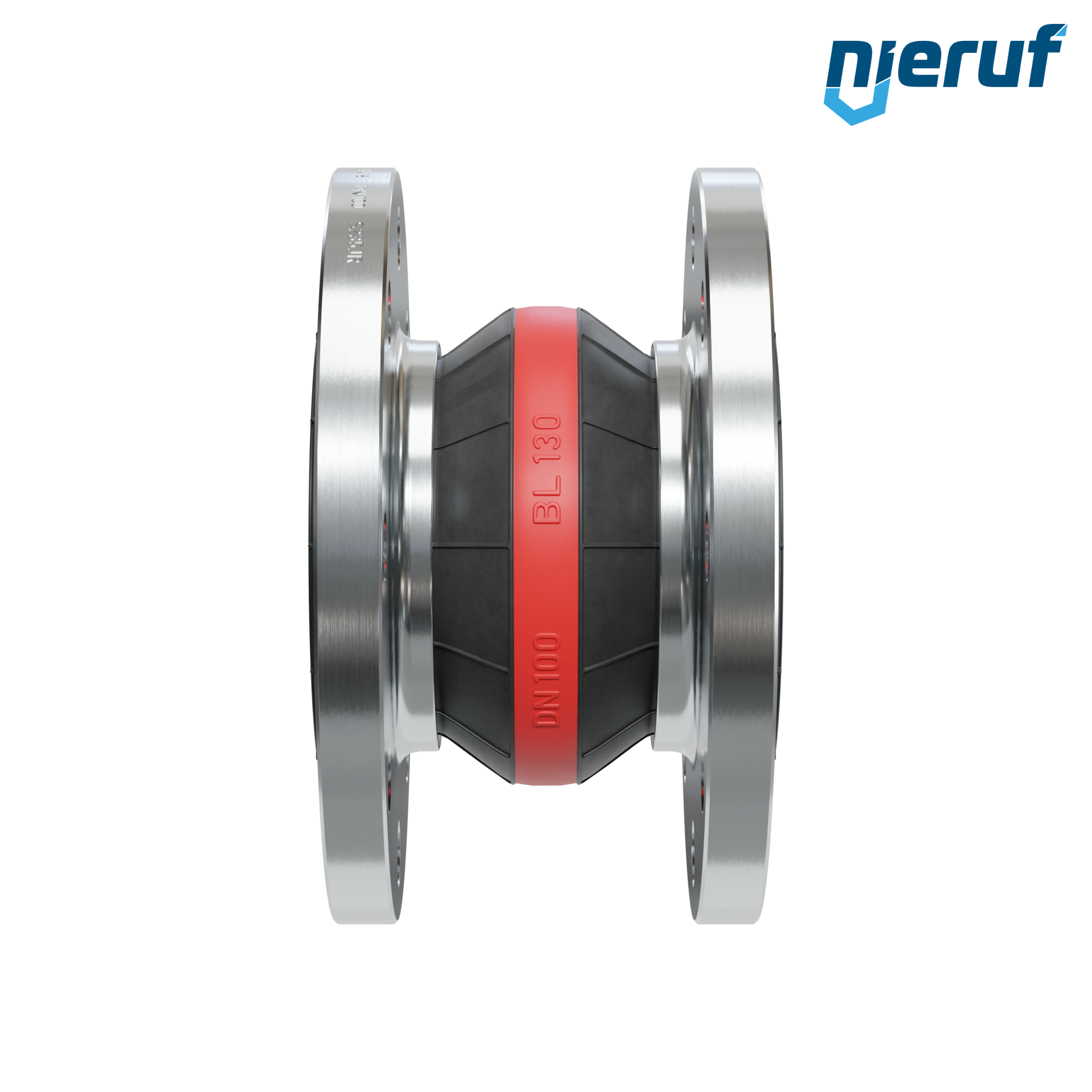

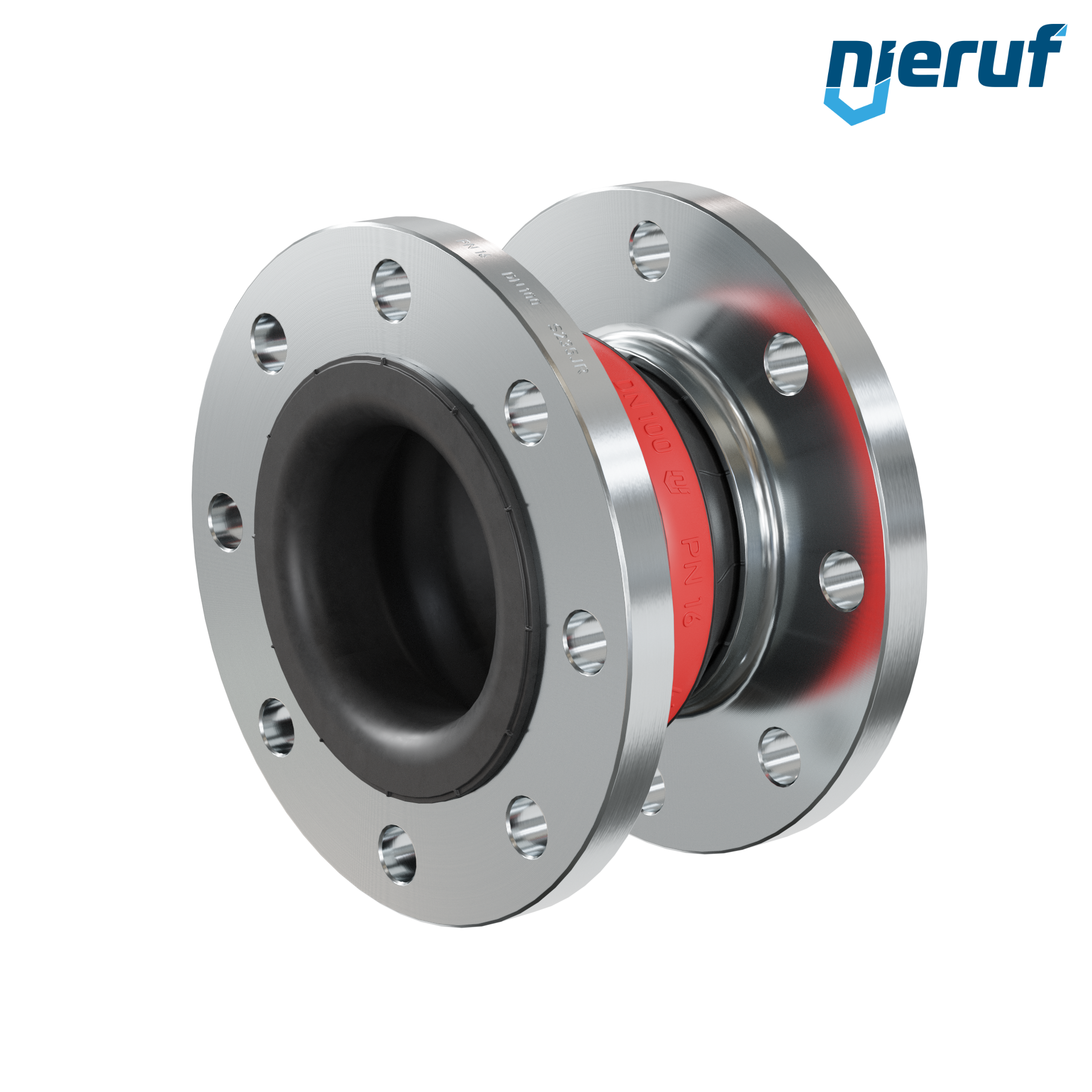

Compensators DN100 type KP04 steel-flange EPDM

Compensators DN100 with EPDM-sleeve and steel flange for liquid media and gases (no steam)

product	Compensators
type	KP04
manufacturer	NieRuf
diameter	DN100
connection	flange acc. DIN EN 1092-1 PN16
max. pressure	max. 16 bar (consider pressure-temperature diagram)
nominal pressure	PN 16
material	steel (electro galvanized) 235JR
sleeves	EPDM
media	liquid media and gases (no steam)
temperature	-40°C up to +100°C
design	straightway form
CE	Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature	This high quality compensator with EPDM sleeve and steel flanges. This type can be extended by PTFE lining, vacuum support rings and other options on request.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Compensators DN100 type KP04 steel-flange EPDM

Article no. : KP04000011
product: Compensators
type: KP04
manufacturer: NieRuf
diameter: DN100
connection: flange acc. DIN EN 1092-1 PN16
max. pressure: max. 16 bar (consider pressure-temperature diagram)
nominal pressure: PN 16
material: steel (electro galvanized) 235JR
sleeves: EPDM
media: liquid media and gases (no steam)
temperature: -40°C up to +100°C
design: straightway form
CE: Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature: This high quality compensator with EPDM sleeve and steel flanges. This type can be extended by PTFE lining, vacuum support rings and other options on request.
