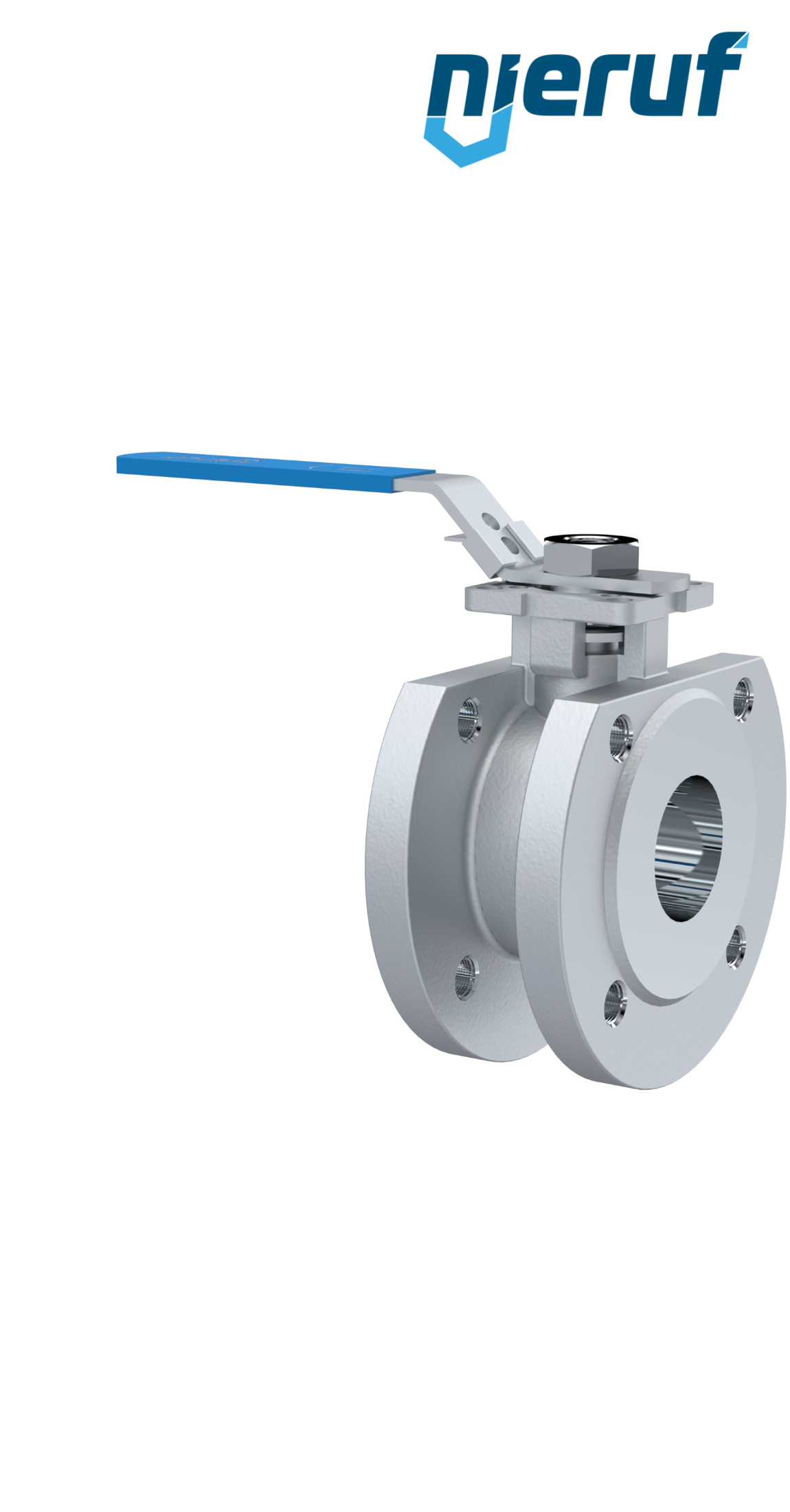

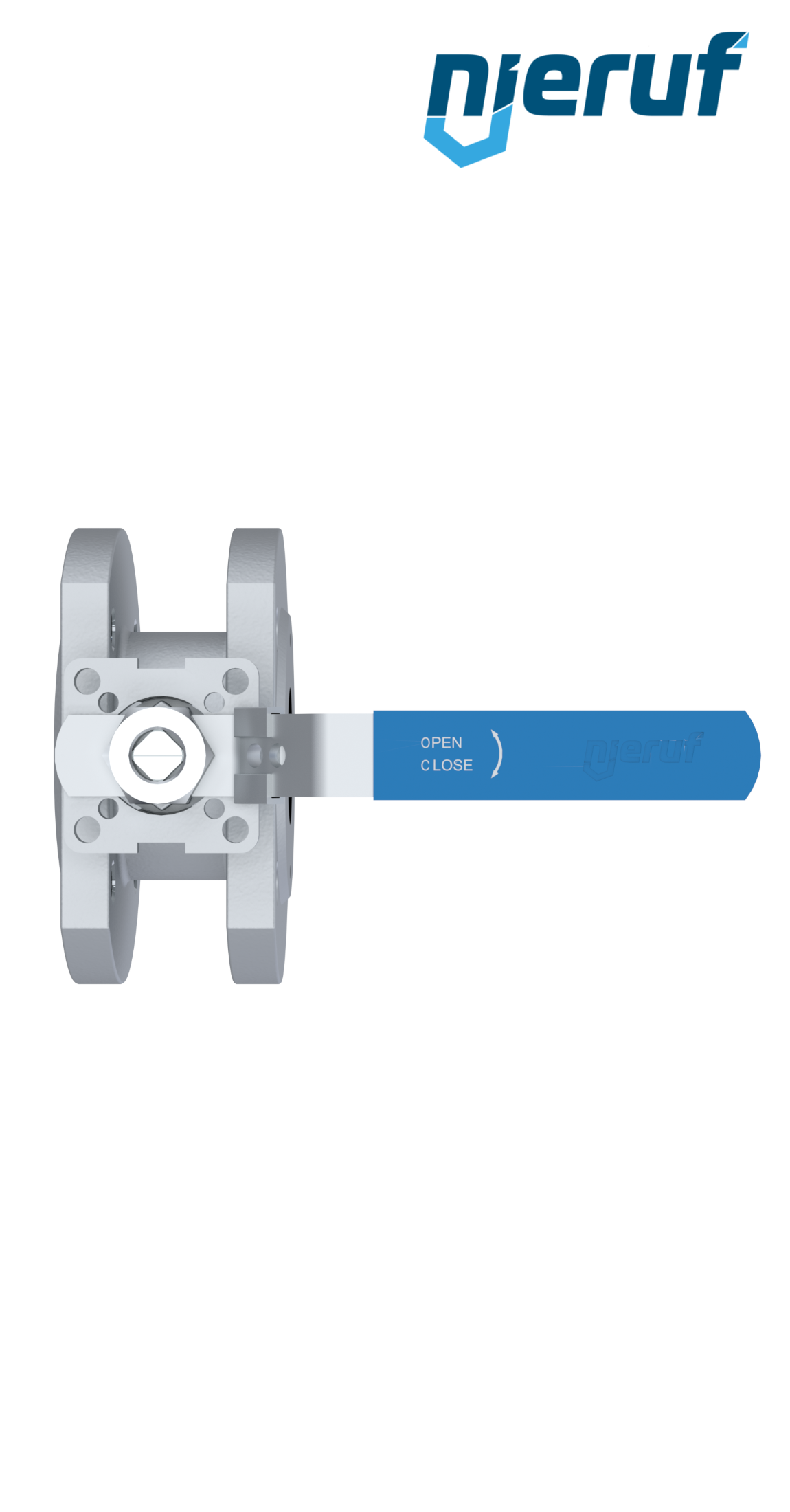

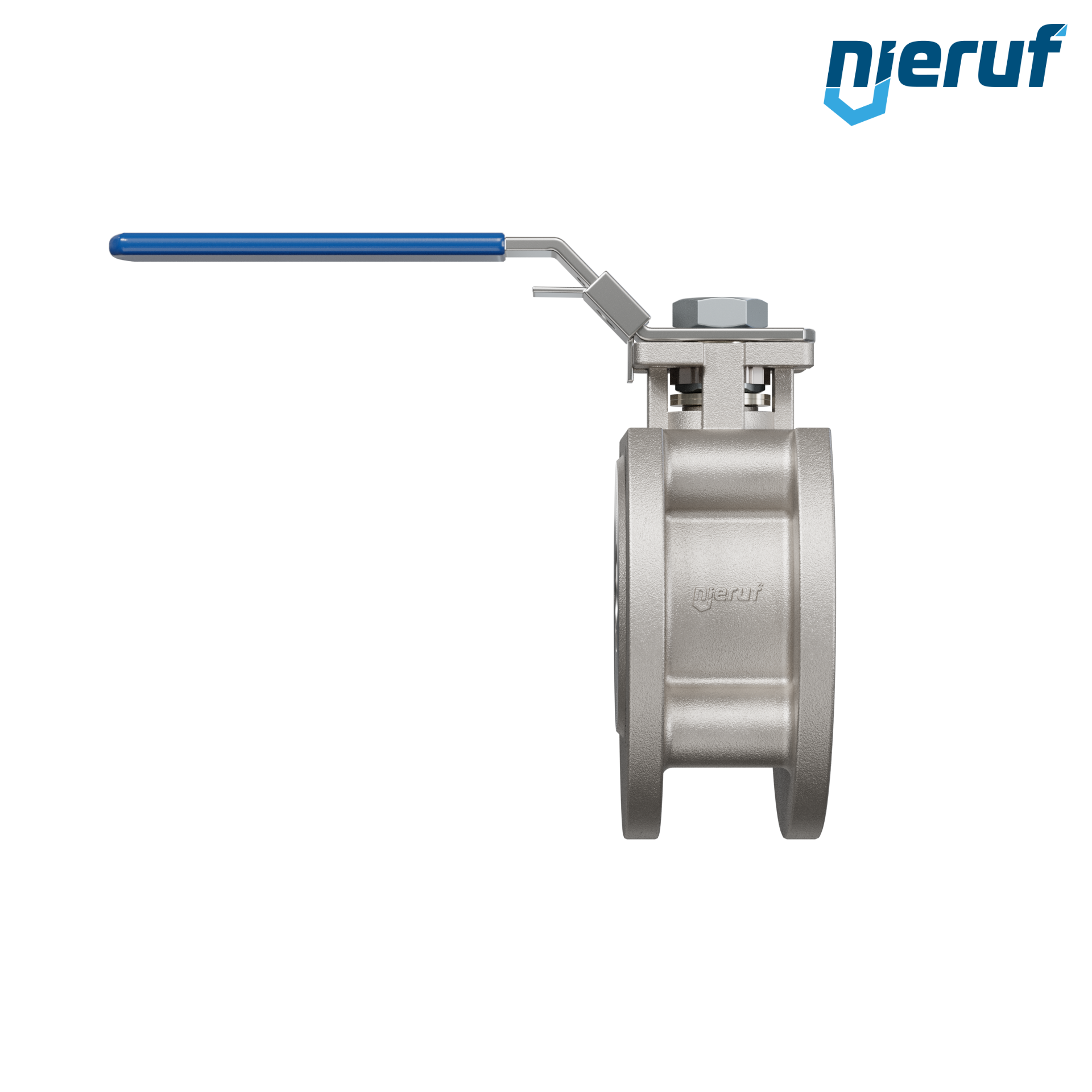

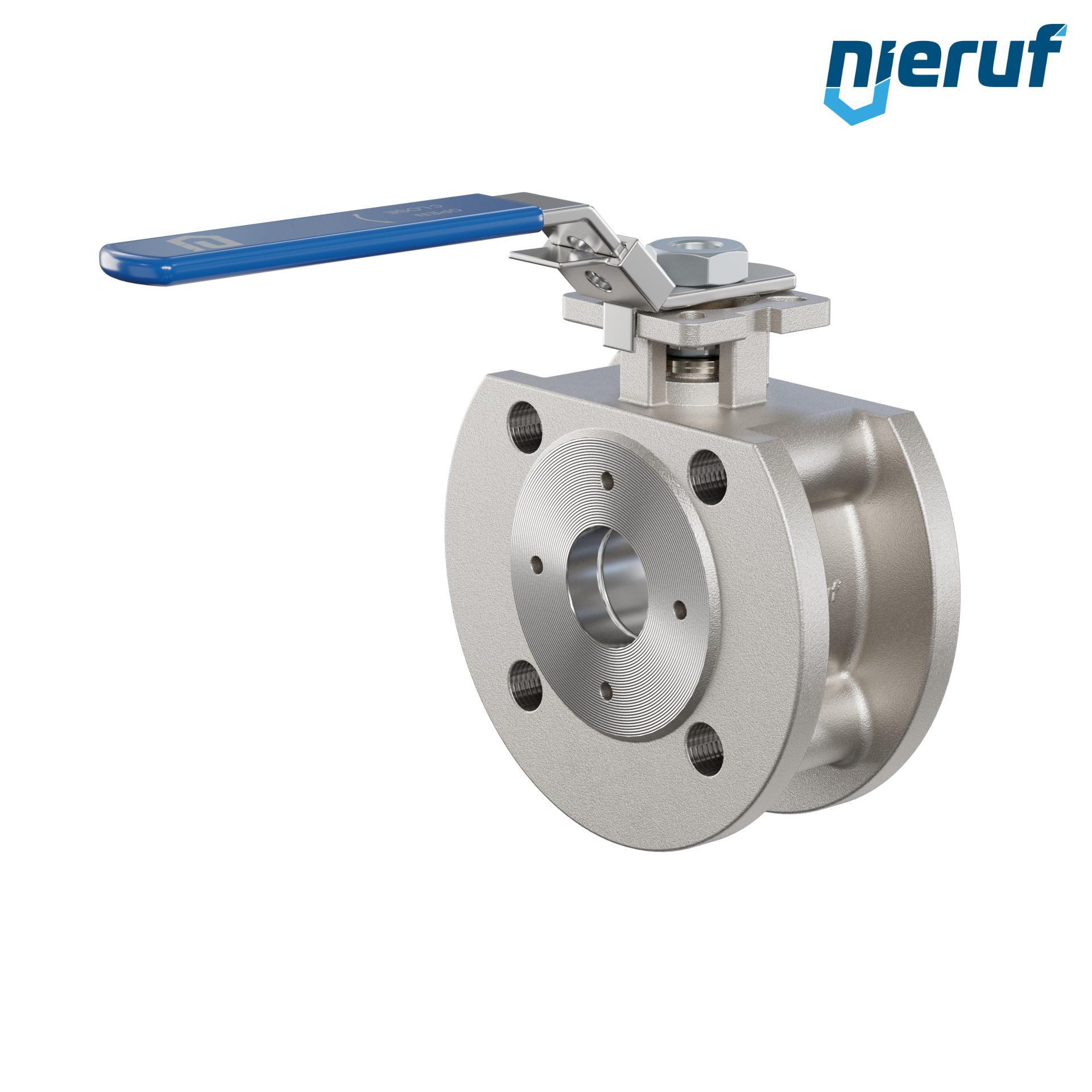

Compact ball valve DN32 PN40 FK04 stainless steel 1.4408

FK04010006
quantity (pcs.):
139.40€ * 161.70€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3-5 working days

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
Compact ball valve DN32 PN40 FK04 stainless steel 1.4408
Compact ball valve DN32 PN40 FK04 body stainless steel 1.4408 ball stainless steel 1.4408 seal PTFE / TFM for liquid and gaseous media
diameter: DN32
connection: flange dimensions acc. DIN EN 1092-1
Seal steam: O-ring Viton
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on working pressure and media
max. pressure: PN40
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
ball seal: PTFE / TFM
length: 60mm
actuator: hand lever with blue plastic cover
installation position: any position
product description: This high quality ball valve is made of stainless steel with blow out proof stem design and direct mounting of actuators is possible. Two-piece body valve with flange dimensions acc. to EN 1092-1 (DIN 2501-1). plate spring forced packing additional O-Ring
Compact ball valve DN32 PN40 FK04 stainless steel 1.4408

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

Compact ball valve DN32 PN40 FK04 stainless steel 1.4408
