AK02110509

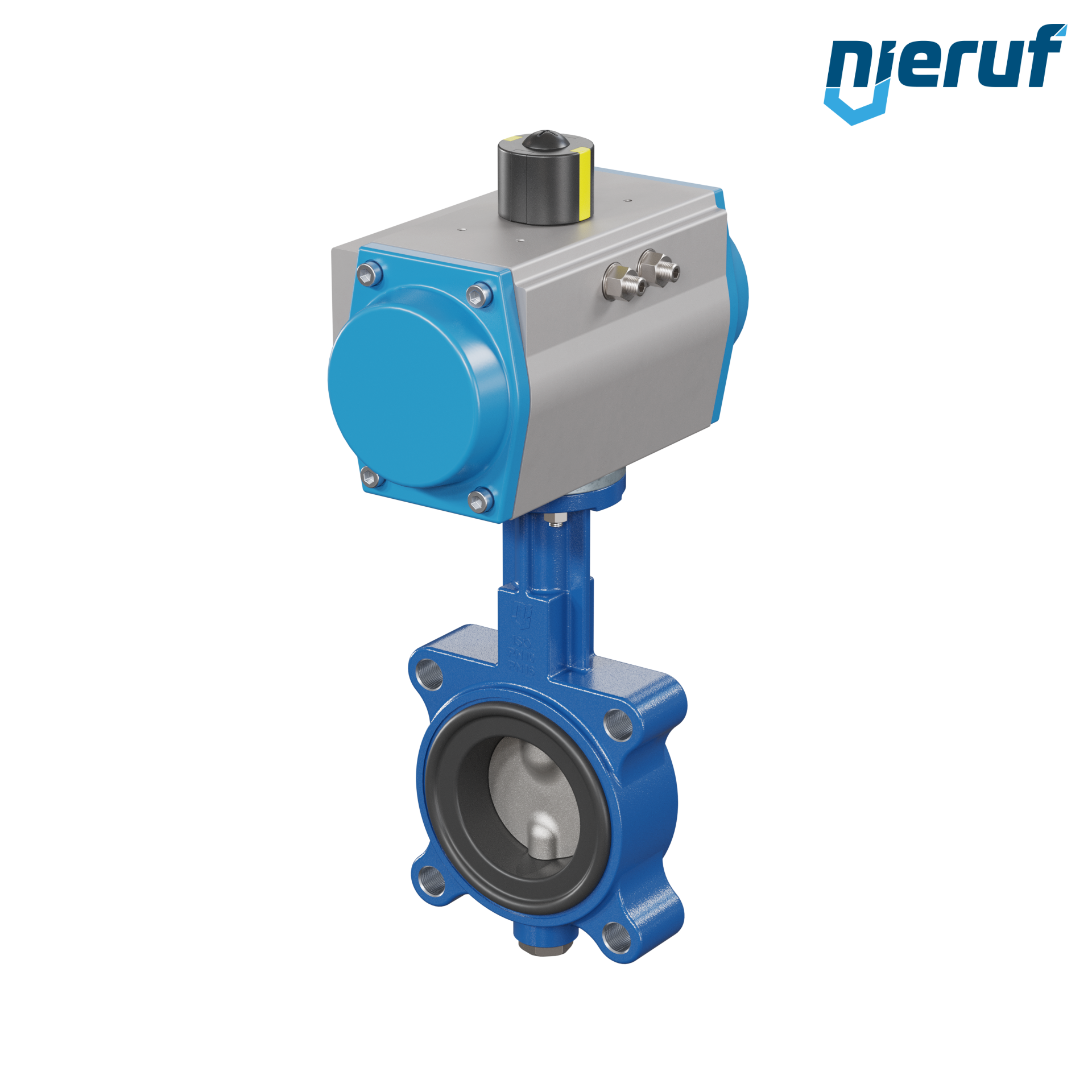

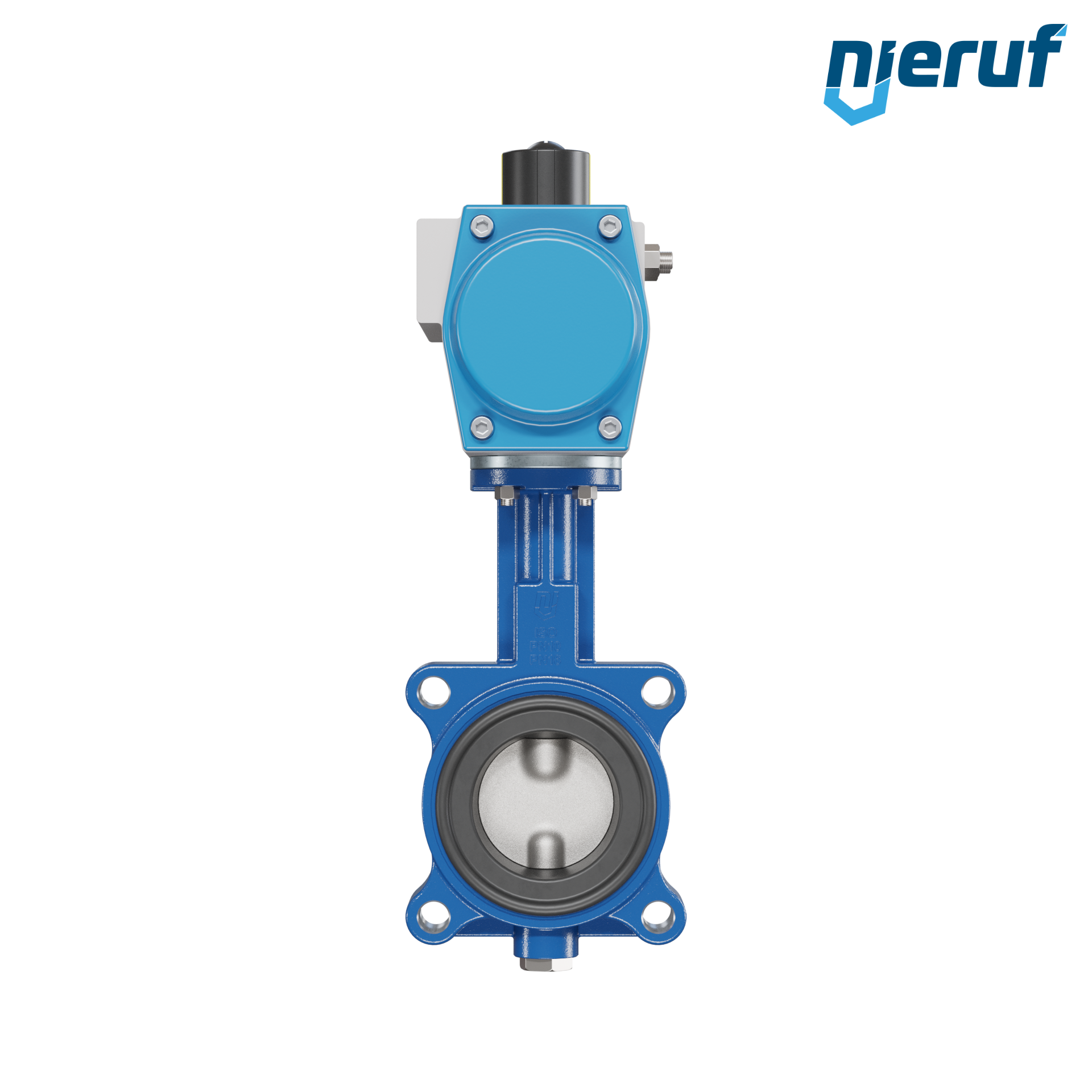

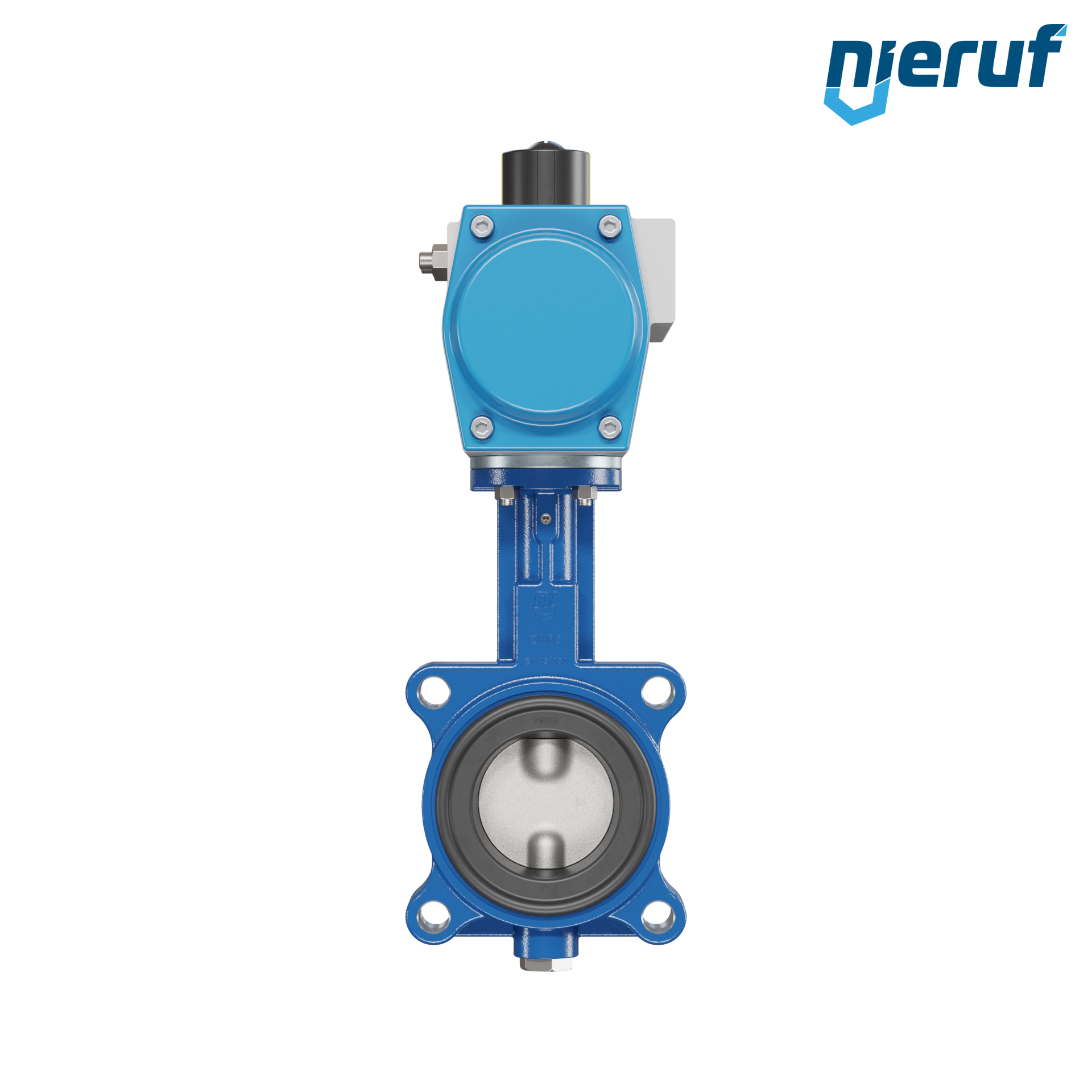

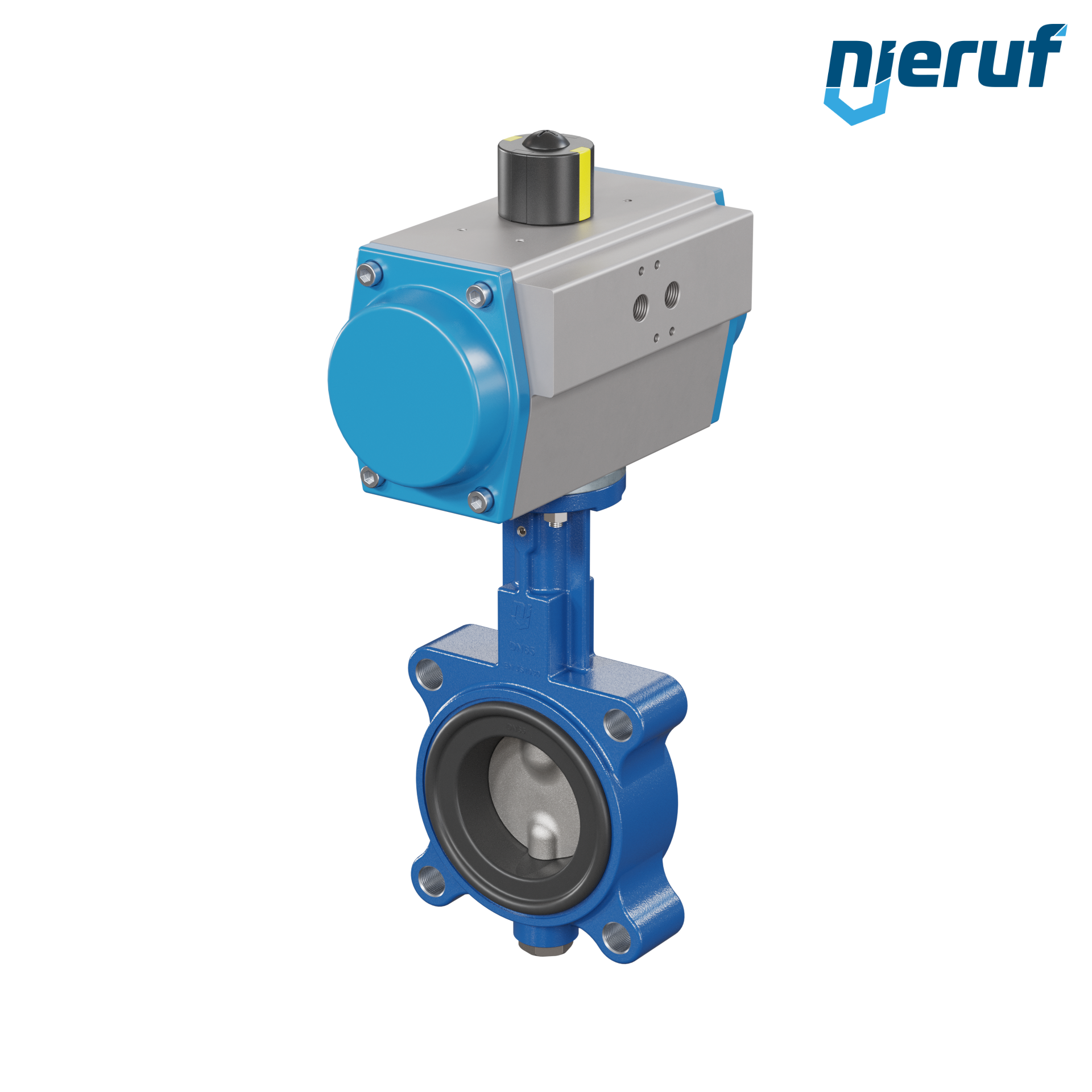

Butterfly valve DN 65 AK02 NBR-70-black DVGW gas pneumatic actuator single acting normally closed

€349.10*

€415.43 VAT included.


Configure valve
Configure your automated valve for your specific application here.

Delivery time: 2 - 3 weeks

Delivery information

Equipment

NA01010001

3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC

€40.00*

€47.60 VAT included.


PR02000000

Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black

€67.30*

€80.09 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NieRuf-Exchange

NieRuf-Exchange

24 months warranty

24 months warranty

Certified

Certified

Product number: AK02110509
Butterfly valve DN 65 AK02 NBR-70-black DVGW gas pneumatic actuator single acting normally closed

Butterfly valve DN 65 Lug type body made of GGG40 with pneumatic actuator single acting normally closed seal NBR-70-black DVGW gas industry design

product: Butterfly valve
type: AK02
manufacturer: NieRuf
diameter: DN 65
nominal pressure: PN10-PN16
max. working pressure: 16 bar
sleeves: NBR-70-black DVGW gas
media: liquid and gaseous media
temperature: Butterfly valve: -10°C up to +60°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
design: Lug type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: pneumatic actuator single acting normally closed
actuator: Pneumatic actuator AN02 GS-83 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa). (spring closes)
approval: NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C)
application: industry design
installation position: any position
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Butterfly valve DN 65 AK02 NBR-70-black DVGW gas pneumatic actuator single acting normally closed

Article no. : AK02110509
product: Butterfly valve
type: AK02
manufacturer: NieRuf
diameter: DN 65
nominal pressure: PN10-PN16
max. working pressure: 16 bar
sleeves: NBR-70-black DVGW gas
media: liquid and gaseous media
temperature: Butterfly valve: -10°C up to +60°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
design: Lug type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: pneumatic actuator single acting normally closed
actuator: Pneumatic actuator AN02 GS-83 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa). (spring closes)
approval: NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C)
application: industry design
installation position: any position
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box.
