Butterfly valve DN 50 AK01 NBR-70-black DVGW gas pneumatic actuator double acting
- Lead time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Monday, 05. October
Guaranteed delivery until Tuesday, 06. October, 12 o'clock
Equipment
5/2 ways NAMUR-Solenoid valve G 1/4" Inch NA02 24V DC
€54.98 VAT included.
Positioner PS01 for pneumatic actuators double acting air volume less than 5 l
€929.51 VAT included.
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
€86.99 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Butterfly valve DN 50 AK01 NBR-70-black DVGW gas pneumatic actuator double acting
Butterfly valve DN 50 Wafer type body made of GGG40 with pneumatic actuator double acting seal NBR-70-black DVGW gas industry design
| product | Butterfly valve |
|---|---|
| type | AK01 |
| manufacturer | NieRuf |
| diameter | DN 50 |
| nominal pressure | PN6-PN10-PN16 & ANSI150 |
| max. working pressure | 10 bar |
| sleeves | NBR-70-black DVGW gas |
| media | liquid and gaseous media |
| temperature | Butterfly valve: -10°C up to +60°C (depending on working pressure and media) - pneumatic actuator: - 20°C up to + 80°C |
| design | Wafer type |
| body material | SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm |
| disc | stainless steel 1.4408 |
| actuation | pneumatic actuator double acting |
| actuator | Pneumatic actuator AN02 GD-63 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa). |
| approval | NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C) |
| application | industry design |
| installation position | any position |
| product feature | Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly valve DN 50 AK01 NBR-70-black DVGW gas pneumatic actuator double acting
Article no.
: AK01110408
product:
Butterfly valve
type:
AK01
manufacturer:
NieRuf
diameter:
DN 50
nominal pressure:
PN6-PN10-PN16 & ANSI150
max. working pressure:
10 bar
sleeves:
NBR-70-black DVGW gas
media:
liquid and gaseous media
temperature:
Butterfly valve: -10°C up to +60°C (depending on working pressure and media) - pneumatic actuator: - 20°C up to + 80°C
design:
Wafer type
body material:
SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc:
stainless steel 1.4408
actuation:
pneumatic actuator double acting
actuator:
Pneumatic actuator AN02 GD-63 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa).
approval:
NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C)
application:
industry design
installation position:
any position
product feature:
Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box.
Equipment
flange seal DN50 PN10/16/25/40 61x107x2 Klingersil C 4400
Lead time: in stock
Flange DN50 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
5/2 ways NAMUR-Solenoid valve G 1/4" Inch NA02 24V DC
Lead time: in stock
rotary elbow male adaptor parallel EF07 stainless steel FKM G1/4" D6mm
Lead time: 3 - 5 working days
joint set butterfly valve/flange DN50 - 2" Inch for flange PN16 steel
Lead time: in stock
pipe bend (welded) 90° 60,3 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 76,1 x 2,3 to 60,3 x 2,0 stainless steel 1.4571
Lead time: 3 - 5 working days

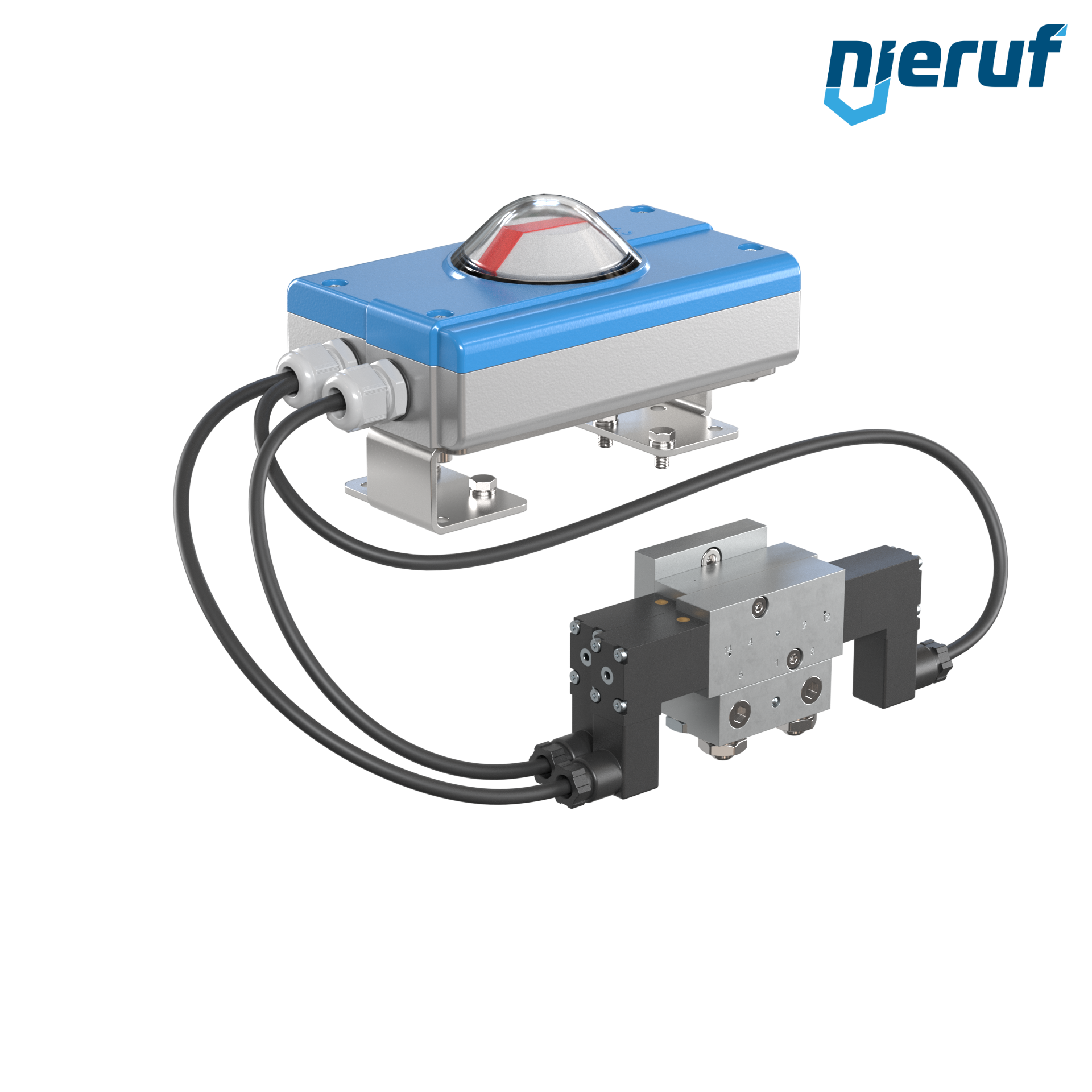

Positioner PS01 for pneumatic actuators double acting with safety function air volume less than 5 l
Lead time: 2 - 3 weeks
