- Delivery time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Thursday, 27. August
Guaranteed delivery until Friday, 28. August, 12 o'clock
Equipment
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
€84.25 VAT included.
Positioner PS01 for pneumatic actuators single acting air volume less than 5 l
€992.10 VAT included.
Questions about the article?

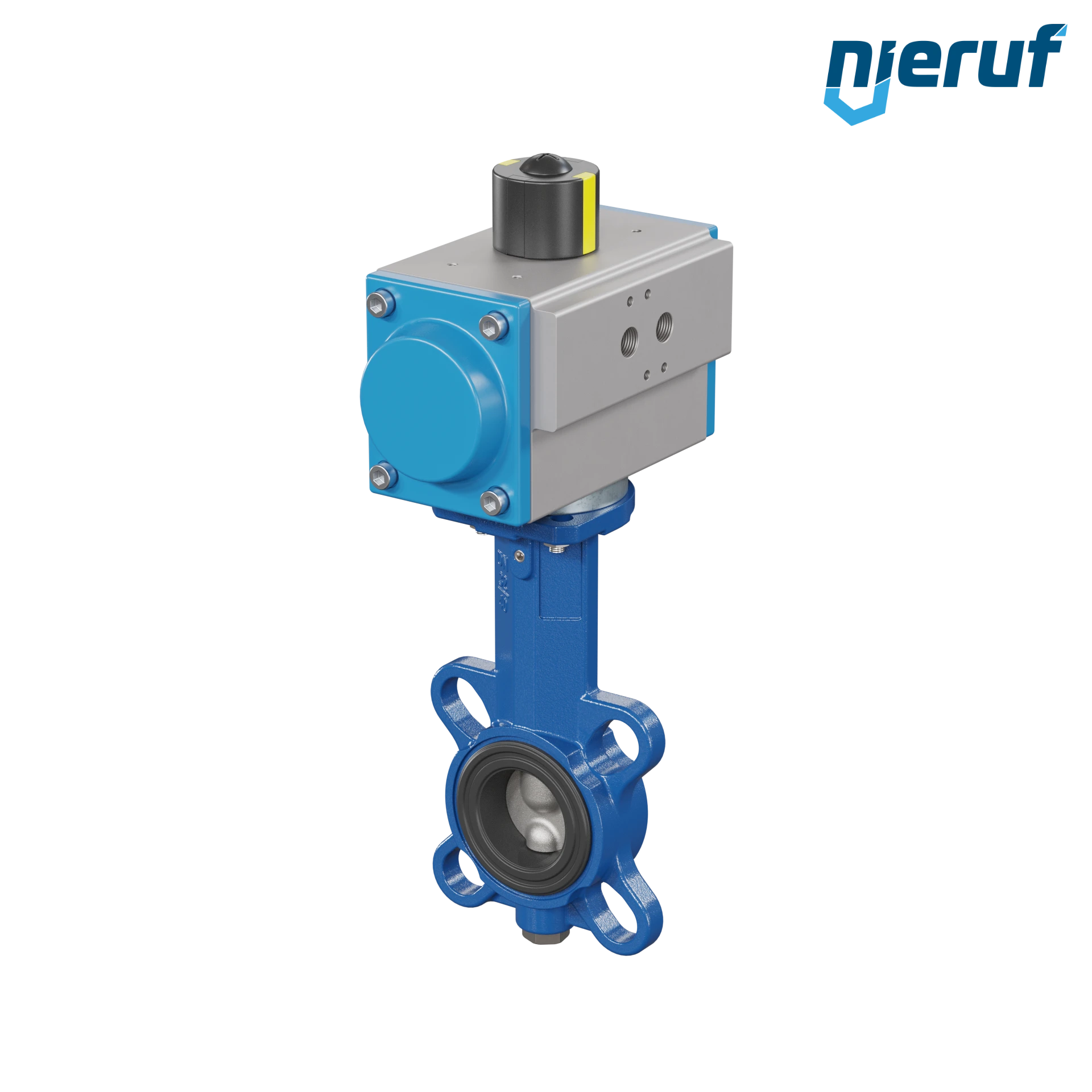

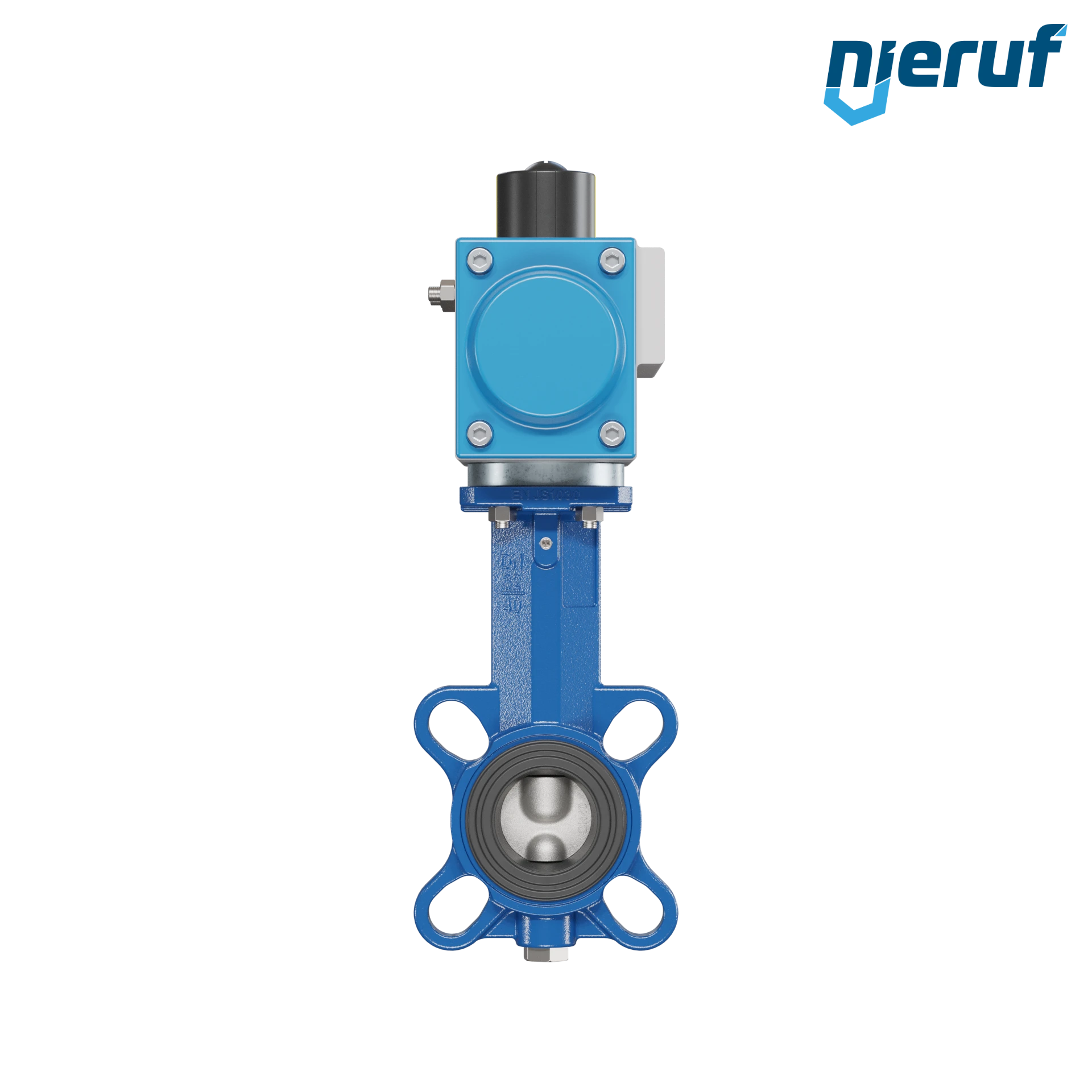

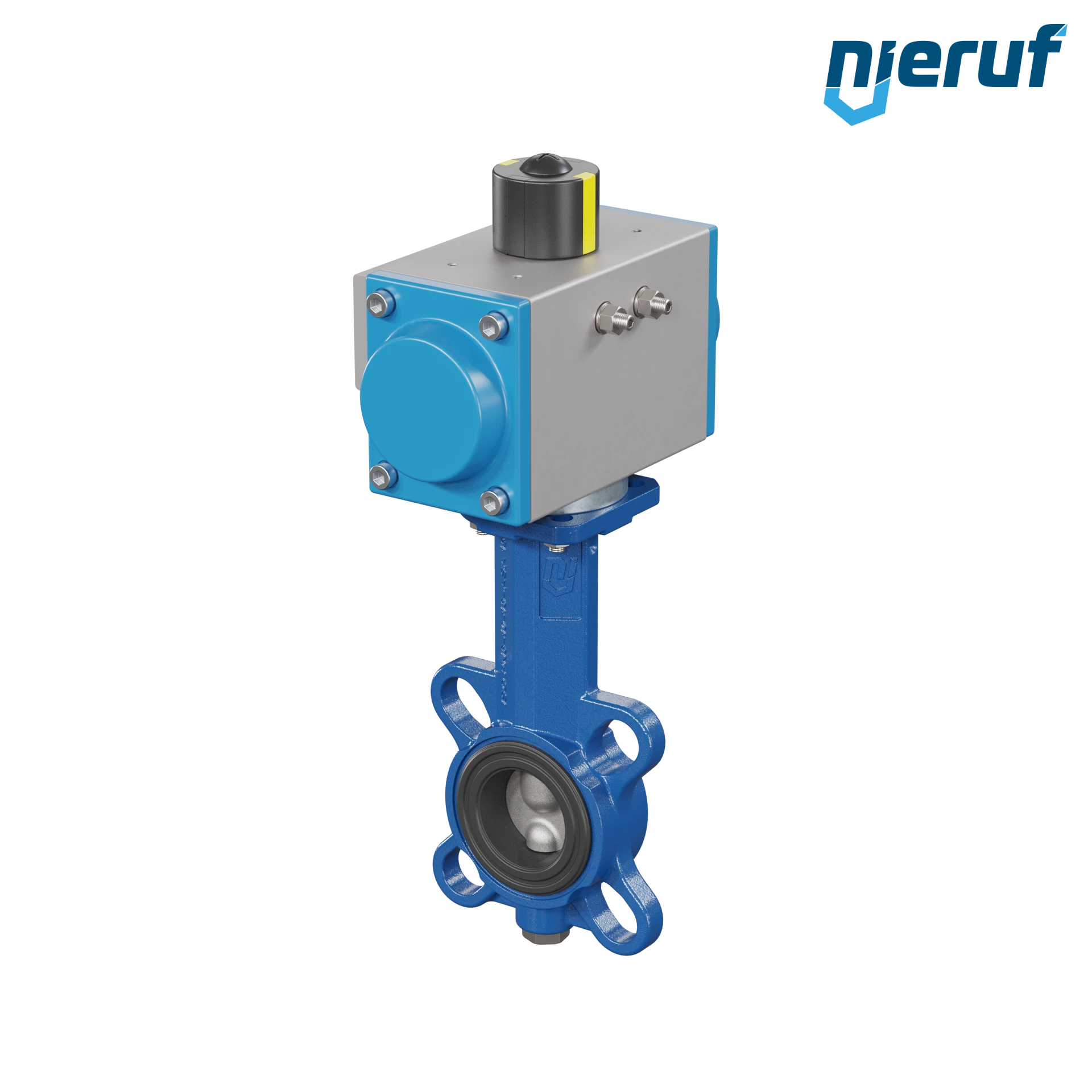

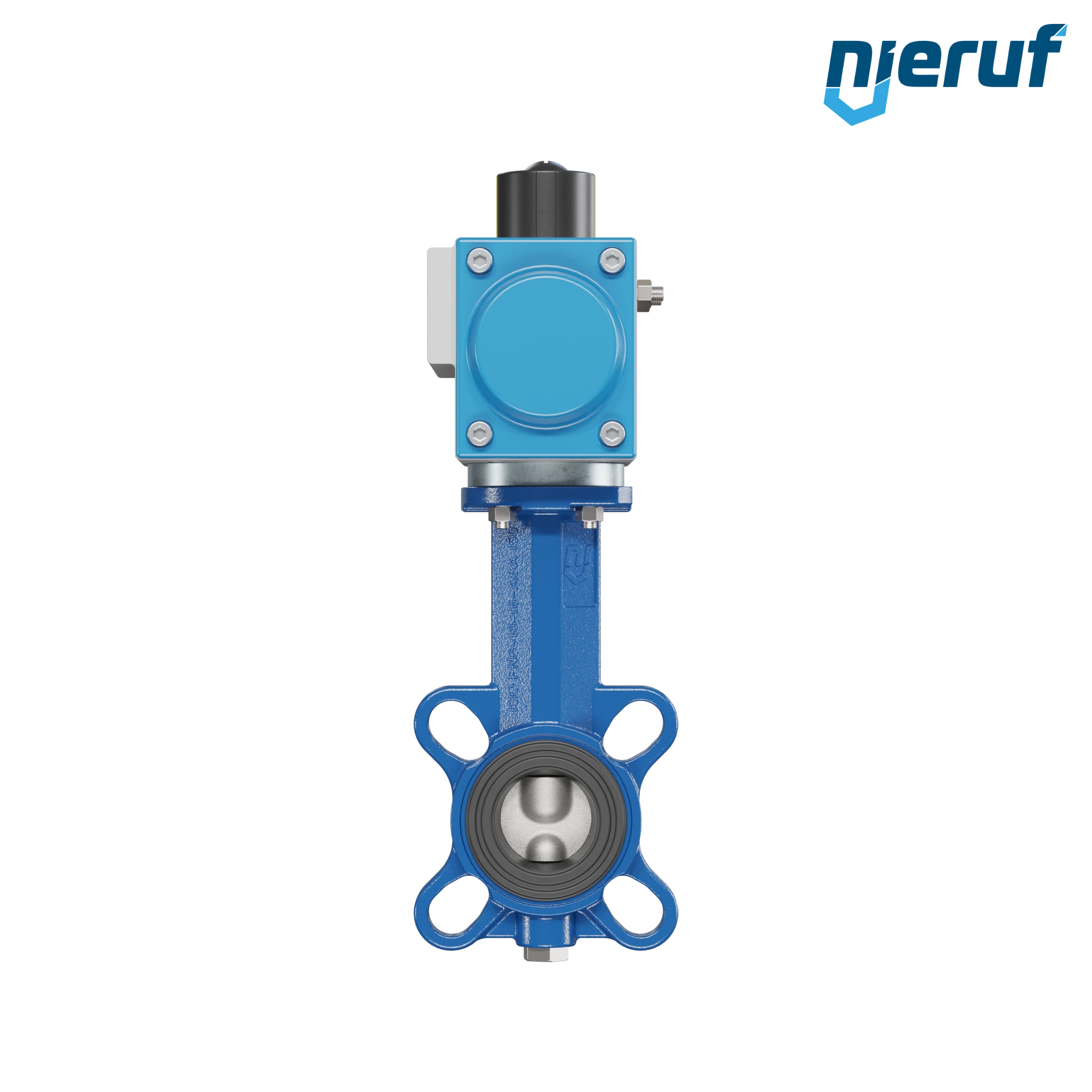

Butterfly valve DN 40 Wafer type body made of GGG40 with pneumatic actuator single acting normally closed seal FPM industry design
| product | Butterfly valve |
|---|---|
| type | AK01 |
| manufacturer | NieRuf |
| diameter | DN 40 |
| nominal pressure | PN6-PN10-PN16 & ANSI150 |
| max. working pressure | 16 bar |
| sleeves | FPM |
| media | liquid and gaseous media |
| temperature | Butterfly valve: -5°C up to +150°C (depending on working pressure and media) - electronic actuator: -20°C up to +70°C |
| design | Wafer type |
| body material | SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm |
| disc | stainless steel 1.4408 |
| actuation | pneumatic actuator single acting normally closed |
| actuator | Pneumatic actuator AN02 GS-63 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa). (spring closes) |
| approval | DIN EN 12266-1 leckage rate A |
| application | industry design |
| installation position | any position |
| product feature | Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly valve DN 40 AK01 FPM pneumatic actuator single acting normally closed
Article no.
: AK01120507
product:
Butterfly valve
type:
AK01
manufacturer:
NieRuf
diameter:
DN 40
nominal pressure:
PN6-PN10-PN16 & ANSI150
max. working pressure:
16 bar
sleeves:
FPM
media:
liquid and gaseous media
temperature:
Butterfly valve: -5°C up to +150°C (depending on working pressure and media) - electronic actuator: -20°C up to +70°C
design:
Wafer type
body material:
SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc:
stainless steel 1.4408
actuation:
pneumatic actuator single acting normally closed
actuator:
Pneumatic actuator AN02 GS-63 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa). (spring closes)
approval:
DIN EN 12266-1 leckage rate A
application:
industry design
installation position:
any position
product feature:
Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box.
Flange DN40 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
Delivery time: in stock
flange seal DN40 PN10/16/25/40 49x92x2 Klingersil C 4400
Delivery time: in stock
3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC
Delivery time: in stock
Straight male adaptor EF01 brass NBR G1/4" D6mm
Delivery time: in stock
rotary elbow male adaptor parallel EF07 stainless steel FKM G1/4" D6mm
Delivery time: 3 - 5 working days
Complete single swivel banjo EF06 brass FKM G1/4" D6mm
Delivery time: in stock
pipe bend (welded) 90° 48,3 x 2,0 stainless steel 1.4571
Delivery time: 3 - 5 working days
tee (welded) 48,3 x 2,0 stainless steel 1.4571
Delivery time: 3 - 5 working days
reducing bush (welded) 48,3 x 2,0 to 33,7 x 2,0 stainless steel 1.4571
Delivery time: in stock
joint set butterfly valve/flange DN40 - 1 1/2" Inch for flange PN16 steel
Delivery time: in stock
Positioner PS01 for pneumatic actuators single acting air volume less than 5 l
Delivery time: 2 - 3 weeks
