Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
€84.25 VAT included.
Positioner PS01 for pneumatic actuators double acting air volume less than 5 l
€847.16 VAT included.
Questions about the article?

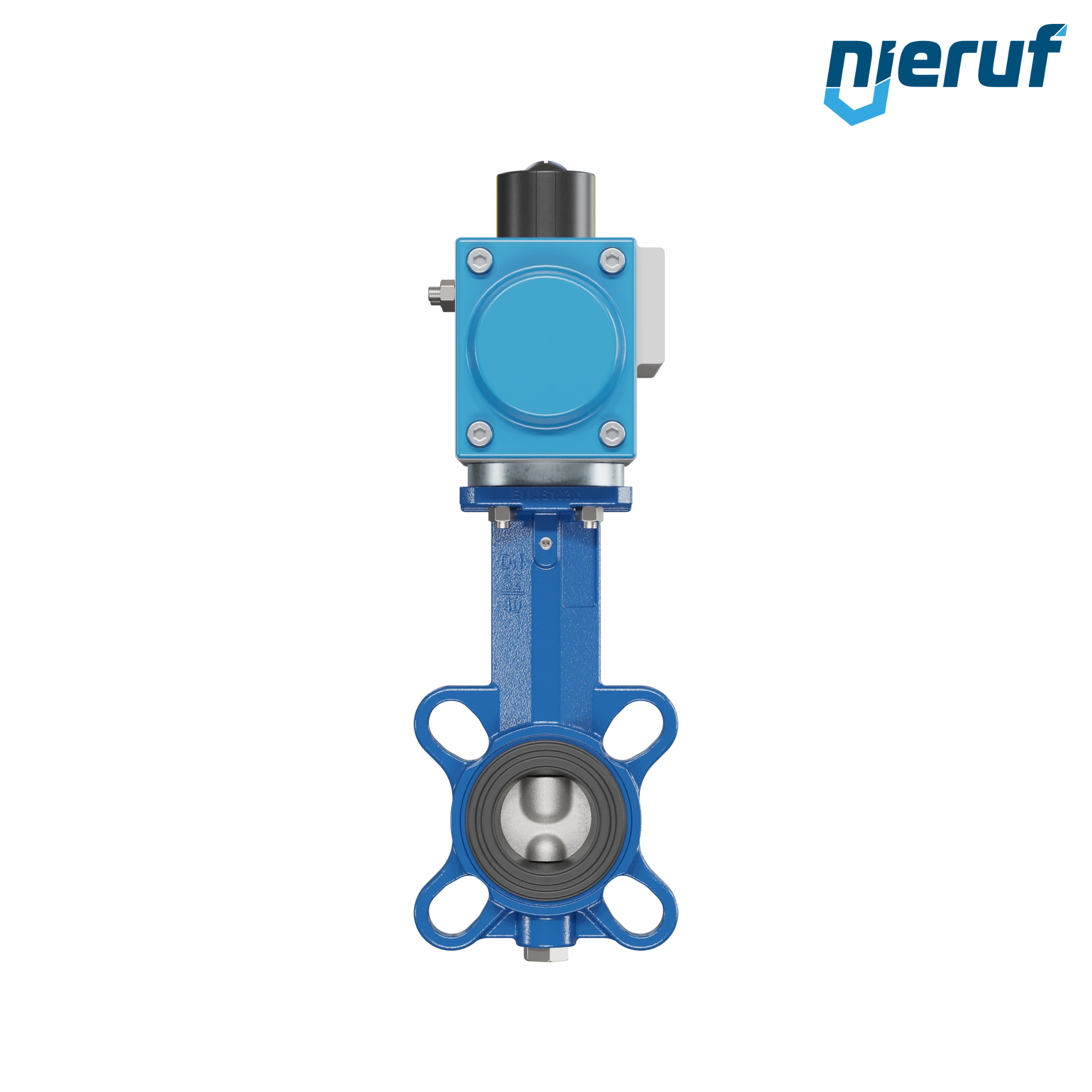

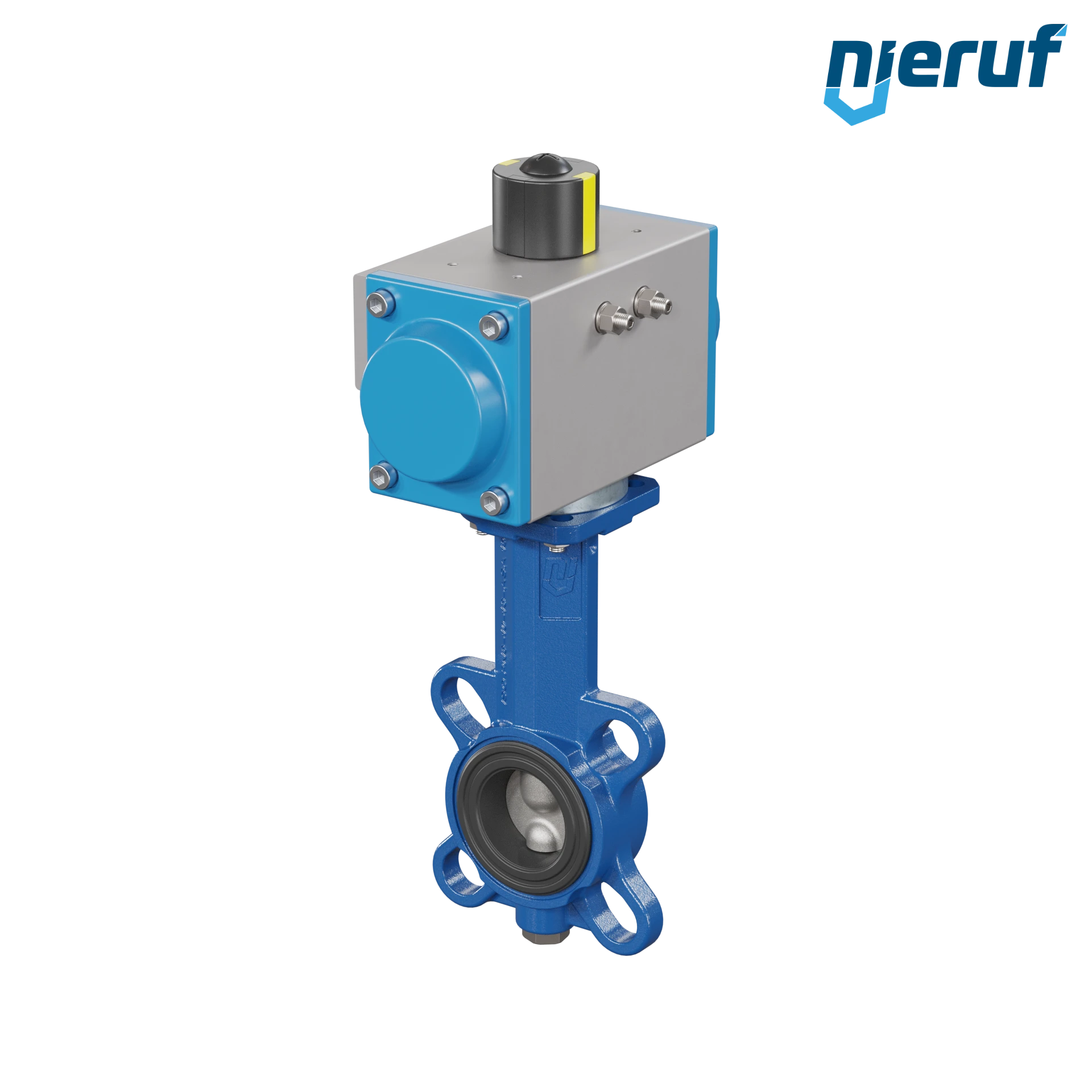

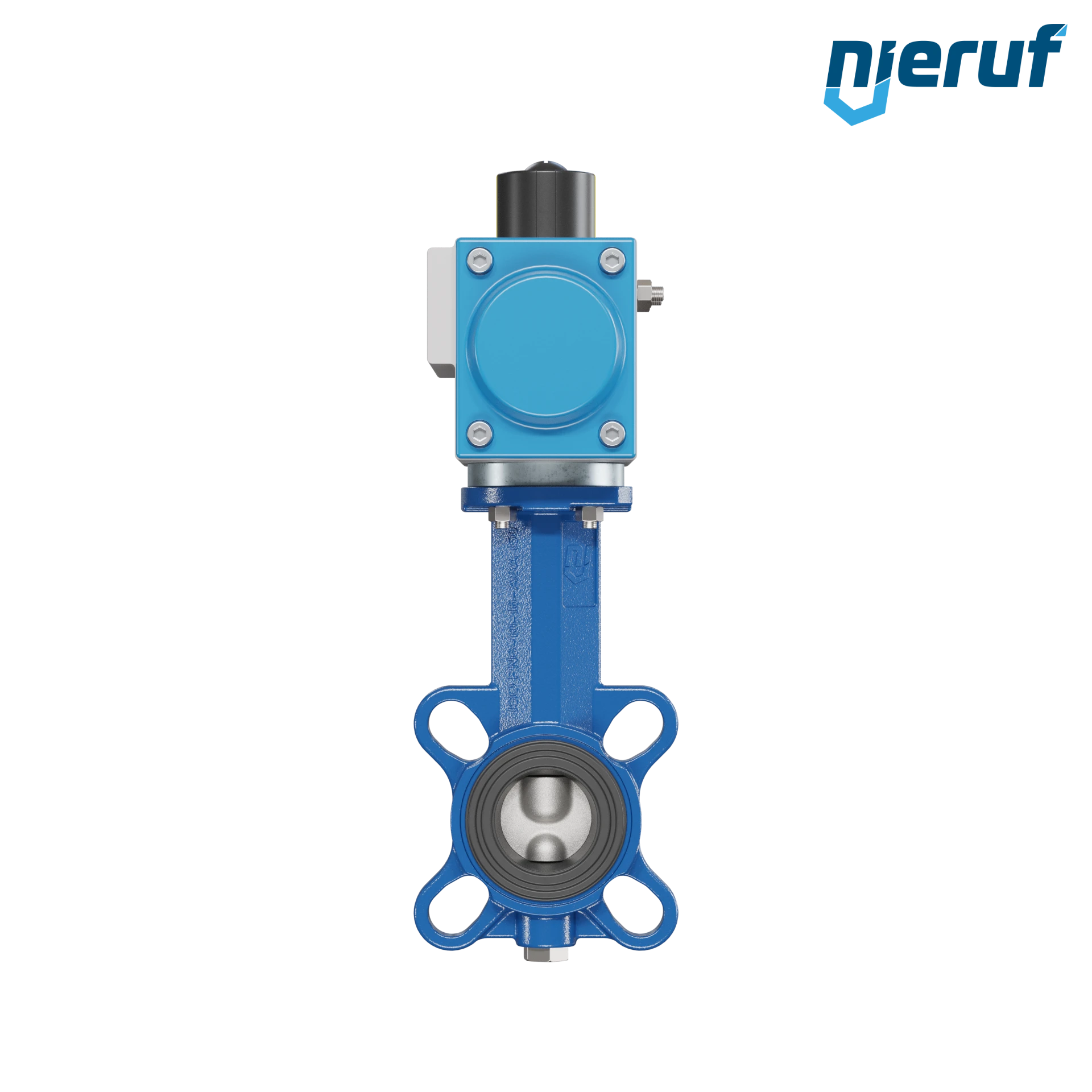

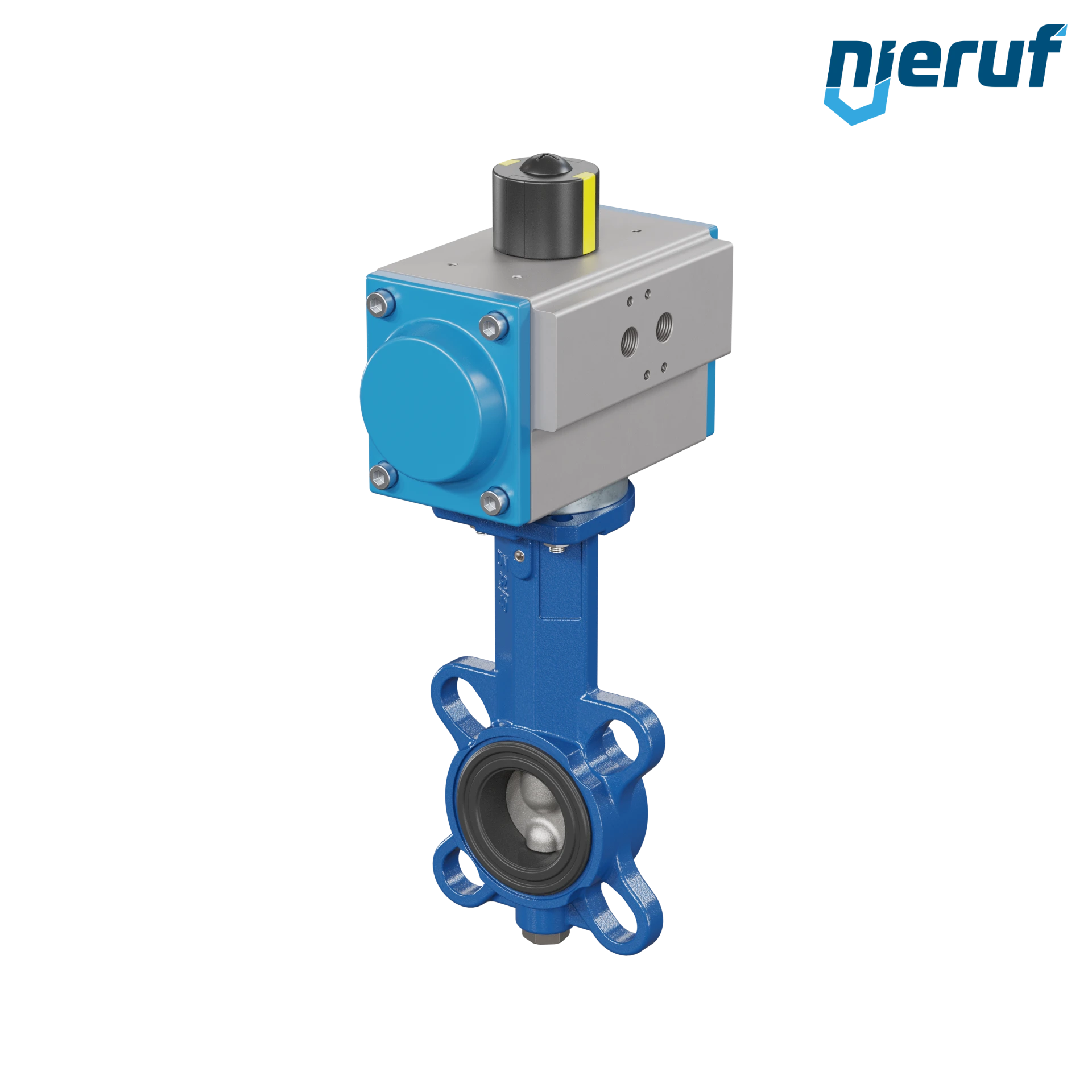

Butterfly valve DN 40 Wafer type body made of GGG40 with pneumatic actuator double acting seal FPM industry design
| product | Butterfly valve |
|---|---|
| type | AK01 |
| manufacturer | NieRuf |
| diameter | DN 40 |
| nominal pressure | PN6-PN10-PN16 & ANSI150 |
| max. working pressure | 16 bar |
| sleeves | FPM |
| media | liquid and gaseous media |
| temperature | Butterfly valve: -5°C up to +200°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C |
| design | Wafer type |
| body material | SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm |
| disc | stainless steel 1.4408 |
| actuation | pneumatic actuator double acting |
| actuator | Pneumatic actuator AN02 GD-63 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa). |
| approval | DIN EN 12266-1 leckage rate A |
| application | industry design |
| installation position | any position |
| product feature | Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly valve DN 40 AK01 FPM pneumatic actuator double acting
Article no.
: AK01120407
product:
Butterfly valve
type:
AK01
manufacturer:
NieRuf
diameter:
DN 40
nominal pressure:
PN6-PN10-PN16 & ANSI150
max. working pressure:
16 bar
sleeves:
FPM
media:
liquid and gaseous media
temperature:
Butterfly valve: -5°C up to +200°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
design:
Wafer type
body material:
SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc:
stainless steel 1.4408
actuation:
pneumatic actuator double acting
actuator:
Pneumatic actuator AN02 GD-63 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa).
approval:
DIN EN 12266-1 leckage rate A
application:
industry design
installation position:
any position
product feature:
Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box.
Positioner PS01 for pneumatic actuators double acting with safety function air volume less than 5 l
