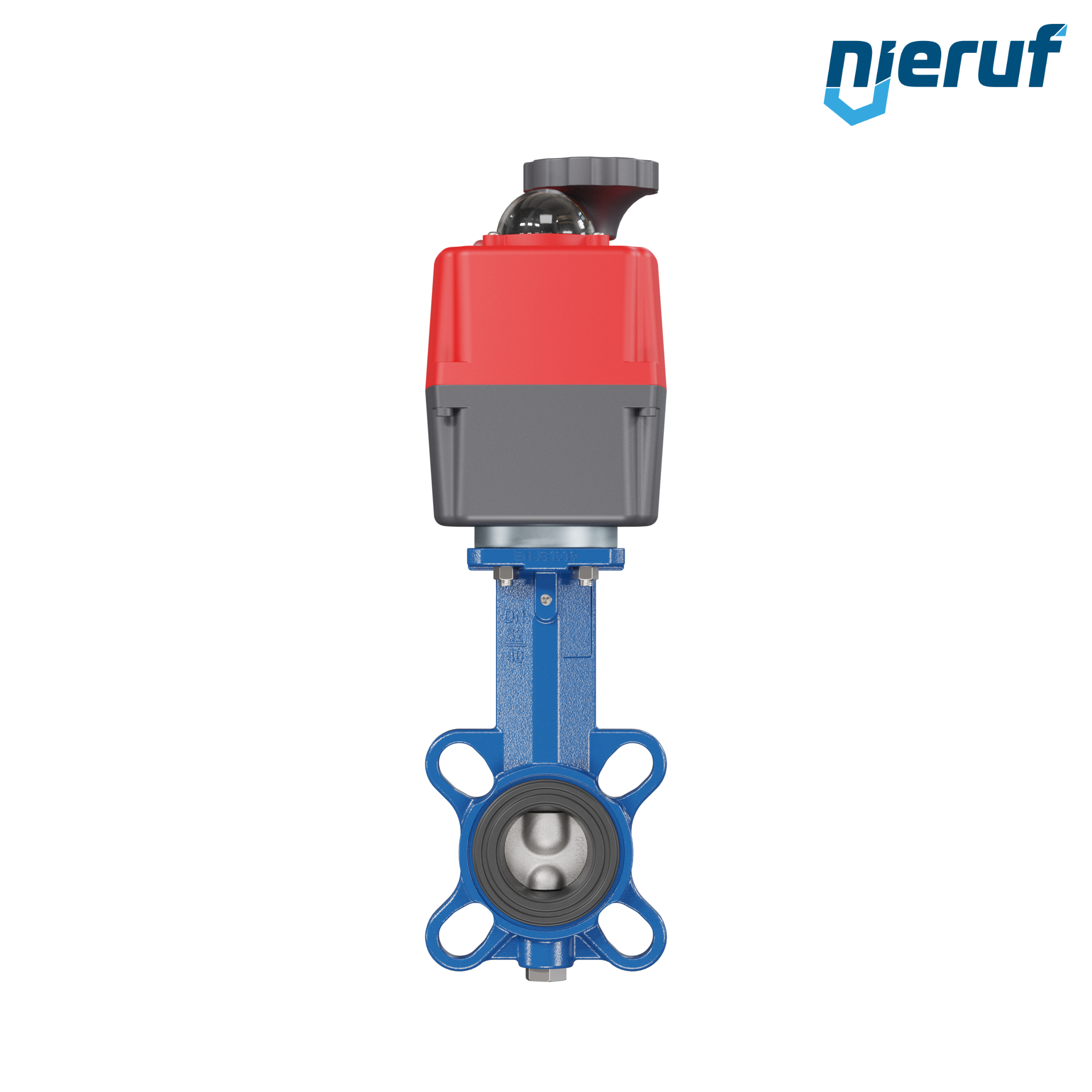

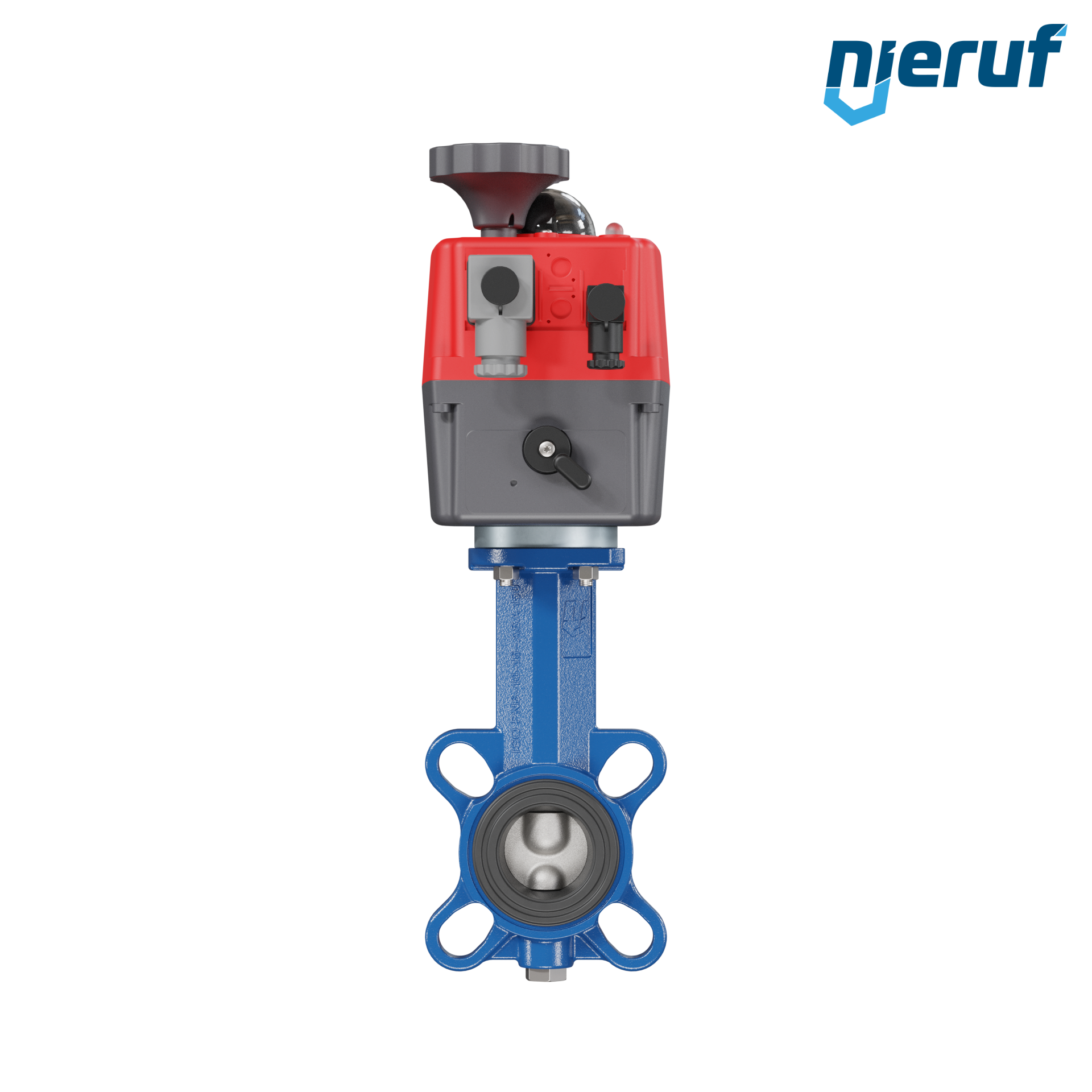

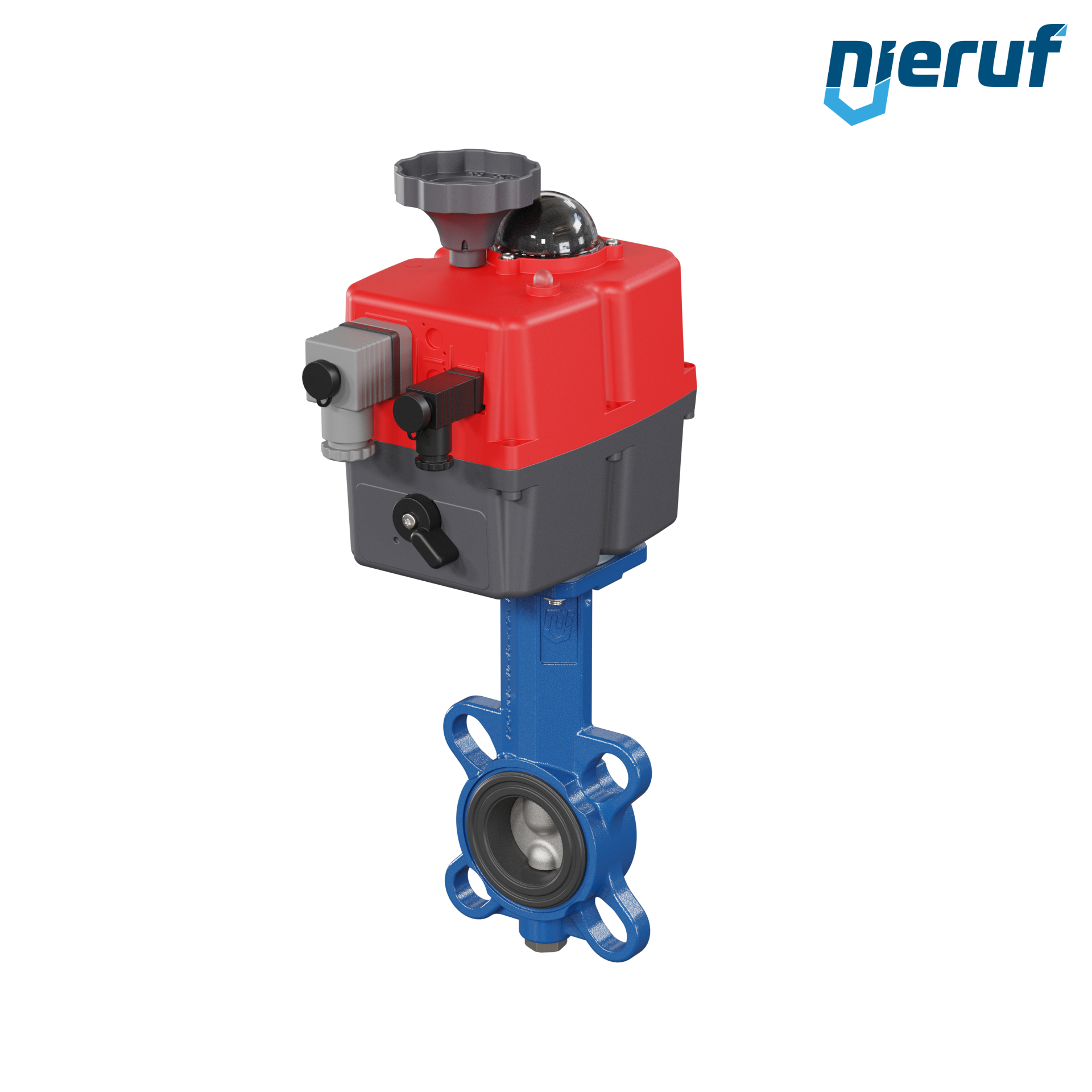

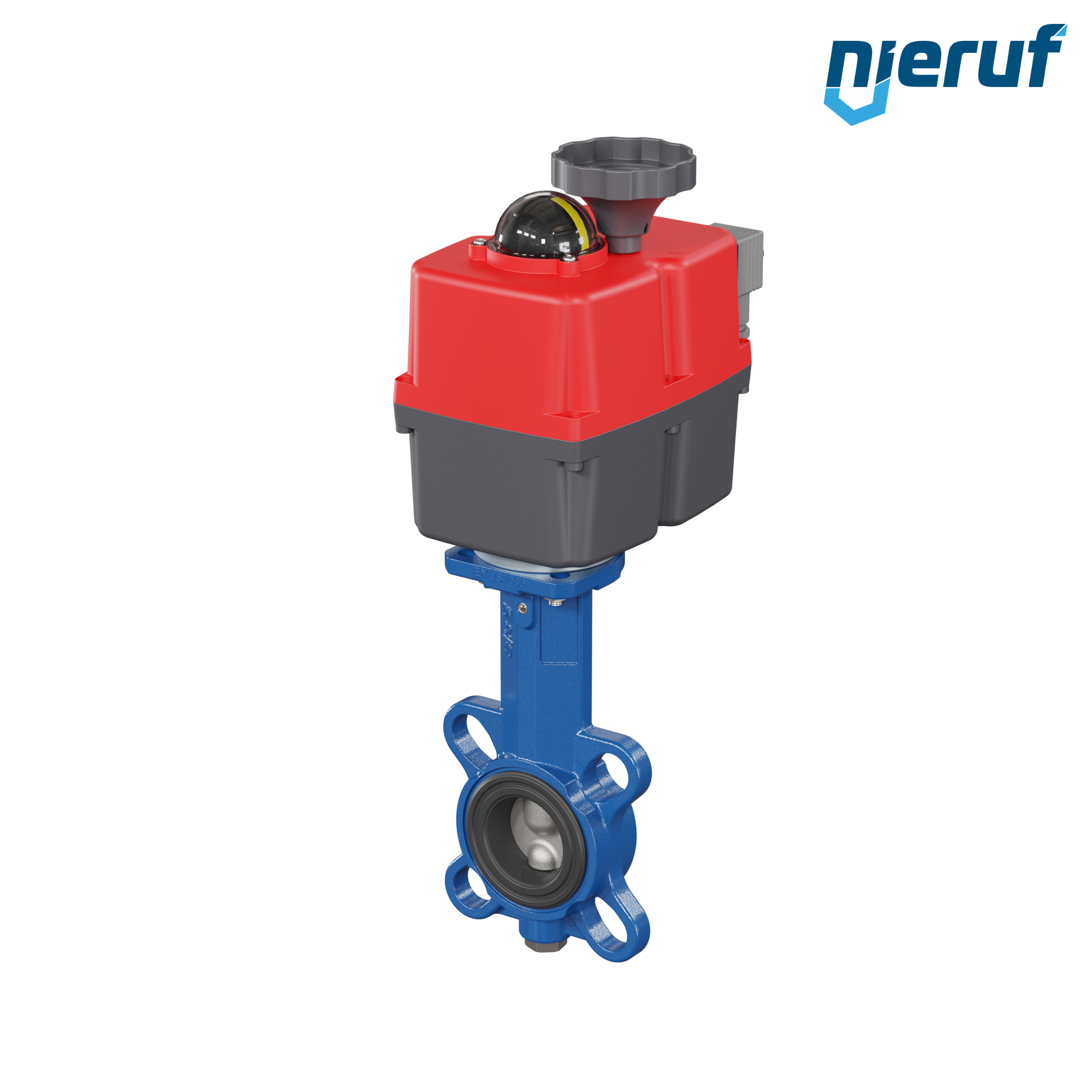

Butterfly valve DN 40 PN6-PN10-PN16 & ANSI150 Wafer type body made of GGG40 with electric actuator 24-240V AC/DC seal EPDM DVGW drinking water, WRAS, ACS, W270 industry design
| product | Butterfly valve |
|---|---|
| type | AK01 |
| manufacturer | NieRuf |
| diameter | DN 40 |
| nominal pressure | PN6-PN10-PN16 & ANSI150 |
| max. working pressure | 16 bar |
| sleeves | EPDM DVGW drinking water, WRAS, ACS, W270 |
| media | liquid and gaseous media |
| temperature | Butterfly valve: -20°C up to +90°C (depending on working pressure and media) - electronic actuator: -20°C up to +70°C |
| design | Wafer type |
| body material | SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm |
| disc | stainless steel 1.4408 |
| actuation | electric actuator 24-240V AC/DC |
| actuator | Electronic actuator AN01 S20 duty cycle 75%, with automatic voltage detection, integrated limit switches, switch compartment heating and manual override, protection class IP67 24-240V AC/DC. |
| approval | EPDM for water DW-6201CR0174 nach DIN EN 1074-1/-2 (Operating range - 20 °C to +90 °C) |
| application | industry design |
| installation position | any position |
| product feature | Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can optionally be extended with a digital positioning system 0-10V or 4-20mA or with a battery pack NC or NO. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly valve DN 40 Wafer type electric actuator 24-240V DVGW drinking water
Article no.
: AK01100207
product:
Butterfly valve
type:
AK01
manufacturer:
NieRuf
diameter:
DN 40
nominal pressure:
PN6-PN10-PN16 & ANSI150
max. working pressure:
16 bar
sleeves:
EPDM DVGW drinking water, WRAS, ACS, W270
media:
liquid and gaseous media
temperature:
Butterfly valve: -20°C up to +90°C (depending on working pressure and media) - electronic actuator: -20°C up to +70°C
design:
Wafer type
body material:
SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc:
stainless steel 1.4408
actuation:
electric actuator 24-240V AC/DC
actuator:
Electronic actuator AN01 S20 duty cycle 75%, with automatic voltage detection, integrated limit switches, switch compartment heating and manual override, protection class IP67 24-240V AC/DC.
approval:
EPDM for water DW-6201CR0174 nach DIN EN 1074-1/-2 (Operating range - 20 °C to +90 °C)
application:
industry design
installation position:
any position
product feature:
Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can optionally be extended with a digital positioning system 0-10V or 4-20mA or with a battery pack NC or NO.
