AK02010014

Butterfly valve AK02 DN 200 PN10 DVGW-gas

€416.80*

€495.99 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: in stock

Express delivery*

Order in within by express delivery

Shipping on: Monday, 05. October

Guaranteed delivery until Tuesday, 06. October, 12 o'clock

* Specified delivery times apply for Mon. - Fri. without consideration of public holidays.

Equipment

FL01020114

Flange DN200 PN10 EN1092-1 11 B1 C22.8 / P250GH bare

€85.20*

€101.39 VAT included.

Resistance check

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

NieRuf-Exchange

24 months warranty

Certified

Downloads

3D model

Datasheet

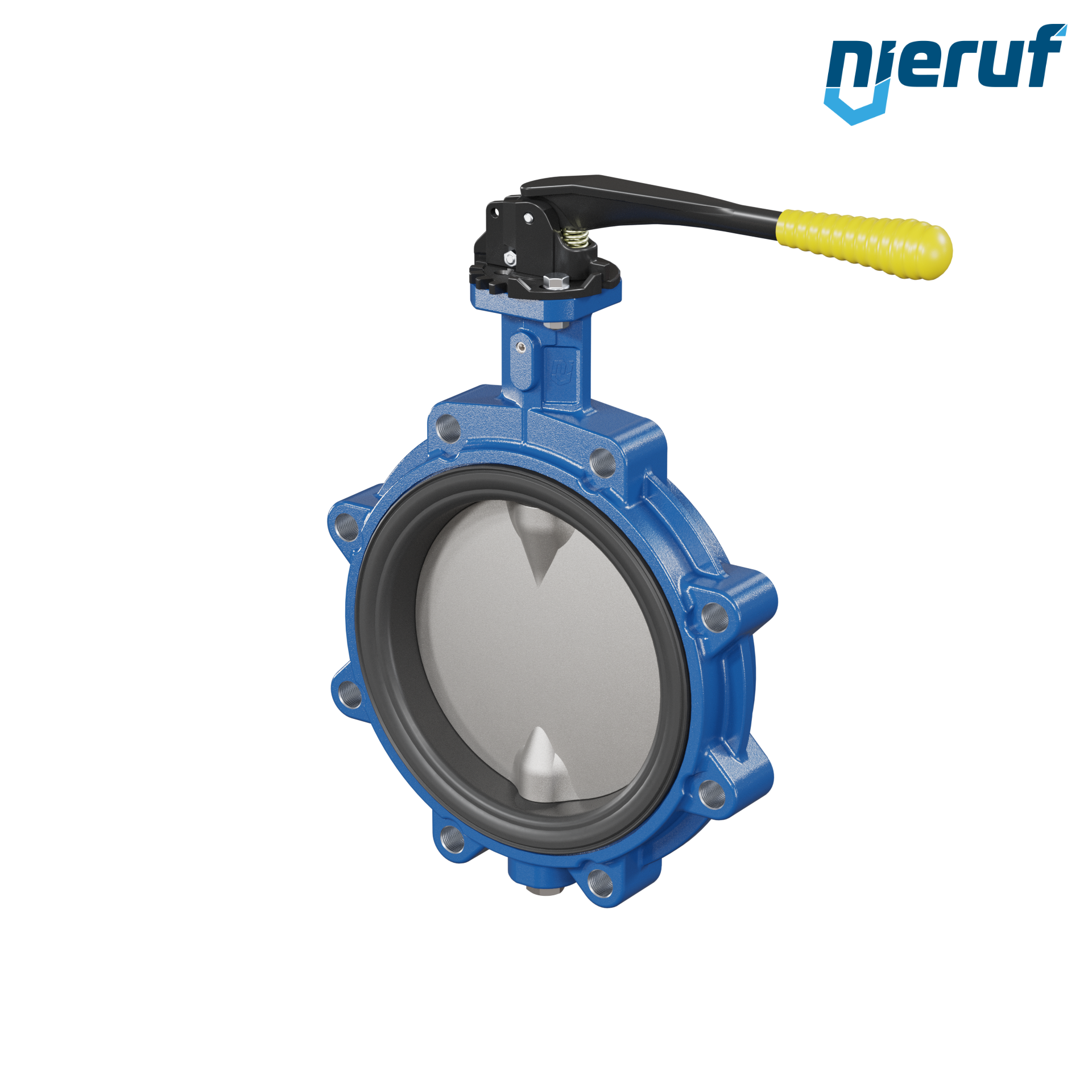

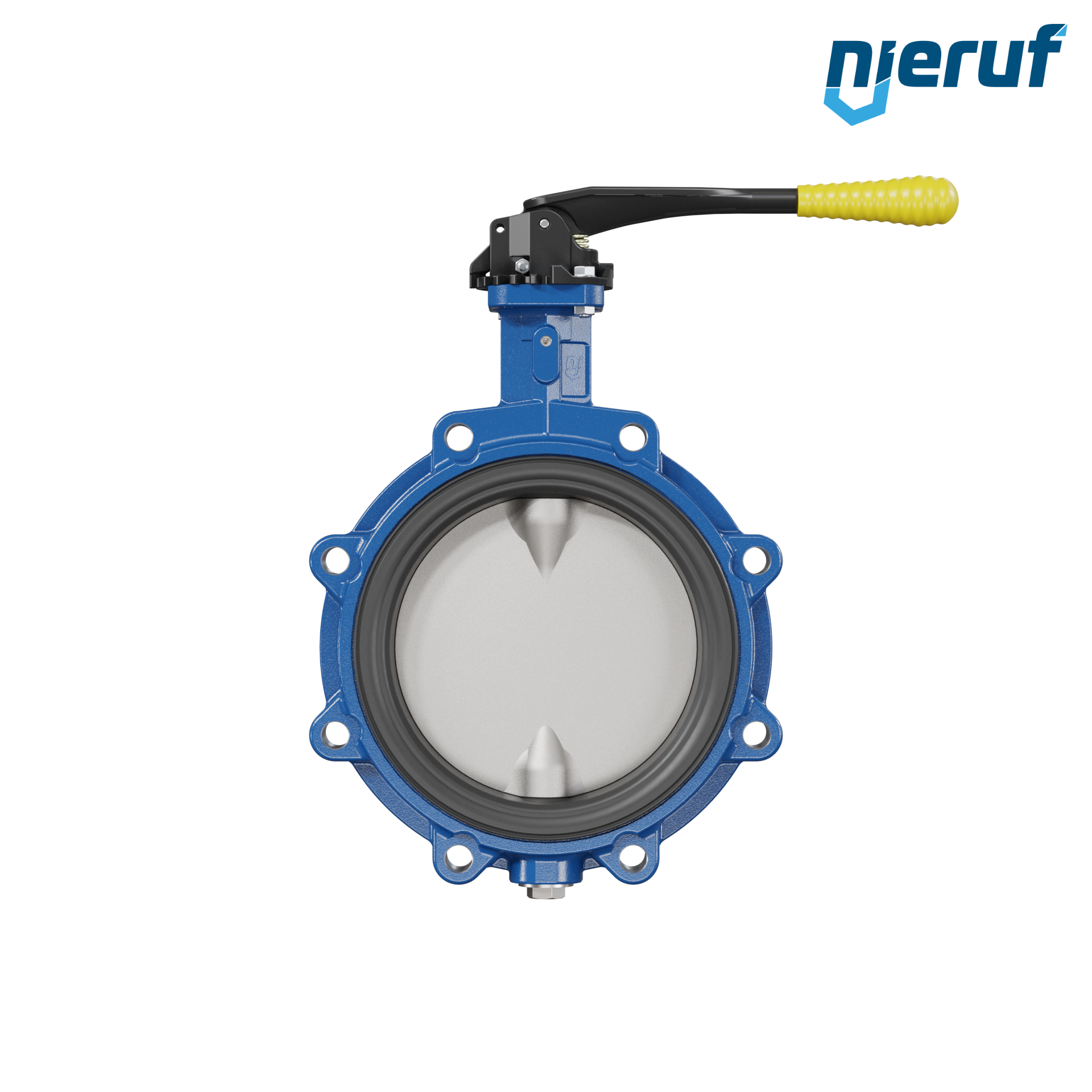

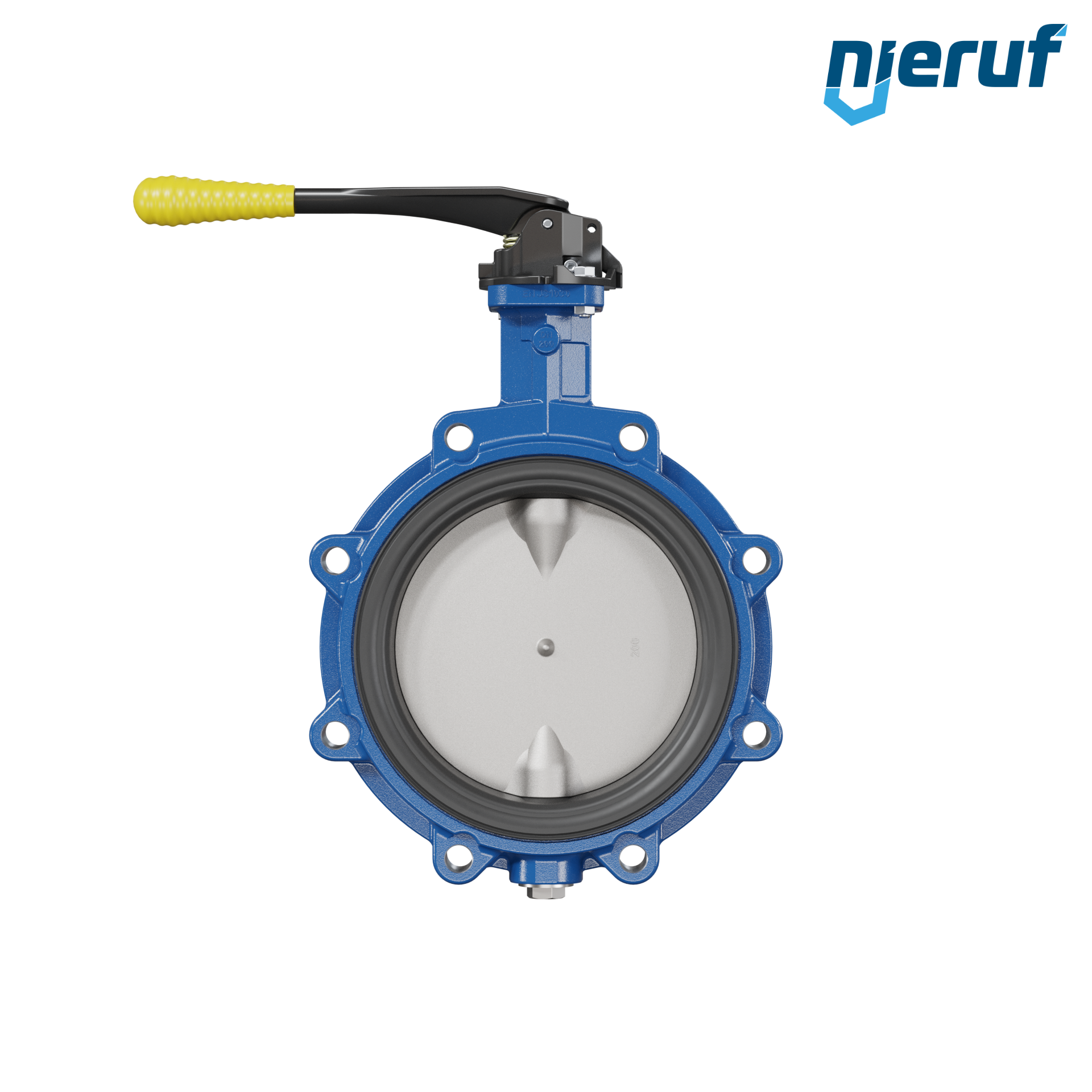

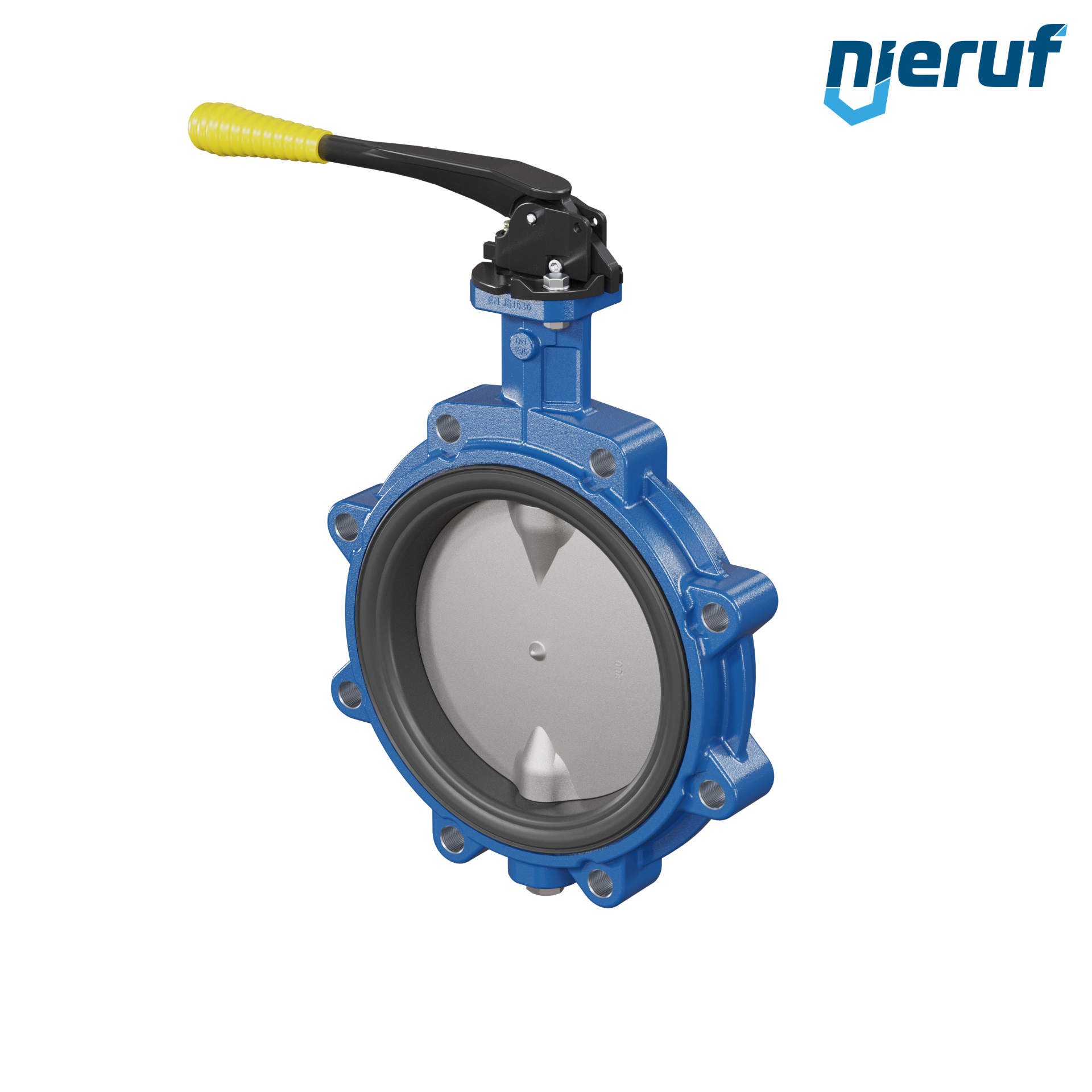

Butterfly valve AK02 DN 200 PN10 DVGW-gas

Butterfly valve DN 200 PN10 Lug type GGG40 with notch lever with yellow sleeve NBR-70-black DVGW gas

product	Butterfly valve
type	AK02
manufacturer	NieRuf
diameter	DN 200
nominal pressure	PN10
max. working pressure	10 bar
sleeves	NBR-70-black DVGW gas
media	liquid and gaseous media
temperature	-10°C up to +60°C
design	Lug type
body material	SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc	stainless steel 1.4408

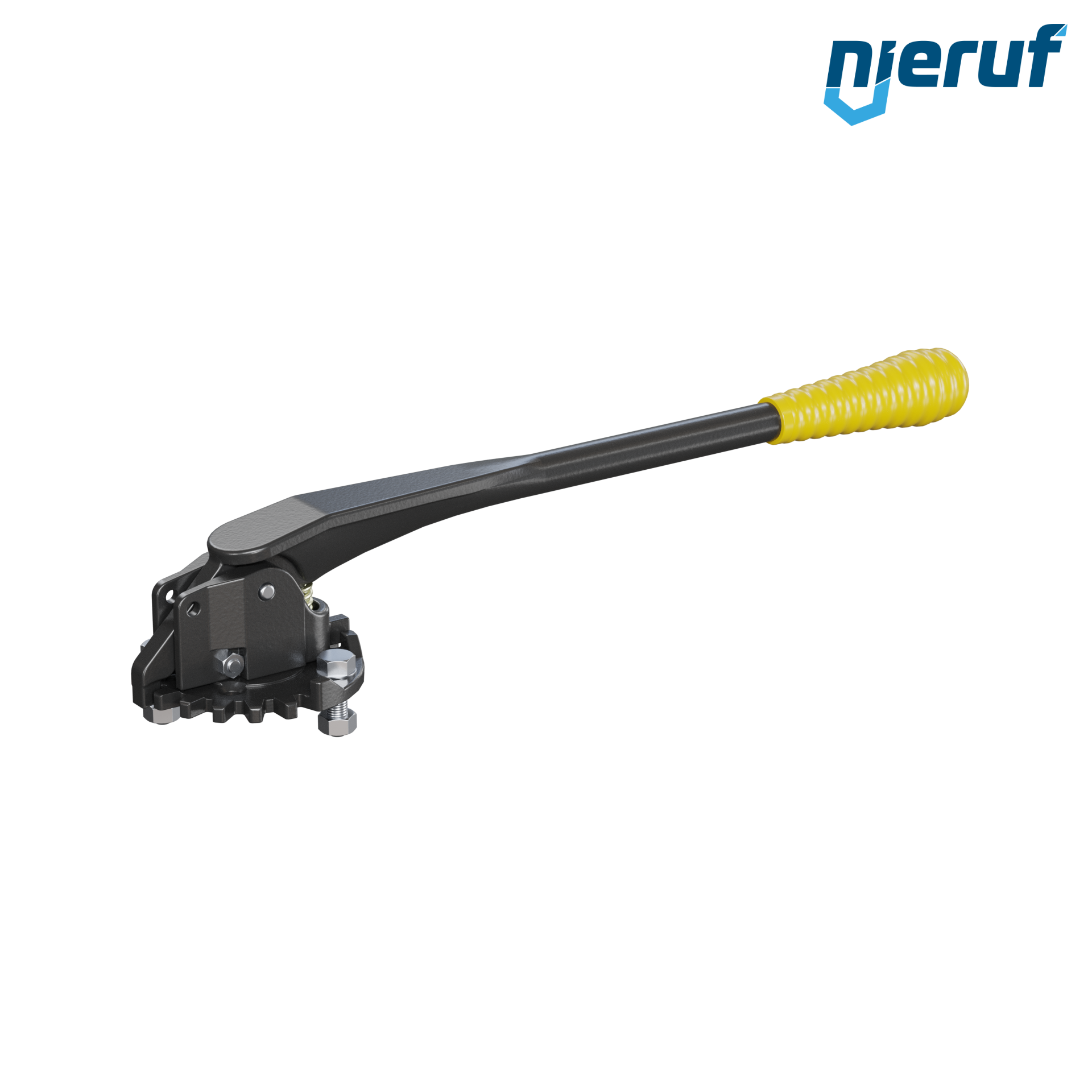

actuation	notch lever with yellow sleeve
approval	NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C)
application	industry design
installation position	any position
product feature	Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Butterfly valve AK02 DN 200 PN10 DVGW-gas

Article no. : AK02010014
product: Butterfly valve
type: AK02
manufacturer: NieRuf
diameter: DN 200
nominal pressure: PN10
max. working pressure: 10 bar
sleeves: NBR-70-black DVGW gas
media: liquid and gaseous media
temperature: -10°C up to +60°C
design: Lug type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: notch lever with yellow sleeve
approval: NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C)
application: industry design
installation position: any position
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.
