MV06120105

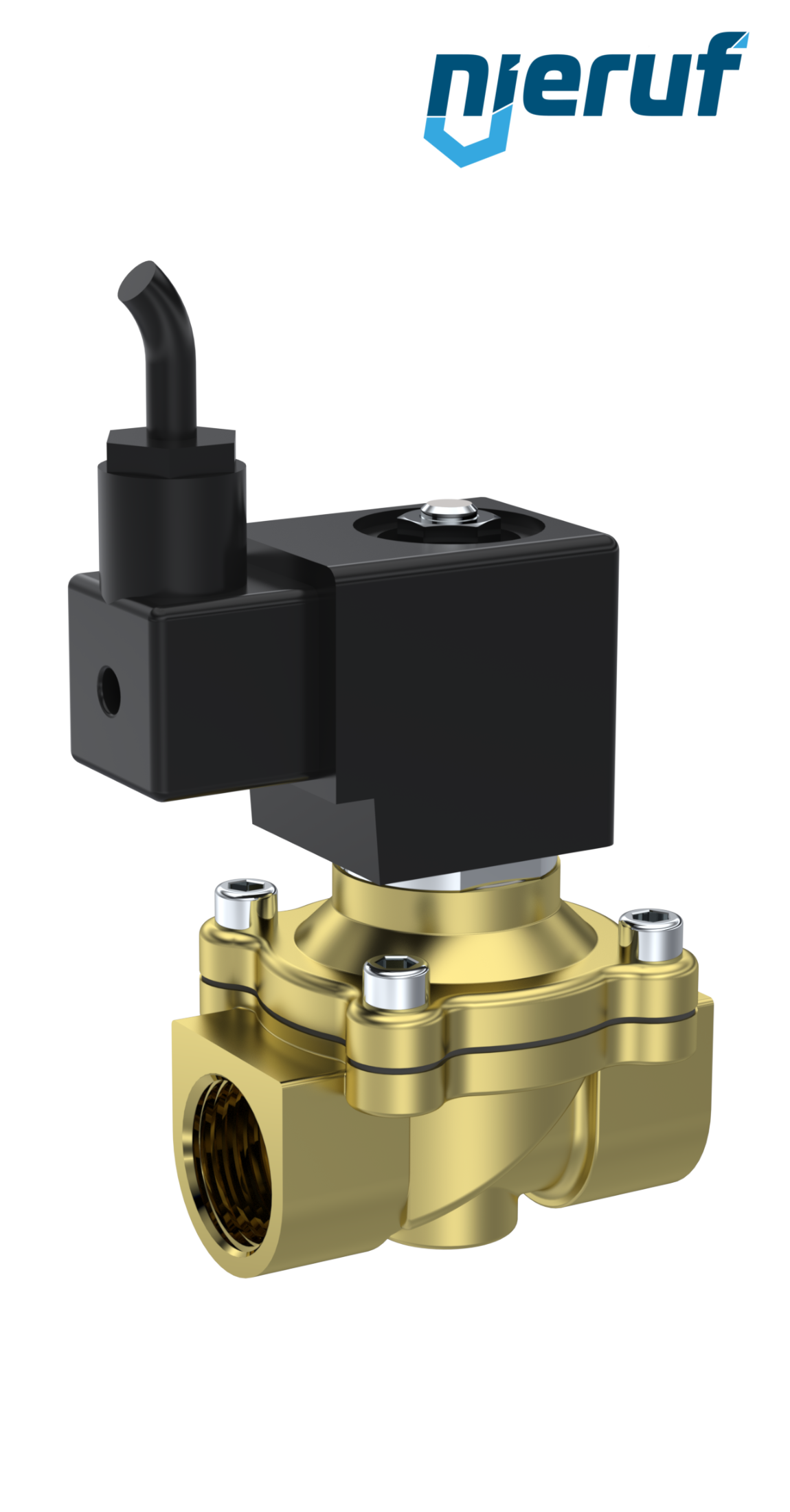

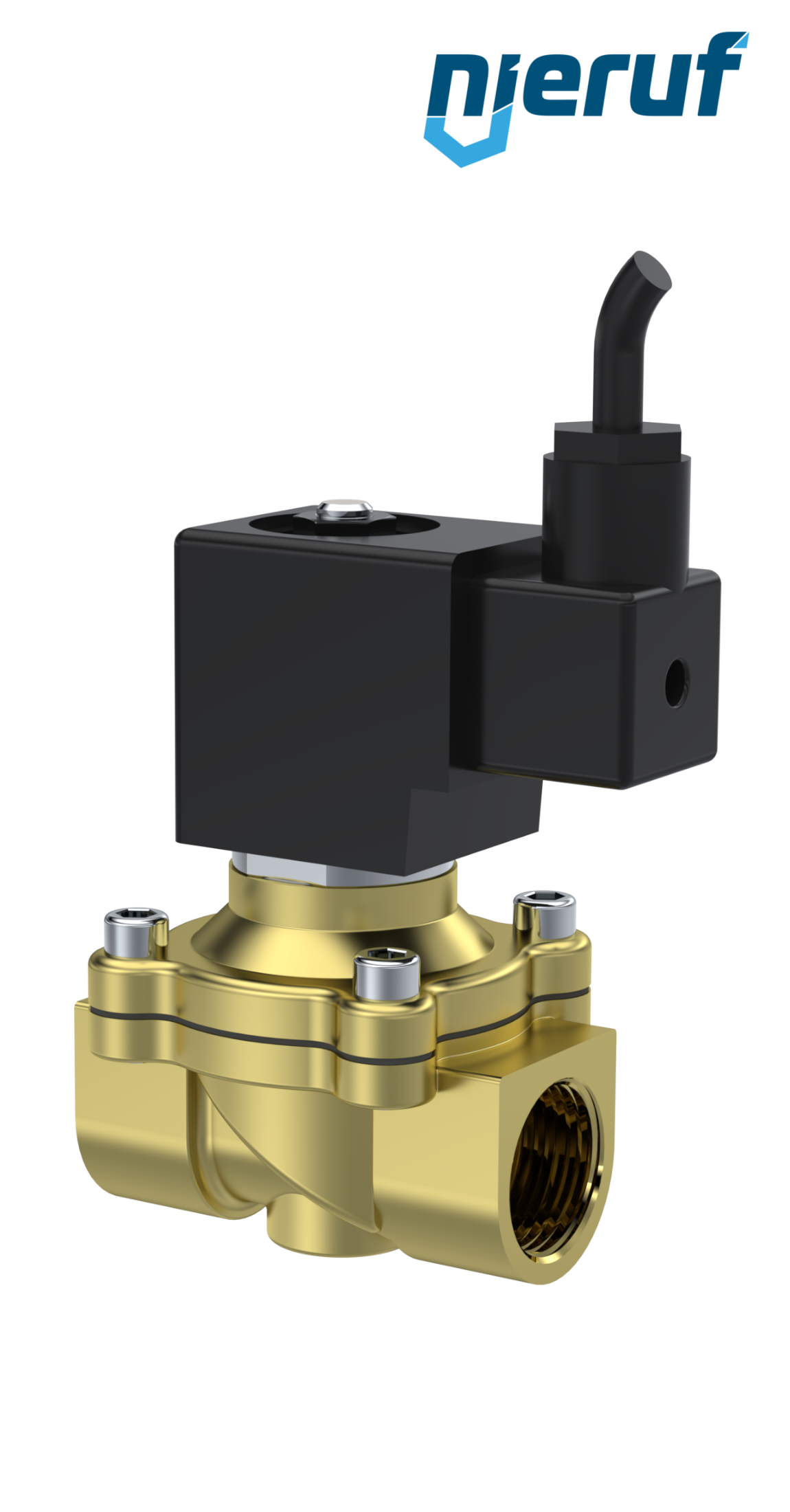

ATEX-Solenoid valve DN25 G 1" Inch FKM brass
- Lead time
- 2 - 3 weeks
Equipment
hose nozzle 1" 25.4 mm stainless steel 1.4408 ST01
€6.90 VAT included.
hexagon nipple 1" inch male stainless steel 316
€5.36 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
ATEX-Solenoid valve DN25 G 1" Inch FKM brass
Ex-proofed-Solenoid valve DN25 G 1" Inch 230V 50Hz Type MV06 NC - normally closed force pilot operated brass FKM liquid and gaseous media
| product | Solenoid valve |
|---|---|
| type | MV06 |
| manufacturer | NieRuf |
| design | seat valve with membrane |
| diameter | DN25 |
| connection | G 1" Inch |
| type of connection | female thread |
| Type of design | 2/2 Ways |
| flow rate | 7.2 m³/h |
| function | NC - normally closed |
| control | force pilot operated |
| material | brass |
| seal | FKM |
| voltage | 230V 50Hz |
| voltage tolerance | +/- 10% acc. VDE 0580 |
| power consumption | 20 VA |
| duty | 100% ED |
| plug socket | IP65 with plug socket mounted and 3m cable |
| media | non-flammable, neutral gases and liquids |
| temperature media | -10°C up to +120°C |
| temperature ambiente | max up to +50°C |
| max. pressure | 0.0 - 6 bar |
| Outlet pressure | 0 bar (no counter pressure) |
| Ex-proof | ex-proof solenoid with II 2G Ex mb IIC T4 Gb, II 2D Ex mb tb IIIC T130°C Db inclusive 3m cable |
| installation position | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
ATEX-Solenoid valve DN25 G 1" Inch FKM brass
Article no.
: MV06120105
product:
Solenoid valve
type:
MV06
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN25
connection:
G 1" Inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
7.2 m³/h
function:
NC - normally closed
control:
force pilot operated
material:
brass
seal:
FKM
voltage:
230V 50Hz
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
20 VA
duty:
100% ED
plug socket:
IP65 with plug socket mounted and 3m cable
media:
non-flammable, neutral gases and liquids
temperature media:
-10°C up to +120°C
temperature ambiente:
max up to +50°C
max. pressure:
0.0 - 6 bar
Outlet pressure:
0 bar (no counter pressure)
Ex-proof:
ex-proof solenoid with II 2G Ex mb IIC T4 Gb, II 2D Ex mb tb IIIC T130°C Db inclusive 3m cable
installation position:
any position, solenoid preferably standing
