MV08210015

Solenoid valve DN1,5 G 1/4" Inch brass MV08 EPDM 24V DC

€111.00*

€132.09 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 3 - 5 working days

Equipment

GF01300001

hexagon nipple 1/4" inch male stainless steel 316

€1.30*

€1.55 VAT included.

Resistance check

×

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

24 months warranty

Certified

Downloads

3D model

Datasheet

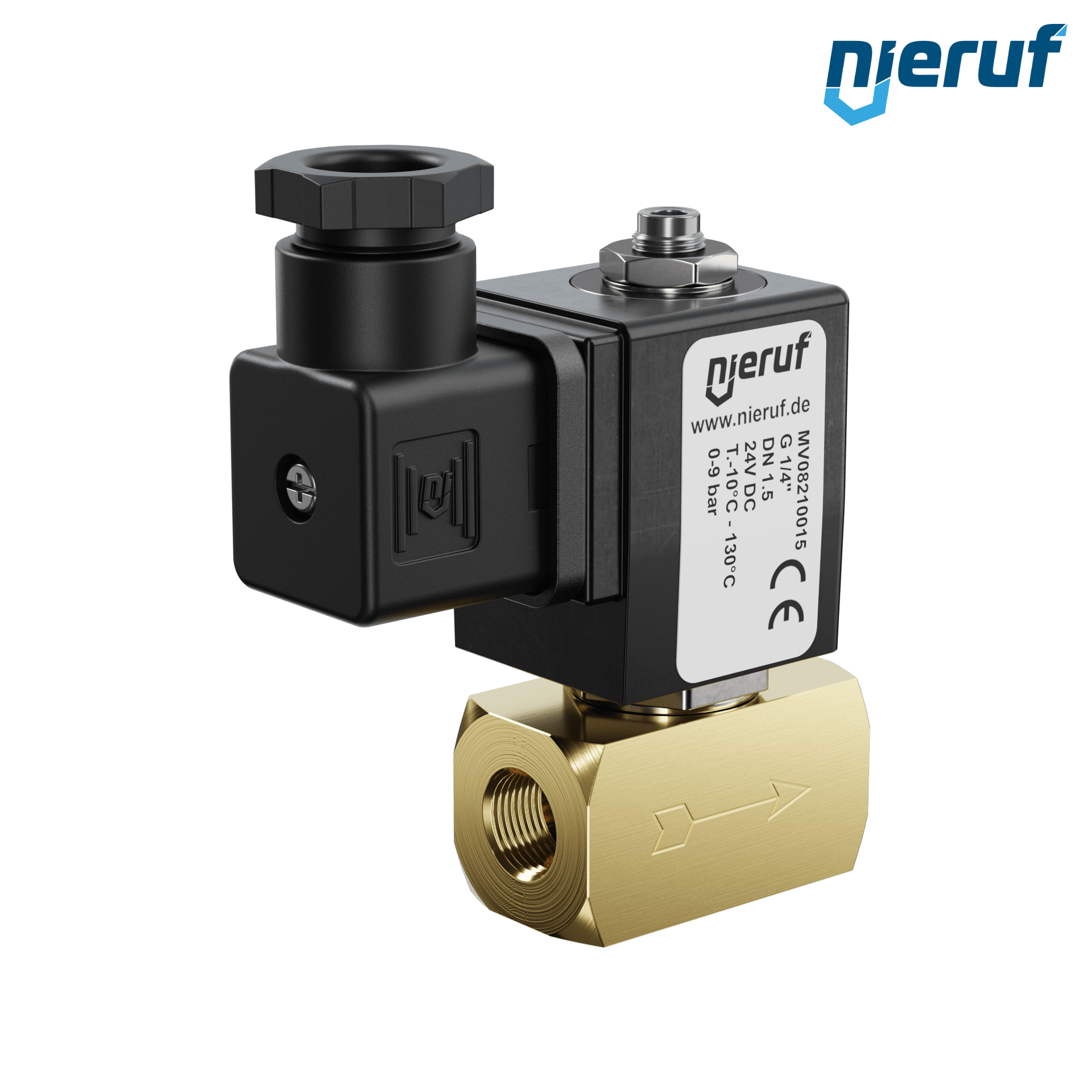

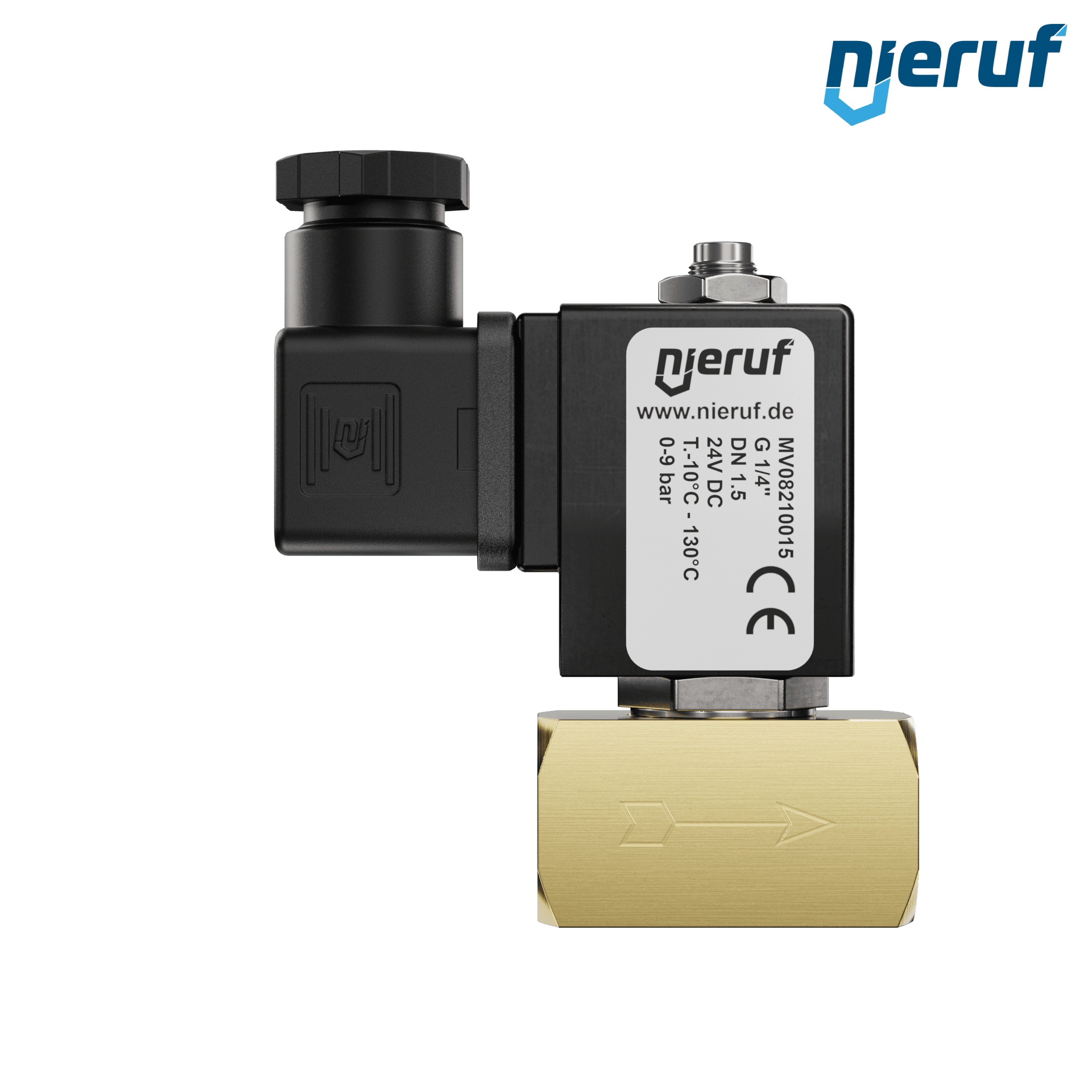

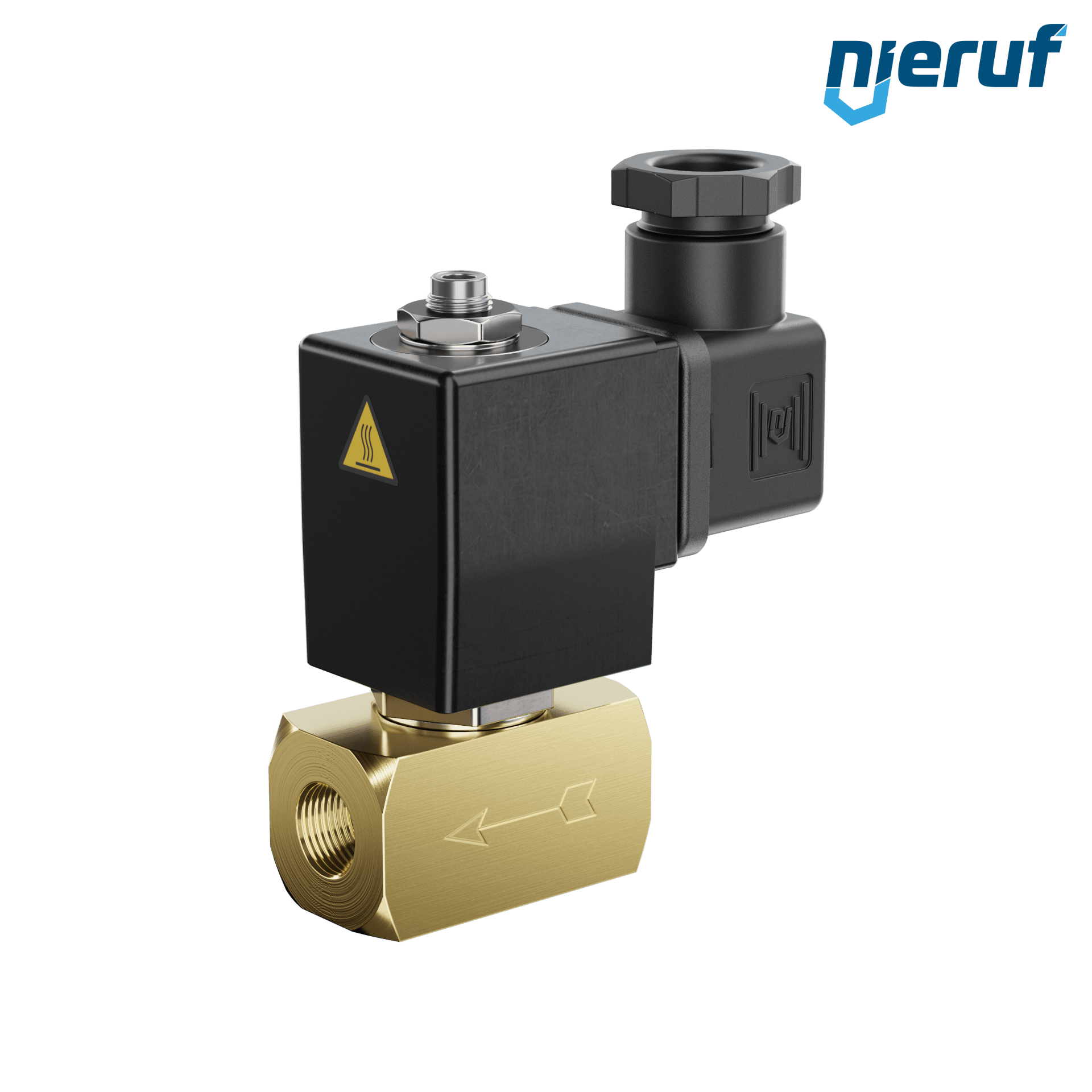

Solenoid valve DN1,5 G 1/4" Inch brass MV08 EPDM 24V DC

3/2 ways Solenoid valve G 1/4" Inch DN1,5 made of brass seal EPDM direct acting nominal voltage 24V DC pressure 0-9 bar

product	Solenoid valve
type	MV08
manufacturer	NieRuf
design	seat valve
diameter	DN1,5
connection	G 1/4" Inch
type of connection	female thread
Type of design	3/2 ways
flow rate	1.3 l/min
function	NC - normally closed
control	direct acting
material	brass
seal	EPDM
voltage	24V DC
voltage tolerance	+/- 10% acc. VDE 0580
power consumption	18 Watt
duty	100% ED
plug socket	IP65 with plug socket mounted
media	non-flammable, neutral gases and liquids
temperature media	-10°C up to +130°C
temperature ambiente	max up to +50°C
max. pressure	0-9 bar
Outlet pressure	0 bar (no counter pressure)

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Solenoid valve DN1,5 G 1/4" Inch brass MV08 EPDM 24V DC

Article no. : MV08210015
product: Solenoid valve
type: MV08
manufacturer: NieRuf
design: seat valve
diameter: DN1,5
connection: G 1/4" Inch
type of connection: female thread
Type of design: 3/2 ways
flow rate: 1.3 l/min
function: NC - normally closed
control: direct acting
material: brass
seal: EPDM
voltage: 24V DC
voltage tolerance: +/- 10% acc. VDE 0580
power consumption: 18 Watt
duty: 100% ED
plug socket: IP65 with plug socket mounted
media: non-flammable, neutral gases and liquids
temperature media: -10°C up to +130°C
temperature ambiente: max up to +50°C
max. pressure: 0-9 bar
Outlet pressure: 0 bar (no counter pressure)
