AS03010008

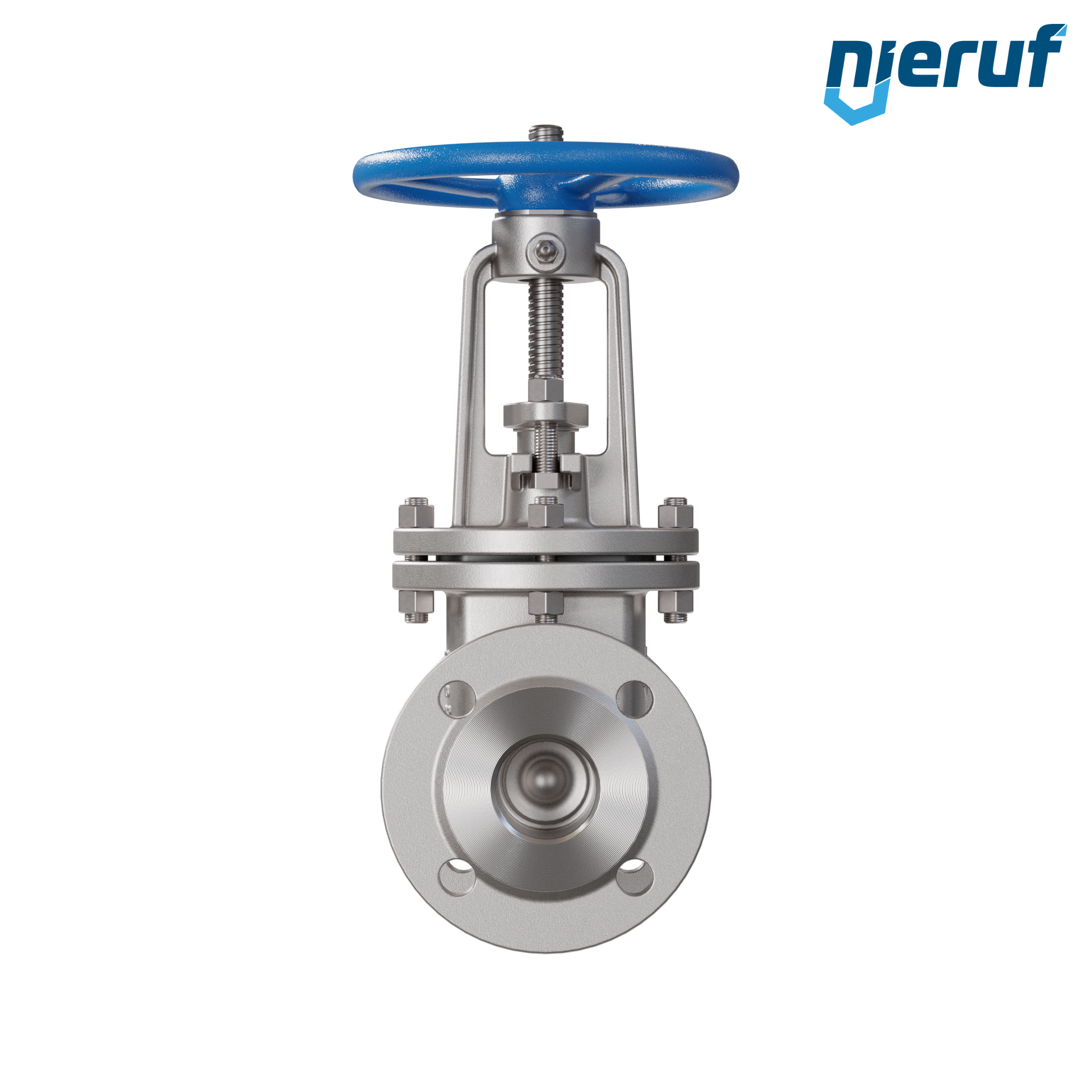

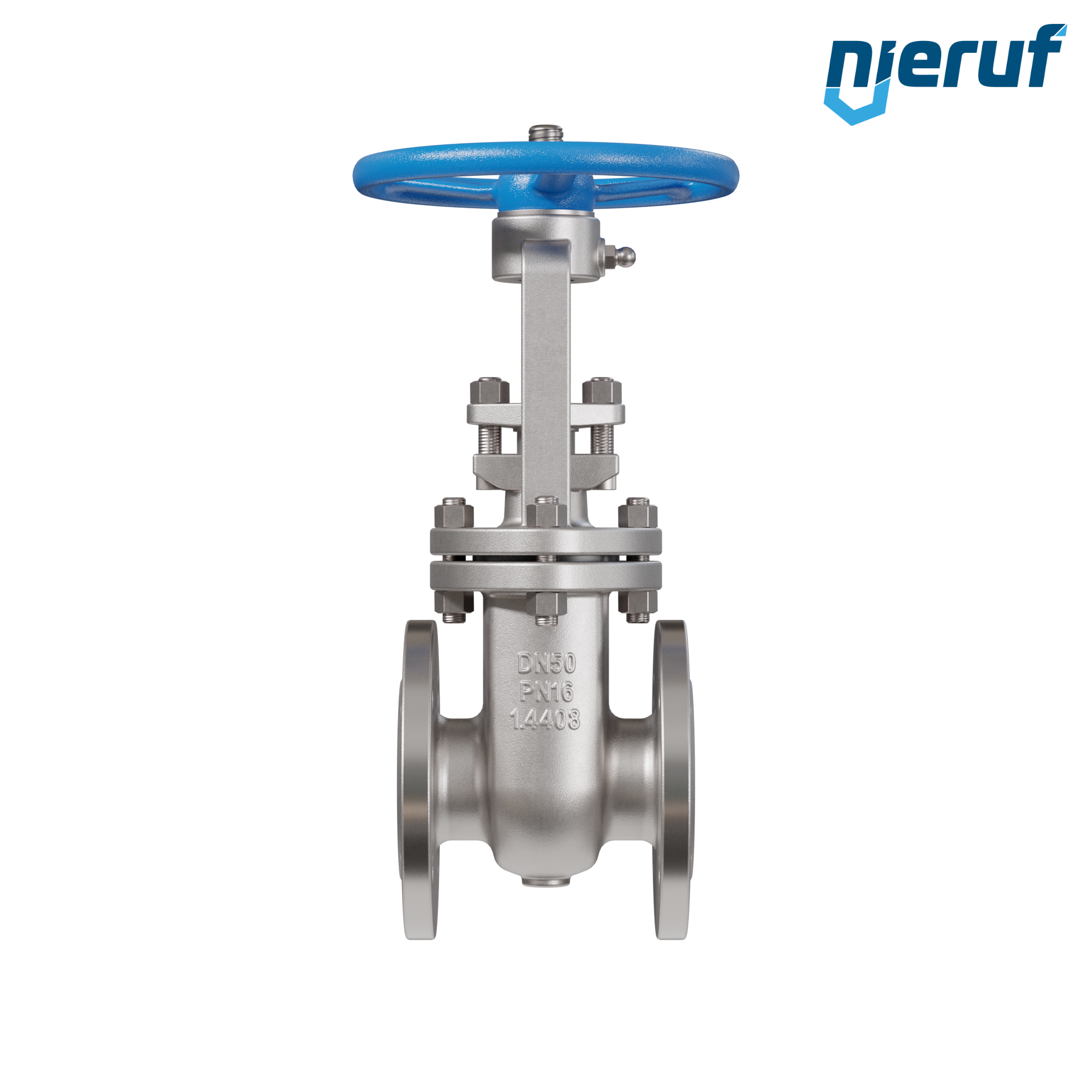

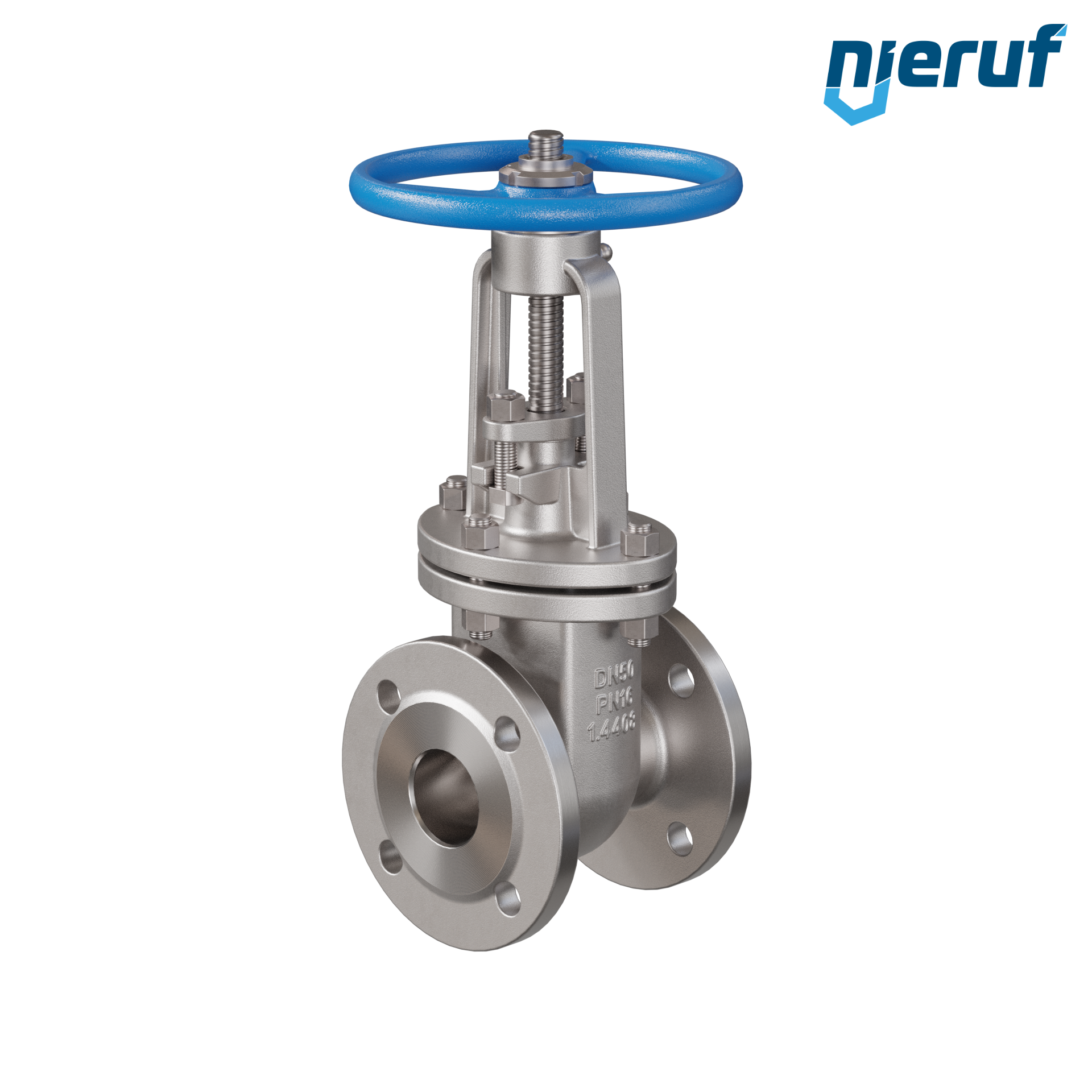

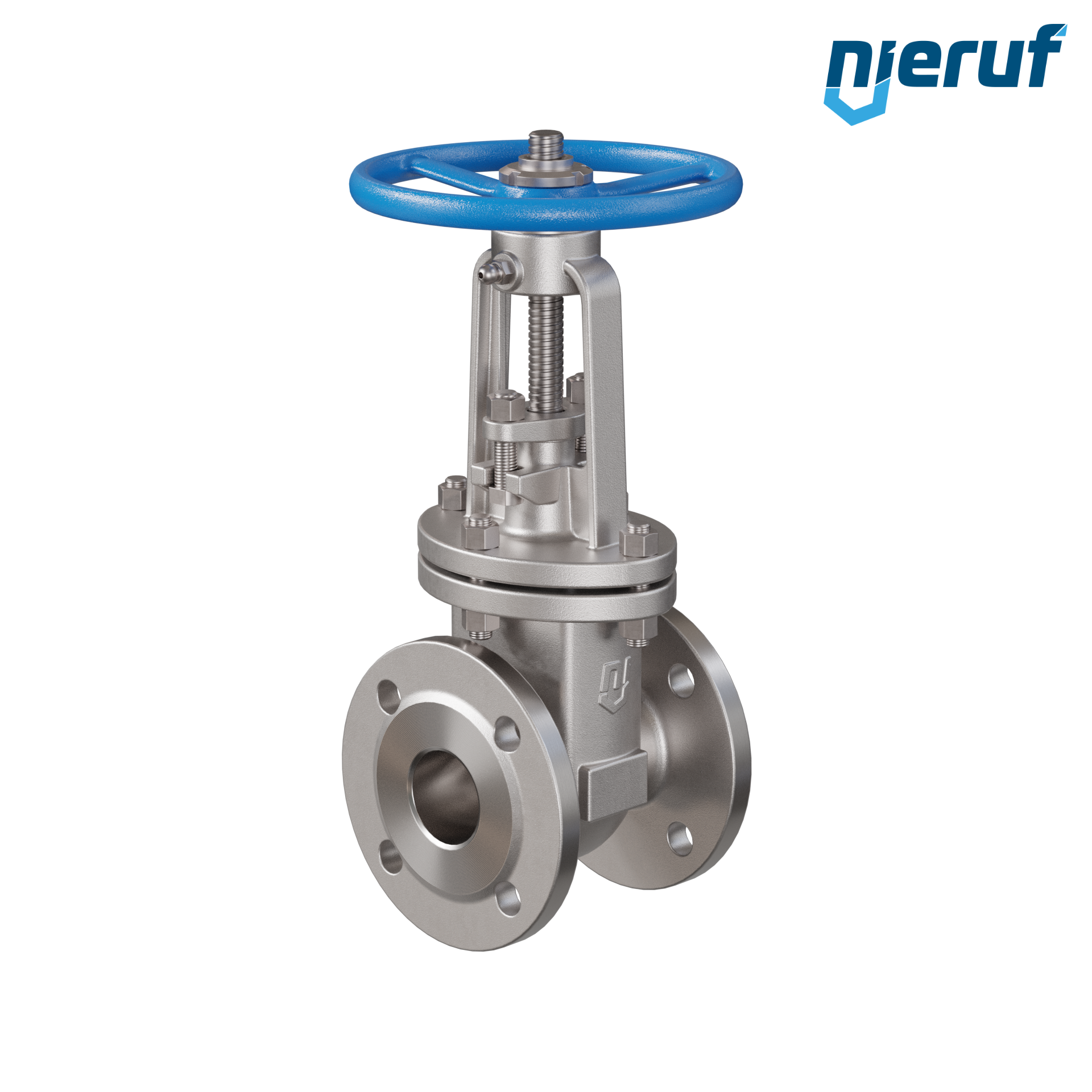

Wedge Gate Valve (flat form) stainless steel CF8M AS03 DN50 PN16
- Lead time
- 3 - 5 working days
Equipment
joint set flange/flange DN50 - 2" Inch for flange PN10/16/25/40 steel
€7.62 VAT included.
flange seal DN50 PN10/16/25/40 61x107x2 Klingersil C 4400
€3.69 VAT included.
Flange DN50 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
€22.37 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
Wedge Gate Valve (flat form) stainless steel CF8M AS03 DN50 PN16
Wedge Gate Valve (flat form) AS03 in straightway form DN50 PN16 with flange according to DIN EN 1092, material stainless steel CF8M
| Product | Wedge Gate Valve (flat form) |
|---|---|
| Type | AS03 |
| Manufacturer | NieRuf |
| Nominal size | DN50 |
| Flange | flange according to DIN EN 1092 |
| Pressure rating | PN16 |
| Seal | graphite |
| Media | liquid and gaseous media |
| Temperature | -10°C to +400°C - depending on operating pressure |
| Pressure range | 0 to 16 bar - depending on temperature |
| Design | straightway form |
| Body material | stainless steel CF8M / AISI CF8M |
| Yoke bonnet material | stainless steel CF8M / AISI CF8M |
| Handwheel | carbon steel 1.0036 (non-rising) |
| Wedge | stainless steel CF8M / AISI CF8M |
| Face-to-face length | according to DIN EN 558 series 14 |
| Testing | final inspection according to DIN EN 12266 |
| Approval | TA-Luft 2021 |
| Installation position | any, spindle preferably upright |
| Standard | DIN EN 1984: 2110-10 |
| Product feature | Wedge Gate Valve (flat form) in straightway form with flange connection and rising spindle, with non-rising handwheel. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Wedge Gate Valve (flat form) stainless steel CF8M AS03 DN50 PN16
Article no.
: AS03010008
Product:
Wedge Gate Valve (flat form)
Type:
AS03
Manufacturer:
NieRuf
Nominal size:
DN50
Flange:
flange according to DIN EN 1092
Pressure rating:
PN16
Seal:
graphite
Media:
liquid and gaseous media
Temperature:
-10°C to +400°C - depending on operating pressure
Pressure range:
0 to 16 bar - depending on temperature
Design:
straightway form
Body material:
stainless steel CF8M / AISI CF8M
Yoke bonnet material:
stainless steel CF8M / AISI CF8M
Handwheel:
carbon steel 1.0036 (non-rising)
Wedge:
stainless steel CF8M / AISI CF8M
Face-to-face length:
according to DIN EN 558 series 14
Testing:
final inspection according to DIN EN 12266
Approval:
TA-Luft 2021
Installation position:
any, spindle preferably upright
Standard:
DIN EN 1984: 2110-10
Product feature:
Wedge Gate Valve (flat form) in straightway form with flange connection and rising spindle, with non-rising handwheel.
Equipment
Flange DN50 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
flange seal DN50 PN10/16/25/40 61x107x2 Klingersil C 4400
Lead time: in stock
joint set flange/flange DN50 - 2" Inch for flange PN10/16/25/40 steel
Lead time: 3 - 5 working days
