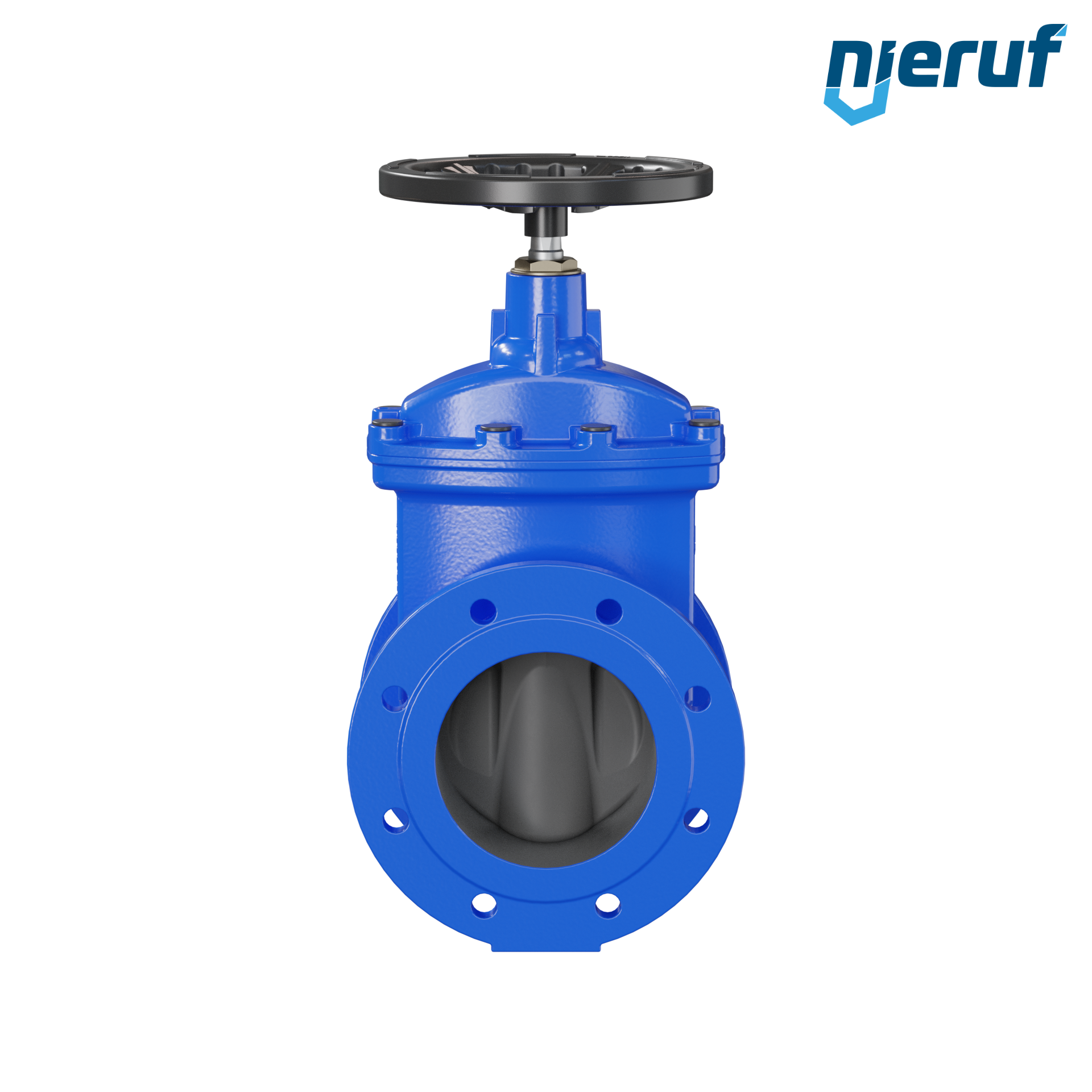

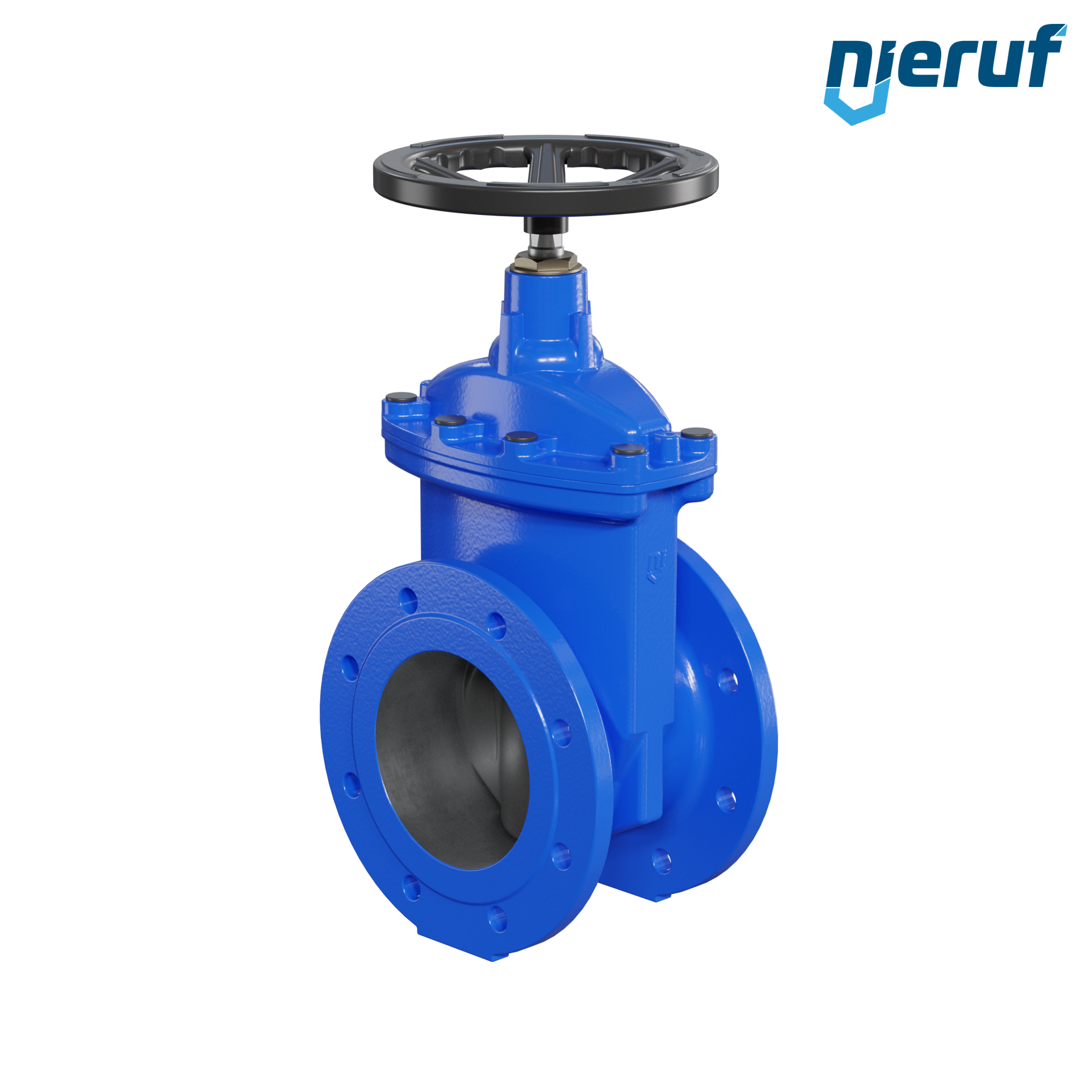

Wedge Gate Valve (flat form) AS04 in straightway form DN300 PN16 with flange to DIN EN 1092 material ductile cast iron 0.7050
| Product | Wedge Gate Valve (flat form) |
|---|---|
| Type | AS04 |
| Manufacturer | NieRuf |
| Nominal diameter | DN300 |
| Flange | flange according to DIN EN 1092 |
| Pressure rating | PN16 |
| Seal | EPDM |
| Medium | liquid media |
| Temperature | -10°C to +70°C |
| Pressure range | 0 to 16 bar - depending on temperature |
| Design | straightway form |
| Body material | ductile iron 0.7050 |
| Handwheel | carbon steel 1.0036 (non-rising) |
| Wedge | ductile iron 0.7050 |
| Face-to-face length | according to DIN EN 558 series 14 |
| Testing | final inspection according to DIN EN 12266 |
| Installation position | tilted no more than 30° from the vertical |
| Standard | DIN EN 1171: 2015-11 |
| Product feature | Wedge Gate Valve (flat form) in straightway form with flange connection and non-rising spindle as well as non-rising handwheel. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Wedge Gate Valve (flat form) made of ductile cast iron 0.7050 AS04 DN300 PN16
Article no.
: AS04100016
Product:
Wedge Gate Valve (flat form)
Type:
AS04
Manufacturer:
NieRuf
Nominal diameter:
DN300
Flange:
flange according to DIN EN 1092
Pressure rating:
PN16
Seal:
EPDM
Medium:
liquid media
Temperature:
-10°C to +70°C
Pressure range:
0 to 16 bar - depending on temperature
Design:
straightway form
Body material:
ductile iron 0.7050
Handwheel:
carbon steel 1.0036 (non-rising)
Wedge:
ductile iron 0.7050
Face-to-face length:
according to DIN EN 558 series 14
Testing:
final inspection according to DIN EN 12266
Installation position:
tilted no more than 30° from the vertical
Standard:
DIN EN 1171: 2015-11
Product feature:
Wedge Gate Valve (flat form) in straightway form with flange connection and non-rising spindle as well as non-rising handwheel.
