VB04000005

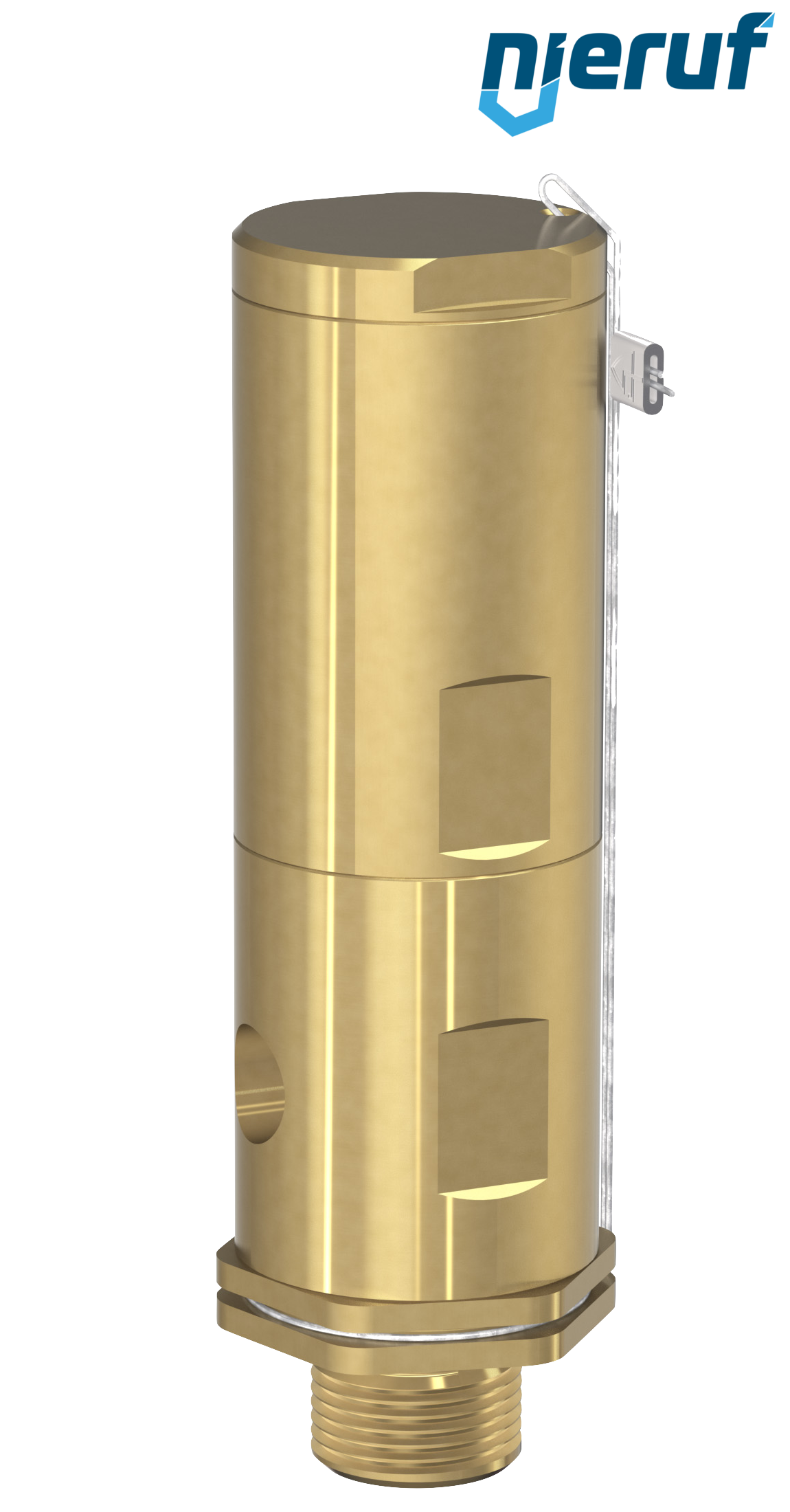

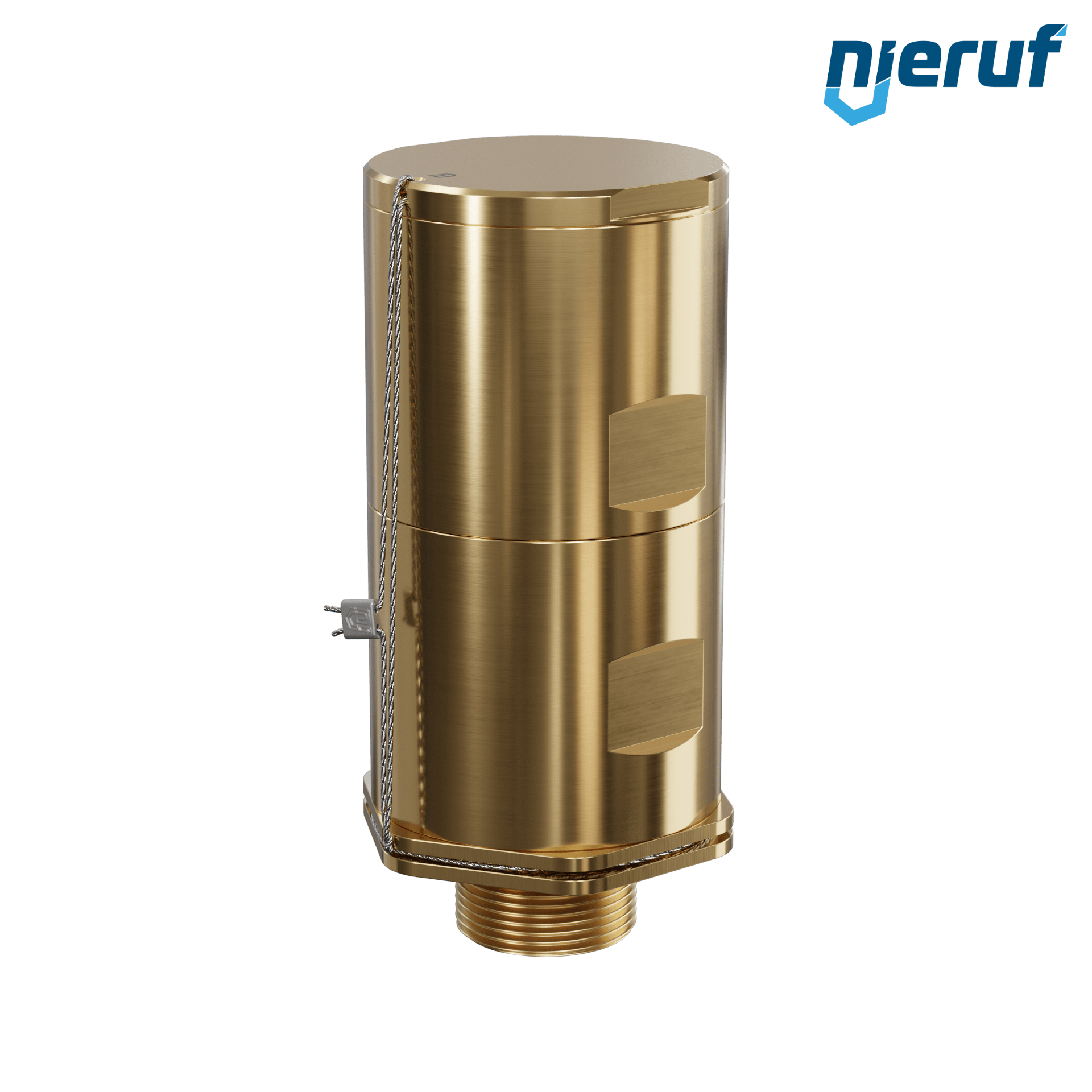

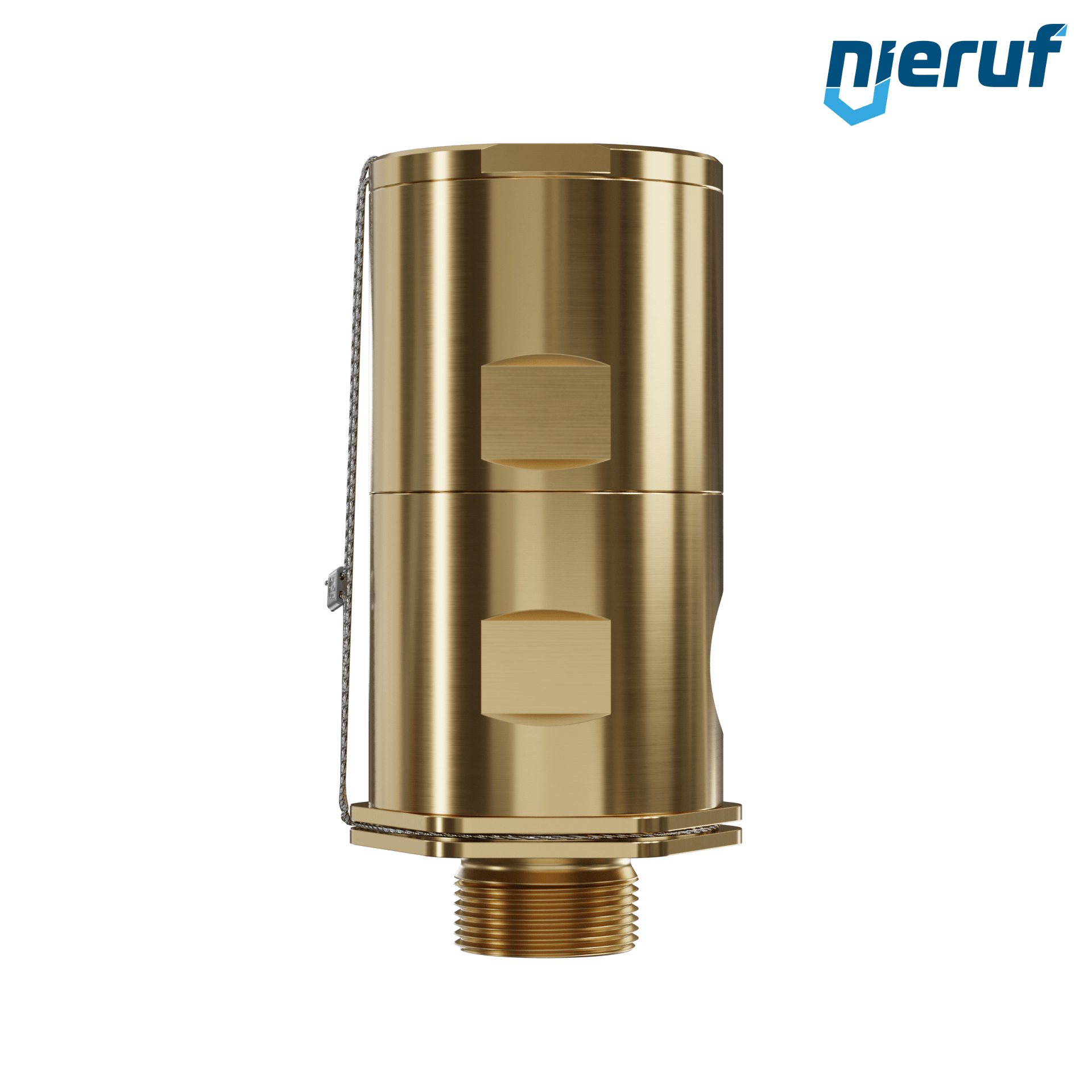

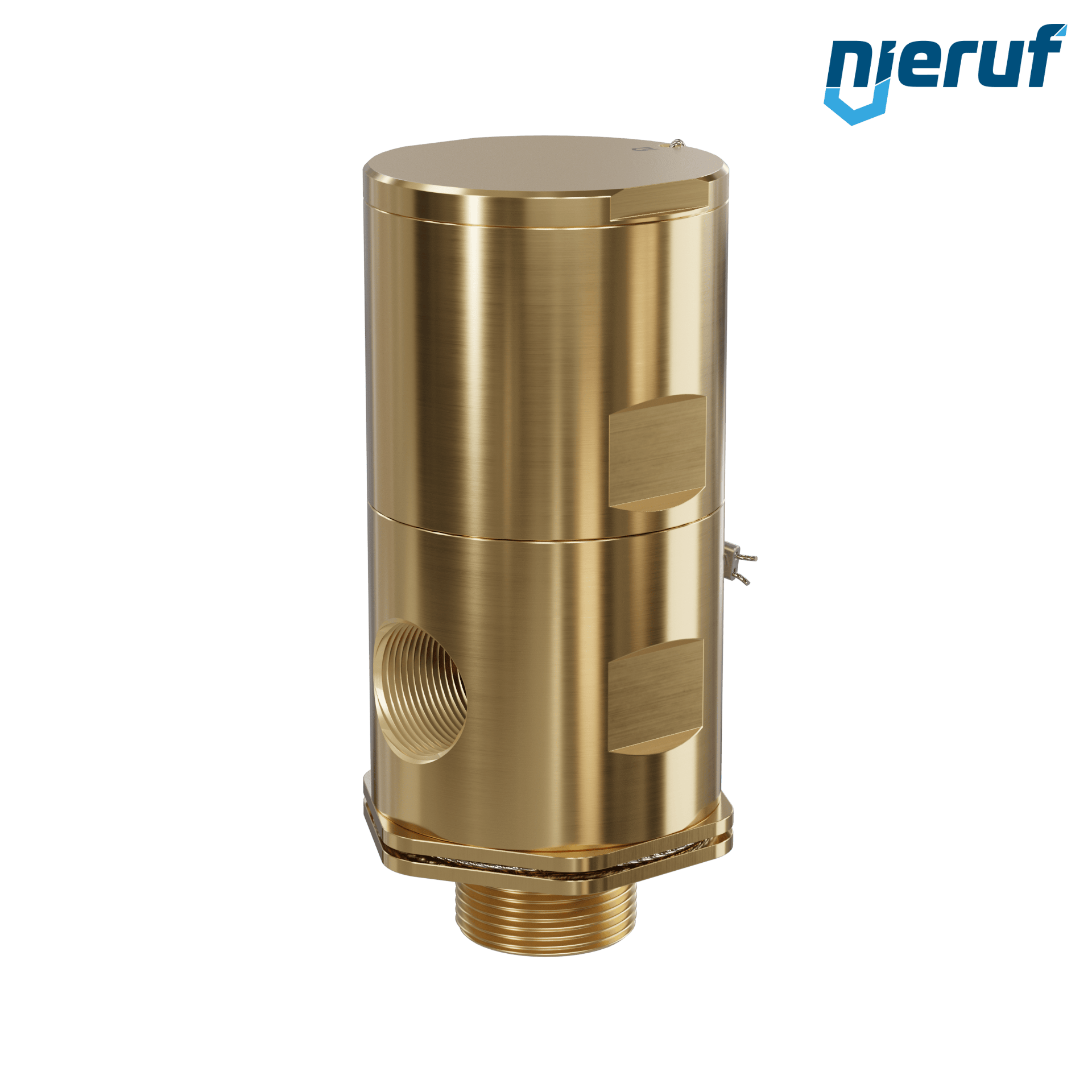

vent-valve 1" inch VB04 -100 to -800 mbar, adjustable
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you
vent-valve 1" inch VB04 -100 to -800 mbar, adjustable
vent-valve 1" inch male screw threaded BSP-P for neutral gaseous media, steam set pressure -100 to -800 mbar, adjustable made of brass CW617N
| product | vent-valve |
|---|---|
| type | VB04 |
| manufacturer | NieRuf |
| diameter | 1" inch |
| connection | male screw threaded BSP-P |
| seal | PTFE |
| media | neutral gaseous media, steam |
| temperature | -60°C to +225°C |
| set pressure | -100 to -800 mbar, adjustable |
| material | brass CW617N |
| installation position | Vent-valves are used to protect tanks and vessels as well as other closed systems against vacuum. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
vent-valve 1" inch VB04 -100 to -800 mbar, adjustable
Article no.
: VB04000005
product:
vent-valve
type:
VB04
manufacturer:
NieRuf
diameter:
1" inch
connection:
male screw threaded BSP-P
seal:
PTFE
media:
neutral gaseous media, steam
temperature:
-60°C to +225°C
set pressure:
-100 to -800 mbar, adjustable
material:
brass CW617N
installation position:
Vent-valves are used to protect tanks and vessels as well as other closed systems against vacuum.
