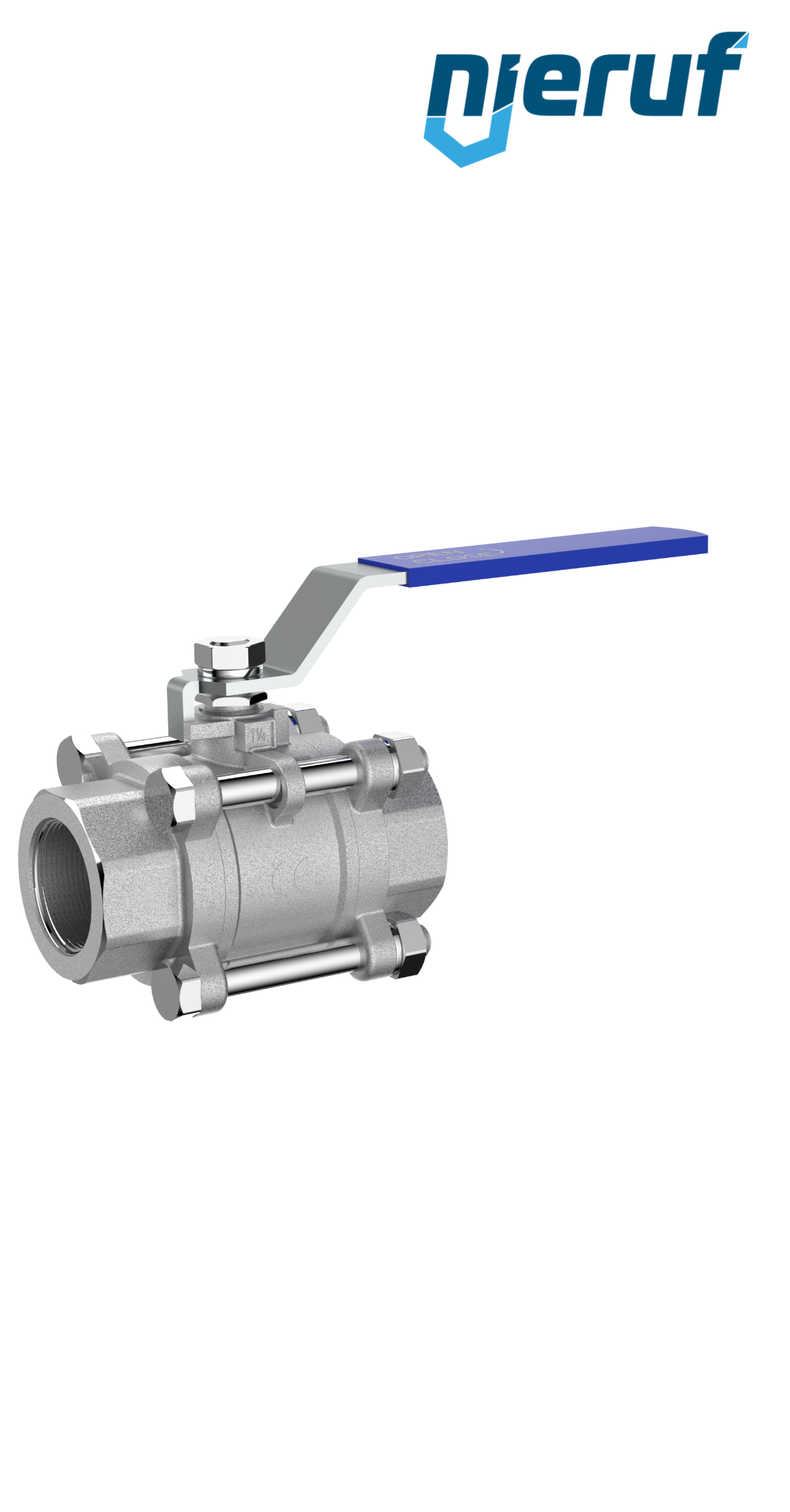

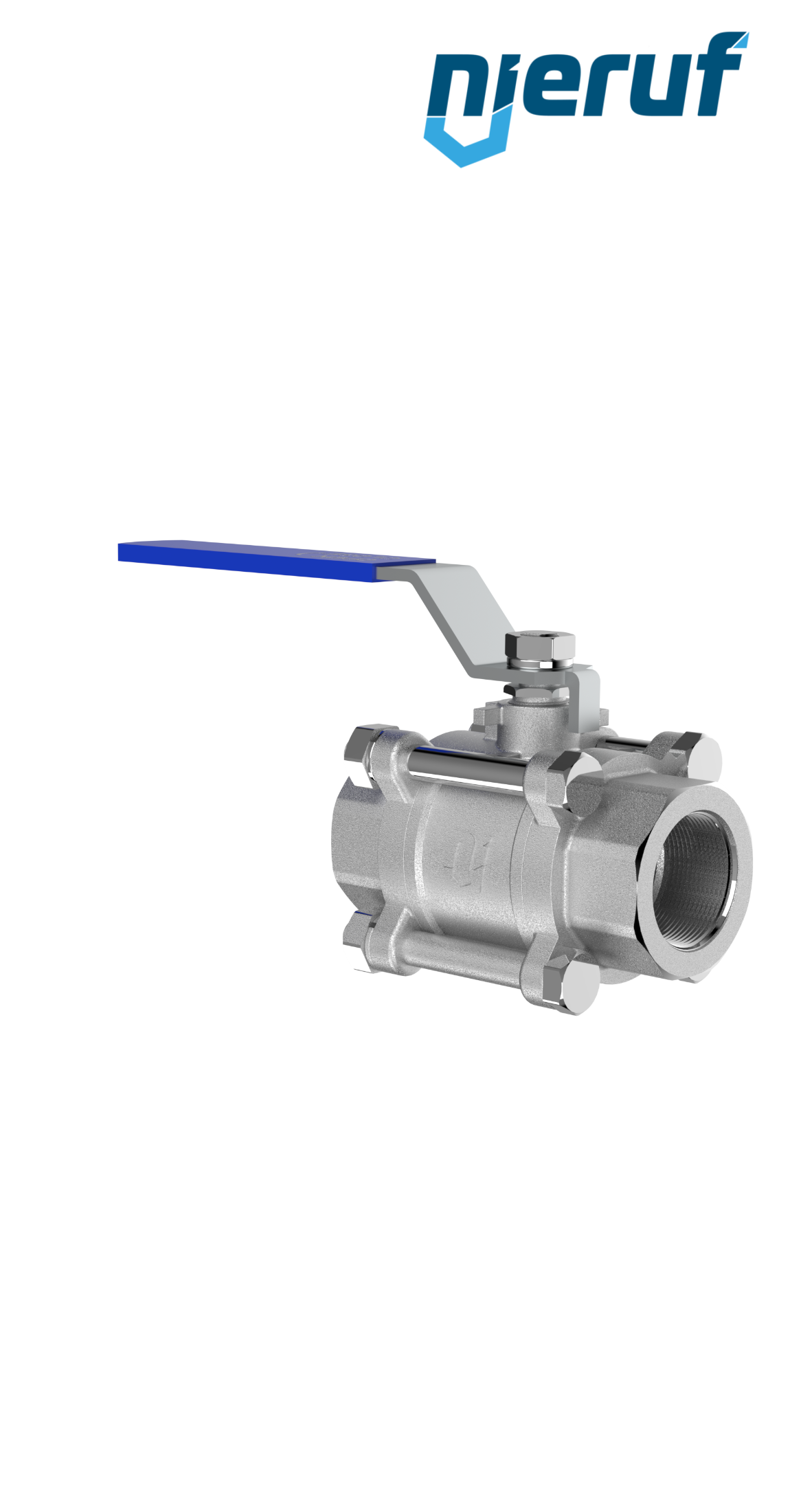

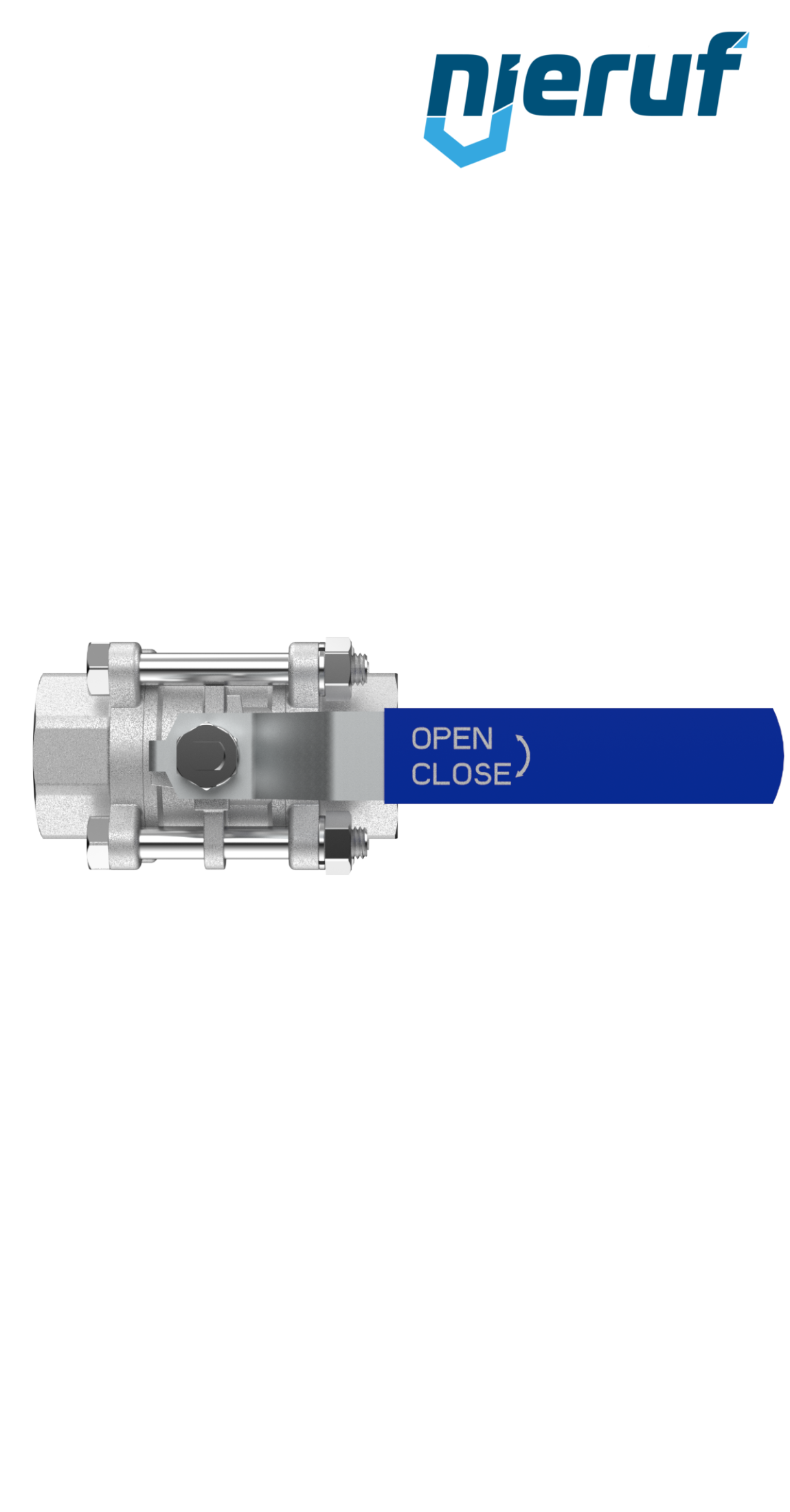

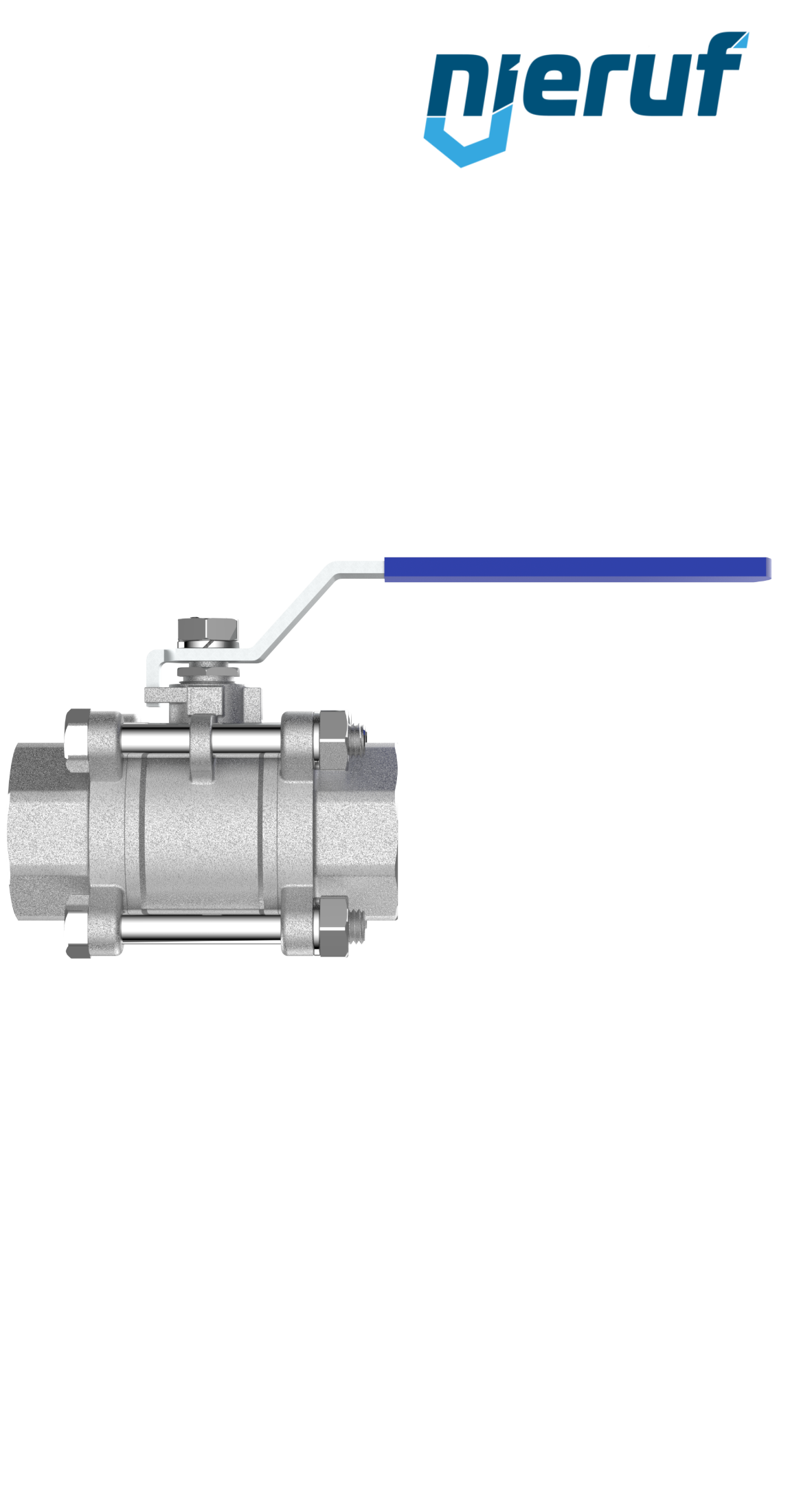

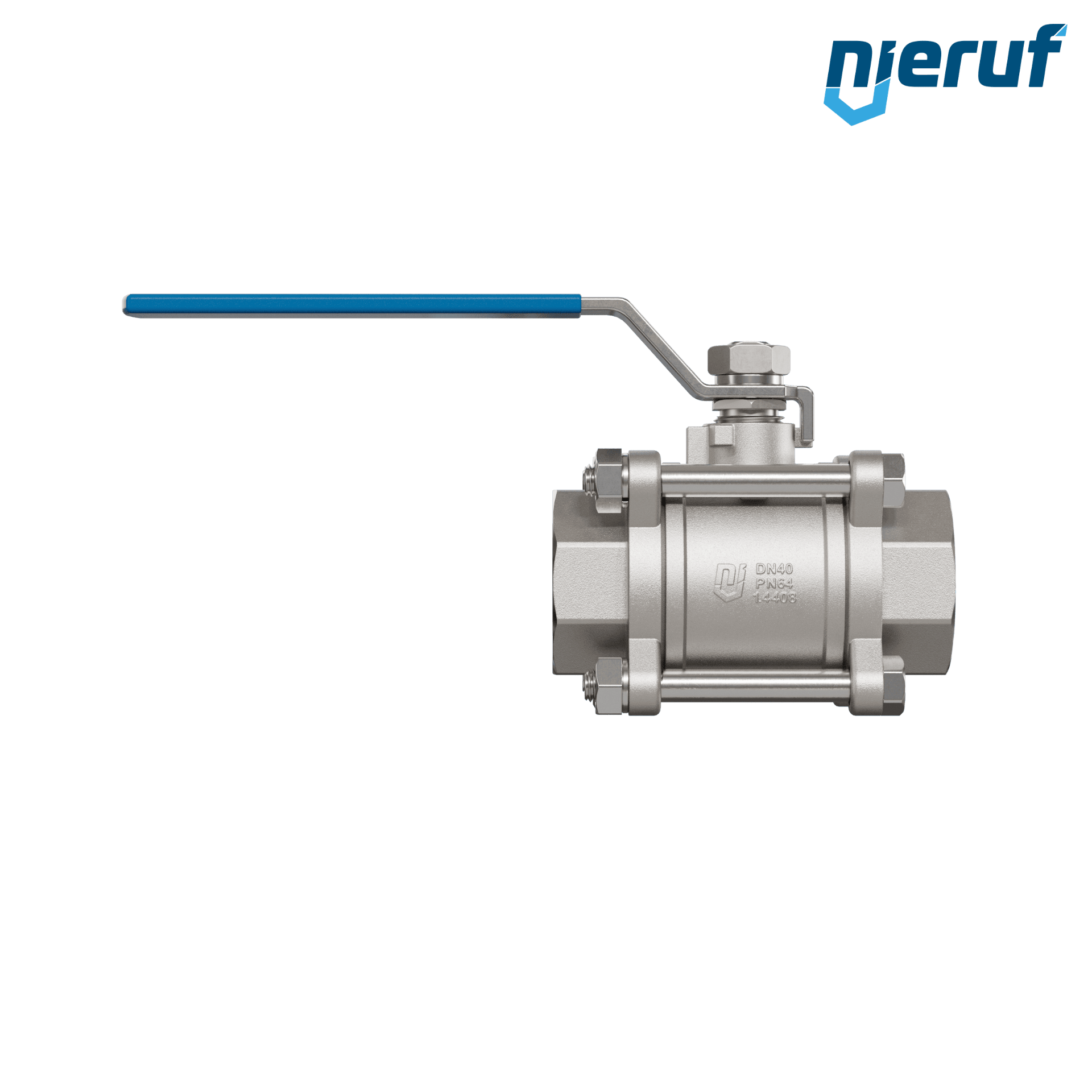

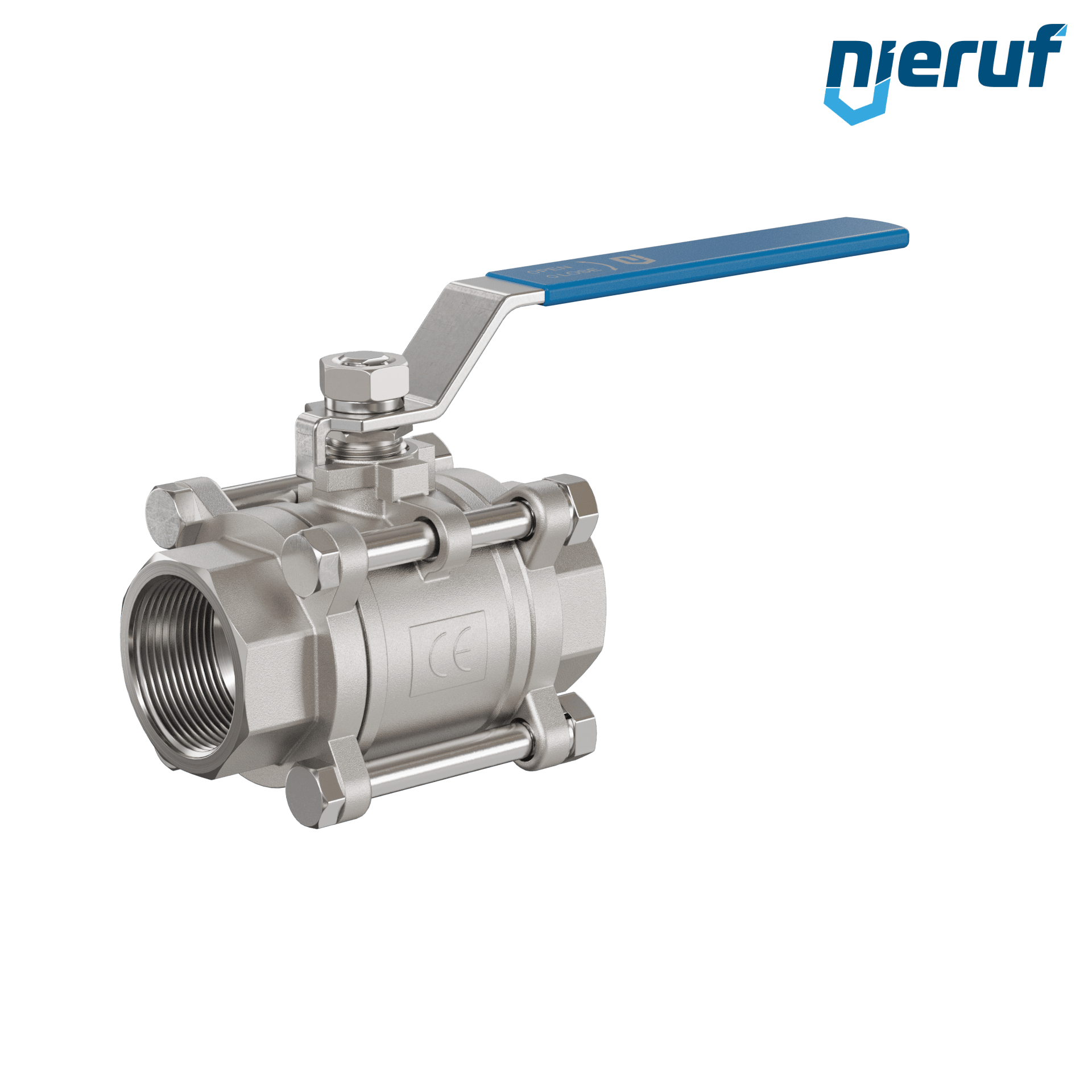

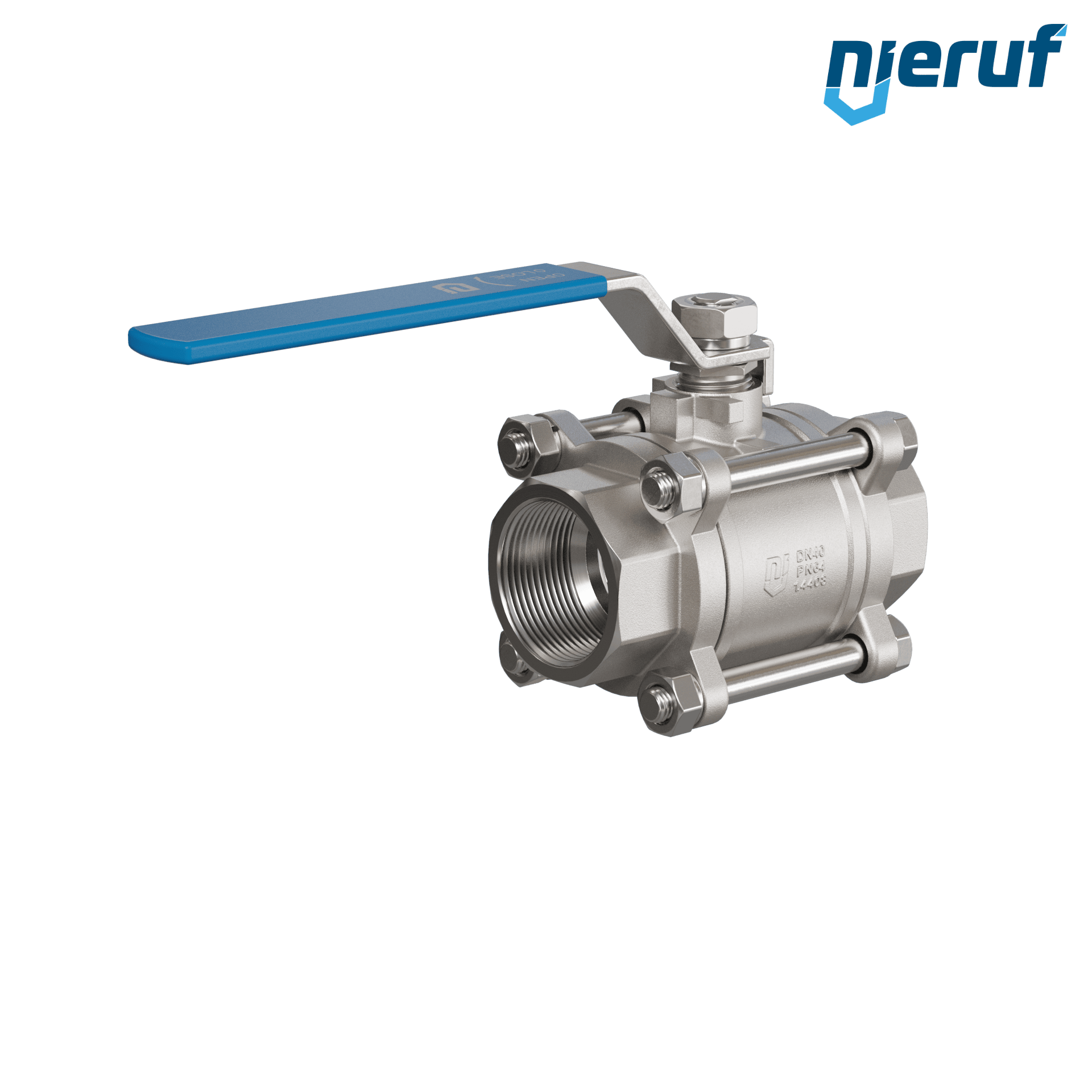

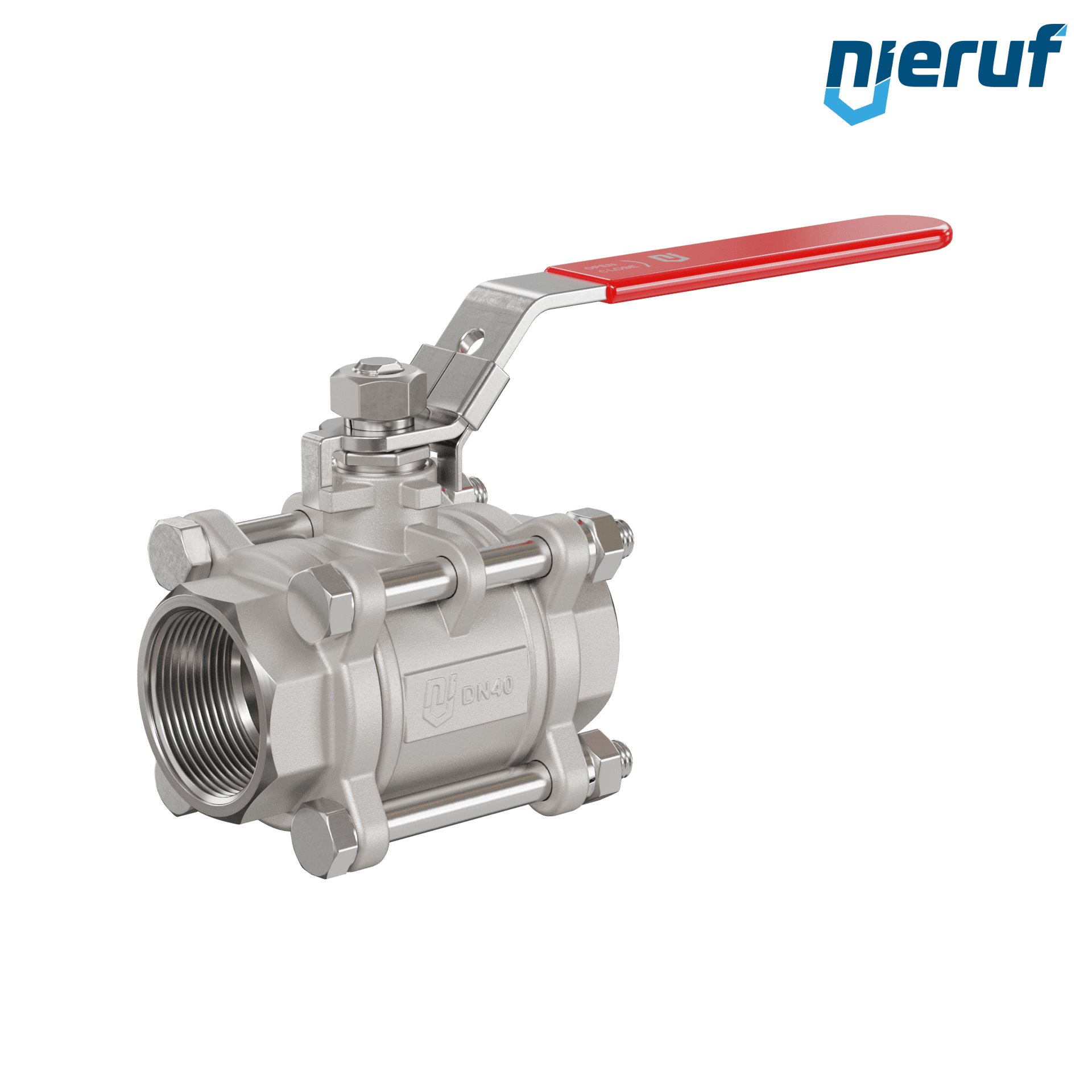

ball valve made of stainless steel DN40 - 1 1/2" inch full port design seal made of PTFE for liquid and gaseous media
| product | ball valve made of stainless steel |
|---|---|
| type | GK04 |
| manufacturer | NieRuf |
| diameter | DN40 - 1 1/2" inch |
| connection | female thread |
| Seal steam | PTFE |
| ball seal | PTFE |
| media | liquid and gaseous media |
| temperature | -20°C up to +180°C - depending on working pressure and media |
| max. pressure | PN64 |
| design | full port design |
| body material | stainless steel 1.4408 / CF8M |
| ball material | stainless steel 1.4401 / AISI 316 |
| length | 120mm |
| actuator | hand lever made of stainless steel 1.4301 with plastic cover |
| installation position | any position |
| product description | This high quality ball valve is made of stainless steel with adjustable stem packing and blow out proof stem design. This three-piece body valve is authorized for pressure equipment directive Cat. 2 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
ball valve made of stainless steel DN40 - 1 1/2" inch GK04 female thread
Article no.
: GK04000007
product:
ball valve made of stainless steel
type:
GK04
manufacturer:
NieRuf
diameter:
DN40 - 1 1/2" inch
connection:
female thread
Seal steam:
PTFE
ball seal:
PTFE
media:
liquid and gaseous media
temperature:
-20°C up to +180°C - depending on working pressure and media
max. pressure:
PN64
design:
full port design
body material:
stainless steel 1.4408 / CF8M
ball material:
stainless steel 1.4401 / AISI 316
length:
120mm
actuator:
hand lever made of stainless steel 1.4301 with plastic cover
installation position:
any position
product description:
This high quality ball valve is made of stainless steel with adjustable stem packing and blow out proof stem design. This three-piece body valve is authorized for pressure equipment directive Cat. 2
three-pieces stainless steel ball valve DN40 - 1 1/2" inch female thread
Delivery time: in stock
