EF0800k004

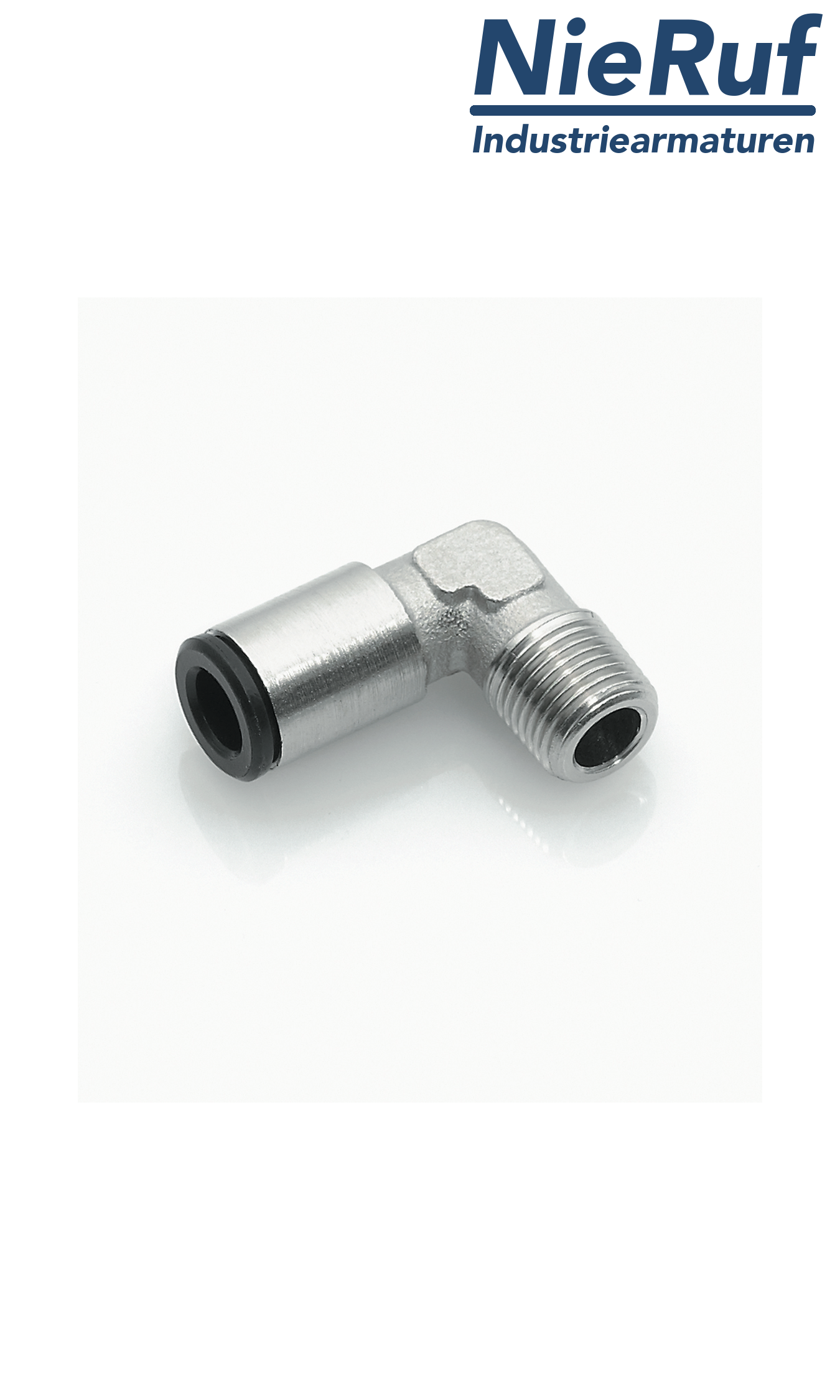

threaded elbow adaptor EF08 brass NBR R1/8" D4mm
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
threaded elbow adaptor EF08 brass NBR R1/8" D4mm
port connection threaded elbow adaptor made of brass with NBR-seal R1/8" D4mm for lubricated & non-lubricated compressed air up to 16 bar
| product | port connection |
|---|---|
| type | EF08 |
| manufacturer | NieRuf |
| design | threaded elbow adaptor |
| thread connection | R1/8" |
| tube connection 1 | D4mm |
| body material | brass Ms58 nickel-plated |
| seal | NBR |
| collet | stainless steel 1.4401 |
| pressure ring | black plastic |
| thread | conic |
| media | lubricated & non-lubricated compressed air |
| max. working pressure | up to 16 bar |
| product feature | threaded elbow adaptor to connect or to plug pipes in pneumatic- or pressure air applications. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
threaded elbow adaptor EF08 brass NBR R1/8" D4mm
Article no.
: EF0800k004
product:
port connection
type:
EF08
manufacturer:
NieRuf
design:
threaded elbow adaptor
thread connection:
R1/8"
tube connection 1:
D4mm
body material:
brass Ms58 nickel-plated
seal:
NBR
collet:
stainless steel 1.4401
pressure ring:
black plastic
thread:
conic
media:
lubricated & non-lubricated compressed air
max. working pressure:
up to 16 bar
product feature:
threaded elbow adaptor to connect or to plug pipes in pneumatic- or pressure air applications.
