threaded elbow adaptor EF08 brass NBR R1/4" D6mm

EF0800k106
swing check valve DN600 ZR01 steel A 216 WCB, zinc plated NBR 2
quantity (pcs.):
1.20€ * 1.43€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1-2 working days

datasheet
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details

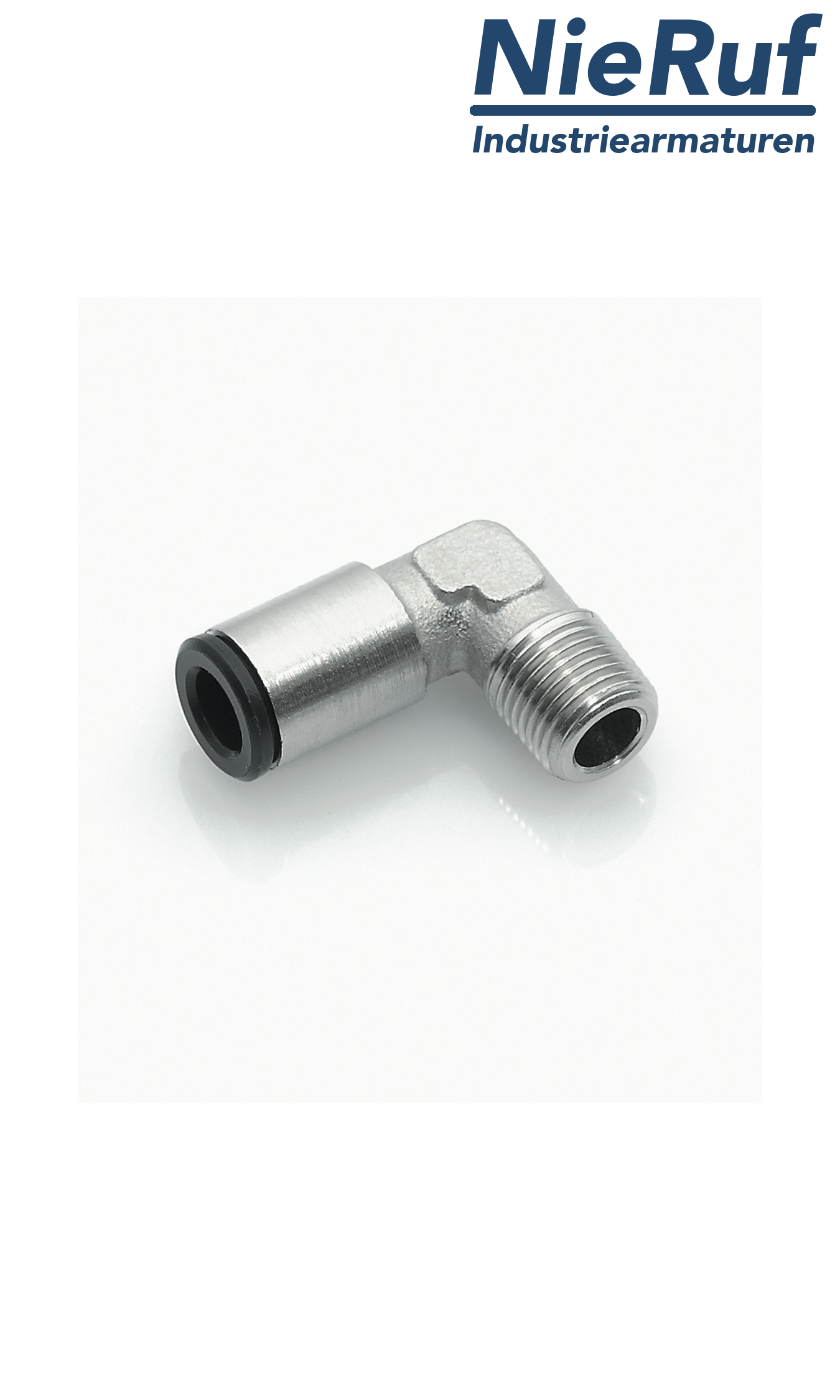

threaded elbow adaptor EF08 brass NBR R1/4" D6mm
port connection threaded elbow adaptor made of brass with NBR-seal R1/4" D6mm for lubricated & non-lubricated compressed air up to 16 bar
design: threaded elbow adaptor
thread connection: R1/4"
tube connection 1: D6mm
body material: brass Ms58 nickel-plated
seal: NBR
collet: stainless steel 1.4401
pressure ring: black plastic
thread: conic
media: lubricated & non-lubricated compressed air
max. working pressure: up to 16 bar
product feature: threaded elbow adaptor to connect or to plug pipes in pneumatic- or pressure air applications.
threaded elbow adaptor EF08 brass NBR R1/4" D6mm

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

threaded elbow adaptor EF08 brass NBR R1/4" D6mm
