tee (welded) reduced 168,3 x 2,9 to 114,3 x 2,6 stainless steel 1.4571

RF01201304.4
Solenoid valve G 3/8" Inch stainless steel EV06 FKM 24V DC 2
quantity (pcs.):
195.00€ * 232.05€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1-2 working days

datasheet
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details

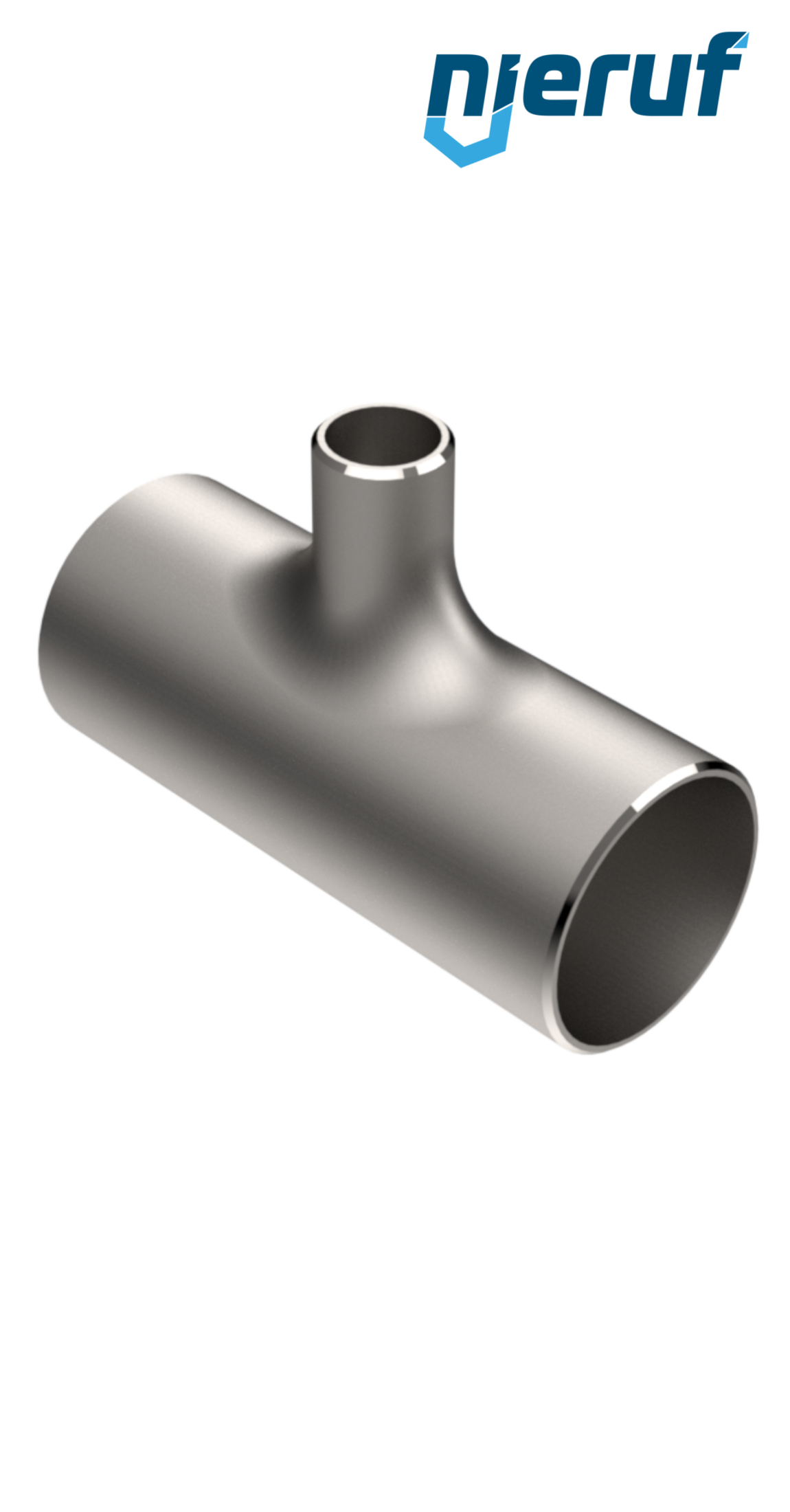

tee (welded) reduced 168,3 x 2,9 to 114,3 x 2,6 stainless steel 1.4571
tee reduced from 168,3 x 2,9 to 114,3 x 2,6 DN150 x DN100 stainless steel 1.4571 welded, acc. to EN 10253-4, type A
diameter: DN150 x DN100
connection: for welding
outside diameter D: 168,3 mm
thickness T: 2,9 mm
outside diameter x thickness: 168,3 mm x 2,9 mm
outside diameter D1: 114,3 mm
thickness T1: 2,6 mm
outside diameter x thickness 1: 114,3 mm x 2,6 mm
material: stainless steel 1.4571
norm: DIN 2615 / EN 10253-4
tee (welded) reduced 168,3 x 2,9 to 114,3 x 2,6 stainless steel 1.4571

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

tee (welded) reduced 168,3 x 2,9 to 114,3 x 2,6 stainless steel 1.4571
