ZR02100109
swing check valve DN65 ZR02 ANSI 150 stainless steel A351 CF8M EPDM
- Lead time
- On request
Questions about the article?
Our employee Richie Rost
will be happy to help you

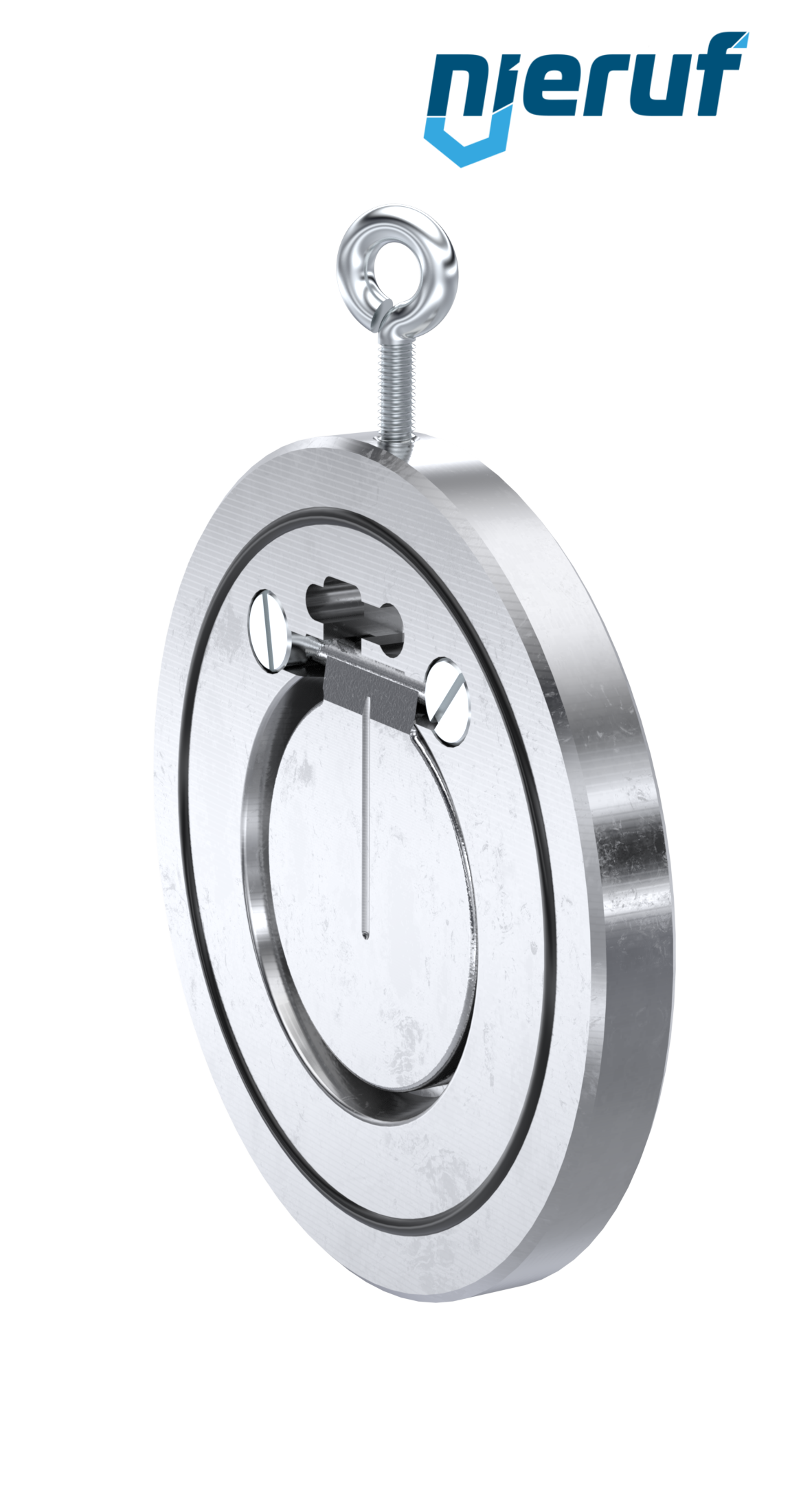

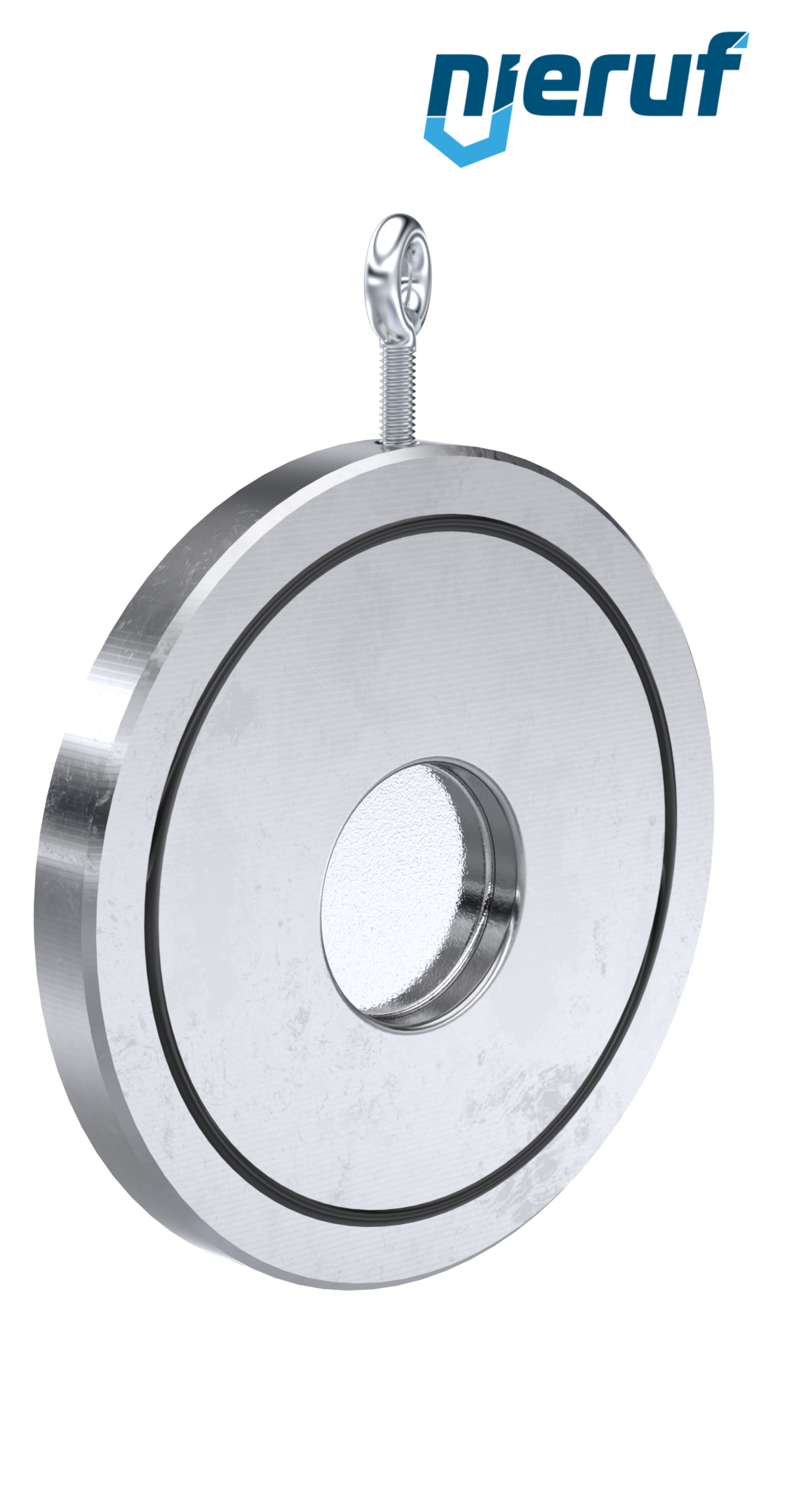

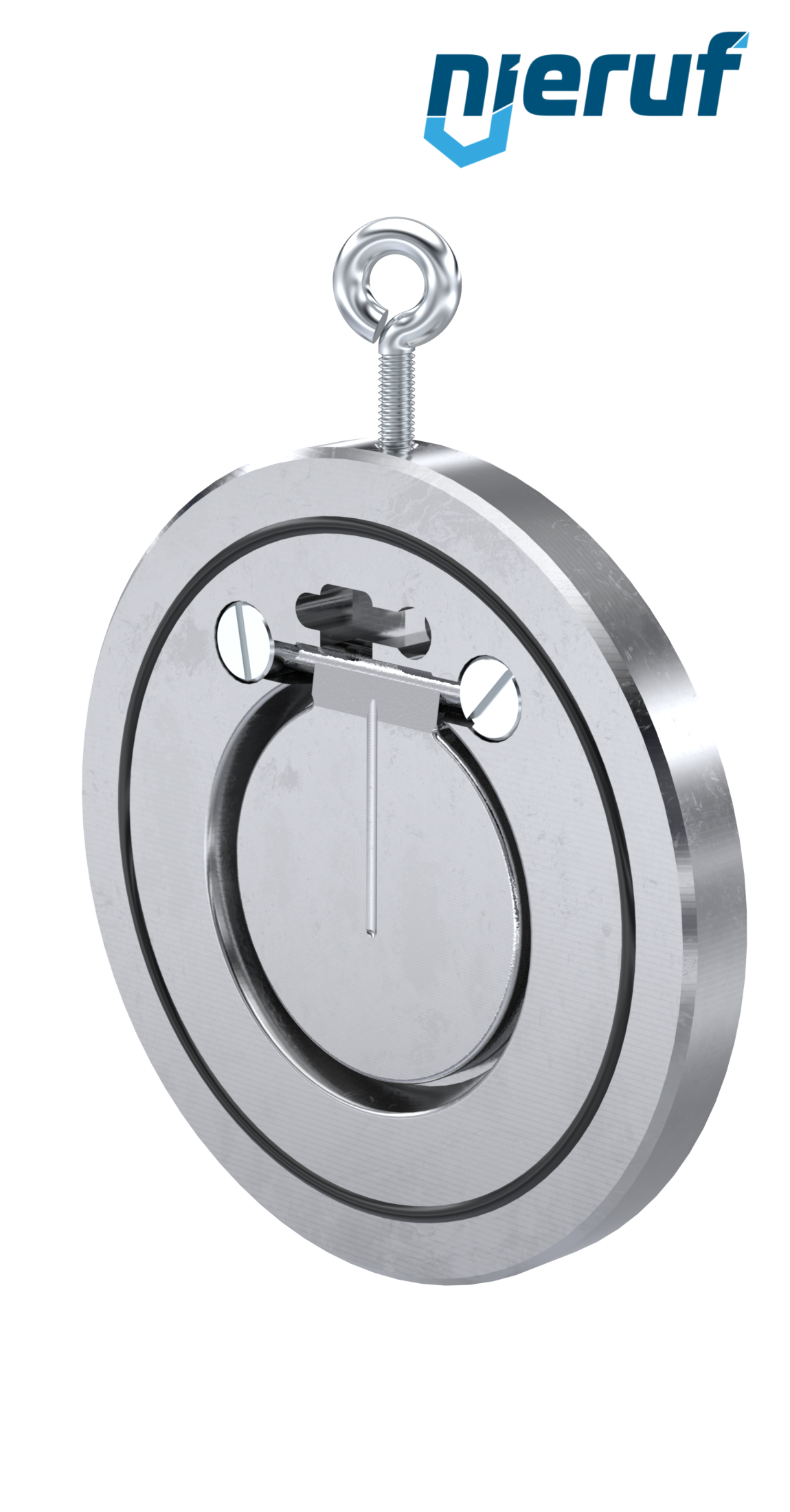

swing check valve DN65 ZR02 ANSI 150 stainless steel A351 CF8M EPDM
swing check valve DN65 ASME B16.5 / ANSI 150 made of stainless steel A351 CF8M seal EPDM for liquid and gaseous media
| product | swing check valve |
|---|---|
| type | ZR02 ANSI 150 |
| manufacturer | NieRuf |
| design | swing check valve |
| diameter | DN65 |
| body material | stainless steel A351 CF8M |
| disc material | stainless steel A351 CF8M |
| seal | EPDM |
| temperature | -65°C up to +150°C |
| connection | flange |
| flange | ASME B16.5 / ANSI 150 |
| pressure range | 0 - 30 bar |
| media | liquid and gaseous media |
| tightness acc. to DIN EN 12266 | leak rate A |
| option | without spring reset |
| installation position | direction of flow horizontal (disc must be free-hanging), vertical from below |
| product feature | short face to face |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
swing check valve DN65 ZR02 ANSI 150 stainless steel A351 CF8M EPDM
Article no.
: ZR02100109
product:
swing check valve
type:
ZR02 ANSI 150
manufacturer:
NieRuf
design:
swing check valve
diameter:
DN65
body material:
stainless steel A351 CF8M
disc material:
stainless steel A351 CF8M
seal:
EPDM
temperature:
-65°C up to +150°C
connection:
flange
flange:
ASME B16.5 / ANSI 150
pressure range:
0 - 30 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
without spring reset
installation position:
direction of flow horizontal (disc must be free-hanging), vertical from below
product feature:
short face to face
Equipment
pipe bend (welded) 90° 76,1 x 2,0 stainless steel 1.4571
