ZR09000308

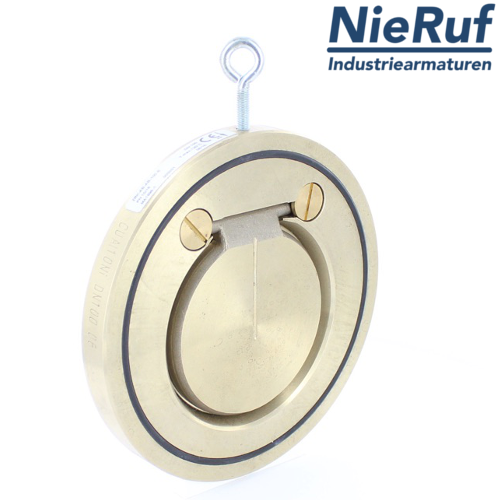

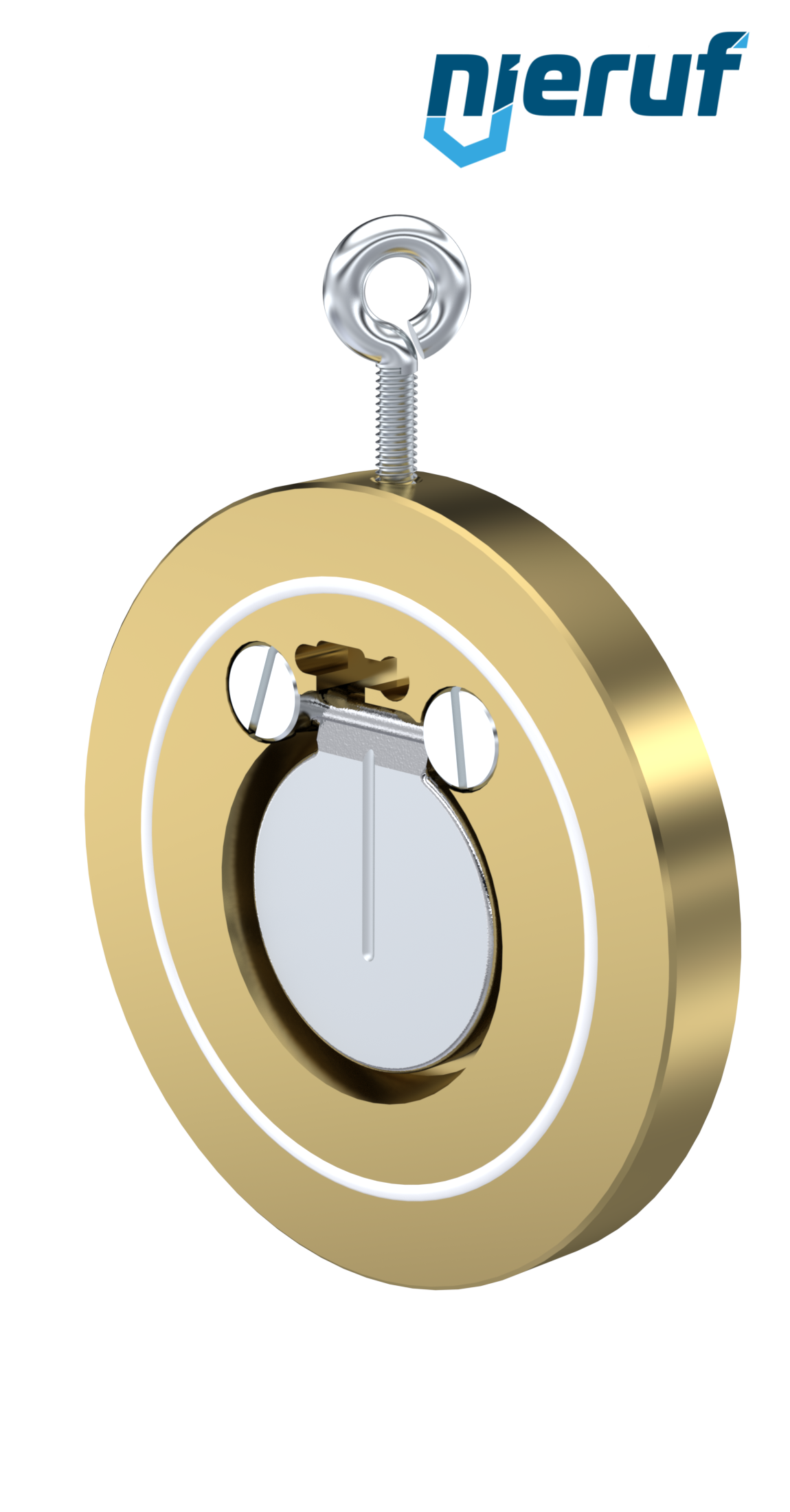

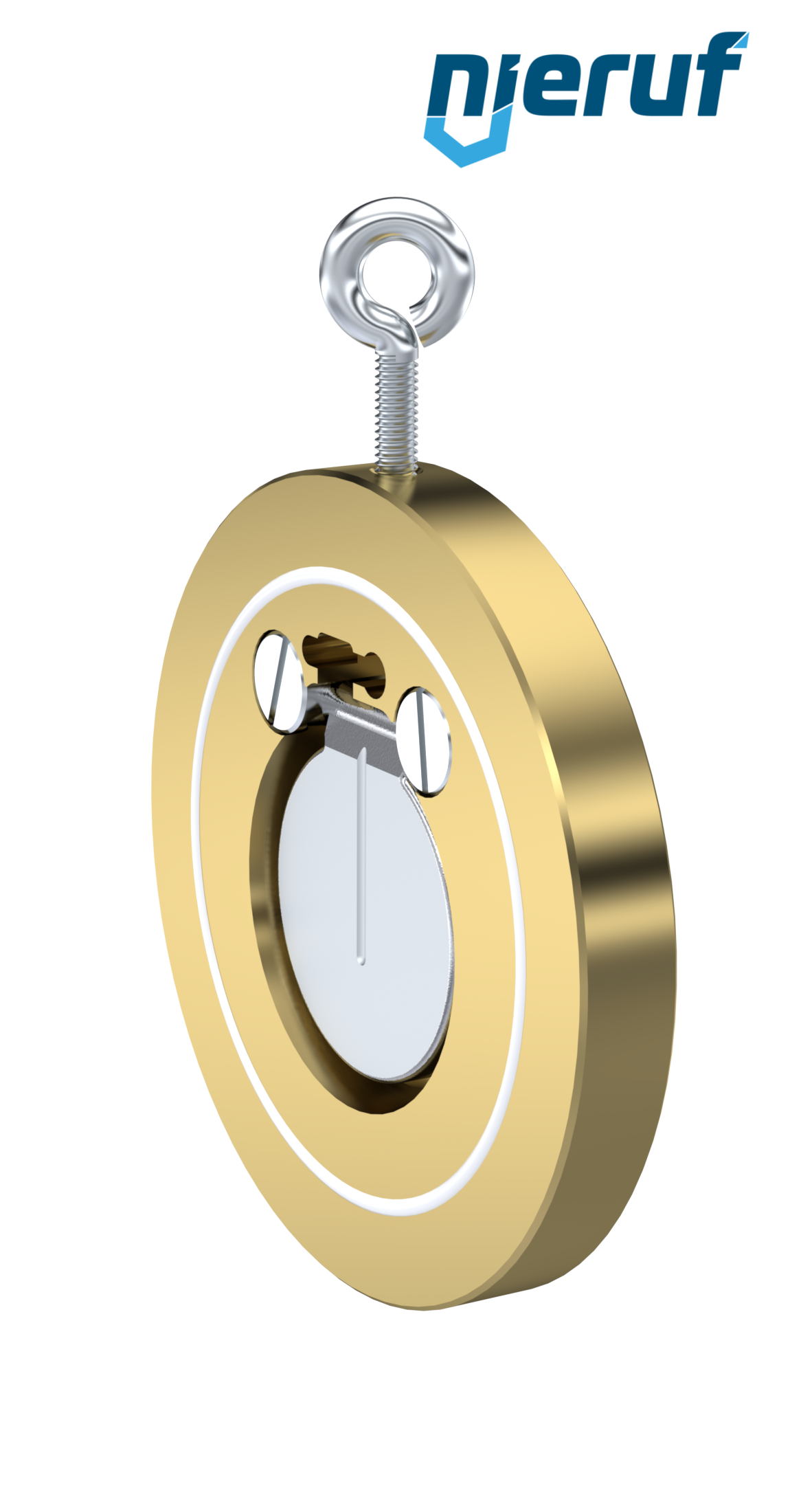

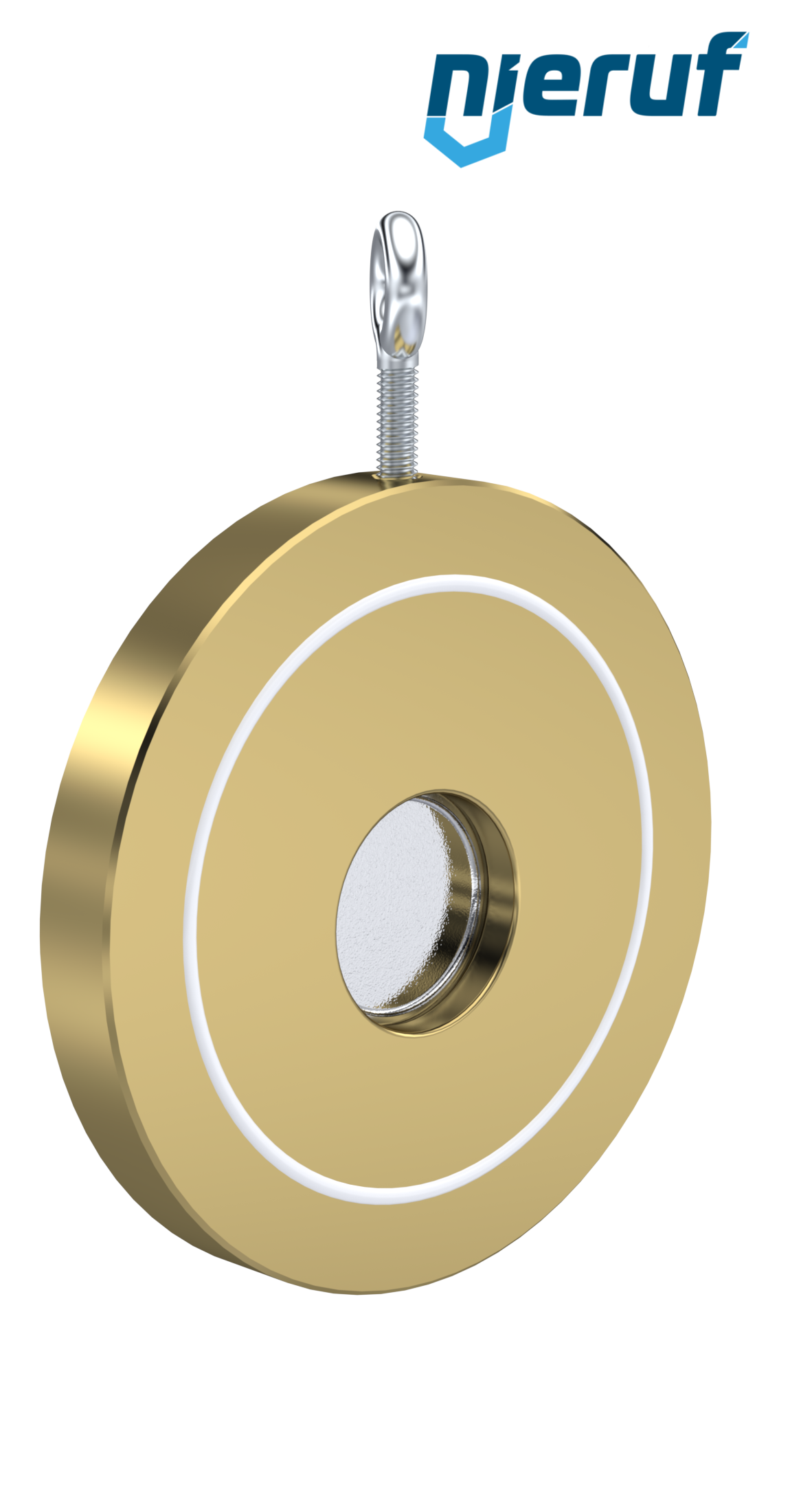

swing check valve DN50 ZR09 Alu bronze 2.0975 / C958 PTFE
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you
swing check valve DN50 ZR09 Alu bronze 2.0975 / C958 PTFE
swing check valve DN50 PN 10/16/25/40 DIN EN 1092-1 Form B Alu bronze 2.0975 / C958 seal PTFE for liquid and gaseous media
| product | swing check valve |
|---|---|
| type | ZR09 |
| manufacturer | NieRuf |
| design | swing check valve |
| diameter | DN50 |
| body material | Alu bronze 2.0975 / C958 |
| disc material | Duplex 1.4469 / A 890 Grade 5A |
| seal | PTFE |
| temperature | -10°C up to +250°C |
| connection | flange |
| flange | PN 10/16/25/40 DIN EN 1092-1 Form B |
| pressure range | 0 - 40 bar |
| media | liquid and gaseous media |
| tightness acc. to DIN EN 12266 | leak rate A |
| option | without spring reset |
| installation position | direction of flow horizontal (disc must be free-hanging), vertical from below |
| product feature | short face to face |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
swing check valve DN50 ZR09 Alu bronze 2.0975 / C958 PTFE
Article no.
: ZR09000308
product:
swing check valve
type:
ZR09
manufacturer:
NieRuf
design:
swing check valve
diameter:
DN50
body material:
Alu bronze 2.0975 / C958
disc material:
Duplex 1.4469 / A 890 Grade 5A
seal:
PTFE
temperature:
-10°C up to +250°C
connection:
flange
flange:
PN 10/16/25/40 DIN EN 1092-1 Form B
pressure range:
0 - 40 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
without spring reset
installation position:
direction of flow horizontal (disc must be free-hanging), vertical from below
product feature:
short face to face
Equipment
flange seal DN50 PN10/16/25/40 61x107x2 Klingersil C 4400
Lead time: in stock
Flange DN50 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
pipe bend (welded) 90° 60,3 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 76,1 x 2,3 to 60,3 x 2,0 stainless steel 1.4571
Lead time: 3 - 5 working days
