ZR09000406

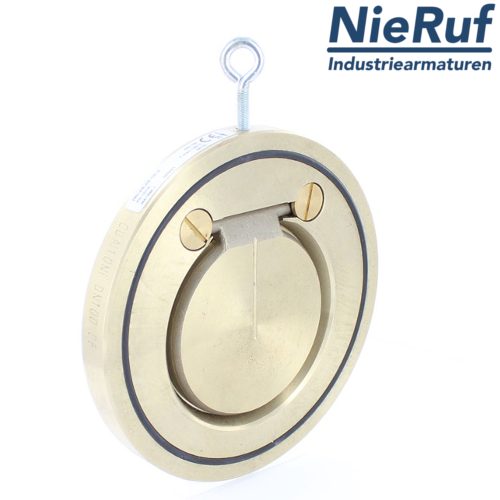

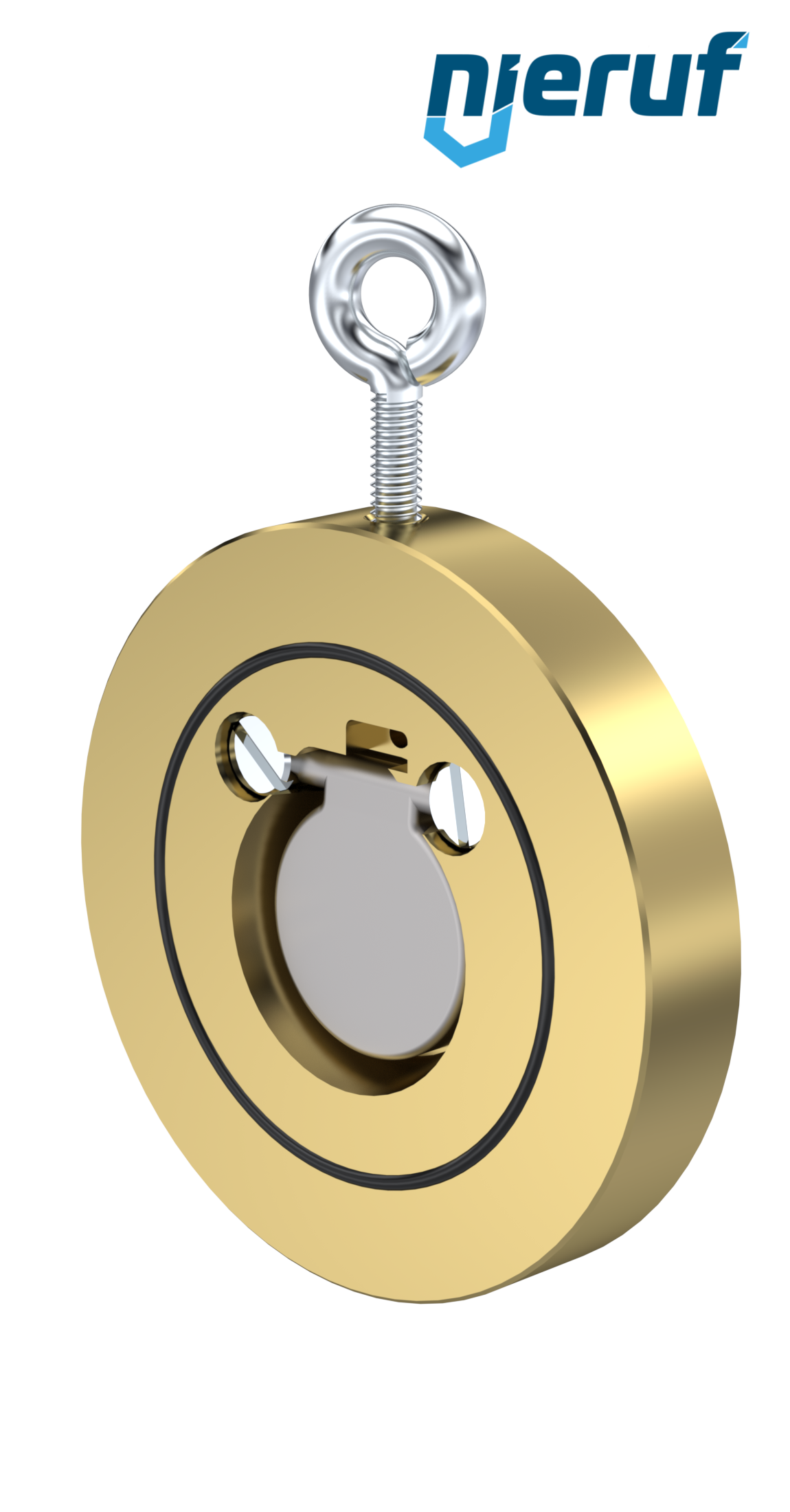

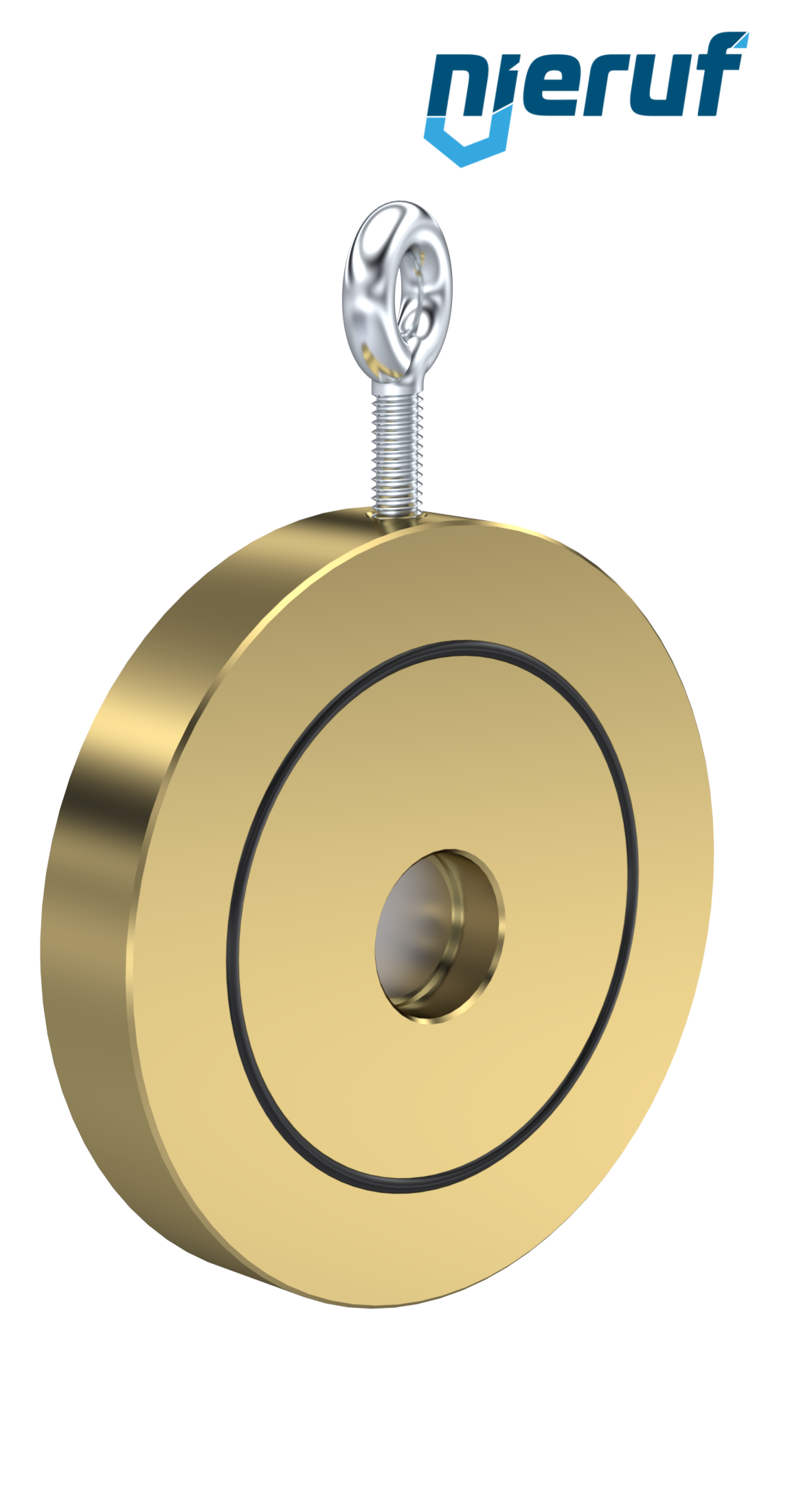

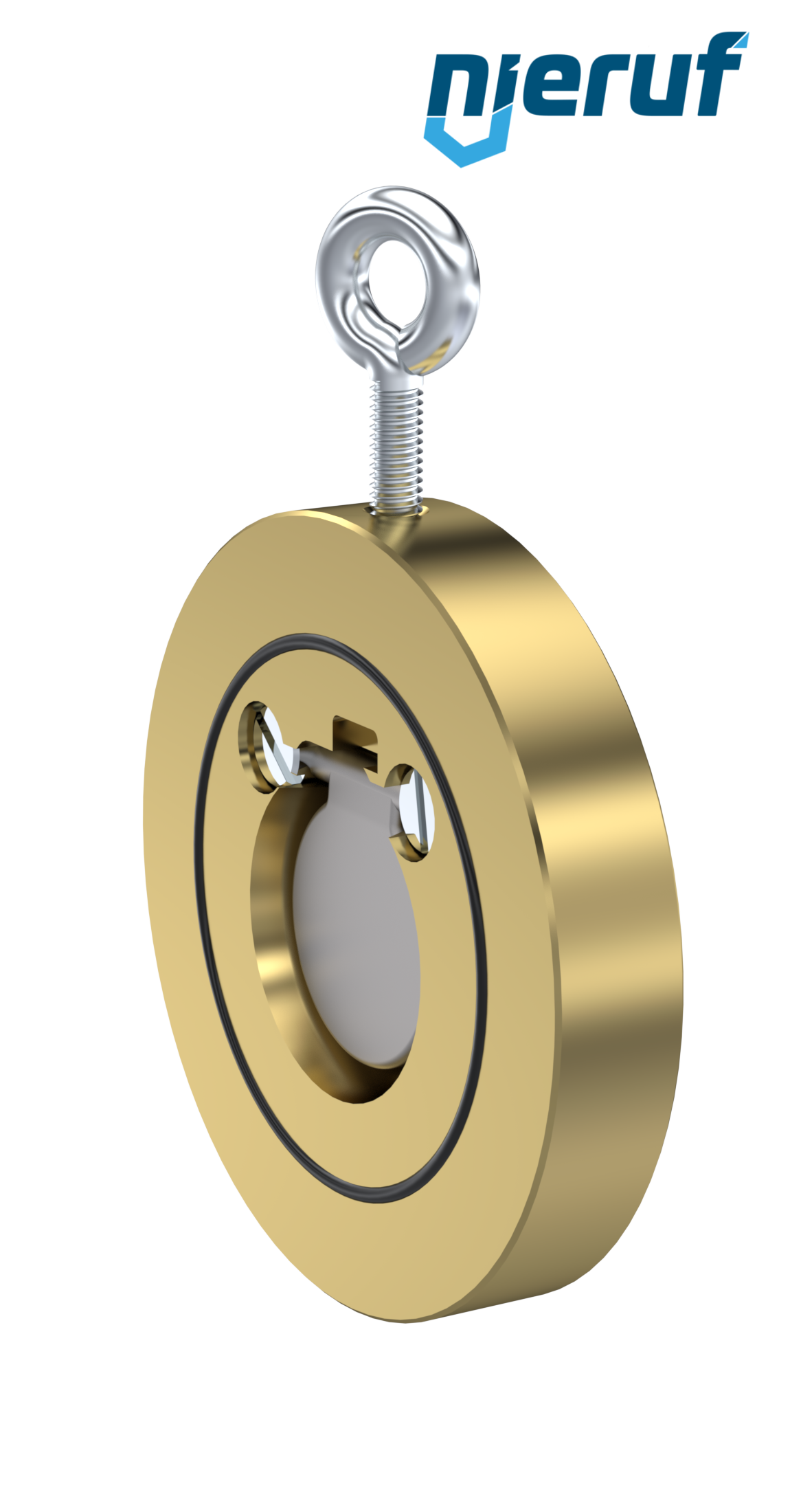

swing check valve DN32 ZR09 Alu bronze 2.0975 / C958 NBR

€106.00*

€126.14 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 3 - 5 working days

Resistance check

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

24 months warranty

Certified

Downloads

3D model

Datasheet

swing check valve DN32 ZR09 Alu bronze 2.0975 / C958 NBR

swing check valve DN32 PN 10/16/25/40 DIN EN 1092-1 Form B Alu bronze 2.0975 / C958 seal NBR for liquid and gaseous media

product	swing check valve
type	ZR09
manufacturer	NieRuf
design	swing check valve
diameter	DN32
body material	Alu bronze 2.0975 / C958
disc material	Duplex 1.4469 / A 890 Grade 5A
seal	NBR
temperature	-10°C up to +100°C
connection	flange
flange	PN 10/16/25/40 DIN EN 1092-1 Form B
pressure range	0 - 40 bar
media	liquid and gaseous media
tightness acc. to DIN EN 12266	leak rate A
option	without spring reset
installation position	direction of flow horizontal (disc must be free-hanging), vertical from below
product feature	short face to face

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

swing check valve DN32 ZR09 Alu bronze 2.0975 / C958 NBR

Article no. : ZR09000406
product: swing check valve
type: ZR09
manufacturer: NieRuf
design: swing check valve
diameter: DN32
body material: Alu bronze 2.0975 / C958
disc material: Duplex 1.4469 / A 890 Grade 5A
seal: NBR
temperature: -10°C up to +100°C
connection: flange
flange: PN 10/16/25/40 DIN EN 1092-1 Form B
pressure range: 0 - 40 bar
media: liquid and gaseous media
tightness acc. to DIN EN 12266: leak rate A
option: without spring reset
installation position: direction of flow horizontal (disc must be free-hanging), vertical from below
product feature: short face to face
