ZR02100316
swing check valve DN300 ZR02 ANSI 150 stainless steel A351 CF8M PTFE
- Lead time
- On request
Questions about the article?
Our employee Richie Rost
will be happy to help you

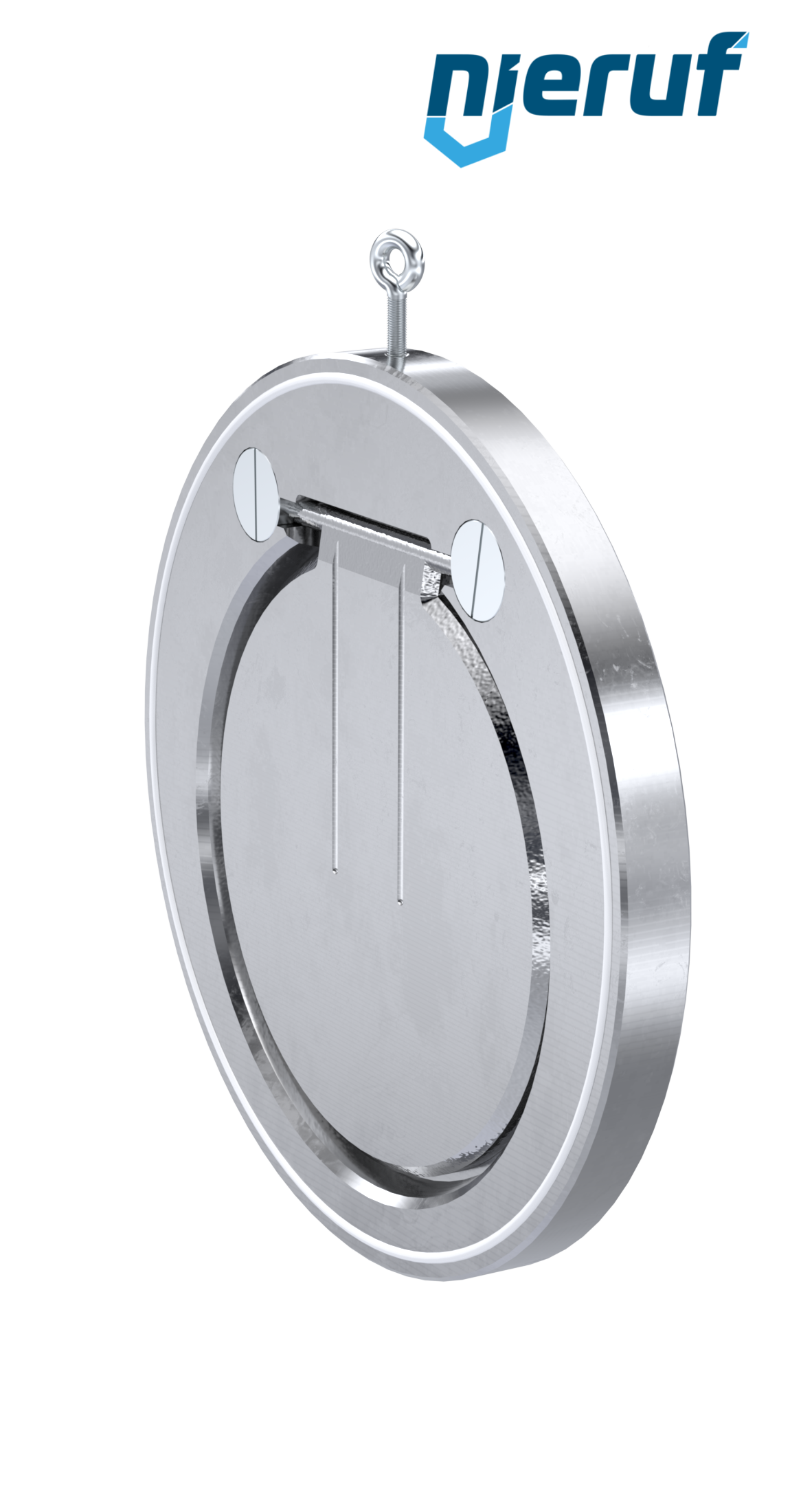

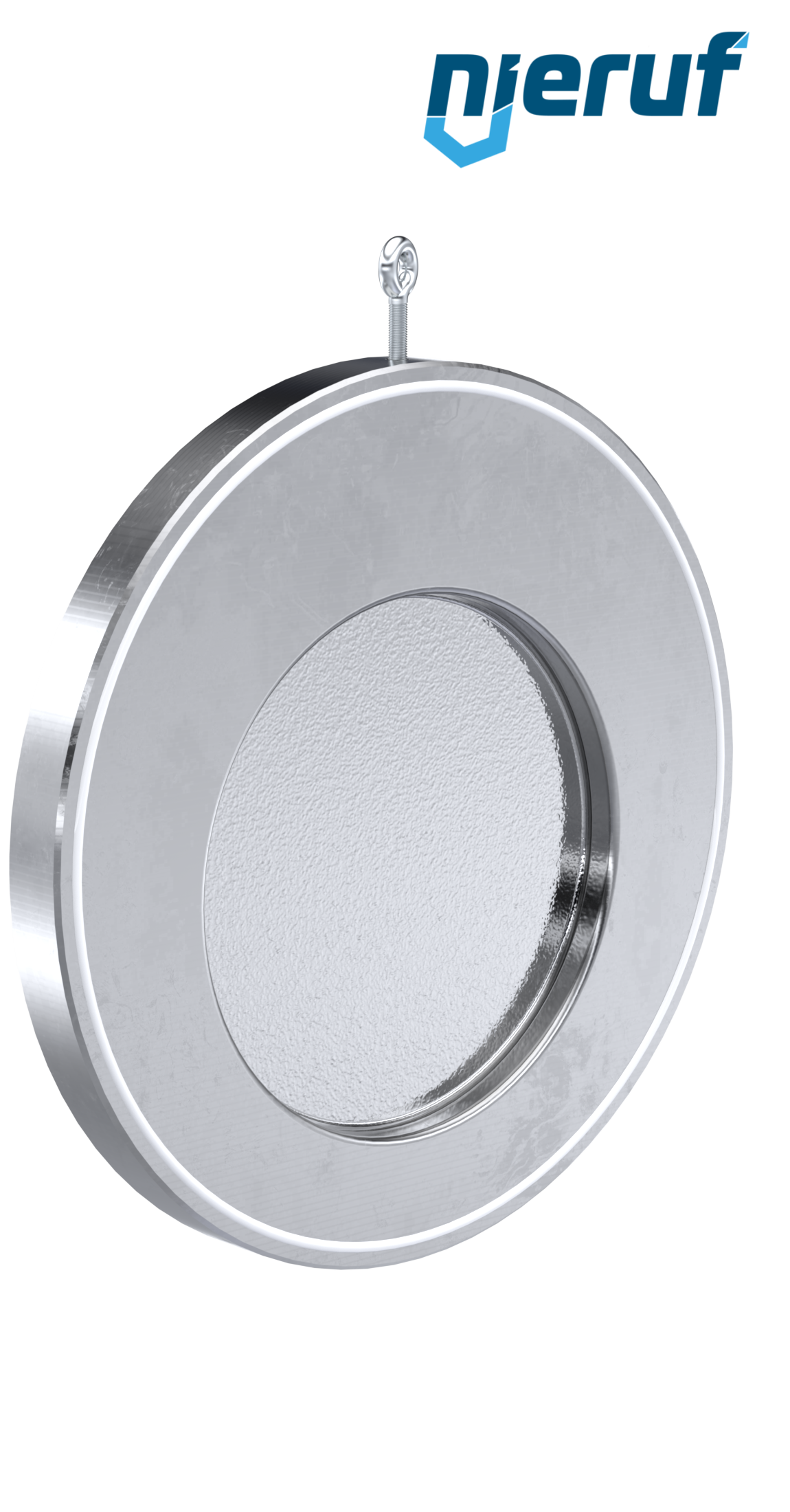

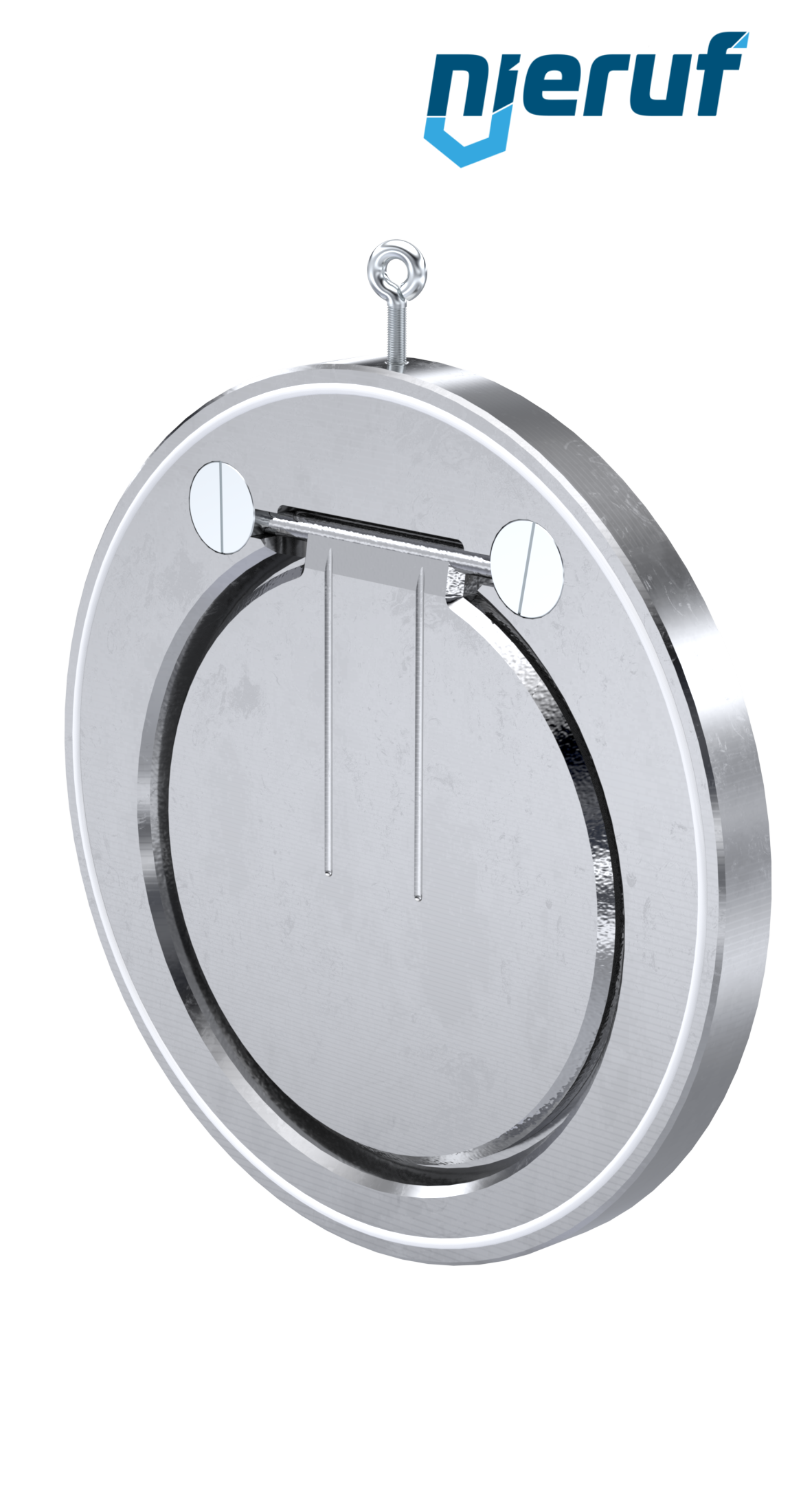

swing check valve DN300 ZR02 ANSI 150 stainless steel A351 CF8M PTFE
swing check valve DN300 ASME B16.5 / ANSI 150 made of stainless steel A351 CF8M seal PTFE for liquid and gaseous media
| product | swing check valve |
|---|---|
| type | ZR02 ANSI 150 |
| manufacturer | NieRuf |
| design | swing check valve |
| diameter | DN300 |
| body material | stainless steel A351 CF8M |
| disc material | stainless steel A351 CF8M |
| seal | PTFE |
| temperature | -196°C up to +250°C |
| connection | flange |
| flange | ASME B16.5 / ANSI 150 |
| pressure range | 0 - 16 bar |
| media | liquid and gaseous media |
| tightness acc. to DIN EN 12266 | leak rate A |
| option | without spring reset |
| installation position | direction of flow horizontal (disc must be free-hanging), vertical from below |
| product feature | short face to face |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
swing check valve DN300 ZR02 ANSI 150 stainless steel A351 CF8M PTFE
Article no.
: ZR02100316
product:
swing check valve
type:
ZR02 ANSI 150
manufacturer:
NieRuf
design:
swing check valve
diameter:
DN300
body material:
stainless steel A351 CF8M
disc material:
stainless steel A351 CF8M
seal:
PTFE
temperature:
-196°C up to +250°C
connection:
flange
flange:
ASME B16.5 / ANSI 150
pressure range:
0 - 16 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
without spring reset
installation position:
direction of flow horizontal (disc must be free-hanging), vertical from below
product feature:
short face to face
