swing check valve 3/4" inch GR02 brass EPDM

GR02000204
Flange-Butterfly valve DN 200 PN10 AK04 NBR Worm gear 2
quantity (pcs.):
7.70€ * 9.16€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: at stock

Express shipping:

Shipping on: Tuesday, 25. January
Guaranteed delivery until Wednesday, 26. January, 12 Uhr:
order within 8 hours & 10 minutes via express shipping
datasheet
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details

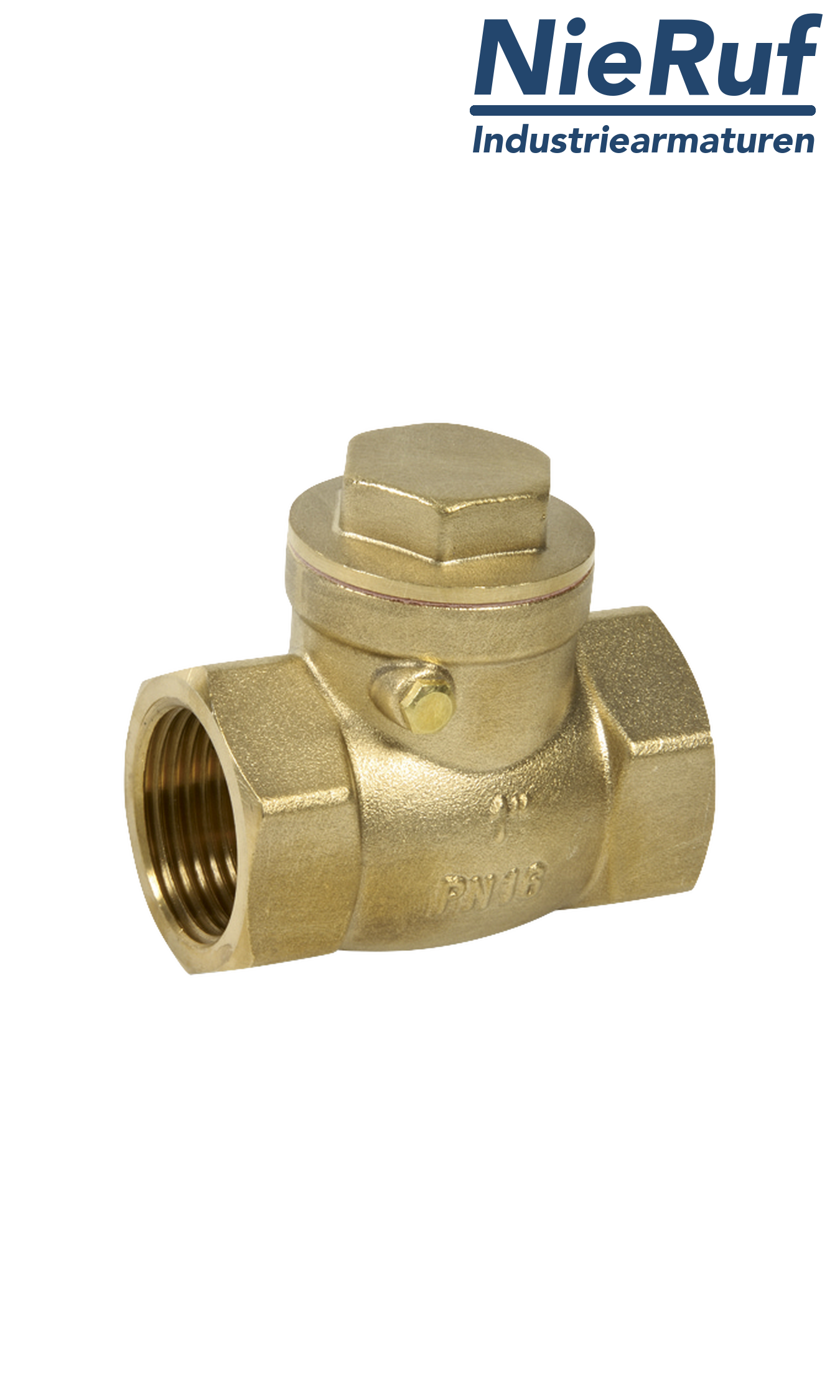

swing check valve 3/4" inch GR02 brass EPDM
swing check valve 3/4" inch female thread, body made of brass, disc made of brass seal EPDM
design: swing check valve
diameter: 3/4" inch
body material: brass
disc material: brass
seal: EPDM
temperature: 0°C up up to +60°C
connection: femal thread BSP
flange: female thread
pressure range: 0 - 16 bar
installation position: horizontal or vertical with ascendant fluid
product feature: EPDM seal, weak head loss
swing check valve 3/4" inch GR02 brass EPDM

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

swing check valve 3/4" inch GR02 brass EPDM
