SZ08000108
strainer SZ08 DN50 ANSI 300 carbon steel
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you

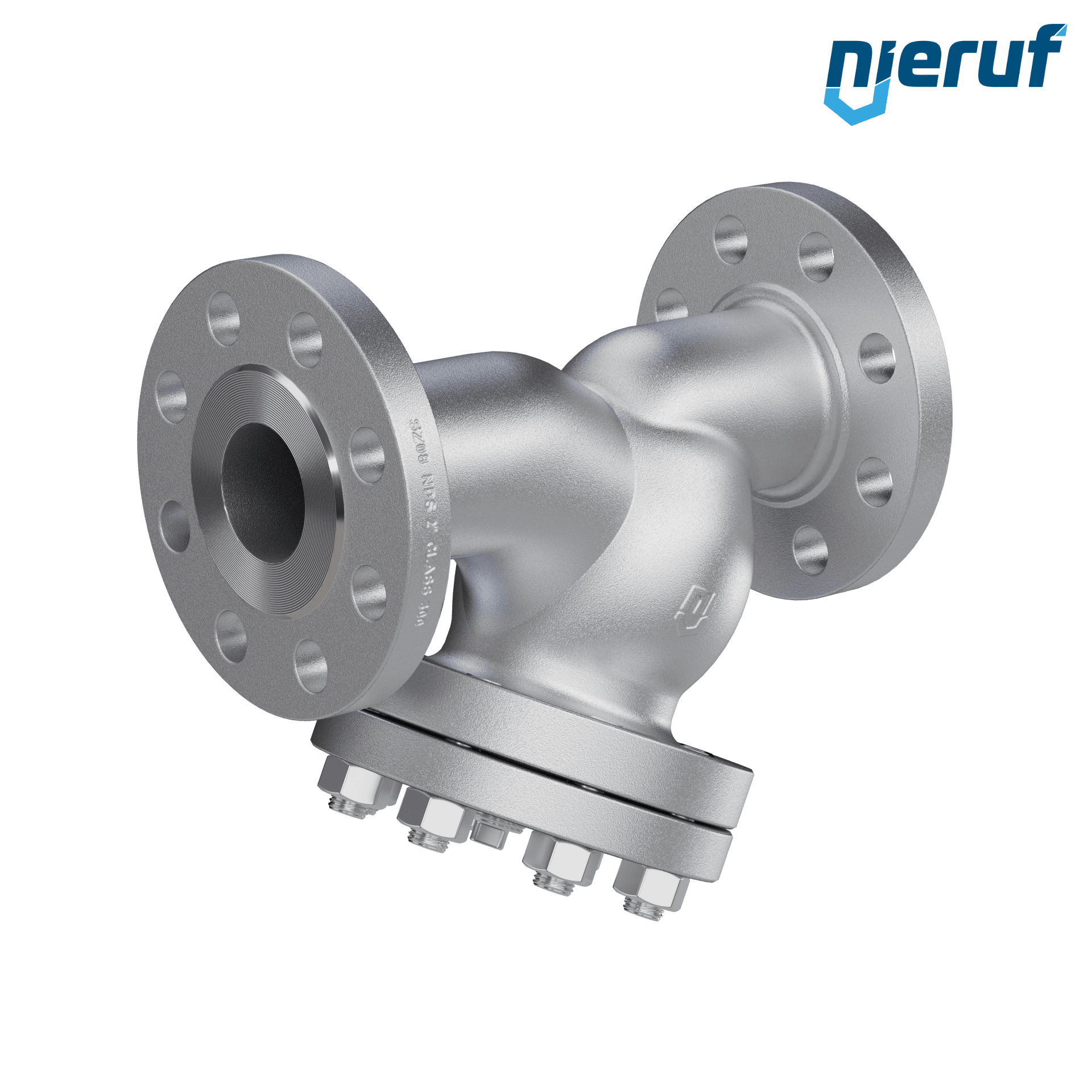

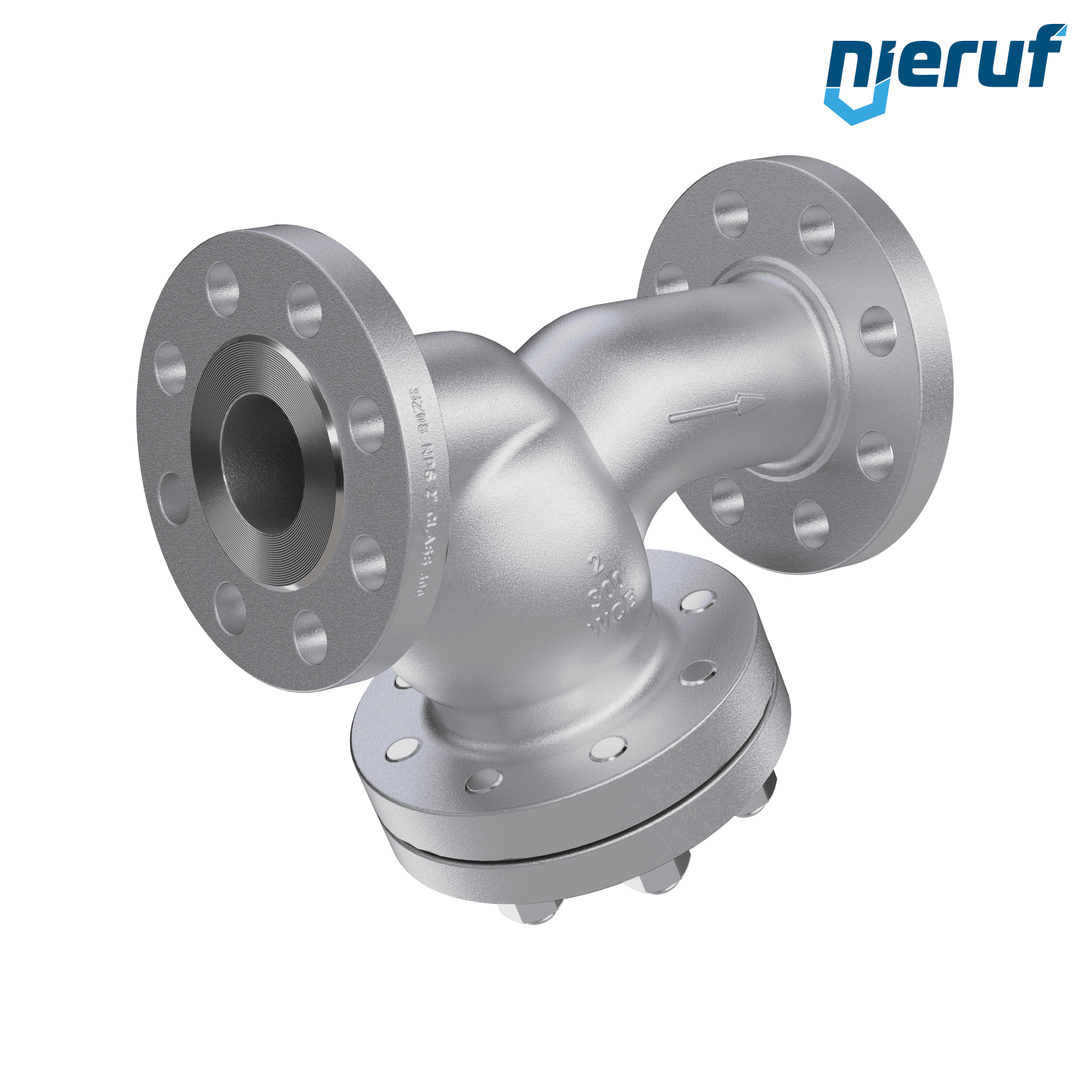

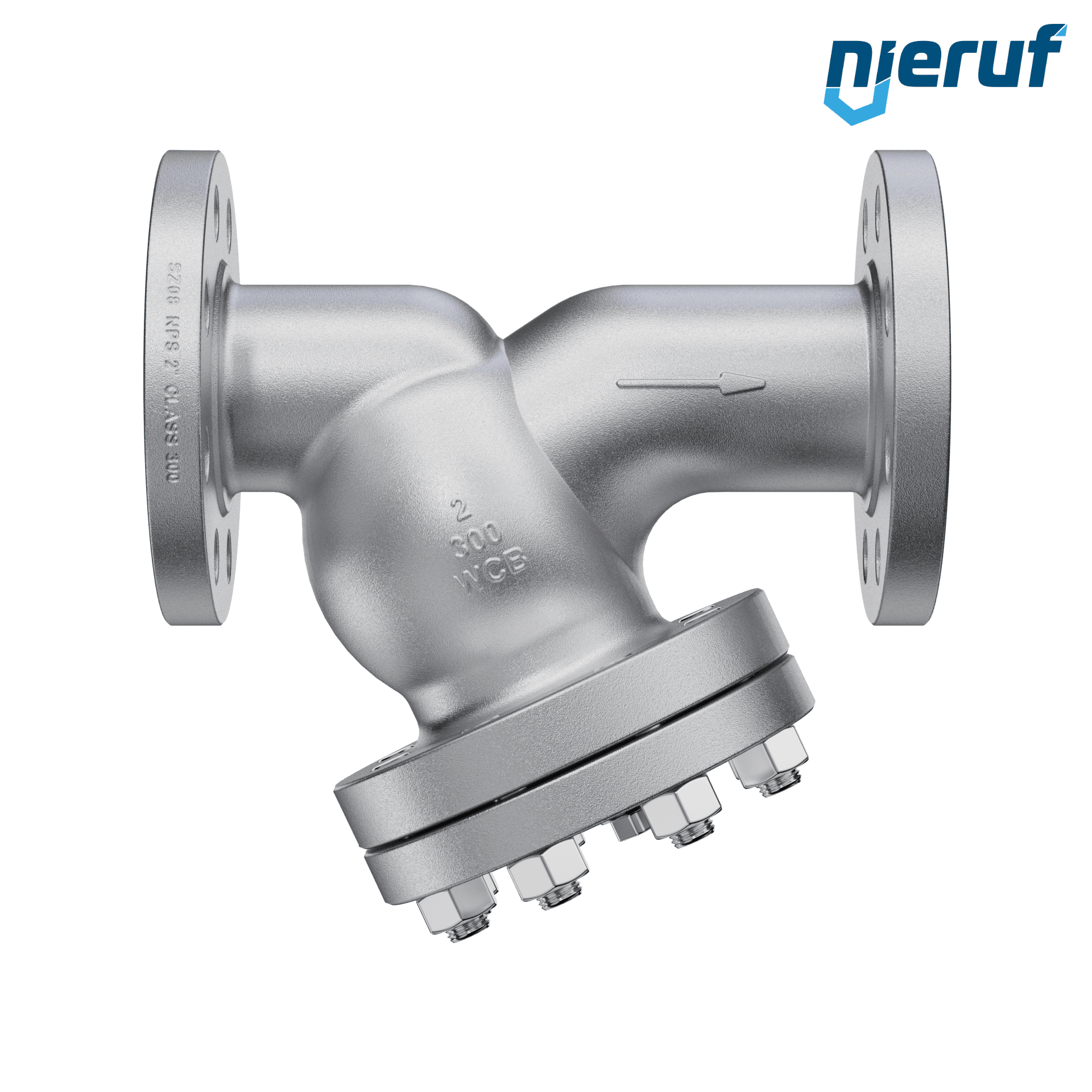

strainer SZ08 DN50 ANSI 300 carbon steel
strainer SZ08 DN50 made of carbon steel ASTM A216 WCB grey painting with flange ANSI 300 PN50
| product | ANSI strainer |
|---|---|
| type | SZ08 |
| manufacturer | NieRuf |
| design | Y-strainer with draining cap |
| diameter | DN50 |
| connection | flange ANSI 300 |
| pressure | PN50 |
| material | carbon steel ASTM A216 WCB grey painting |
| mesh-material | stainless steel 1.4301 / AISI 304 |
| cap material | steel with copper gasket |
| seal | graphite + stainless steel 1.4301 / AISI 304 |
| media | liquid and gaseous media, steam |
| temperature | -29°C up to +425°C |
| norm | According to Pressure equipment directive 2014/68/EU, Category 2 Module H, CE 0036 |
| mesh | 1,0 mm |
| installation position | horizontal or vertical position with descendant fluid |
| product feature | ANSI-Y-strainer made of cast iron with draining cap and removable stainless steel filter, horizontal or vertical position. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
strainer SZ08 DN50 ANSI 300 carbon steel
Article no.
: SZ08000108
product:
ANSI strainer
type:
SZ08
manufacturer:
NieRuf
design:
Y-strainer with draining cap
diameter:
DN50
connection:
flange ANSI 300
pressure:
PN50
material:
carbon steel ASTM A216 WCB grey painting
mesh-material:
stainless steel 1.4301 / AISI 304
cap material:
steel with copper gasket
seal:
graphite + stainless steel 1.4301 / AISI 304
media:
liquid and gaseous media, steam
temperature:
-29°C up to +425°C
norm:
According to Pressure equipment directive 2014/68/EU, Category 2 Module H, CE 0036
mesh:
1,0 mm
installation position:
horizontal or vertical position with descendant fluid
product feature:
ANSI-Y-strainer made of cast iron with draining cap and removable stainless steel filter, horizontal or vertical position.
