SK04201002

Variable area flowmeter stainless steel + borosilicate 3/8" inch 6.5 - 65.0 l/h water FKM

€422.70*

€503.01 VAT included.


Operating data


Delivery time: 1 - 2 weeks

Delivery information

Equipment

ST01000002

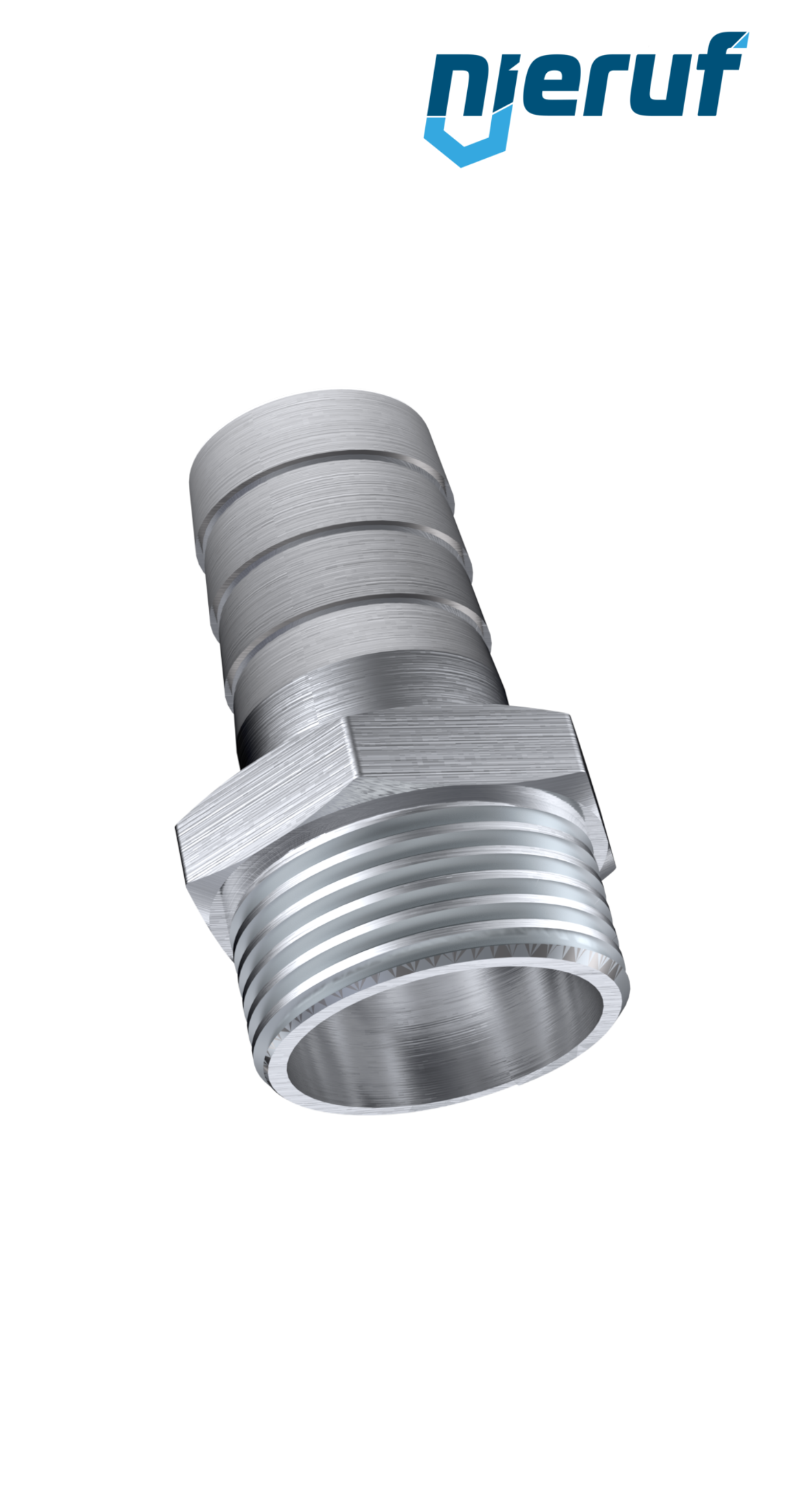

hose nozzle 3/8" 11.0 mm stainless steel 1.4408 ST01

€2.40*

€2.86 VAT included.


GF01300002

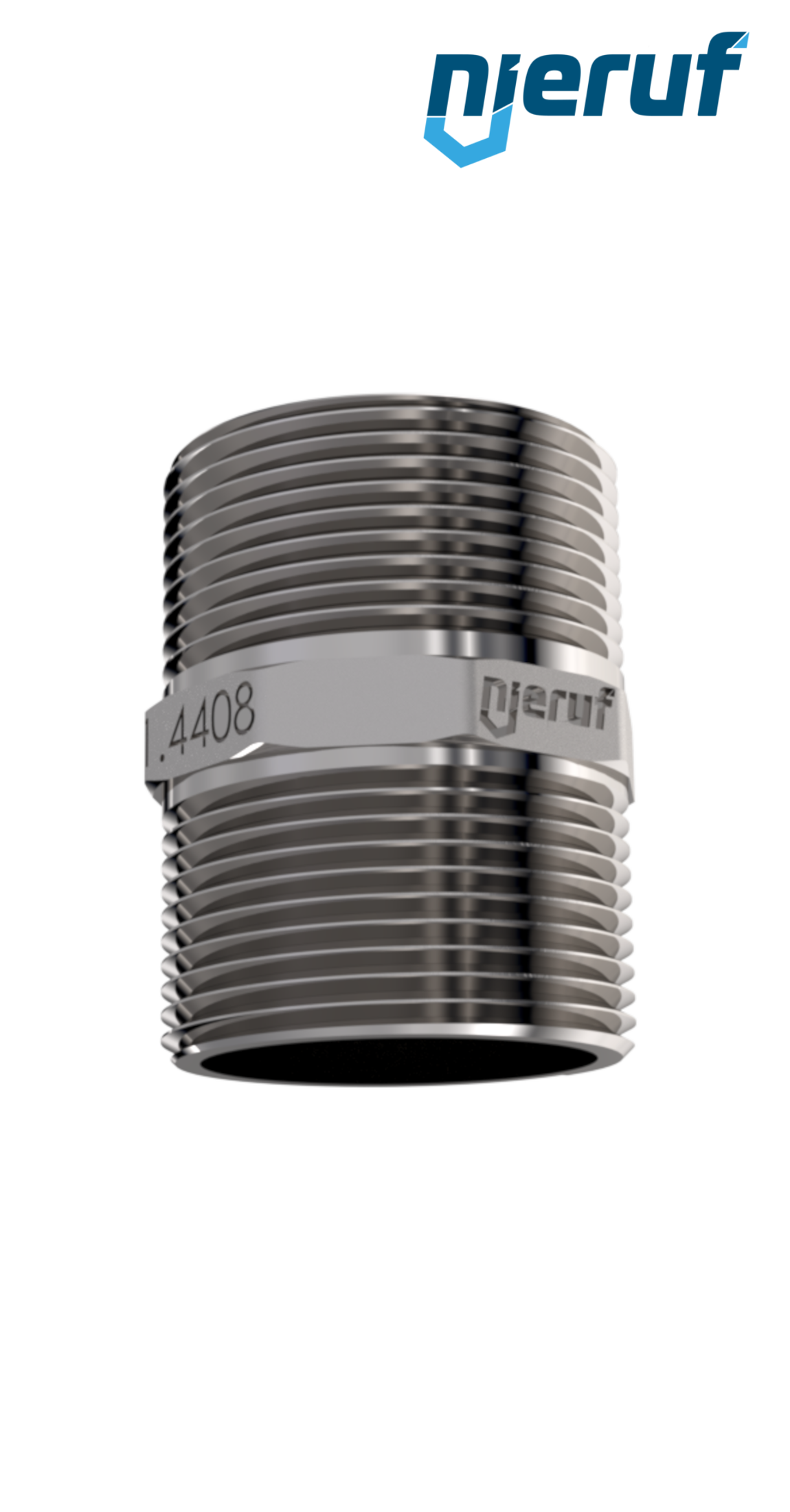

hexagon nipple 3/8" inch male stainless steel 316

€1.70*

€2.02 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com


Product number: SK04201002

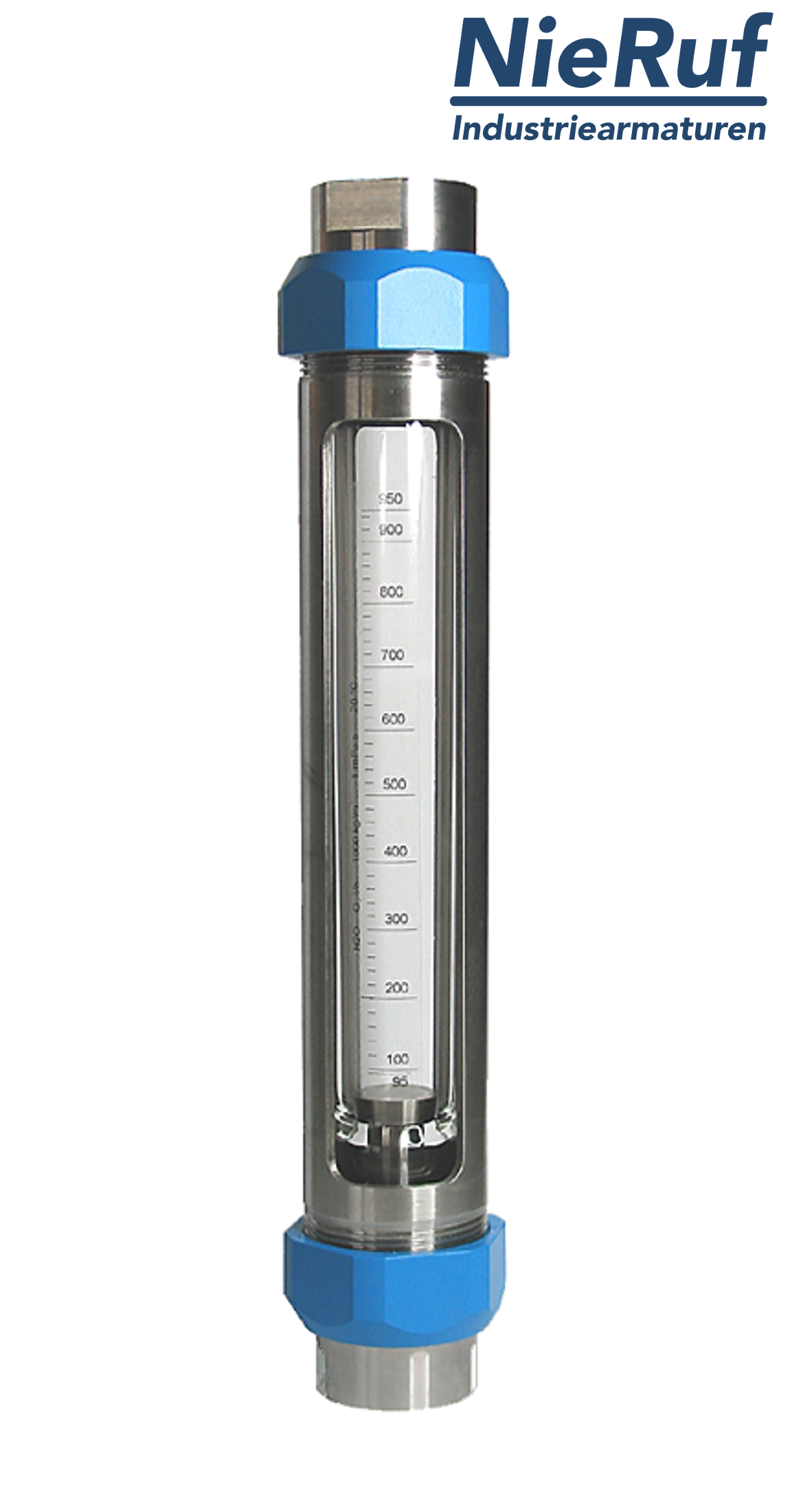

Variable area flowmeter stainless steel + borosilicate 3/8" inch 6.5 - 65.0 l/h water FKM

Variable area flowmeter Measuring range 6.5 - 65.0 l/h, connection 3/8" inch FKM female thread DIN ISO 228 for water

product: Variable area flowmeter
type: SK04
manufacturer: NieRuf
diameter: 3/8" inch
connection: female thread DIN ISO 228
connection material: stainless steel 1.4571
body material: stainless steel + borosilicate
seal: FKM
float material: stainless steel 1.4571
float version design: standard
media: water
mark: Different media are available upon request
mark 2: standard meassuring scale: ρ=1 kg/l, viscosity 1mPa⋅s
pressure loss float: 10 mbar
temperature: max. 150°C (from 90° additional charge)
Measuring range: 6.5 - 65.0 l/h
unit of scale: l/h
working pressure: 10 bar
accuracy: G 1,6 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position: vertically upwards

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Variable area flowmeter stainless steel + borosilicate 3/8" inch 6.5 - 65.0 l/h water FKM

Article no. : SK04201002
product: Variable area flowmeter
type: SK04
manufacturer: NieRuf
diameter: 3/8" inch
connection: female thread DIN ISO 228
connection material: stainless steel 1.4571
body material: stainless steel + borosilicate
seal: FKM
float material: stainless steel 1.4571
float version design: standard
media: water
mark: Different media are available upon request
mark 2: standard meassuring scale: ρ=1 kg/l, viscosity 1mPa⋅s
pressure loss float: 10 mbar
temperature: max. 150°C (from 90° additional charge)
Measuring range: 6.5 - 65.0 l/h
unit of scale: l/h
working pressure: 10 bar
accuracy: G 1,6 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position: vertically upwards
