SK04113608

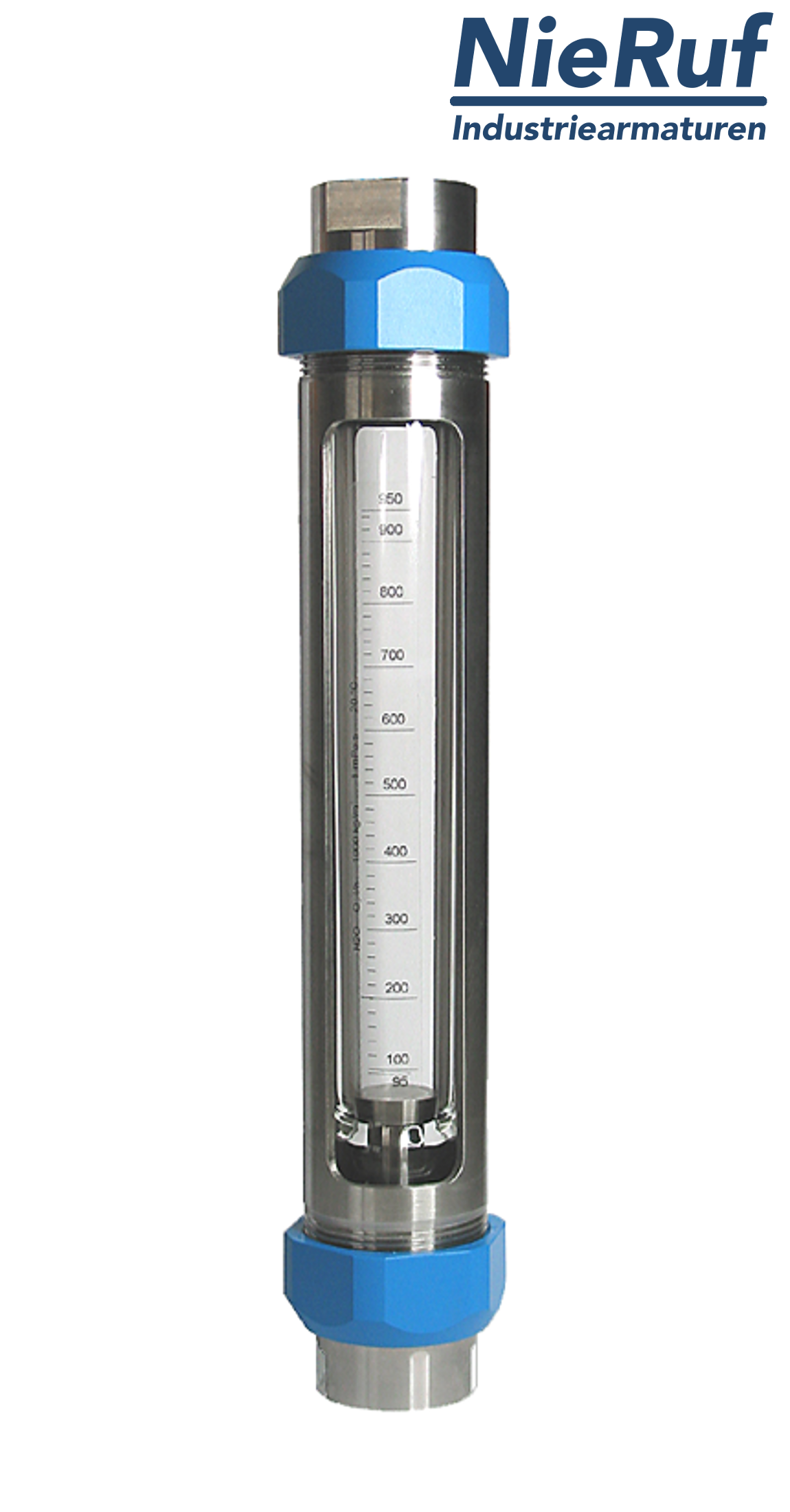

Variable area flowmeter stainless steel + borosilicate 2" inch 160000.0 - 430000.0 l/h air EPDM
- Lead time
- 1 - 2 weeks
Equipment
hose nozzle 2" 50.8 mm stainless steel 1.4408 ST01
€22.61 VAT included.
hexagon nipple 2" inch male stainless steel 316
€14.64 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE
Downloads
Variable area flowmeter stainless steel + borosilicate 2" inch 160000.0 - 430000.0 l/h air EPDM
Variable area flowmeter Measuring range 160000.0 - 430000.0 l/h, connection 2" inch EPDM female thread DIN ISO 228 for air
| product | Variable area flowmeter |
|---|---|
| type | SK04 |
| manufacturer | NieRuf |
| diameter | 2" inch |
| connection | female thread DIN ISO 228 |
| connection material | stainless steel 1.4571 |
| body material | stainless steel + borosilicate |
| seal | EPDM |
| float material | aluminum |
| float version design | guided |
| media | air |
| mark | Different media are available upon request |
| mark 2 | standard meassuring scale: pabs=1,013 bar, at T=0°C, ρ=1,293 kg/m3, v=0,0181 mPa⋅s |
| pressure loss float | 10 mbar |
| temperature | max. 150°C (from 90° additional charge) |
| Measuring range | 160000.0 - 430000.0 l/h |
| unit of scale | m³/h |
| working pressure | 8 bar |
| accuracy | G 2,5 qG 50% (acc. VDE/VDI 3513, sheet 2) |
| installation position | vertically upwards |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Variable area flowmeter stainless steel + borosilicate 2" inch 160000.0 - 430000.0 l/h air EPDM
Article no.
: SK04113608
product:
Variable area flowmeter
type:
SK04
manufacturer:
NieRuf
diameter:
2" inch
connection:
female thread DIN ISO 228
connection material:
stainless steel 1.4571
body material:
stainless steel + borosilicate
seal:
EPDM
float material:
aluminum
float version design:
guided
media:
air
mark:
Different media are available upon request
mark 2:
standard meassuring scale: pabs=1,013 bar, at T=0°C, ρ=1,293 kg/m3, v=0,0181 mPa⋅s
pressure loss float:
10 mbar
temperature:
max. 150°C (from 90° additional charge)
Measuring range:
160000.0 - 430000.0 l/h
unit of scale:
m³/h
working pressure:
8 bar
accuracy:
G 2,5 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position:
vertically upwards
