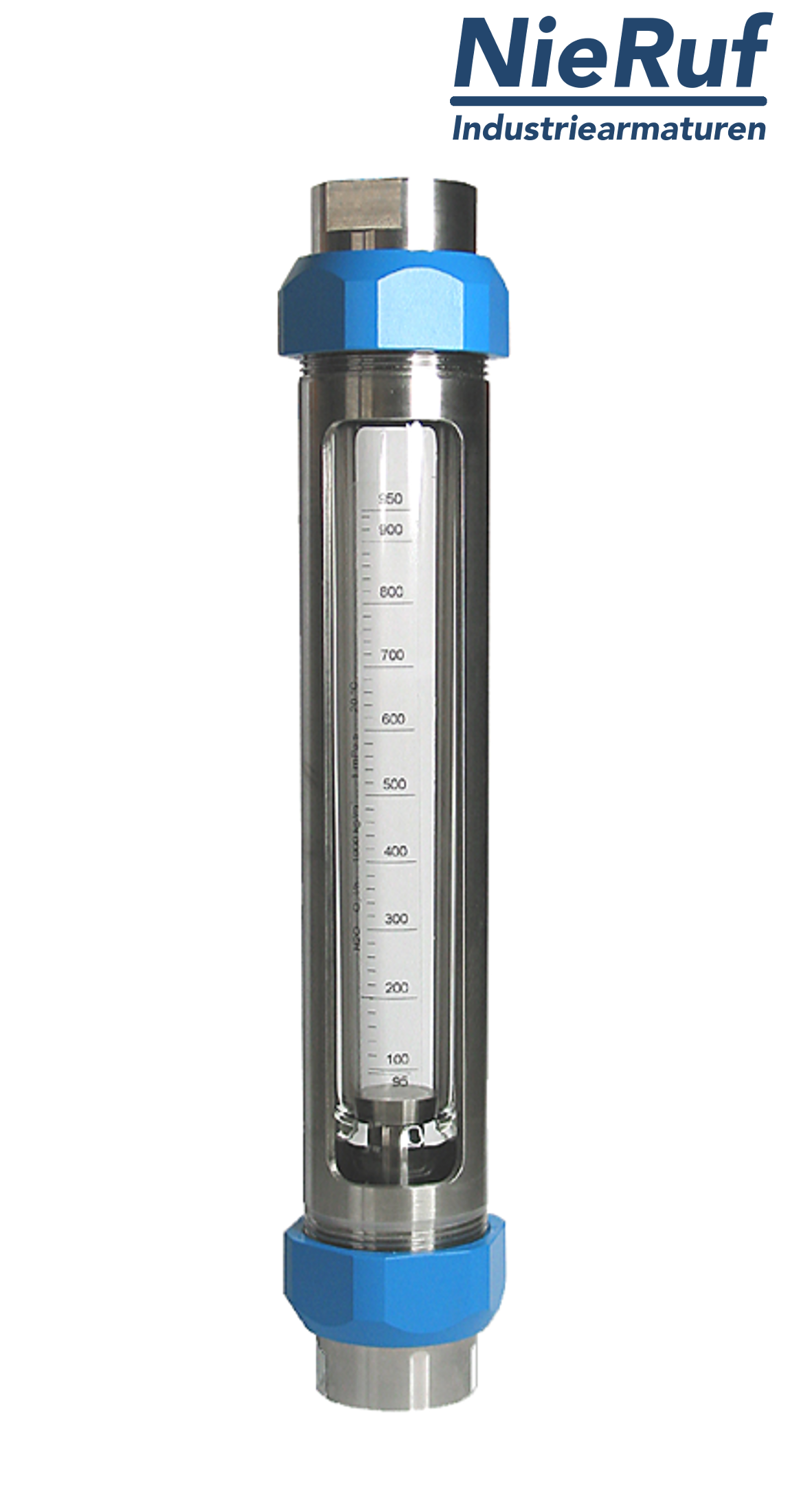

Variable area flowmeter stainless steel + borosilicate 1 1/4" inch 8000.0 - 25000 l/h water EPDM

SK04103606
Solenoid valve DN 2.5 brass MV01 FKM 230V 50Hz 4
quantity (pcs.):
545.40€ * 649.03€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1 - 2 Weeks

datasheet
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
Variable area flowmeter stainless steel + borosilicate 1 1/4" inch 8000.0 - 25000 l/h water EPDM
Variable area flowmeter made of stainless steel + borosilicate Measuring range 8000.0 - 25000 l/h, connection 1 1/4" inch EPDM female thread DIN ISO 228 for water
diameter: 1 1/4" inch
connection: female thread DIN ISO 228
connection material: stainless steel 1.4571
body material: stainless steel + borosilicate
seal: EPDM
float material: stainless steel 1.4571
float version design: standard
media: water
mark: Different media are available upon request
mark 2: standard meassuring scale: ρ=1 kg/l, viscosity 1mPa⋅s
pressure loss float: 25 mbar
temperature: max. 150°C (from 90° additional charge)
Measuring range: 8000.0 - 25000 l/h
unit of scale: m³/h
working pressure: 8 bar
accuracy: G 1,6 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position: vertically upwards
