ball valve made of stainless steel DN32 - 1 1/4" inch GK03

GK03000006
quantity (pcs.):
20.50€ * 23.78€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: at stock

Express shipping:

Shipping on: Wednesday, 21. October
Guaranteed delivery until Thursday, 22. October, 12 Uhr:
order within 16 hours & 12 minutes via express shipping
datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details

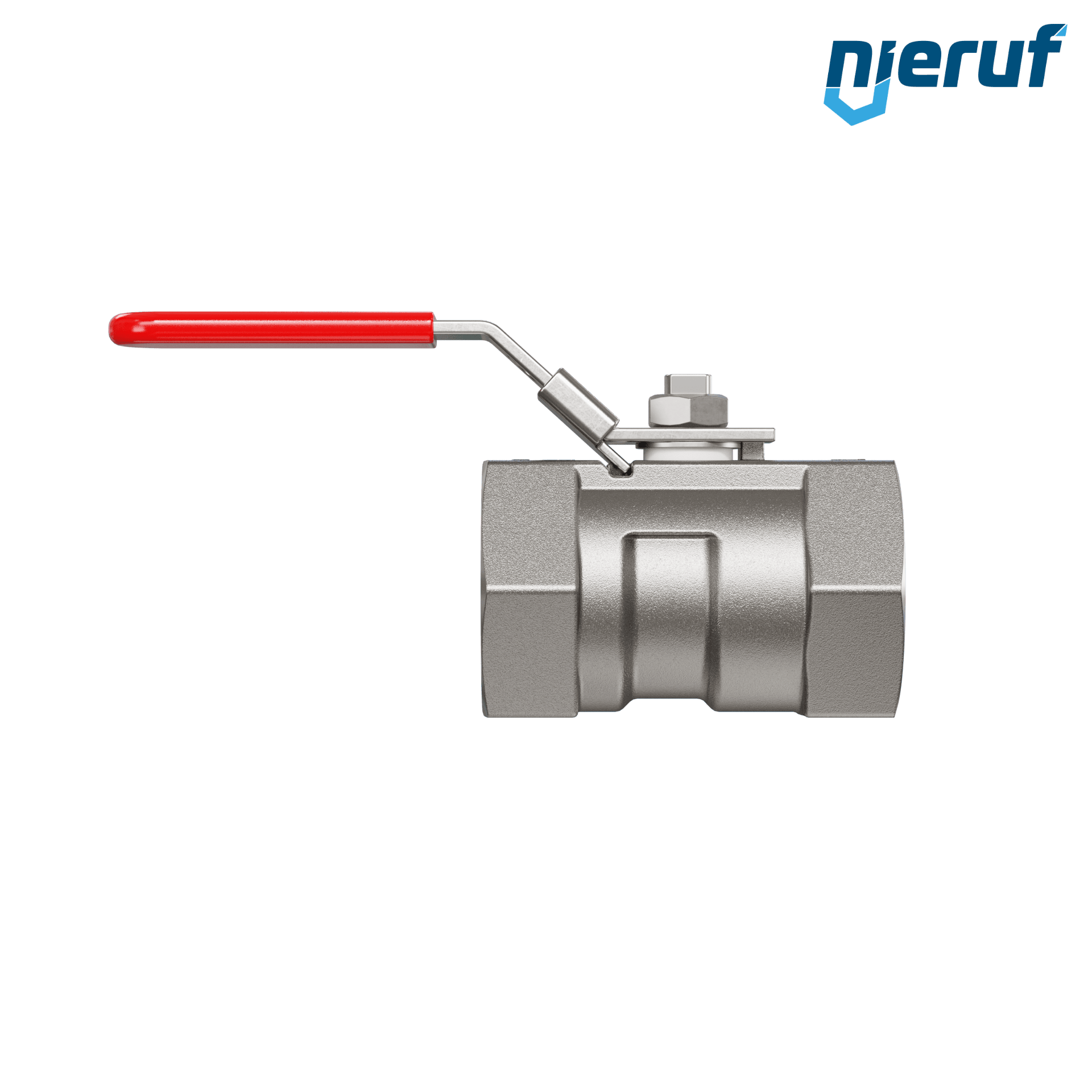

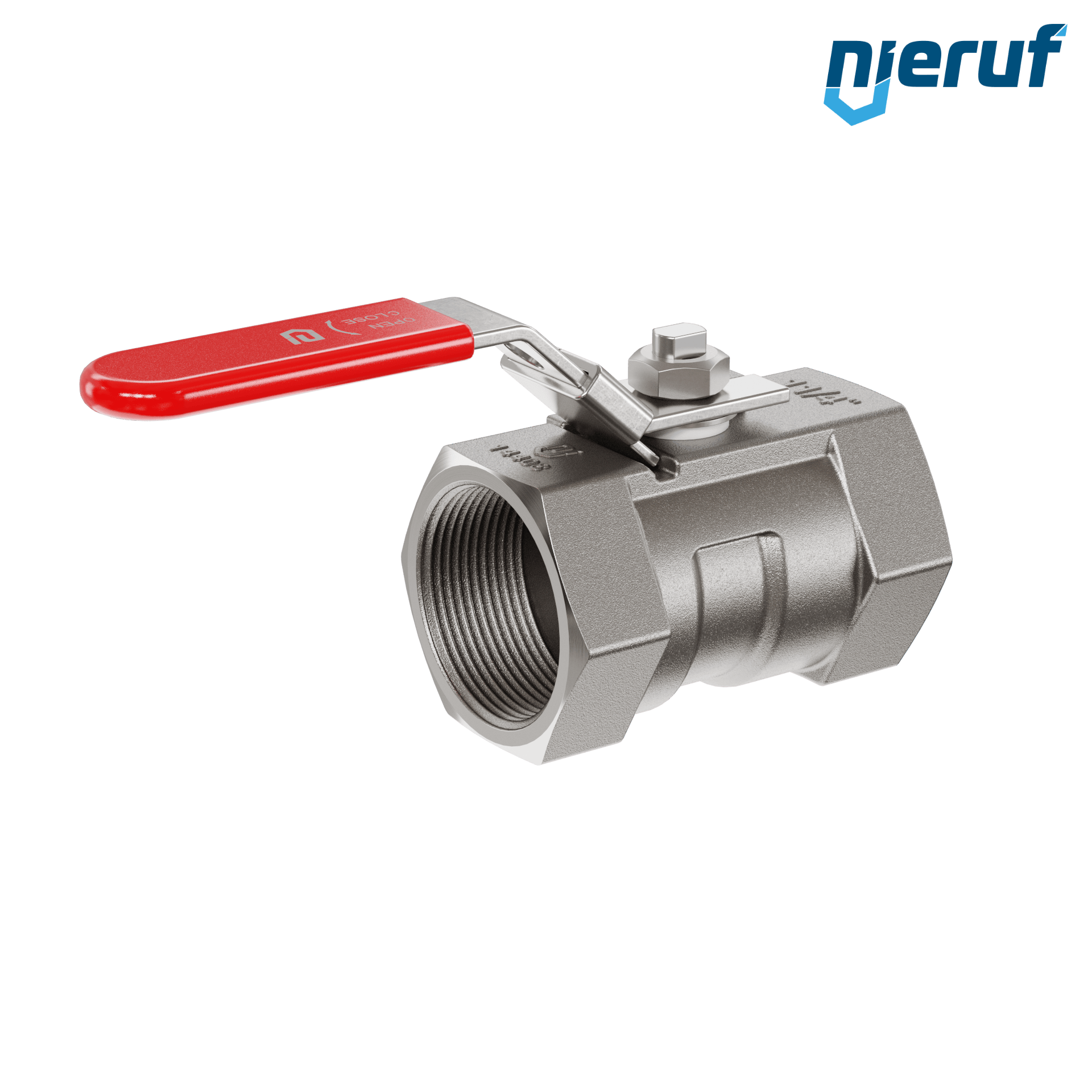

ball valve made of stainless steel DN32 - 1 1/4" inch GK03
ball valve made of stainless steel DN32 - 1 1/4" inch reduced port design seal made of PTFE for liquid and gaseous media
diameter: DN32 - 1 1/4" inch
connection: female thread
Seal steam: PTFE
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on working pressure and media
max. pressure: PN40
design: reduced port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
ball seal: PTFE
length: 78mm
actuator: lever handle made of stainless steel with plastic cover and locking device
installation position: any position
product description: This high quality one-piece ball valve is made of stainless steel with blow out proof stem design
ball valve made of stainless steel DN32 - 1 1/4" inch GK03

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

ball valve made of stainless steel DN32 - 1 1/4" inch GK03
