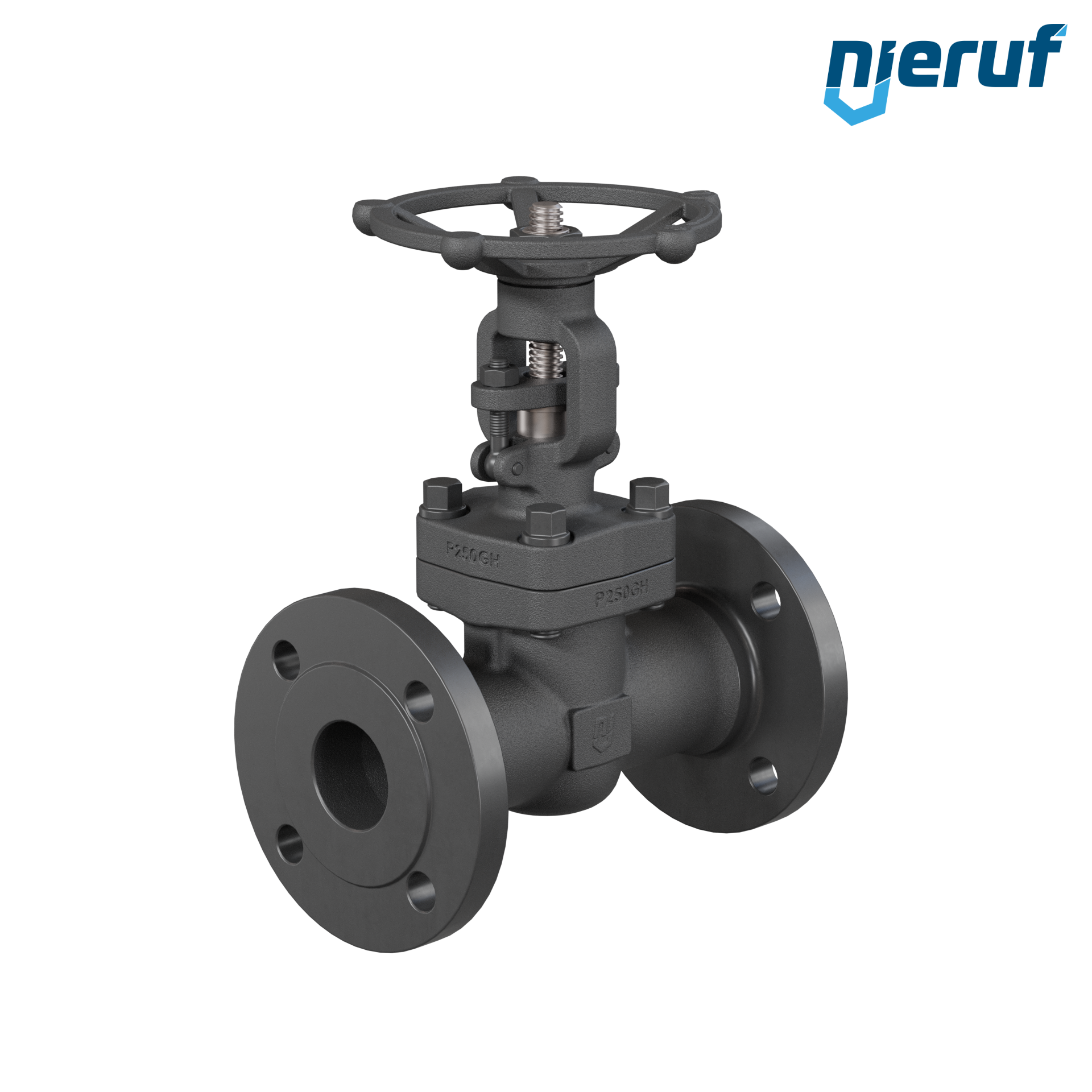

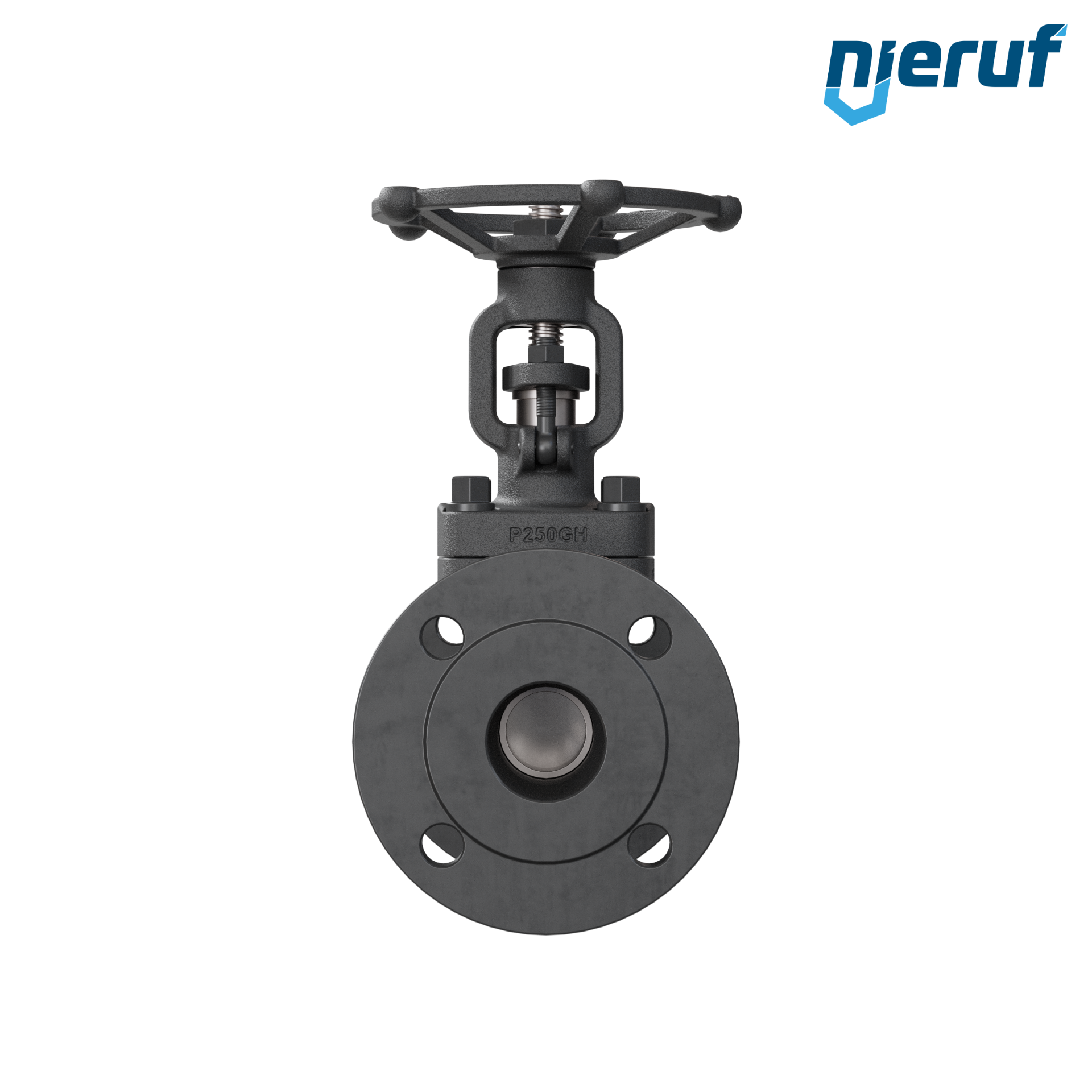

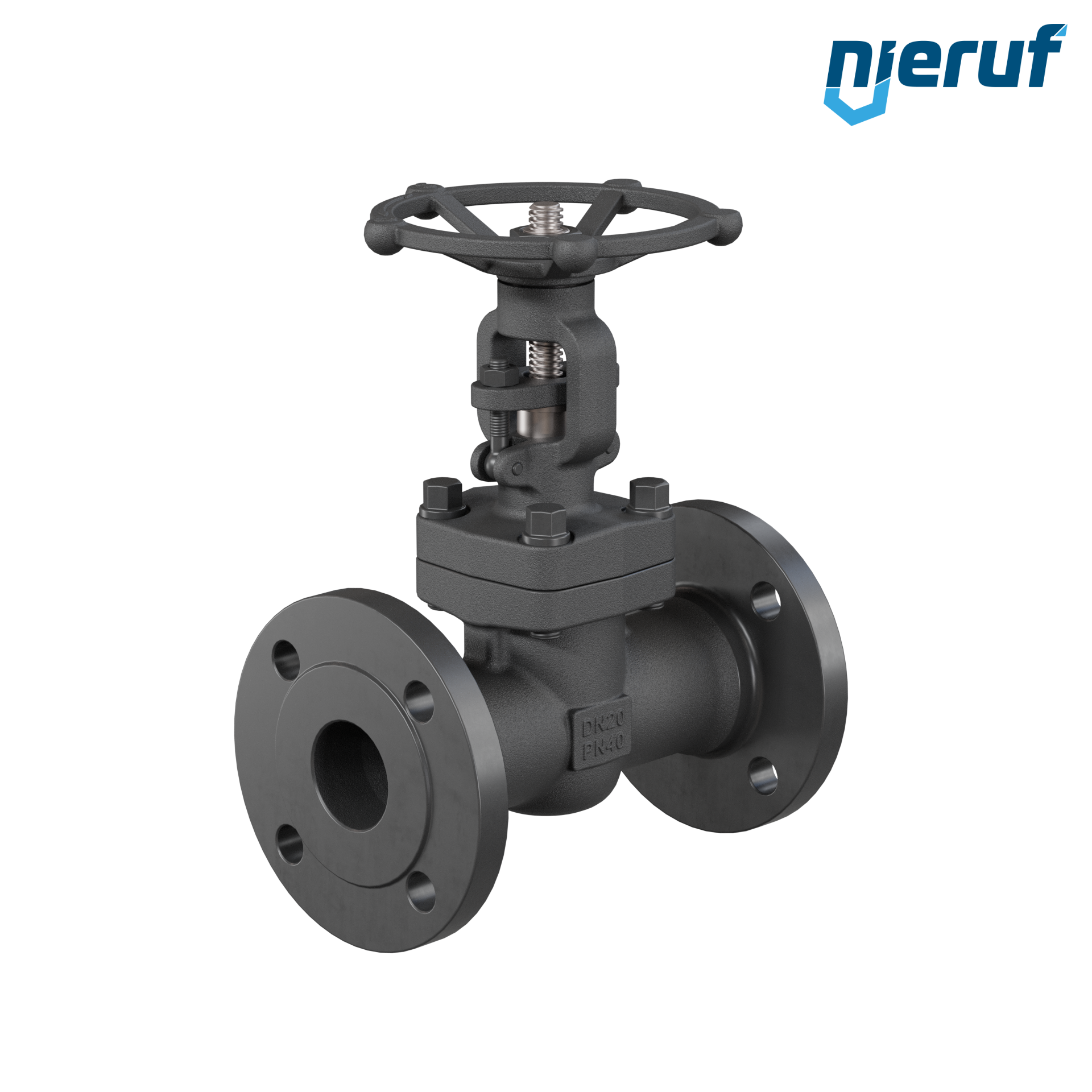

small gate valve AS01 in straightway form DN50 PN40 with flange according to DIN EN 1092, material cast steel 1.0619+N
| Product | small gate valve |
|---|---|
| Type | AS01 |
| Manufacturer | NieRuf |
| Nominal Size | DN50 |
| Flange | flange to DIN EN 1092 |
| Pressure Rating | PN40 |
| Sealing | metal |
| Media | liquid and gaseous media |
| Temperature | -10°C to +400°C - depending on operating pressure |
| Pressure Range | 0 to 40 bar - depending on temperature |
| Design | straightway form |
| Body Material | cast steel 1.0619+N |
| Bonnet Material | steel 1.0460 |
| Handwheel | ductile iron 0.7040 |
| Wedge | stainless steel AISI 410 / AISI 410 |
| Face-to-face Length | to DIN EN 558 series 26 |
| Testing | final inspection according to DIN EN 12266 |
| Approval | TA-Luft 2021, ATEX 2014/34/EU |
| Installation Position | any, stem preferably upright |
| Standard | DIN EN 1984: 2110-10 |
| Product Feature | small gate valve in straightway form with flange connection and rising stem, with non-rising handwheel. with TA-Luft 2021 and ATEX 2014/34/EU approval. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
small gate valve made of cast steel 1.0619+N AS01 DN50 PN40
Article no.
: AS01300008
Product:
small gate valve
Type:
AS01
Manufacturer:
NieRuf
Nominal Size:
DN50
Flange:
flange to DIN EN 1092
Pressure Rating:
PN40
Sealing:
metal
Media:
liquid and gaseous media
Temperature:
-10°C to +400°C - depending on operating pressure
Pressure Range:
0 to 40 bar - depending on temperature
Design:
straightway form
Body Material:
cast steel 1.0619+N
Bonnet Material:
steel 1.0460
Handwheel:
ductile iron 0.7040
Wedge:
stainless steel AISI 410 / AISI 410
Face-to-face Length:
to DIN EN 558 series 26
Testing:
final inspection according to DIN EN 12266
Approval:
TA-Luft 2021, ATEX 2014/34/EU
Installation Position:
any, stem preferably upright
Standard:
DIN EN 1984: 2110-10
Product Feature:
small gate valve in straightway form with flange connection and rising stem, with non-rising handwheel. with TA-Luft 2021 and ATEX 2014/34/EU approval.
