SV19000303

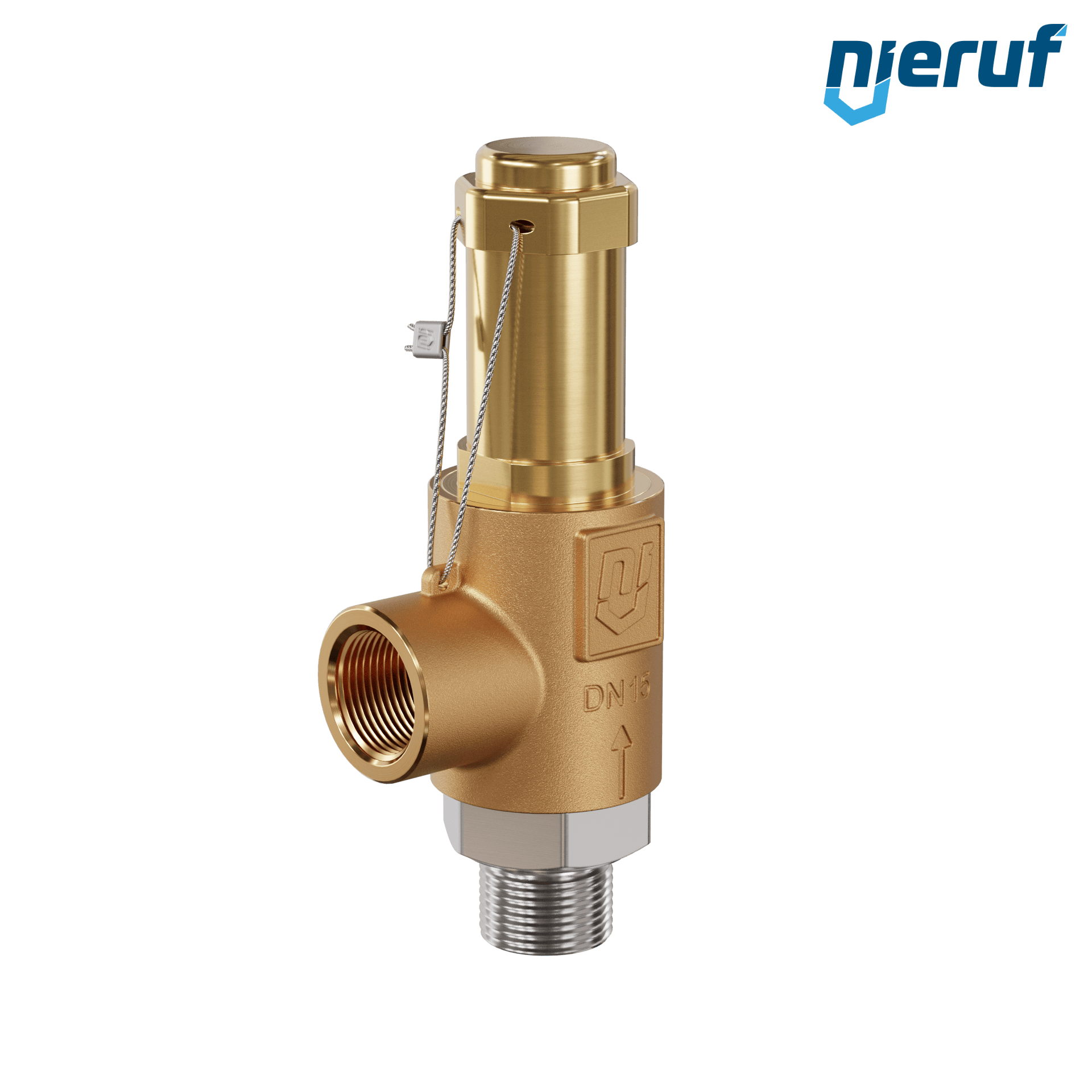

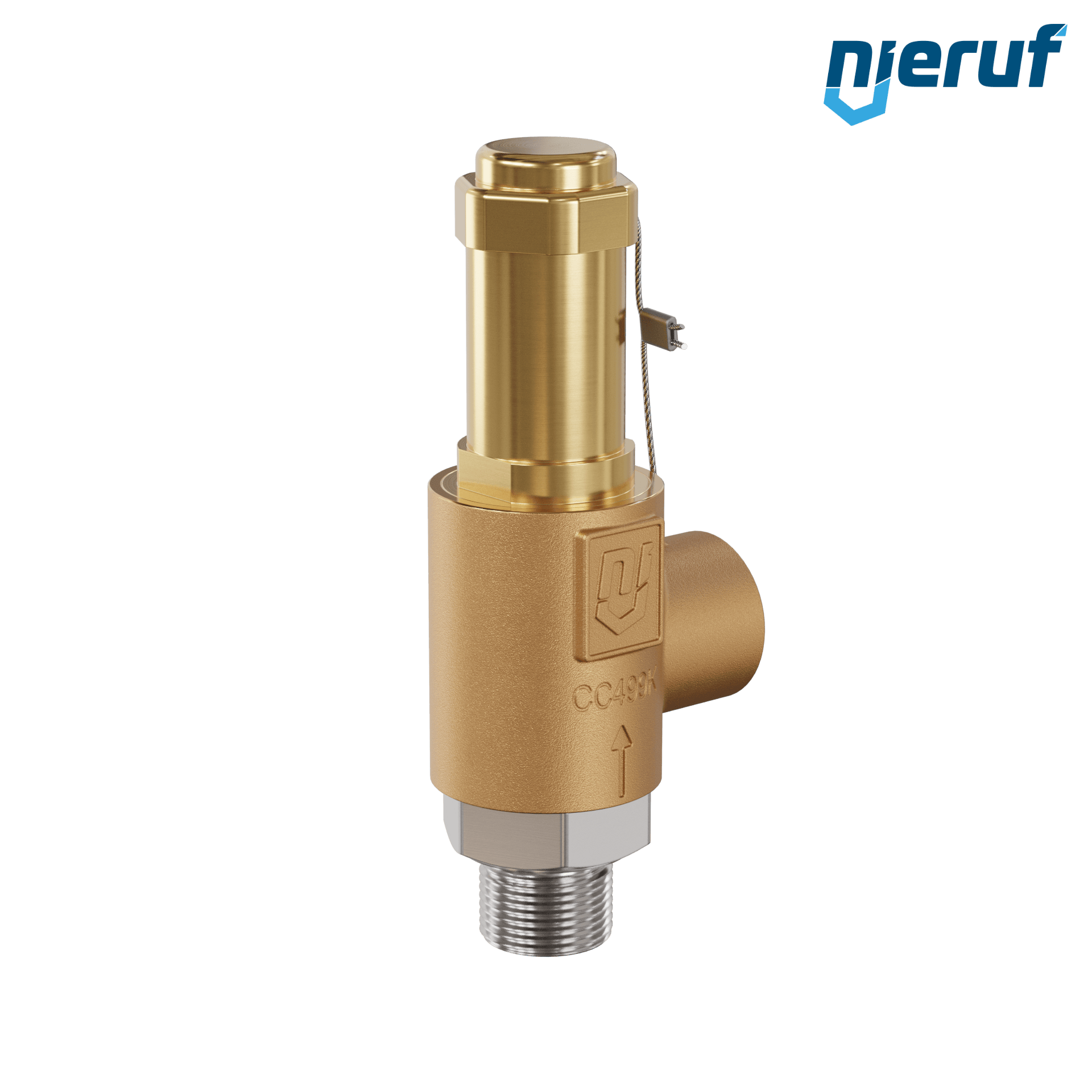

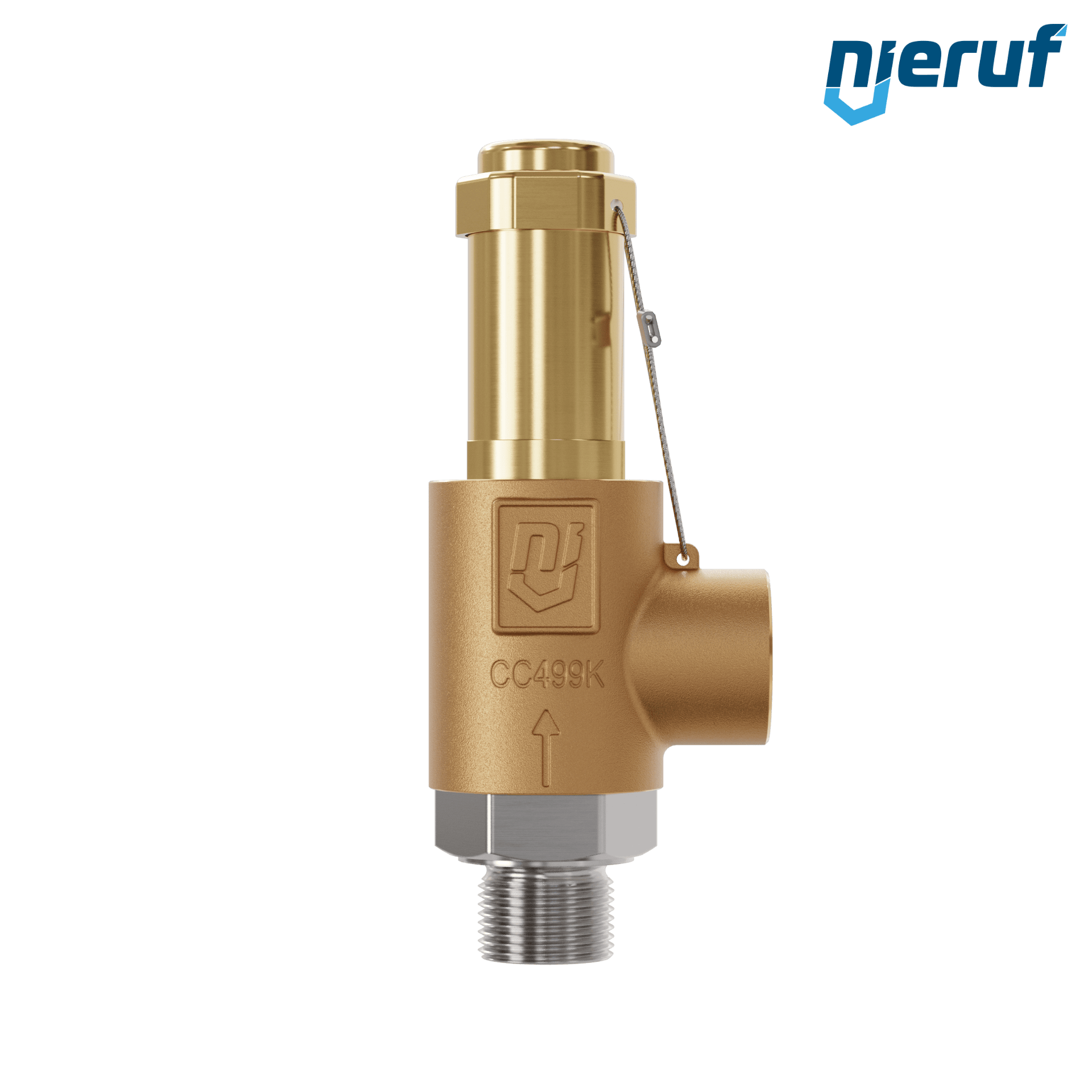

safety valve gunmetal SV19 DN15 1/2 m x 1/2 fm gastight without lifting device PTFE
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you
safety valve gunmetal SV19 DN15 1/2 m x 1/2 fm gastight without lifting device PTFE
safety valve made of gunmetal without lifting device DN15 1/2 m x 1/2 fm SV19 gastight cup for liquid and gaseous media, seal PTFE, set pressure 0,5 - 50,0 bar
| product | safety valve |
|---|---|
| type | SV19 |
| manufacturer | NieRuf |
| diameter | DN15 1/2 x 1/2" |
| d0 | 10,0 mm |
| connection | male screw threaded BSP-P / outlet female screw threaded BSP-P |
| seal | PTFE |
| media | liquid and gaseous media |
| temperature | -60°C up to +225°C |
| set pressure | 0,5 - 50,0 bar |
| design | angle-type & gastight cap |
| material | stainless steel 1.4404 / 316 L & gunmetal CC499K |
| lifting | without lifting device |
| type test approval | TUV-SV-2061-D/G/F |
| requirements | acc. DIN ISO 4126-1, DGR 2014/68/EU, VdTÜV-leaflet AD2000-A2 |
| installation position | vertical, spindle standing upwards |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | Full-lift safety valve as D/G valve | Normal-lift safety valve as F valve |
| product feature 2 | gastight cap, the environment is protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve gunmetal SV19 DN15 1/2 m x 1/2 fm gastight without lifting device PTFE
Article no.
: SV19000303
product:
safety valve
type:
SV19
manufacturer:
NieRuf
diameter:
DN15 1/2 x 1/2"
d0:
10,0 mm
connection:
male screw threaded BSP-P / outlet female screw threaded BSP-P
seal:
PTFE
media:
liquid and gaseous media
temperature:
-60°C up to +225°C
set pressure:
0,5 - 50,0 bar
design:
angle-type & gastight cap
material:
stainless steel 1.4404 / 316 L & gunmetal CC499K
lifting:
without lifting device
type test approval:
TUV-SV-2061-D/G/F
requirements:
acc. DIN ISO 4126-1, DGR 2014/68/EU, VdTÜV-leaflet AD2000-A2
installation position:
vertical, spindle standing upwards
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
Full-lift safety valve as D/G valve | Normal-lift safety valve as F valve
product feature 2:
gastight cap, the environment is protected from being affected by the medium.
