SF06120004

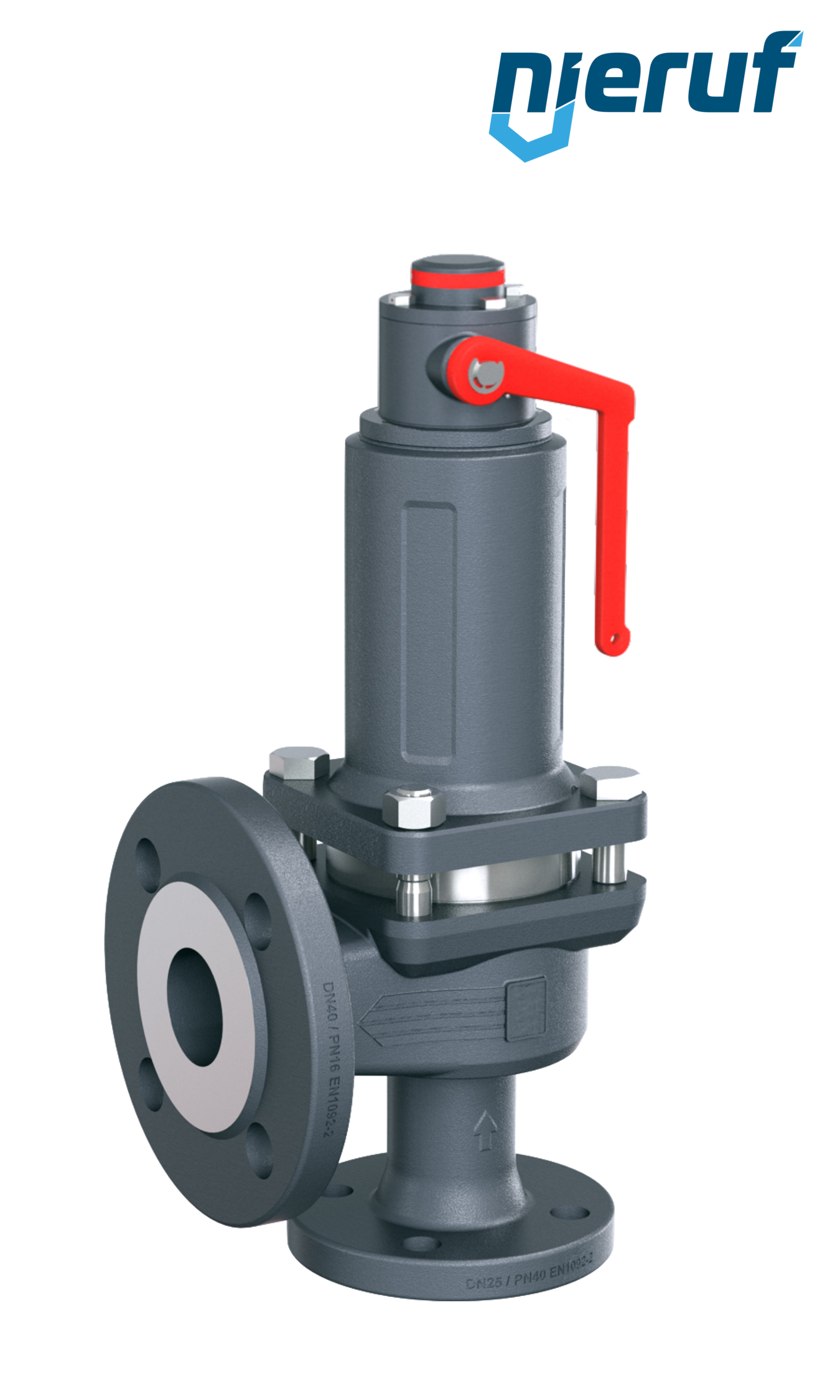

flange-safety valve DN20/DN32 SF06, gastight bonnet & stainless steel bonnet metal, with lifting device lever
- Lead time
- 3 - 5 working days
Equipment
joint set flange/flange DN20 - 3/4" Inch for flange PN10/16/25/40 steel
€4.28 VAT included.
Flange DN32 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€17.85 VAT included.
Flange DN20 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€14.40 VAT included.
flange seal DN32 PN10/16/25/40 43x82x2 Klingersil C 4400
€5.24 VAT included.
flange seal DN20 PN10/16/25/40 27x61x2 Klingersil C 4400
€2.14 VAT included.
joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 steel
€7.62 VAT included.
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you
flange-safety valve DN20/DN32 SF06, gastight bonnet & stainless steel bonnet metal, with lifting device lever
flange-safety valve gastight DN20/DN32 SF06 for liquid and gaseous media made of Spheriodal graphite cast iron 5.1303 seal metal set pressure 0,4 - 40,0 bar with lifting device lever with bellow
| product | flange-safety valve |
|---|---|
| type | SF06 |
| manufacturer | NieRuf |
| diameter | DN20/DN32 |
| d0 | 18,0 mm |
| connection | flange acc. to DIN EN 1092-1 inlet PN40 / outlet PN16 |
| seal | metal |
| media | liquid and gaseous media |
| temperature | -10°C up to +350°C |
| set pressure | 0,4 - 40,0 bar |
| design | gastight bonnet & stainless steel bonnet |
| material | spheriodal graphite cast iron 5.1303 / Gr. 60-40-18 |
| lifting | with lifting device lever |
| type test approval | TUV-SV-2094-D/G/F |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | vertical, spindle standing upwards |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | full lift as D/G | normal lift as valve for liuids |
| product feature 2 | for neutral and non-neutral media and /or counter-pressure. Spring, moving parts and the environment are protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange-safety valve DN20/DN32 SF06, gastight bonnet & stainless steel bonnet metal, with lifting device lever
Article no.
: SF06120004
product:
flange-safety valve
type:
SF06
manufacturer:
NieRuf
diameter:
DN20/DN32
d0:
18,0 mm
connection:
flange acc. to DIN EN 1092-1 inlet PN40 / outlet PN16
seal:
metal
media:
liquid and gaseous media
temperature:
-10°C up to +350°C
set pressure:
0,4 - 40,0 bar
design:
gastight bonnet & stainless steel bonnet
material:
spheriodal graphite cast iron 5.1303 / Gr. 60-40-18
lifting:
with lifting device lever
type test approval:
TUV-SV-2094-D/G/F
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
vertical, spindle standing upwards
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
full lift as D/G | normal lift as valve for liuids
product feature 2:
for neutral and non-neutral media and /or counter-pressure. Spring, moving parts and the environment are protected from being affected by the medium.
Equipment
flange seal DN20 PN10/16/25/40 27x61x2 Klingersil C 4400
Lead time: in stock
flange seal DN32 PN10/16/25/40 43x82x2 Klingersil C 4400
Lead time: in stock
joint set flange/flange DN20 - 3/4" Inch for flange PN10/16/25/40 steel
Lead time: 3 - 5 working days
joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 steel
Lead time: 3 - 5 working days
