SV06110304
safety valve 3/4" m x 1 1/4" fm SV06 liquid media, stainless steel PTFE, with lever
- Lead time
- 3 - 5 working days
Equipment
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you

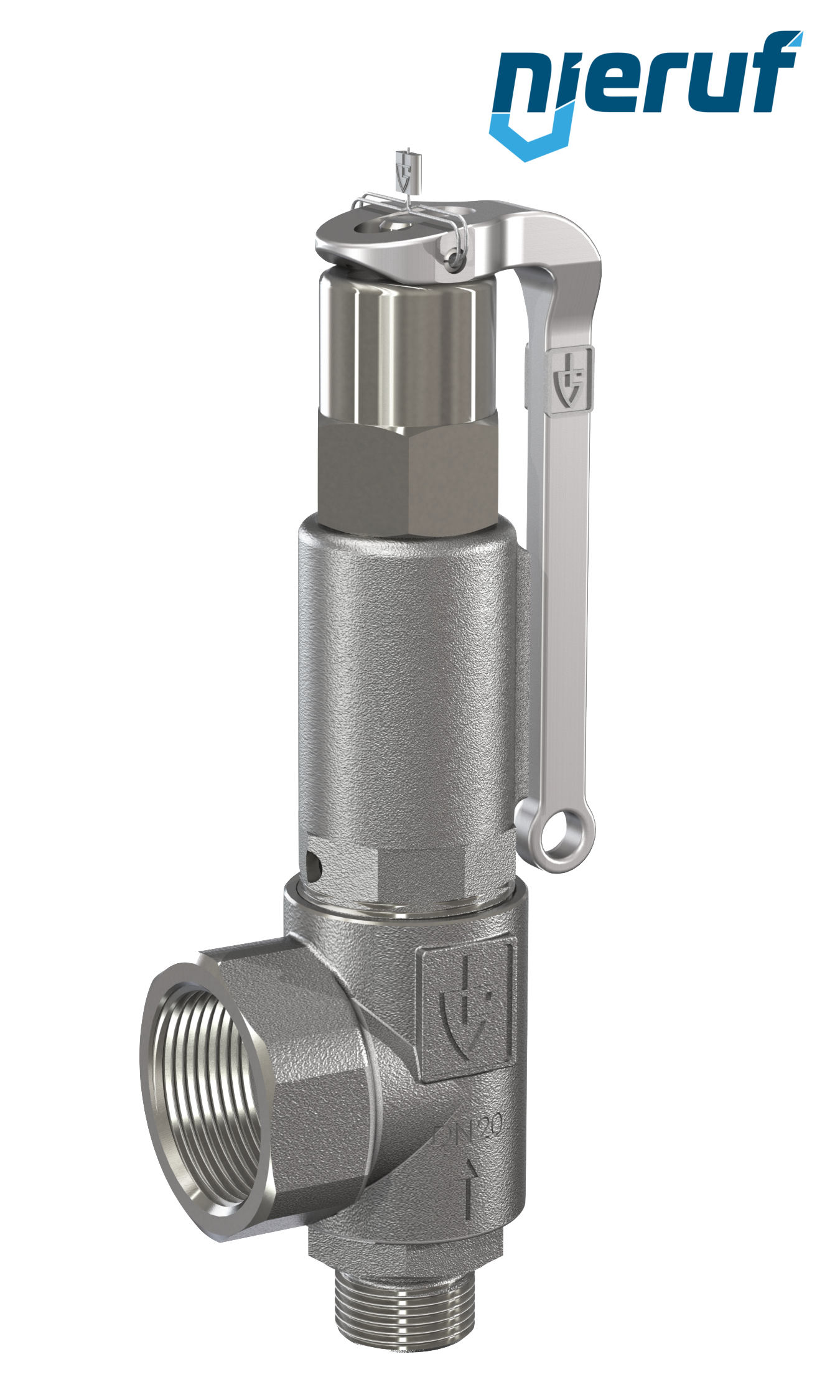

safety valve 3/4" m x 1 1/4" fm SV06 liquid media, stainless steel PTFE, with lever
stainless steel-safety valve 3/4" m x 1 1/4" fm PTFE Typ SV06 with male screw threaded BSP-P for liquid media with with lever and with bellows
| product | safety valve |
|---|---|
| type | SV06 |
| manufacturer | NieRuf |
| diameter | 3/4" m x 1 1/4" fm |
| d0 | 18,0 mm |
| connection | male screw threaded BSP-P |
| seal | PTFE |
| media | liquid media |
| temperature | -60°C up to +225°C |
| set pressure | 0,5 - 70,0 bar |
| design | angle-type |
| material | stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M |
| lifting | with lever |
| type test approval | TUV = F / EG = L |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | with bellows |
| product feature 2 | for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 3/4" m x 1 1/4" fm SV06 liquid media, stainless steel PTFE, with lever
Article no.
: SV06110304
product:
safety valve
type:
SV06
manufacturer:
NieRuf
diameter:
3/4" m x 1 1/4" fm
d0:
18,0 mm
connection:
male screw threaded BSP-P
seal:
PTFE
media:
liquid media
temperature:
-60°C up to +225°C
set pressure:
0,5 - 70,0 bar
design:
angle-type
material:
stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M
lifting:
with lever
type test approval:
TUV = F / EG = L
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
with bellows
product feature 2:
for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium.
